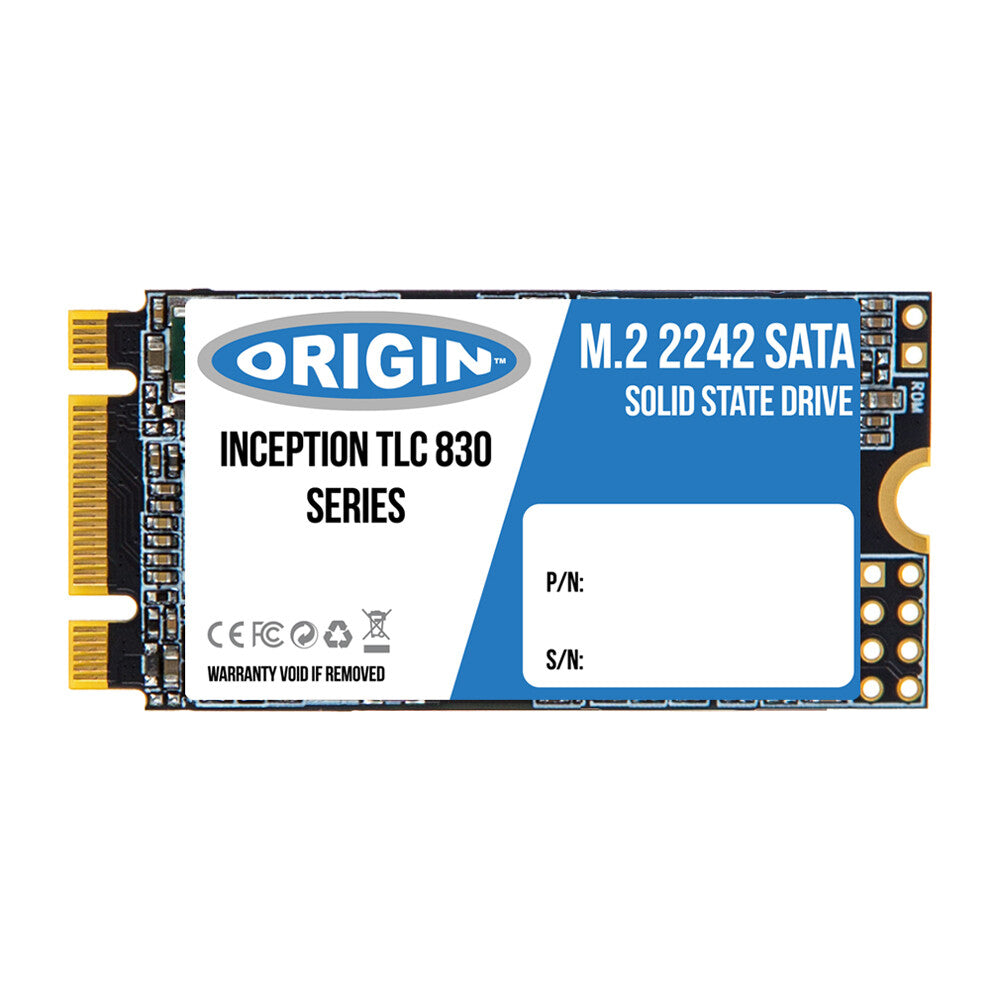

Origin Storage 256GB MLC NGFF SSD M.2 SATA 3 42mm
£42.99
Couldn't load pickup availability
- Read Intensive, Mobile/Desktop Based, Professional Solutions
- Does not invalidate OEM warranty
- 100% compatible replacement/upgrade for storage solutions
- Pre- & Post-Sale UK Based Tech Support
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5", 3.5" & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
| Features | |
|---|---|
| Backlight | No |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mean time between failures (MTBF) | 100000000 h |
| Hot-swap | No |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Seek time | 0 ms |
| Access time | 0.2 ms |
| Random write (4KB) | 67000 IOPS |
| Random read (4KB) | 69000 IOPS |
| Write speed | 850 MB/s |
| Read speed | 1600 MB/s |
| Data transfer rate | 6 Gbit/s |
| Target workload | Mixed Use (MU) |
| Hardware encryption | No |
| Component for | PC/Laptop |
| Memory type | MLC |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | M.2 |
| SSD capacity | 256 GB |
| Power | |
|---|---|
| Power consumption (idle) | 0.52 W |
| Average power consumption (read) | 2.8 W |
| Average power consumption (write) | 4.26 W |
| Power consumption (average) | 3.53 W |
| Power consumption (max) | 4.26 W |
| Power consumption (write) | 4.26 W |
| Power consumption (read) | 2.8 W |
| Operating voltage | 3.3 V |
| Weight & dimensions | |
|---|---|
| Weight | 7 g |
| Height | 3.1 mm |
| Depth | 42 mm |
| Width | 22 mm |
| Packaging data | |
|---|---|
| Package type | Blister |
| Storage drive adapter included | No |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Operating vibration | 16 G |
| Operating relative humidity (H-H) | 5 - 98% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
| Internal | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
