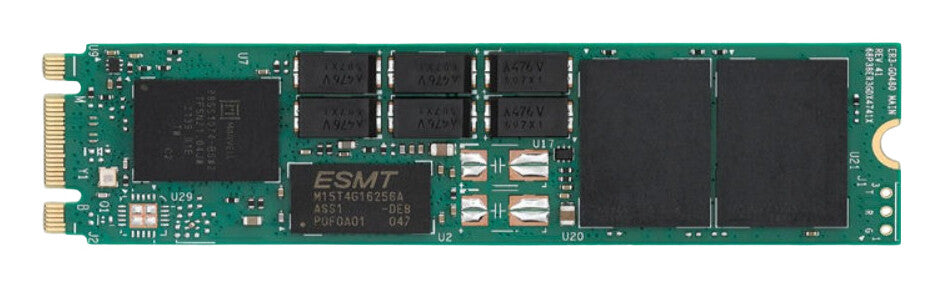

Lenovo 4XB7A90230 internal solid state drive 960 GB M.2 Serial ATA III 3D TLC NAND
£1,512.99
Couldn't load pickup availability
- 960 GB M.2 Serial ATA III
- 90000 IOPS
- 15000 IOPS
- 3D TLC NAND
- Hardware encryption
- S.M.A.R.T. support
- Component for: Server
The ThinkSystem ER3 Read Intensive SATA 6Gb SSDs, in capacities up to 960GB, are 6Gb SATA drives, available in 2.5-inch and M.2 form factors. They are suitable for general data storage functions and operating system boot purposes on ThinkSystem servers.
This product guide provides essential presales information to understand the ER3 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ER3 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | CEULBSMIRoHS |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 1 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| End-to-End Data Protection | Yes |
| Self-Encrypting Drive (SED) | Yes |
| Hot-swap | No |
| H/W PLP function | Yes |
| S.M.A.R.T. support | Yes |
| Random latency - write (up to) | 70 µs |
| Random latency - read (up to) | 120 µs |
| Random write (4KB) | 15000 IOPS |
| Random read (4KB) | 90000 IOPS |
| Data transfer rate | 6 Gbit/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Hardware encryption | Yes |
| Component for | Server |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD form factor | M.2 |
| SSD capacity | 960 GB |
| Power | |
|---|---|
| Power consumption (write) | 3.8 W |
| Power consumption (read) | 3.5 W |
| Weight & dimensions | |
|---|---|
| Weight | 10 g |
| Height | 3.65 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1500 G |
| Non-operating vibration | 3.13 G |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
