Lenovo 4XB7A82636 internal solid state drive 480 GB M.2 PCI Express 4.0 NVMe 3D TLC NAND
Couldn't load pickup availability
- 480 GB M.2 PCI Express 4.0
- 280000 IOPS
- 40000 IOPS
- 3D TLC NAND NVMe
- Hardware encryption
- S.M.A.R.T. support ECC
- Component for: Server/workstation

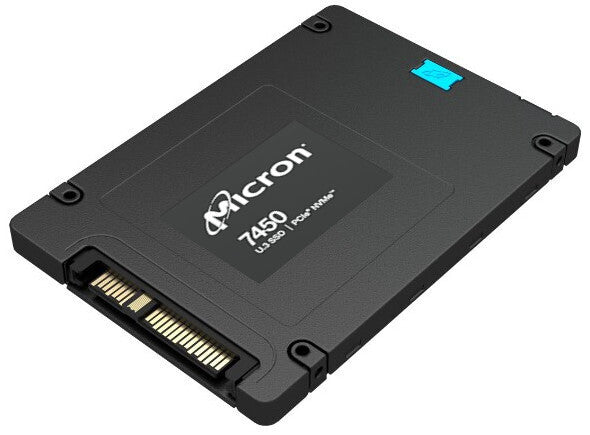

The ThinkSystem 7450 PRO Read Intensive NVMe SSDs are general-purpose yet high-performance family of NVMe solid-state drives. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the ThinkSystem 7450 PRO Read Intensive NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 7450 PRO SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS |
| Mean time between failures (MTBF) | 2000000 h |
| Hot-swap | Yes |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| Write latency | 30 µs |
| Read latency | 80 µs |
| Random write (4KB) | 40000 IOPS |
| Random read (4KB) | 280000 IOPS |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| SSD capacity | 480 GB |
| Power | |
|---|---|
| Power consumption (write) | 4.5 W |
| Power consumption (read) | 7 W |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 3050 m |
| Operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
