EMBRACE THE DARKNESS

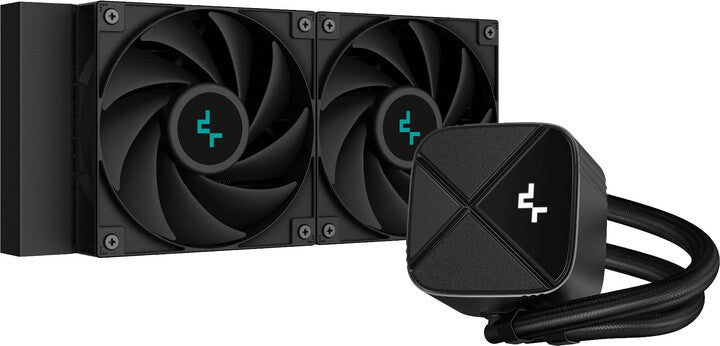

There is something about premium systems with little to no lighting. The LS520S ZERO DARK is the perfect liquid solution for cooling higher end processors that emphasizes the actual components. RGB need not apply

BUILT STRONG!
Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large pump cover is rotatable, and easy to adjust.

HIGHLY EFFICIENT FANS
Optimized PWM fans are included with the LS520S ZERO DARK and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydro bearing. The LS520S ZERO DARK will include three of these specialized PWM fans.

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS520S ZERO DARK to the latest mainstream CPUs is included in the box, so you are ready to go.

Technical Spec

Net Weight
1346 g

Radiator Dimensions
282 x 120 x 27 mm(L x W x H)

Radiator Material
Aluminum

Tube length
410 mm

Pump Dimensions
85 x 73 x 55 mm(L x W x H)

Pump Speed
3100 RPM±10%

Pump Noise
19 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.5A

Pump Power Consumption
6W

Fan Dimensions
120 x 120 x 25 mm(L x W x H)

Fan Speed
500~2250 RPM±10%

Fan Airflow
85.85 CFM

Fan Air Pressure
3.27 mmAq

Fan Noise
=32.9 dB(A)

Fan Speed (with LSP)
500~1600 RPM±10%

Fan Airflow (with LSP)
60.85 CFM

Fan Air Pressure (with LSP)
1.65 mmAq

Fan Noise (with LSP)
=28.2 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.25 A

Fan Power Consumption
3.0 W

LED Type
White LED

EAN
6933412728429

P/N
R-LS520-BKNNMM-G-1

Performance
Quantity per pack	1 pc(s)
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Pump noise level	19 dB
Pulse-width modulation (PWM) support	Yes
Fan 2 maximum air pressure	3.27 mmH2O
Fan 2 maximum airflow	85.85 cfm
Fan 2 noise level (high speed)	32.9 dB
Fan 2 rotational speed (max)	2250 RPM
Fan 2 rotational speed (min)	500 RPM
Fan diameter 2	12 cm
Maximum air pressure	3.27 mmH2O
Maximum airflow	85.85 cfm
Noise level (high speed)	32.9 dB
Rotational speed (max)	2250 RPM
Rotational speed (min)	500 RPM
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), Socket AM4, Socket AM5, Socket TR4, Socket sTRX4
Fan diameter	12 cm
Type	All-in-one liquid cooler
Suitable location	Processor

Design
Fan connector	4-pin
Illumination colour	Multi
LED connector type	3-pin
Illumination LED	Yes
Number of fans	2 fan(s)
Radiator material	Aluminum
Product colour	Black

Power
LED power consumption (fan)	3.6 W
Pump voltage	12 V
LED power consumption (pump)	2.2 W
LED voltage	5 V
Fan voltage	12 V
Fan current	0.29 A
Pump current	470 mA
Pump power consumption	5.64 W
Fan power consumption	3.48 W

Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	1.08 kg
Pump height	5.7 cm
Pump depth	7.4 cm
Pump width	8.6 cm
Tube length	41 cm
Radiator height	2.7 cm
Radiator depth	28.2 cm
Radiator width	12 cm

Other features
Country of origin	China
