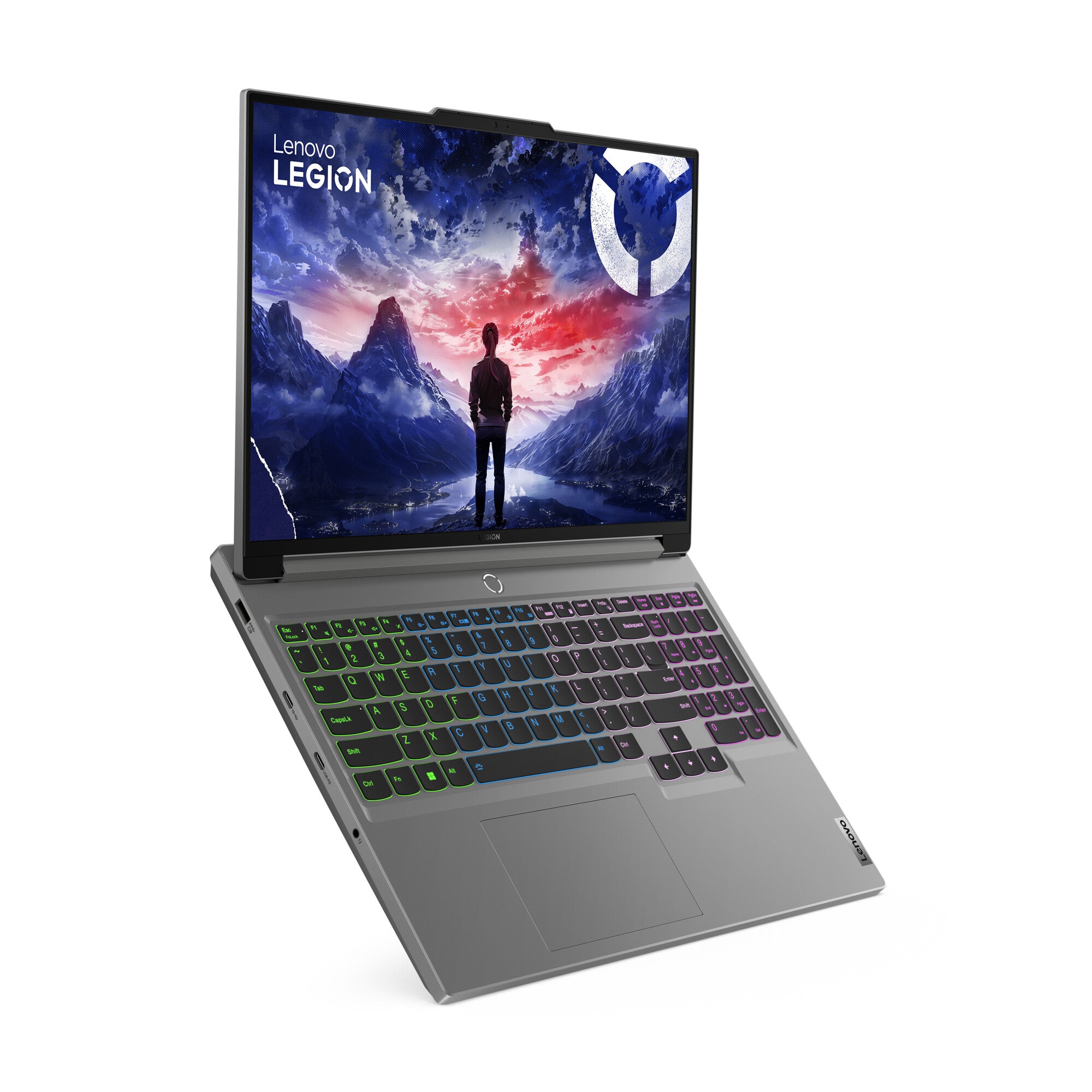

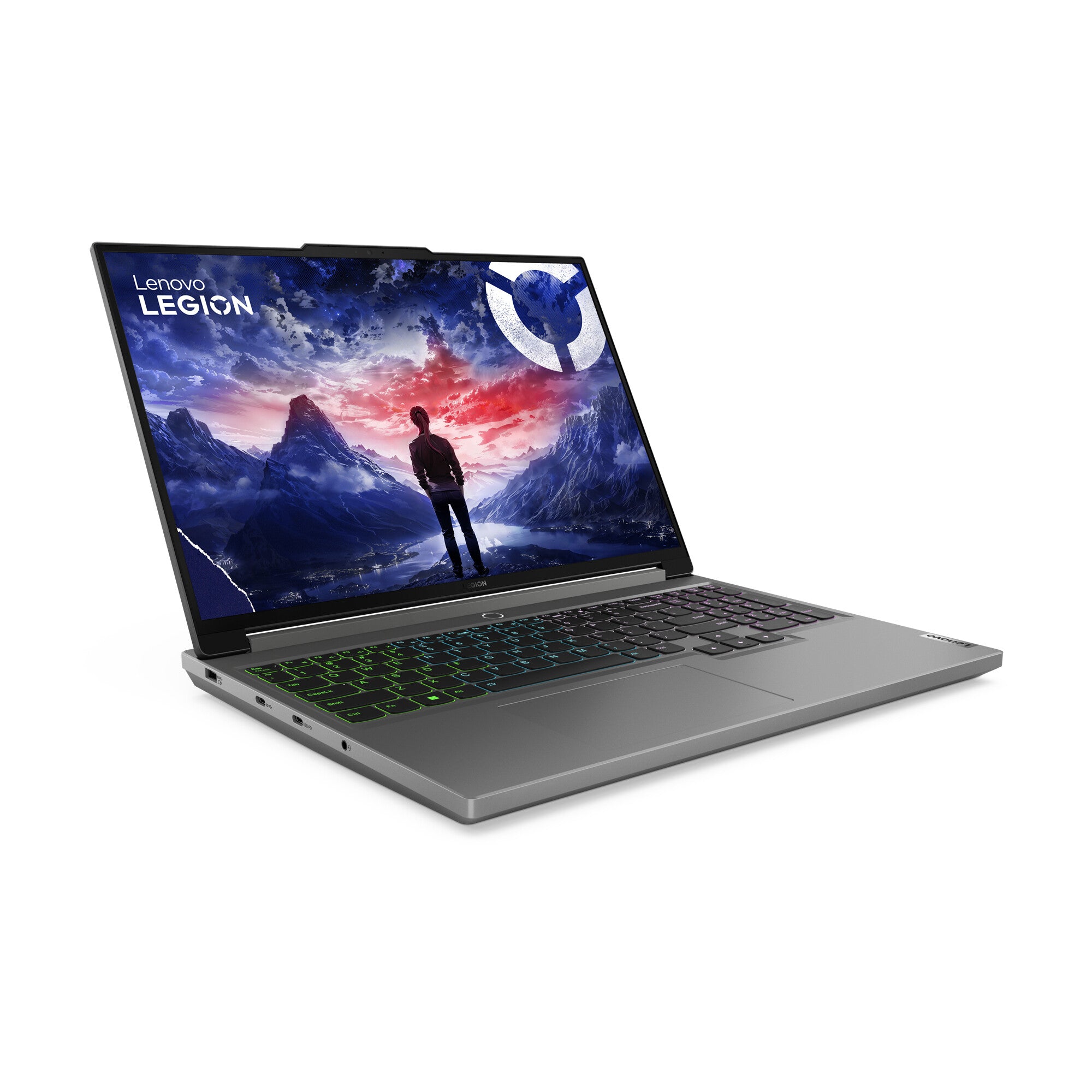

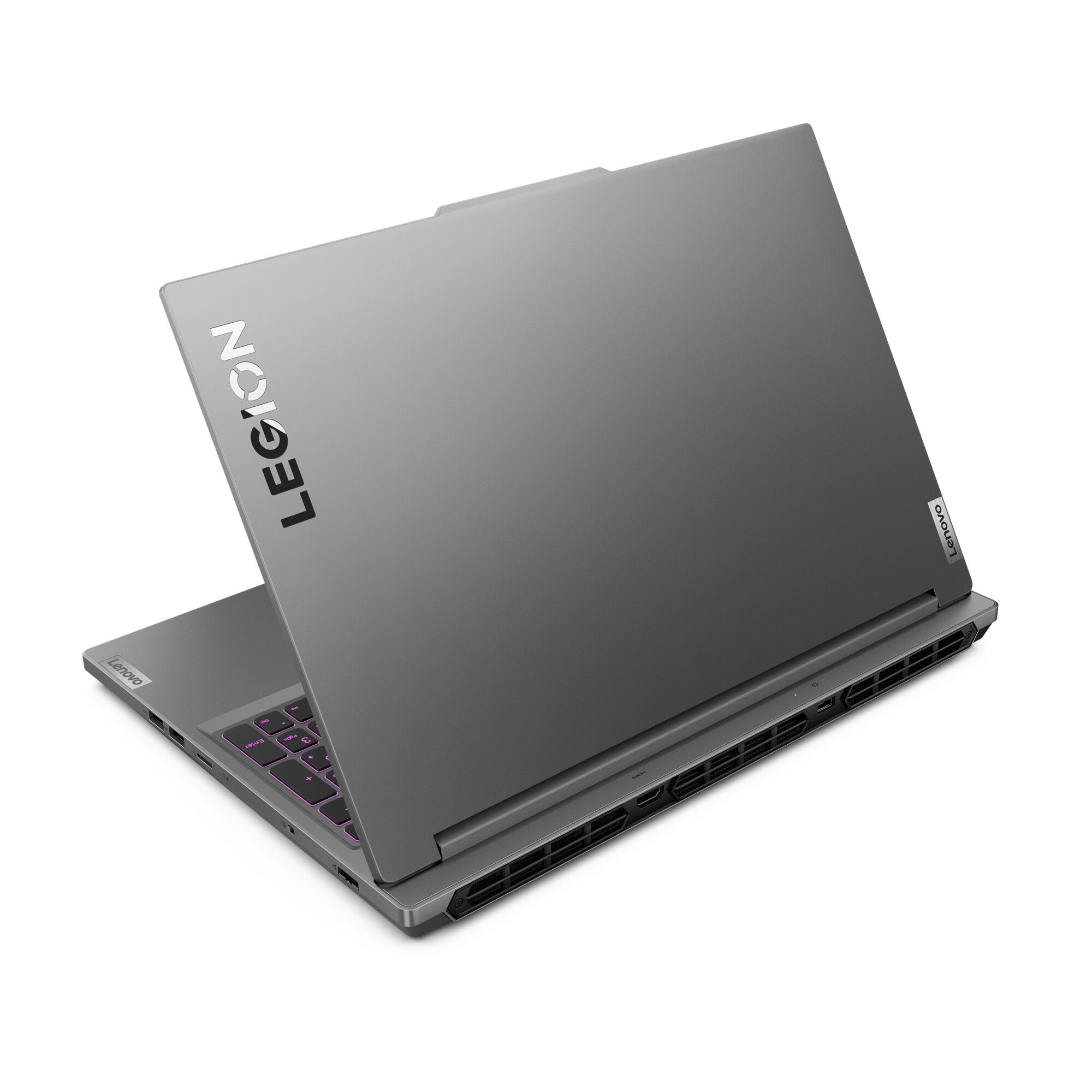

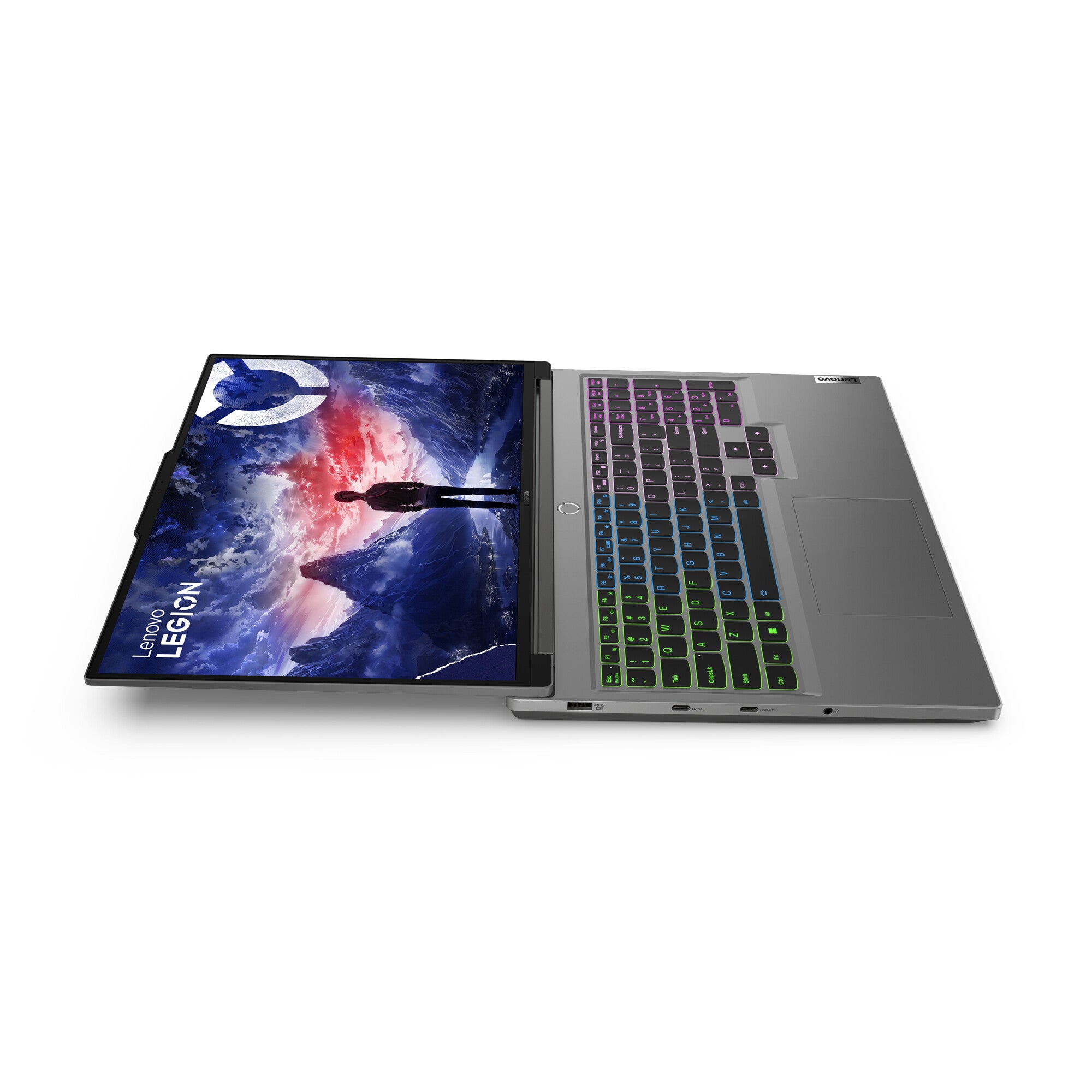

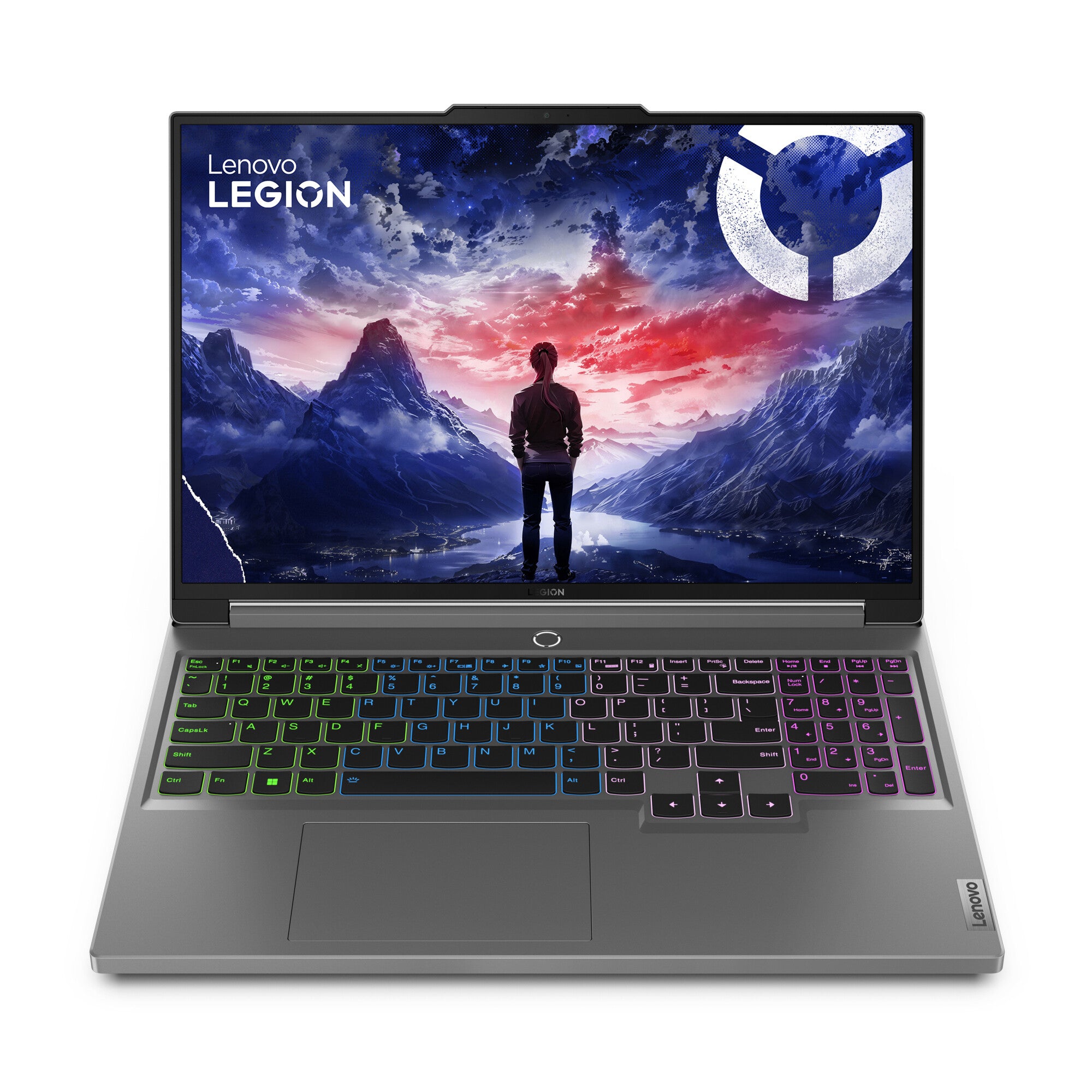

Lenovo Legion 5 16IRX9 Intel® Core™ i7 i7-14650HX Laptop 40.6 cm (16") WQXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Home English Grey
£1,522.99
Couldn't load pickup availability
- Intel Core i7-14650HX, 16C (8P + 8E)/24T, P-core 2.2/5.2GHz, E-core 1.6/3.7GHz, 30MB
- 16" WQXGA (2560x1600) IPS 350nits 100% sRGB 165Hz Dolby Vision G-SYNC Low Blue Light
- 2x 8GB SO-DIMM DDR5-5600
- 1TB SSD M.2 2280 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 4060 8GB , Boost Clock 2370MHz, TGP 140W, 233 AI TOPS
- Windows 11 Home
Elevate your game
- Powered by Intel® Core™ processors
- Turbocharged gaming with Lenovo AI Engine+ with LA1 AI chip
- Lenovo Legion ColdFront Hyper technology keeps your system cool
- Legion TrueStrike keyboard for extended gaming sessions
- Immersive gameplay on PureSight Gaming display with rapid refresh rate
| Design | |
|---|---|
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
| Colour name | Luna Grey |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 350 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:10 |
| LED backlight | Yes |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Processor | |
|---|---|
| Processor base power | 55 W |
| Maximum turbo power | 157 W |
| Processor cache type | Smart Cache |
| Processor cache | 30 MB |
| Efficient-core base frequency | 1.6 GHz |
| Performance-core base frequency | 2.2 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient cores | 8 |
| Performance cores | 8 |
| Processor boost frequency | 5.2 GHz |
| Processor threads | 24 |
| Processor cores | 16 |
| Processor model | i7-14650HX |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio chip | Realtek ALC3287 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Not installed |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |

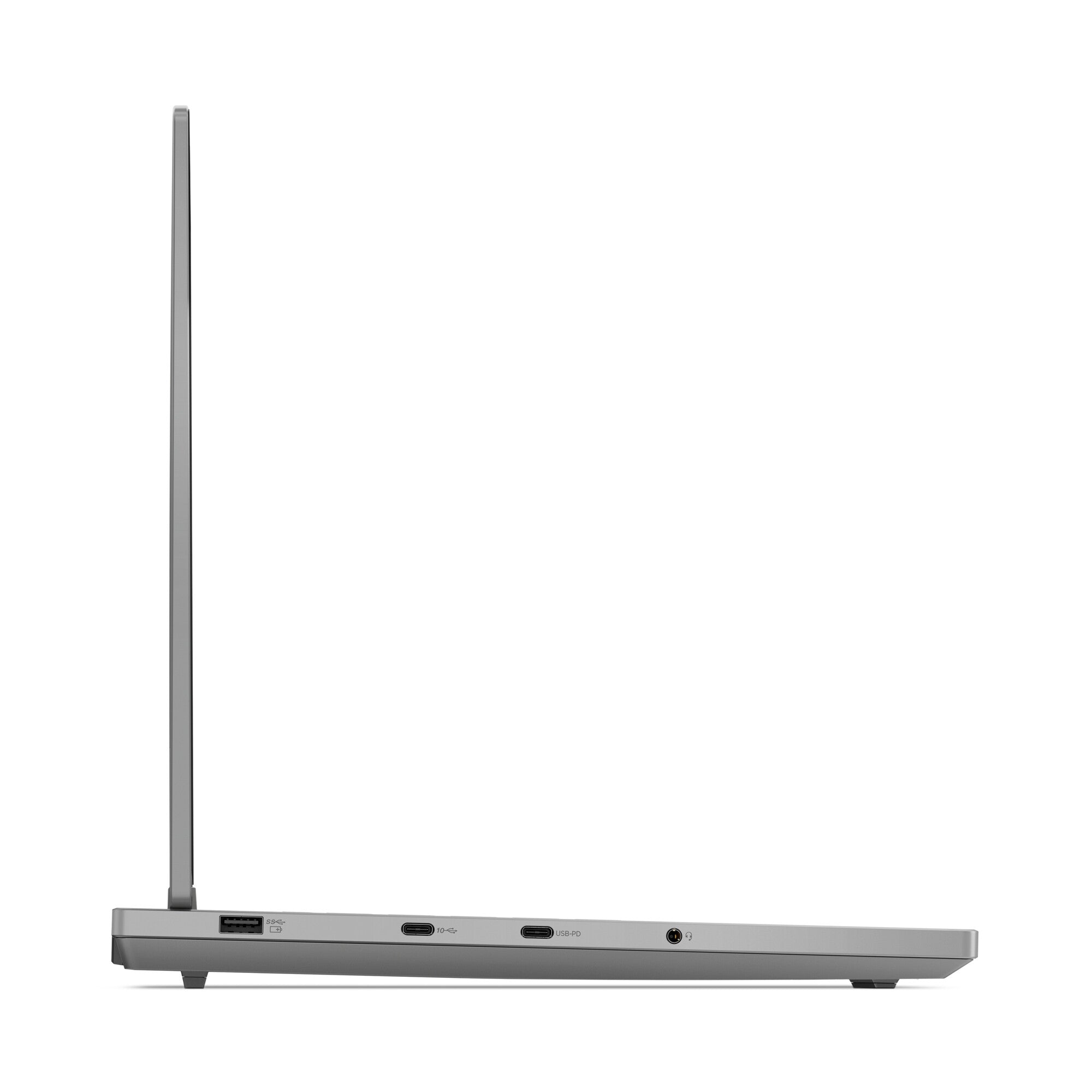

| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
|---|---|
| Motherboard chipset | Intel HM770 |

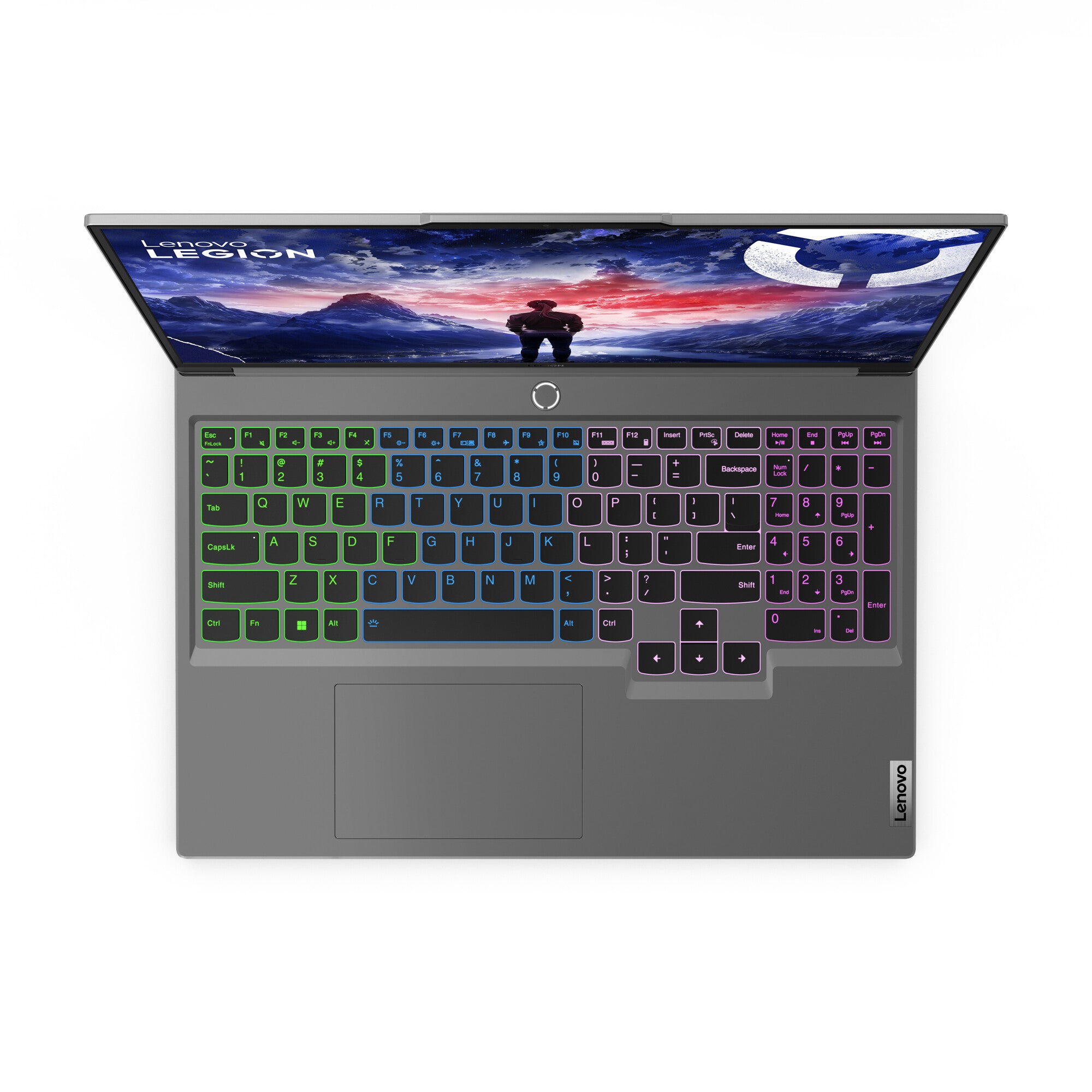

| Keyboard | |
|---|---|
| Keyboard backlit zone | 4-zone RGB |
| Keyboard backlit colour | RGB |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | Office |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery | |
|---|---|
| Battery capacity | 80 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 230 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | No |
| Operational conditions | |
|---|---|
| Maximum shipping altitude | 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.52 cm |
| Height (front) | 1.97 cm |
| Depth | 262.3 mm |
| Width | 359.7 mm |
| Weight | 2.3 kg |
| General | |
|---|---|
| Product family | Legion |
| Product series | 5 |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Mouse included | Yes |
