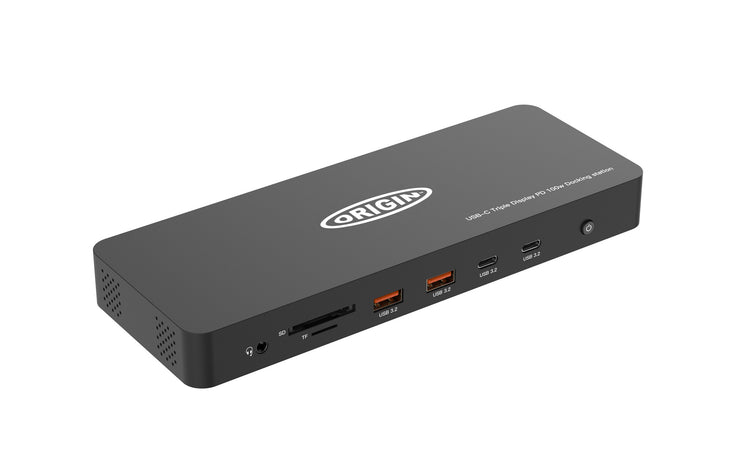

Origin Storage PRO Docking Station USB-C Triple Display PD100W
£119.99
Couldn't load pickup availability
- UHD video resolutions up to 4K@60Hz for a single display on HDMI connection or DisplayPort connection
- Dual-video output with resolutions up to 4K@60Hz or triple-video output with resolutions up to 4K@30Hz
- Power Delivery function up to 100W with PD 3.0 standard
- Self-contained 130W(20V 6.5A) DC power supply
- 4x USB 3.2 port and 2x USB-C 3.2 up to 10Gbps data transmission with 5V 0.9A power supply capacity
- 10/100/1000Mbps for Gigabit (1000M) Ethernet port
- SD and TF card data transfer rates up to 104MB/s, SD3.0/TF3.0 standard
- 3.5mm mic in and stereo audio output
- Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports
- Plug and play with no driver or software installation required
The Origin Storage PRO Docking Station allows you to harness the video capabilities built into your USB 3.1 Type-C connection to deliver the astonishing quality of Ultra HD to your 4K display. It is also backwards compatible with 1080p displays.
This USB 3.1 Type-C video docking station is highly portable with lightweight design, making it the perfect accessory that fits easily into your laptop bag.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 Mbit/s |
| Performance | |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Data transfer rate | 10 Gbit/s |
| Number of displays supported | 3 |
| On/off switch | Yes |

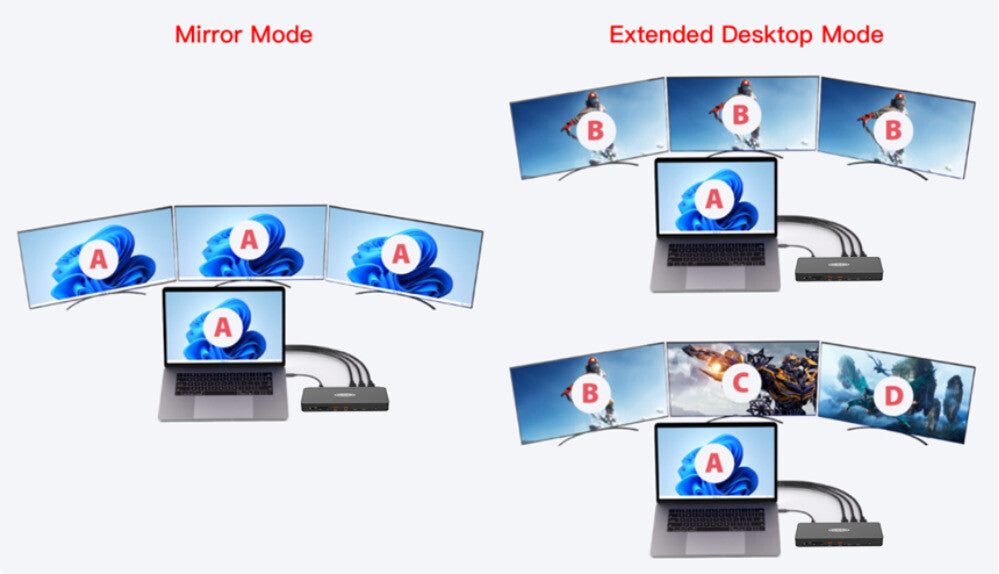

| Display modes | Duplicate, Extended |
| Housing material | Metal, Acrylonitrile butadiene styrene (ABS) |
| Plug and Play | Yes |
| Country of origin | China |
| Certification | FCC, CE, RoHS |
| Power | |
|---|---|
| Power source type | DC |
| AC input voltage | 20 V |
| Power supply | 130 W |
| Input current | 6.5 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 210 mm |
| Depth | 80 mm |
| Height | 25.5 mm |
| Weight | 264 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | USB Type-C to HDMI, USB Type-C to DisplayPort, Power, USB Type-C to USB Type-C |
| Technical details | |
|---|---|
| Warranty period | 1 year(s) |
