£107.99

Stock Available: 92
  • Up to Triple 1080p for Windows.
  • Free Kensington DockWorks™ software.**
  • 2-year limited warranty.
  • Supports Thunderbolt™ 4 & 5, USB4® and USB-C® Alt Mode devices.
  • Windows 10 or later, macOS 11 or later, iPadOS 13 or later and Samsung DeX® compatible.
  • The plastic in this product contains up to 60% post-consumer recycled (PCR) content.*
  • Delivered in FSC® certified packaging.
  • Plug-and-play USB-C® driverless solution.
  • Up to 85W power pass-through.
  • 9-in-1 design with 5 x USB ports.
  • Sleek, compact design.

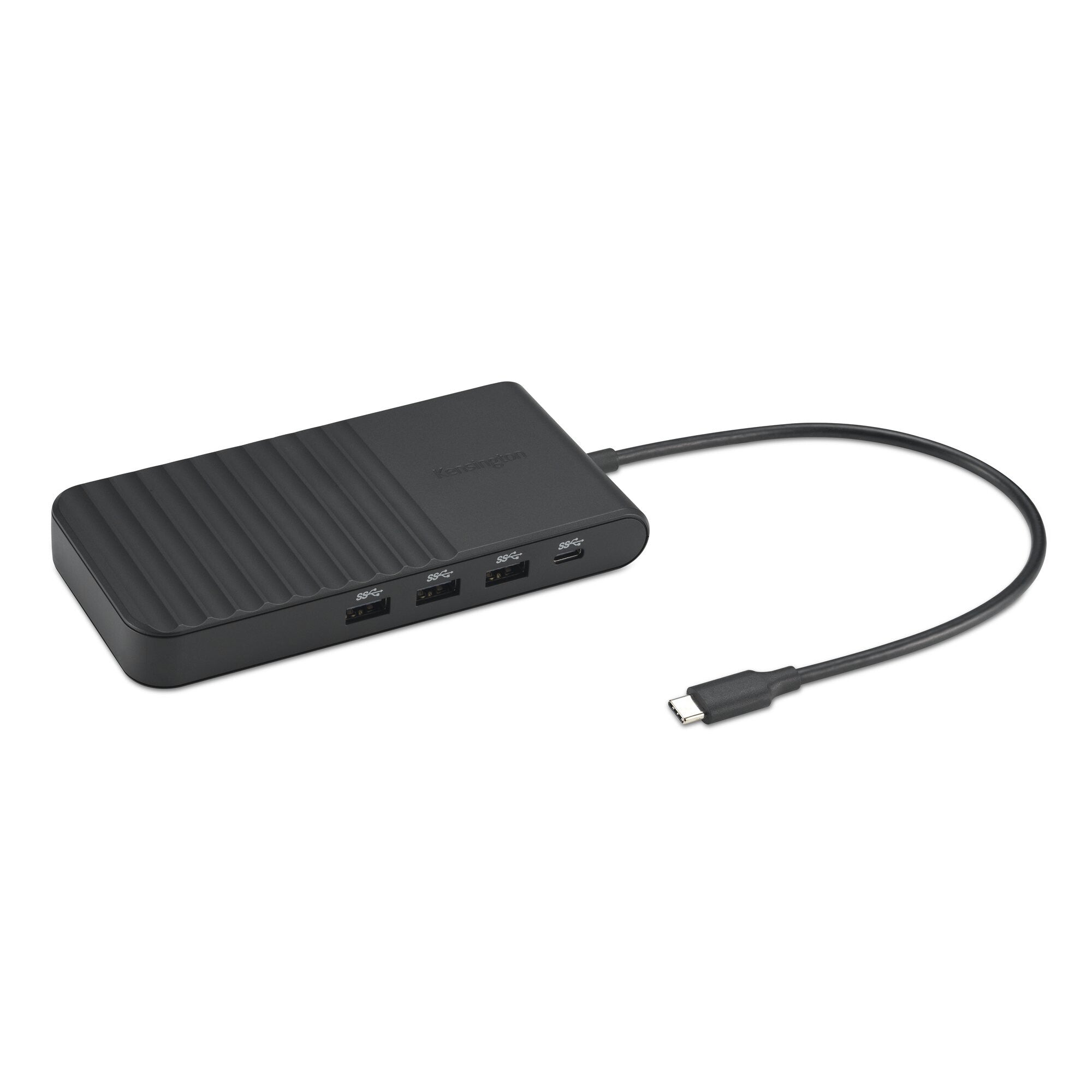

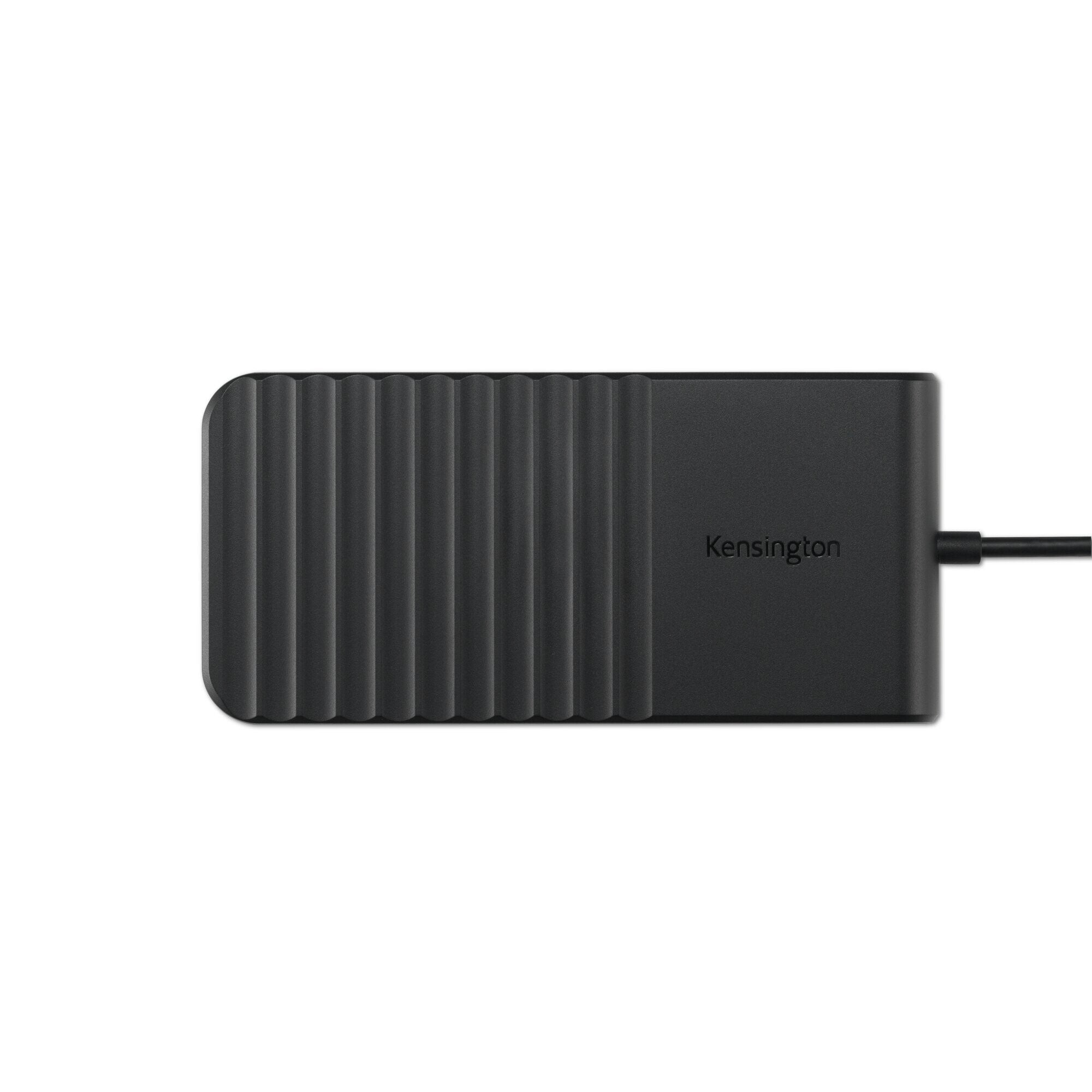

The UH1500P EQ USB-C® 5Gbps Triple Video Driverless Mobile Dock supports up to three external displays and allows you to travel with less weight and clutter. Universally compatible with USB-C® based devices (Thunderbolt™ 4, USB4® and USB-C® Alt Mode), this plug-and-play solution supports up to 3 x 1080p @ 60Hz, 2 x 4K @ 60Hz for Windows devices and 1 x 4K @ 60Hz for both Windows and MacBook devices. The 9-in-1 design delivers three video connections (2 x HDMI® and 1 x DP), 5 x USB ports (3 x USB-A and 2 x USB-C®) and one Gigabit Ethernet port. UH1500P supports up to 85W power pass-through using your laptop’s USB-C® power adapter or battery for charging. The plastic in this product contains up to 60% post-consumer recycled (PCR) content* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. Compatible with Kensington DockWorks™ software** and includes a 2-year limited warranty.
*Does not include cable.
**Available for Windows only.

Ports & interfaces
USB Type-C DisplayPort Alternate Mode Yes
HDCP Yes
HDCP version 2.3
Microphone in No
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI version 2.0
HDMI ports quantity 2
USB Power Delivery revision 3.0
USB Power Delivery up to 85 W
USB Power Delivery (USB PD) Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Connectivity technology Wired
Network
Ethernet LAN data rates 100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Performance
Country of origin China
Plug and Play Yes
Number of displays supported 3
Maximum digital resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Data transfer rate 5 Gbit/s
Card reader integrated No
Product colour Black
Power
USB cable length 0.17 m
Power source type USB
Software
Mobile operating systems supported iPadOS 13, iPadOS 14, iPadOS 17.1.1, iPadOS 17.4, iPadOS 17.5
Mac operating systems supported Yes
Windows operating systems supported Yes
Operational conditions
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 154 g
Height 21 mm
Depth 71 mm
Width 150 mm
Packaging data
Package weight 180 g
Package height 130 mm
Package depth 180 mm
Package width 35 mm
Quantity per pack 1 pc(s)
Packaging content
Quick start guide Yes
Warranty card Yes
Technical details
Compliance certificates CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case width 185 mm
Master (outer) case length 360 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 2 kg
Other features
USB ports quantity 4
Special features EQ
Compatible operating systems iPadOS 13 or above; Windows 10 or above; Samsung DeX®; macOS 11 or above
