Vertiv Avocent LV5500T KVM extender Transmitter
Couldn't load pickup availability
- Delivers seamless KVM control and 4k video transmission
- Allows for greater distance with the Fiber Option
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head
- Plug-and-play with no drivers or software to install, and no on-site configuration required
- Faster throughput with updated USB

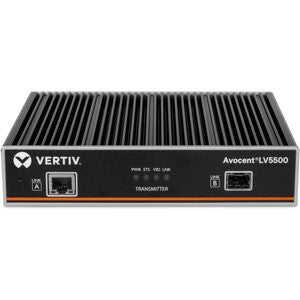

The Vertiv Avocent LongView 5500 Transmitter (LV5500T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5500T comes equipped with a dependable performance along with intelligent EDID management. Coupled with the Avocent LV5500R, the LV5500T is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5500T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Supported resolutions | CE, FCC |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 4096 x 2160 pixels |
| Rack mounting | Yes |
| Cable types supported | Fiber, Cat5e, Cat6e |
| Maximum transfer distance | 4000 m |
| Connectivity technology | Wired |
| Type | Transmitter |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter video port type | DisplayPort |
| Ports & interfaces | |
|---|---|
| PC Audio out | Yes |
| PC Audio in | Yes |
| Installed SFP+ modules quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB port type | USB Type-B |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 18 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Transmitter weight | 1.28 kg |
| Transmitter height | 3.91 cm |
| Transmitter depth | 13.7 cm |
| Transmitter width | 18.6 cm |
| Packaging data | |
|---|---|
| Package weight | 1.36 kg |
| Package height | 50.8 mm |
| Package depth | 152.4 mm |
| Package width | 203.2 mm |
| General | |
|---|---|
| Product family | Avocent |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Video in | DisplayPort |
| Maximum resolution | 4096 x 2160 pixels |
| Logistics data | |
|---|---|
| Country of origin | United Kingdom |
