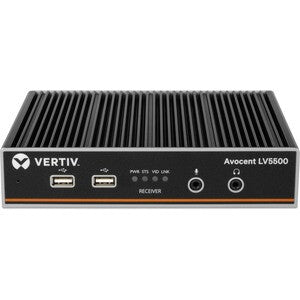

Vertiv Avocent LV5500R KVM extender Receiver
Couldn't load pickup availability
- Delivers seamless KVM control and 4k video transmission
- Allows for greater distance with the Fiber Option
- Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head
- Plug-and-play with no drivers or software to install, and no on-site configuration required
- Faster throughput with updated USB
The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Supported resolutions | CE, FCC |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 4096 x 2160 pixels |
| Rack mounting | Yes |
| Cable types supported | Cat5e, Cat6e, Fiber |
| Maximum transfer distance | 4000 m |
| Connectivity technology | Wired |
| Type | Receiver |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| Ports & interfaces | |
|---|---|
| PC Audio out | Yes |
| PC Audio in | Yes |
| Installed SFP+ modules quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB port type | USB Type-B |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 18 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Receiver weight | 1.23 kg |
| Receiver height | 3.91 cm |
| Receiver depth | 13.7 cm |
| Receiver width | 18.6 cm |
| Packaging data | |
|---|---|
| Package weight | 1.36 kg |
| Package height | 50.8 mm |
| Package depth | 152.4 mm |
| Package width | 203.2 mm |
| General | |
|---|---|
| Product family | Avocent |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Video in | DisplayPort |
| Maximum resolution | 4096 x 2160 pixels |
| Logistics data | |
|---|---|
| Country of origin | United Kingdom |
