StarTech.com HDMI KVM Extender Over IP Network, 4K 60Hz, Driverless, HDMI and USB Over Ethernet/CAT6, AVoIP, Transmitter and Receiver Kit, Includes Mounting Kits
Couldn't load pickup availability
- AVoIP KVM EXTENDER: Remotely access and control a computer over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor, while keeping the system secure from unauthorized access or physical damage
- NO DRIVERS OR SOFTWARE: IP Video Distribution kit requires no configuration to get it working; Compatible with any operating system including Windows, macOS and Linux, as well as all hardware platforms such as Intel, AMD, Snapdragon/ARM and Apple Silicon

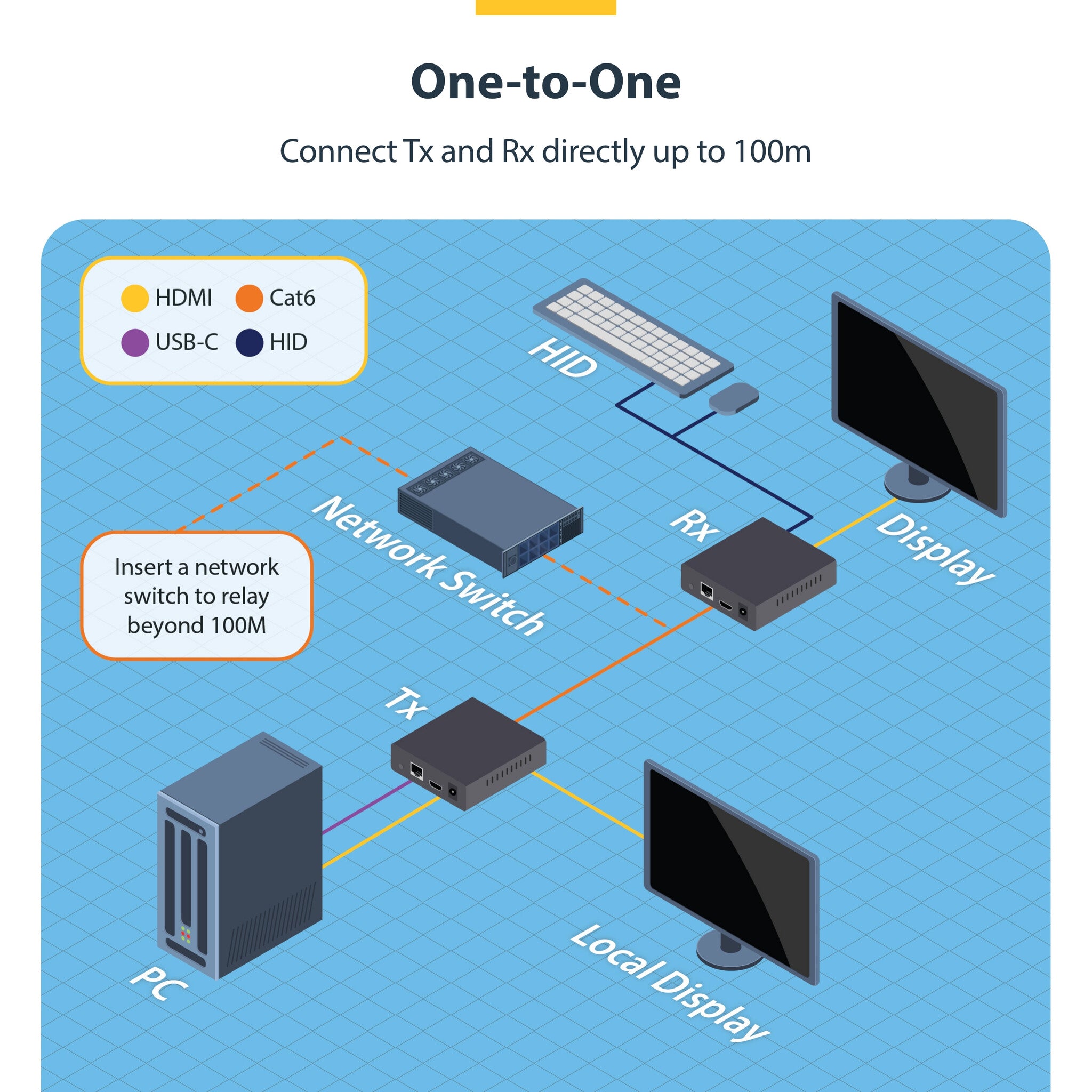

- SCALABLE SETUP: Start with a point-to-point setup, then expand to a one-to-many setup by adding IP KVM receivers (sold separately), allowing your setup to grow with your business needs and ensuring a scalable, future-proof solution

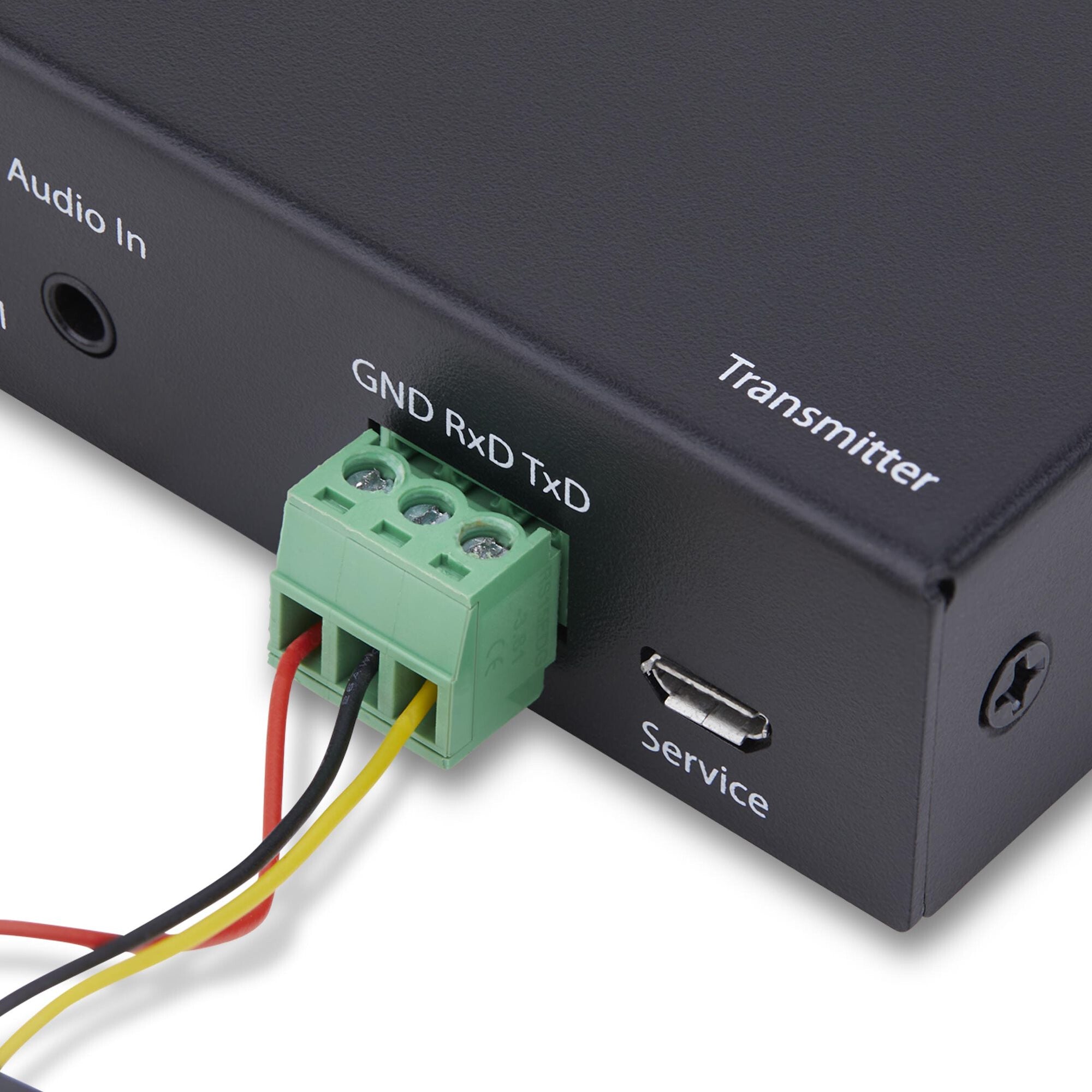

- LOCAL HDMI OUTPUT: IP KVM Transmitter features an HDMI output to connect a local display, allowing you to view the content without being at the receiver's location; Three-wire RS232 port and a 3.5mm audio passthrough port offer serial and audio extension

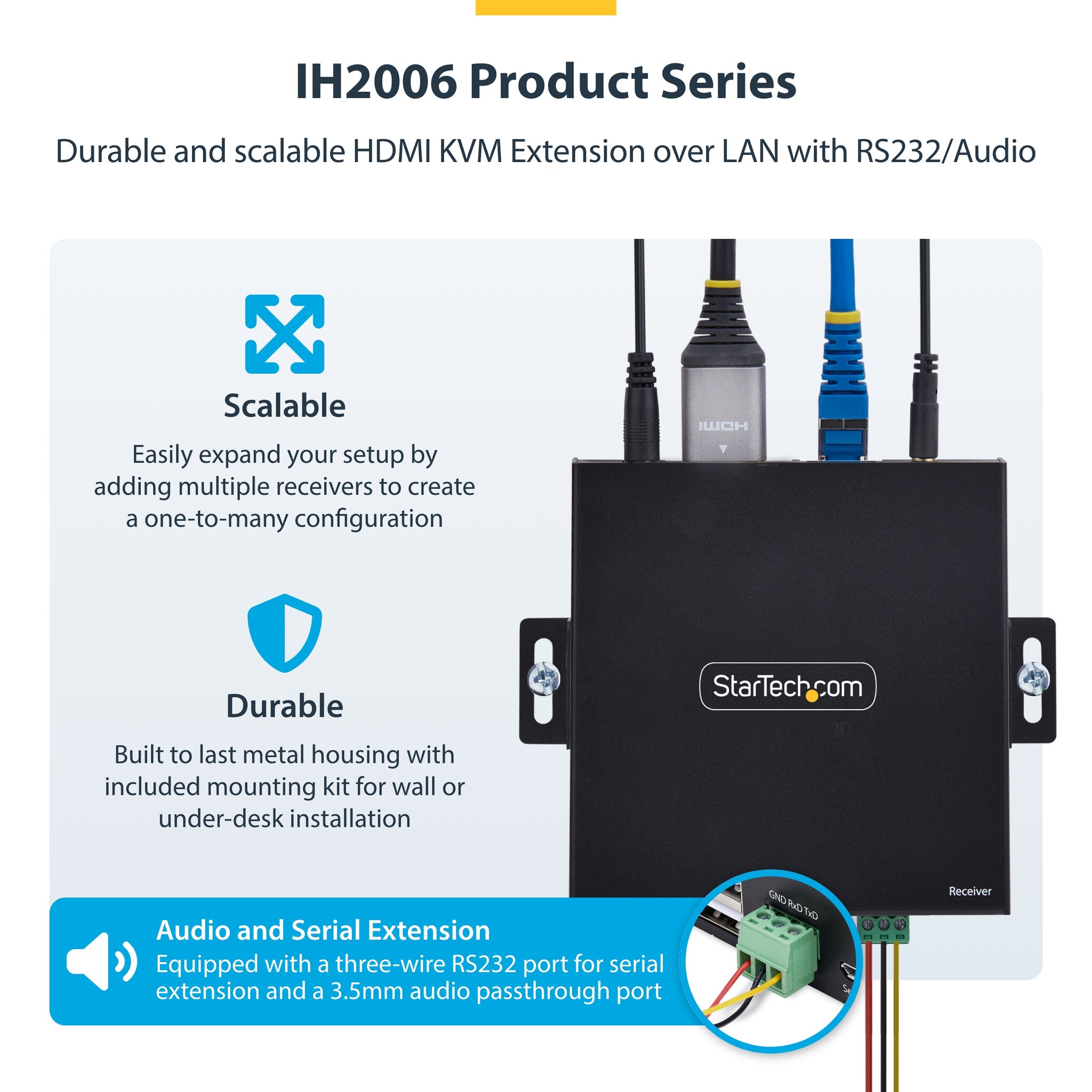

- SECURE & FLEXIBLE INSTALLATION: Durable metal housing with included mounting kits for wall or under-desk installation; Rubber feet prevent slipping for desktop use; Ideal for industrial and professional environments
Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.
Professional-Grade Design
Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
The StarTech.com Advantage
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| On Screen Display (OSD) | No |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| Rack mounting | No |
| Cable types supported | Cat6 |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Transmitter local video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter video port type | HDMI |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver Micro-USB ports quantity | 1 |
| Receiver local video port type | HDMI |
| Ports & interfaces | |
|---|---|
| PC Audio out | Yes |
| PC Audio in | Yes |
| RS-232 ports | 2 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-C |
| Power | |
|---|---|
| DC-in jack | Yes |
| Power consumption (receiver) (max) | 10 W |
| Power consumption (transmitter) (max) | 10 W |
| AC adapter output current | 2 A |
| AC adapter output voltage | 5 V |
| Input current | 0.3 A |
| AC input voltage | 100 - 240 V |
| Power plug type | Type M |
| Packaging data | |
|---|---|
| Package weight | 1.1 kg |
| Package height | 80 mm |
| Package depth | 176 mm |
| Package width | 240 mm |

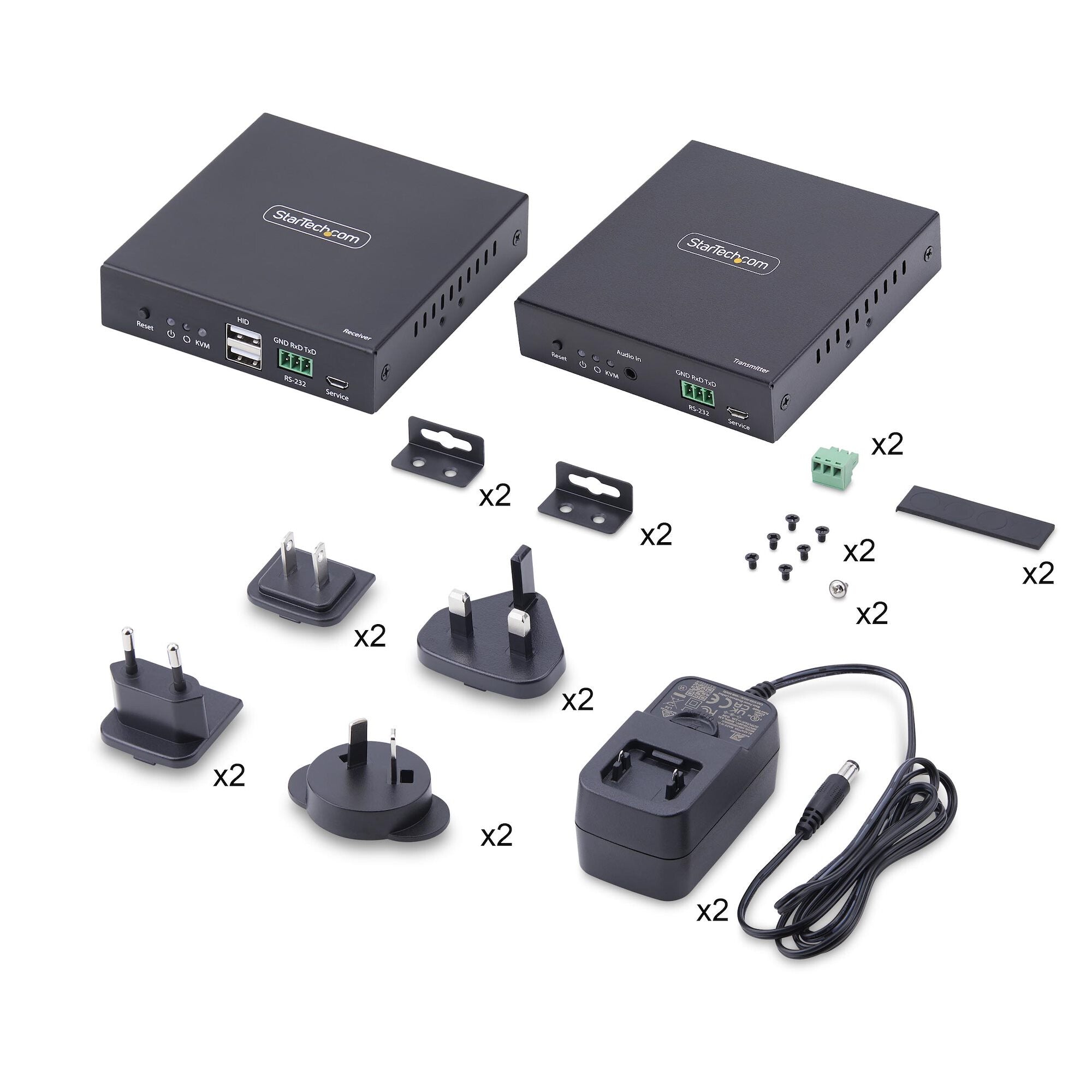

| Packaging content | |
|---|---|
| Included power plug types | ANZ, EU, NA, UK |
| Mounting bracket(s) included | Yes |
| AC adapter included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Other features | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Mean time between failures (MTBF) | 10000 h |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case height | 420 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case width | 380 mm |
