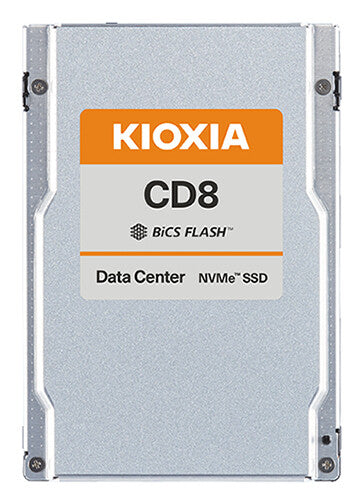

Kioxia CD8-R 7.68 TB 2.5

Kioxia CD8-R 7.68 TB 2.5" PCI Express 4.0 NVMe BiCS FLASH TLC

Kioxia
£4,243.99
Stock Available: 0
  • PCIe® 4.0, NVMe™ 1.4 specification compliant Help Modal Window
  • Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
  • Form factor: 2.5-inch, 15mm height Help Modal Window
  • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC Help Modal Window
  • Single-port design, optimized for data center class workloads
  • Consistent performance and reliability for demanding 24x7 environments
  • Designed for high-density storage deployments
  • Power loss protection (PLP) and end-to-end data correction
  • Security options: SIE, SED

Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Features
SSD capacity 7.68 TB
SSD form factor 2.5"
Interface PCI Express 4.0
NVMe Yes
NVMe version 1.4
Memory type BiCS FLASH TLC
Component for Server/workstation
Read speed 7100 MB/s
Write speed 6000 MB/s
Random read (4KB) 1150000 IOPS
Random write (4KB) 200000 IOPS
PCI Express interface data lanes x4
Mean time between failures (MTBF) 2500000 h
Power
Operating voltage 12 V
Power consumption (max) 19 W
Weight & dimensions
Width 69.8 mm
Depth 100.5 mm
Height 15 mm
Weight 130 g
Operational conditions
Operating temperature (T-T) 0 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Maximum operating temperature 75 °C
Minimum operating temperature 0 °C
Operating relative humidity (H-H) 5 - 95%
Operating vibration 2.17 G
Operating shock 1000 G
Other features
Warranty period 5 year(s)
