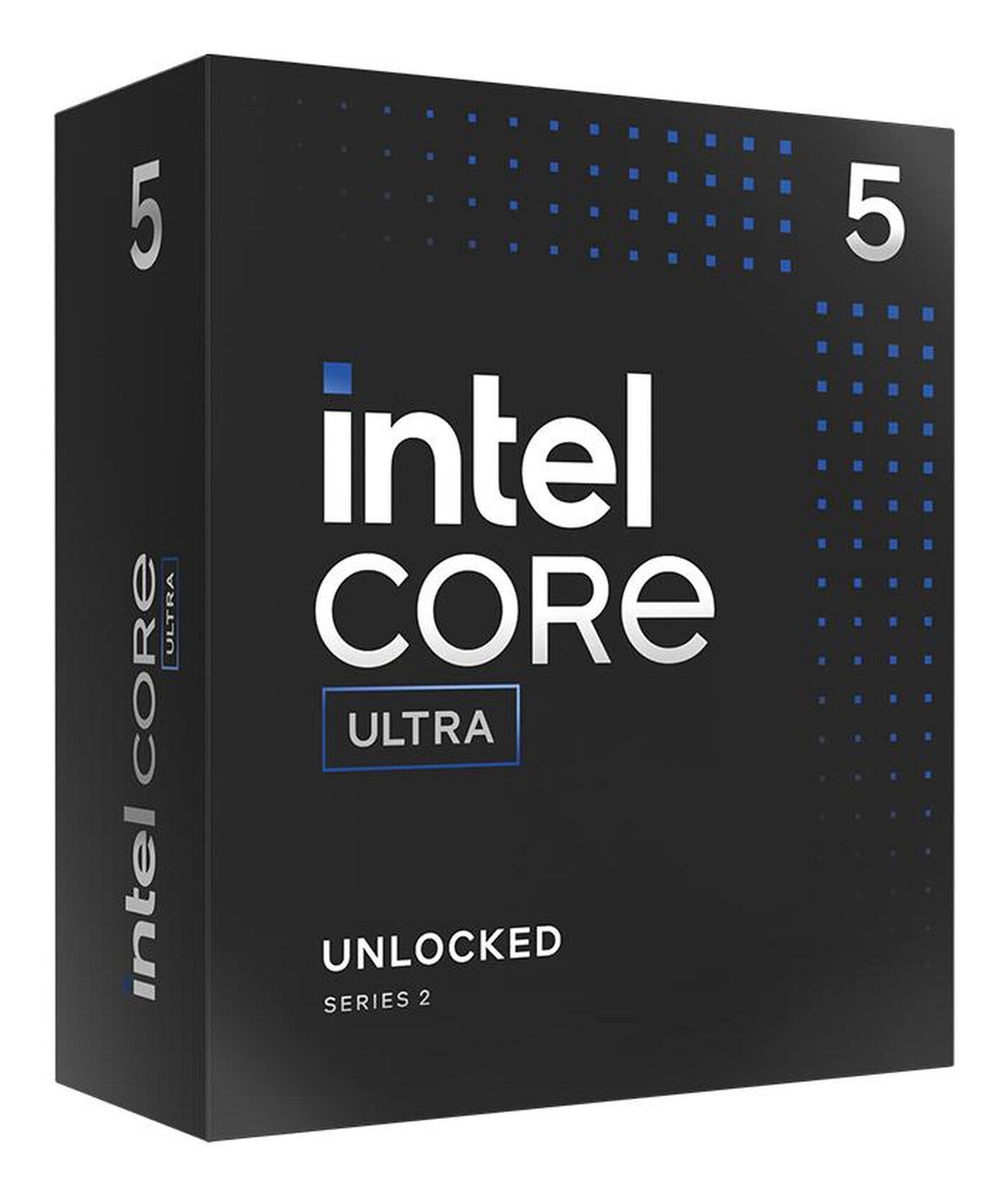

Intel Core Ultra 5 225 processor 20 MB Smart Cache Box

Intel

iFrame

£240.83

Stock Available: 25

Product Information

Intel Core Ultra 5 225
20 MB Smart Cache FCLGA1851
Processor cores: 10 64-bit
Maximum internal memory supported by processor: 192 GB DDR5-SDRAM
On-board graphics card Intel Graphics
Box

The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.

Product Specifications

Processor
Processor ARK ID	241070
Processor codename	Arrow Lake
Maximum number of DMI lanes	8
AI software frameworks supported by CPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Processor base power	65 W
Maximum turbo power	121 W
Processor cache type	Smart Cache
Processor cache	20 MB
Efficient-core base frequency	2.7 GHz
Efficient-core boost frequency	4.4 GHz
Performance-core base frequency	3.3 GHz
Performance-core boost frequency	4.9 GHz
Processor boost frequency	4.9 GHz
Efficient cores	4
Performance cores	6
Processor operating modes	64-bit
Processor threads	10
Box	Yes
Processor socket	FCLGA1851
Processor cores	10
Processor model	225
Processor generation	Intel Core Ultra (Series 2)
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel

Neural processor unit (NPU)
GPU performance up to	4 TOPs
NPU performance up to	13 TOPs
Total processor performance up to	23 TOPs
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Windows Studio effects support	Yes
Sparsity support	Yes
Neural processor unit (NPU)	Intel AI Boost

Memory
Memory channels	Dual-channel
Memory clock speeds supported by processor	6400 MHz
Memory types supported by processor	DDR5-SDRAM
Maximum internal memory supported by processor	192 GB

Graphics
Xe-cores	2
Discrete graphics card model	Not available
On-board graphics card ID	0x7D67
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
Number of displays supported (on-board graphics)	4
On-board graphics card dynamic frequency (max)	1800 MHz
On-board graphics card base frequency	300 MHz
On-board graphics card outputs supported	HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On-board graphics card model	Intel Graphics
On-board graphics card	Yes
Discrete graphics card	No

Features
Scalability	1S
Embedded options available	Yes
Direct Media Interface (DMI) Revision	4.0
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
PCI Express slots version	4.0, 5.0
Maximum number of PCI Express lanes	24
Use conditions	PC/Client/Tablet
Market segment	Desktop
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes

Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel 64	Yes
Intel® Standard Manageability (ISM)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Volume Management Device (VMD)	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel® Boot Guard	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU	Yes
Intel® Thread Director	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thunderbolt 4	Yes
Intel® Turbo Boost Technology	2.0
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Trusted Execution Technology	Yes
Intel® Speed Shift Technology	Yes
Intel® Quick Sync Video Technology	Yes
Enhanced Intel SpeedStep Technology	Yes

General
Product family	Core
Product series	Ultra 5

Operational conditions
Maximum operating temperature	105 °C

Technical details
Launch date	Q1'25
Status	Launched
OpenCL version	3.0

Other features
Graphics output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Maximum internal memory	192 GB
L2 cache	22528 KB
