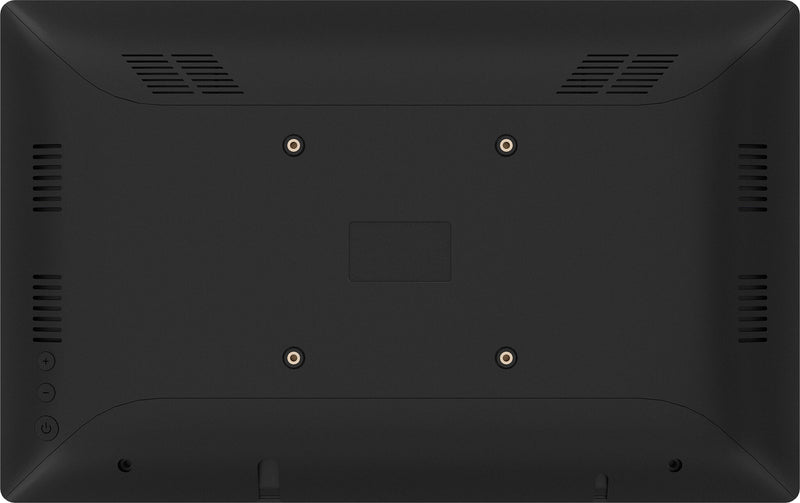

iiyama TW1623AS-B3P computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Black
Couldn't load pickup availability
- Touchscreen 39.6 cm (15.6") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 30 ms 450 cd/m² 1000:1
- 9 W

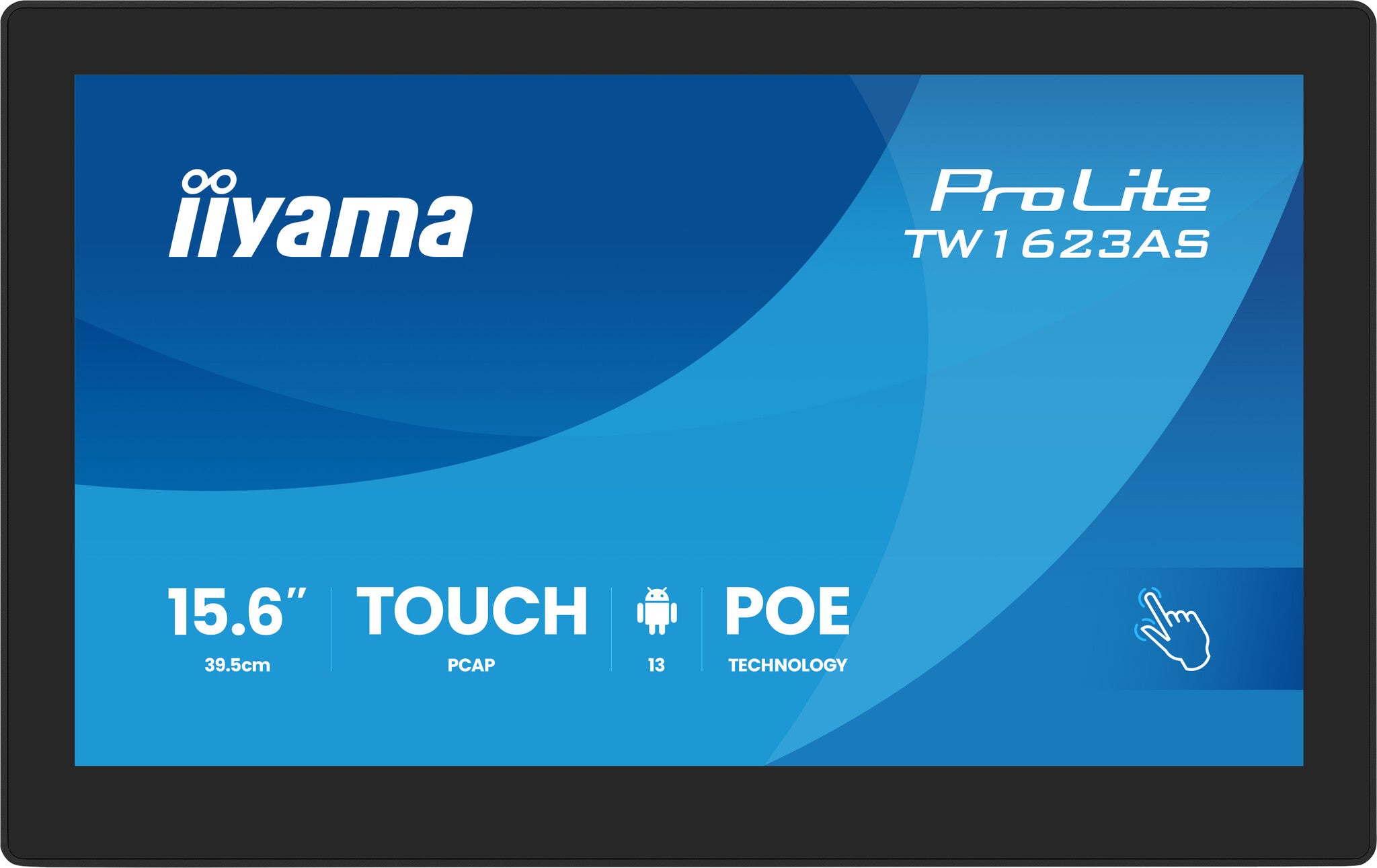

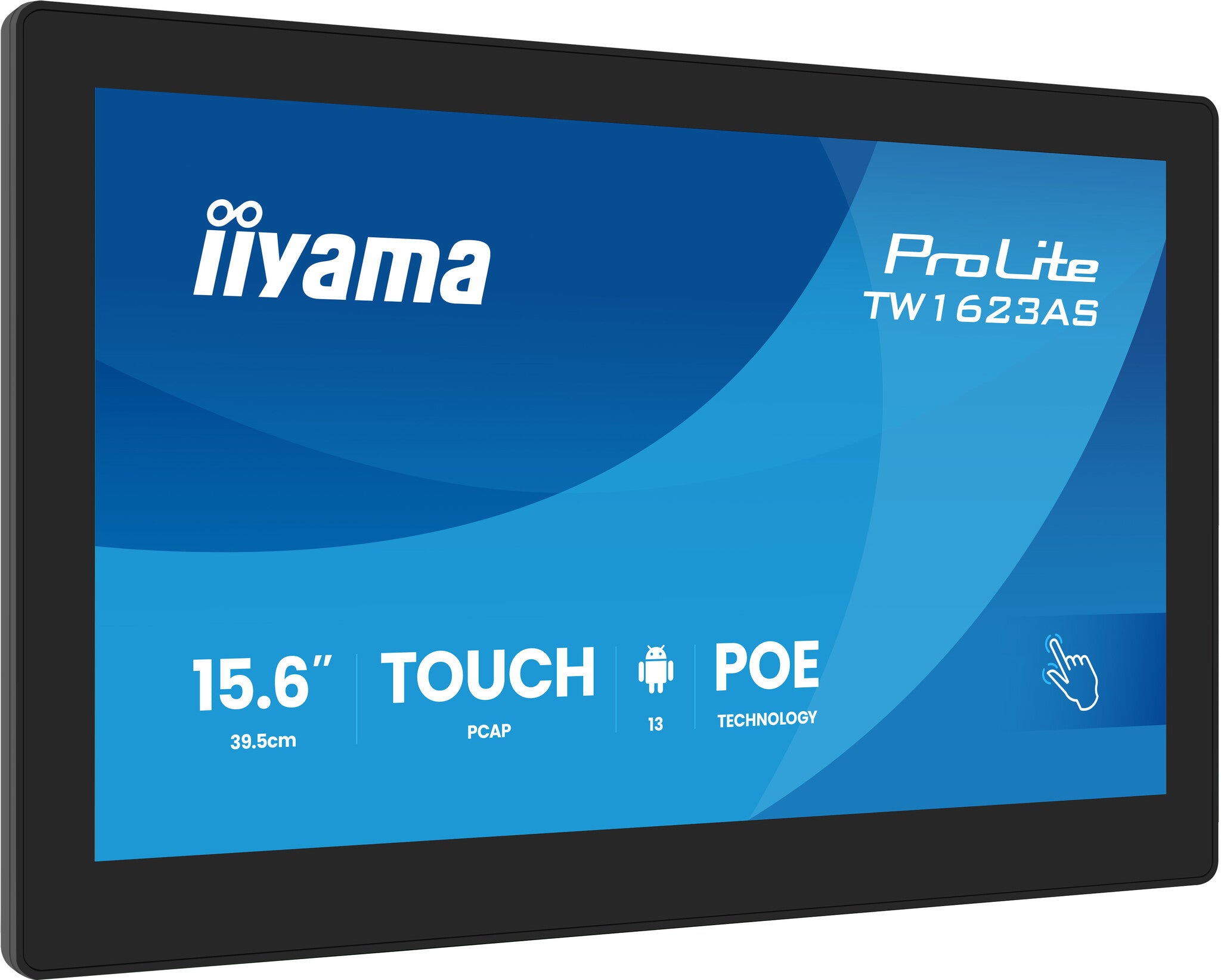

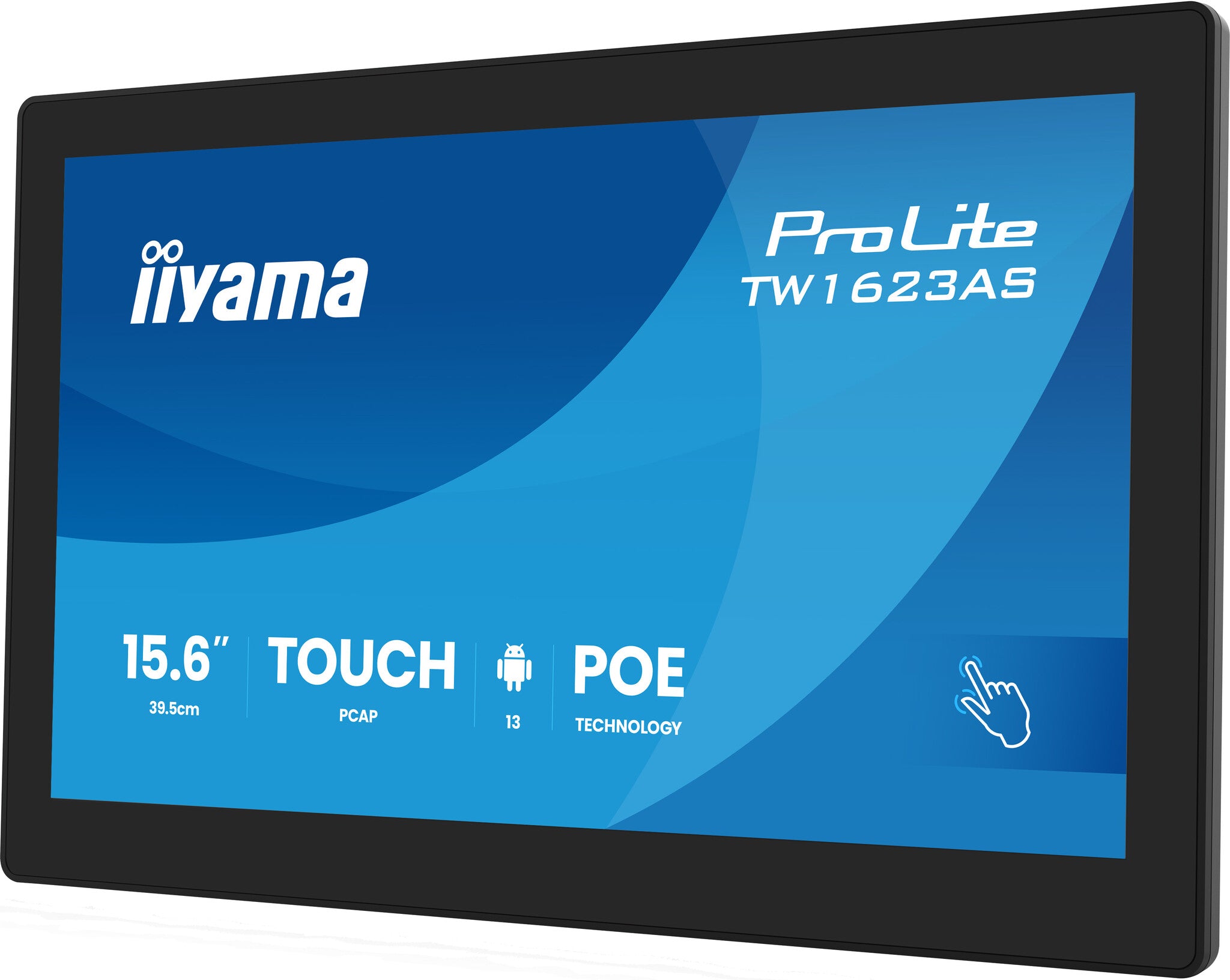

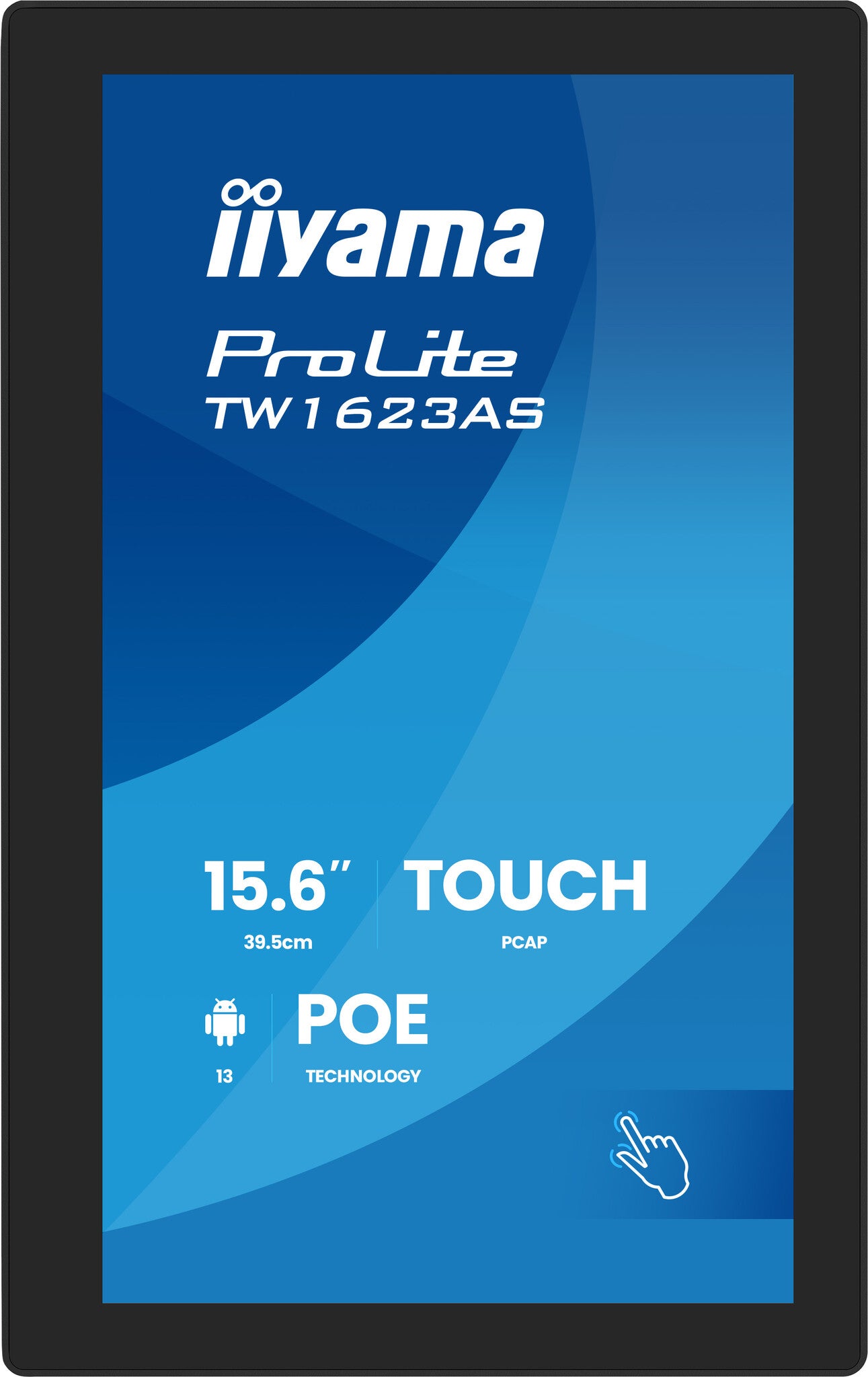

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
| Display | |
|---|---|
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Display diagonal (metric) | 39.5 cm |
| Viewable size, vertical | 19.4 cm |
| Viewable size, horizontal | 34.4 cm |
| Pixel pitch | 0.1792 x 0.1792 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Contrast ratio (typical) | 1000:1 |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 30 ms |
| Display brightness | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Performance | |
|---|---|
| Operating system version | 13 |
| Operating system installed | Android |
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 1.8 mm |
| Front bezel colour | Black |
| Product colour | Black |

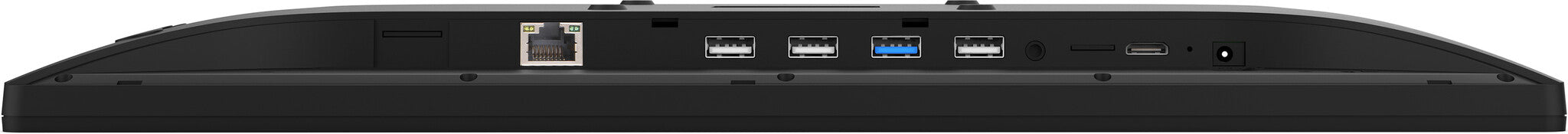

| Ports & interfaces | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| HDCP | Yes |
| Microphone in | Yes |
| Audio input | Mini Jack |
| Mini HDMI ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB Touch port | Yes |
| USB version | 2.0 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) | Yes |
| Cable management | Yes |

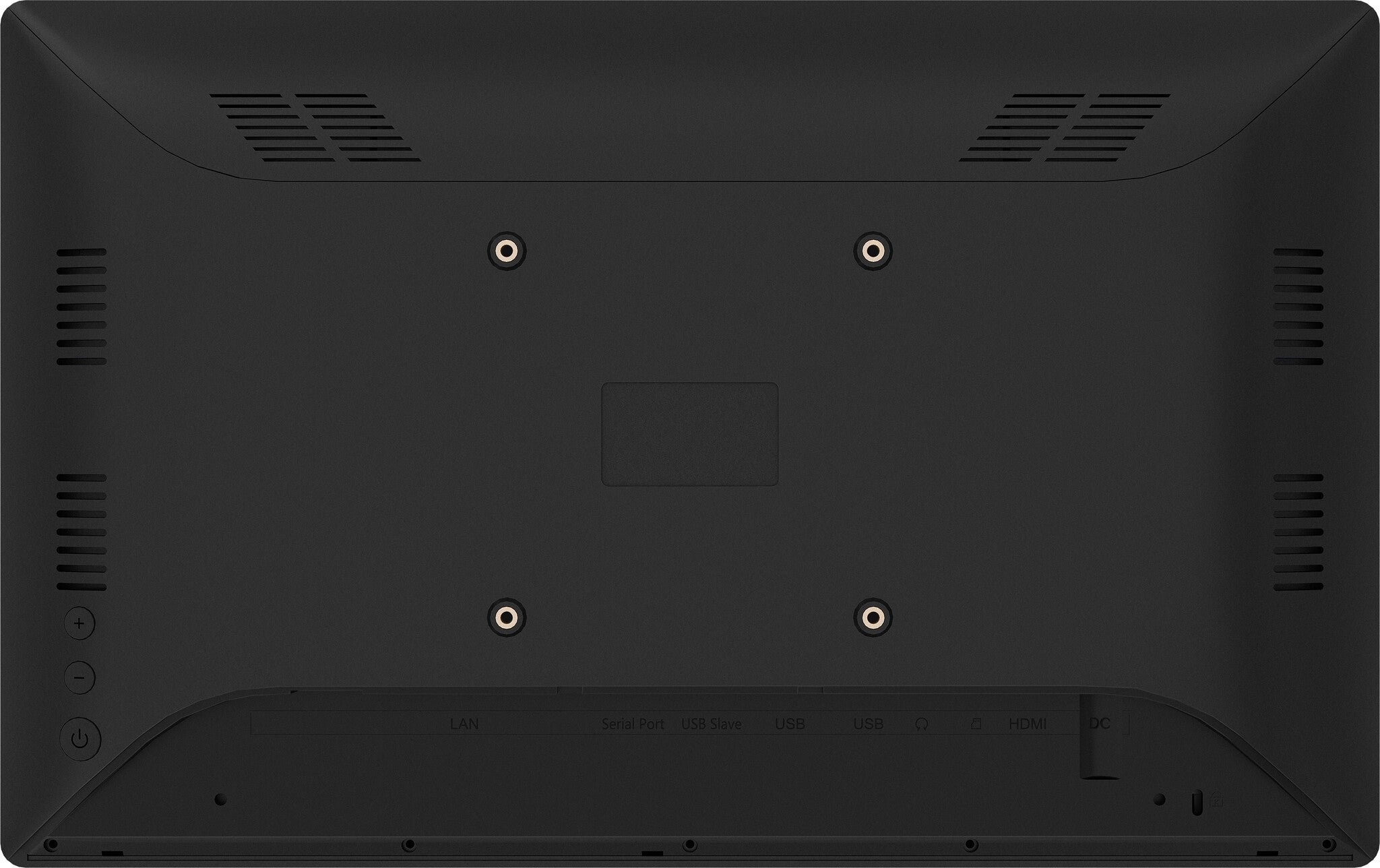

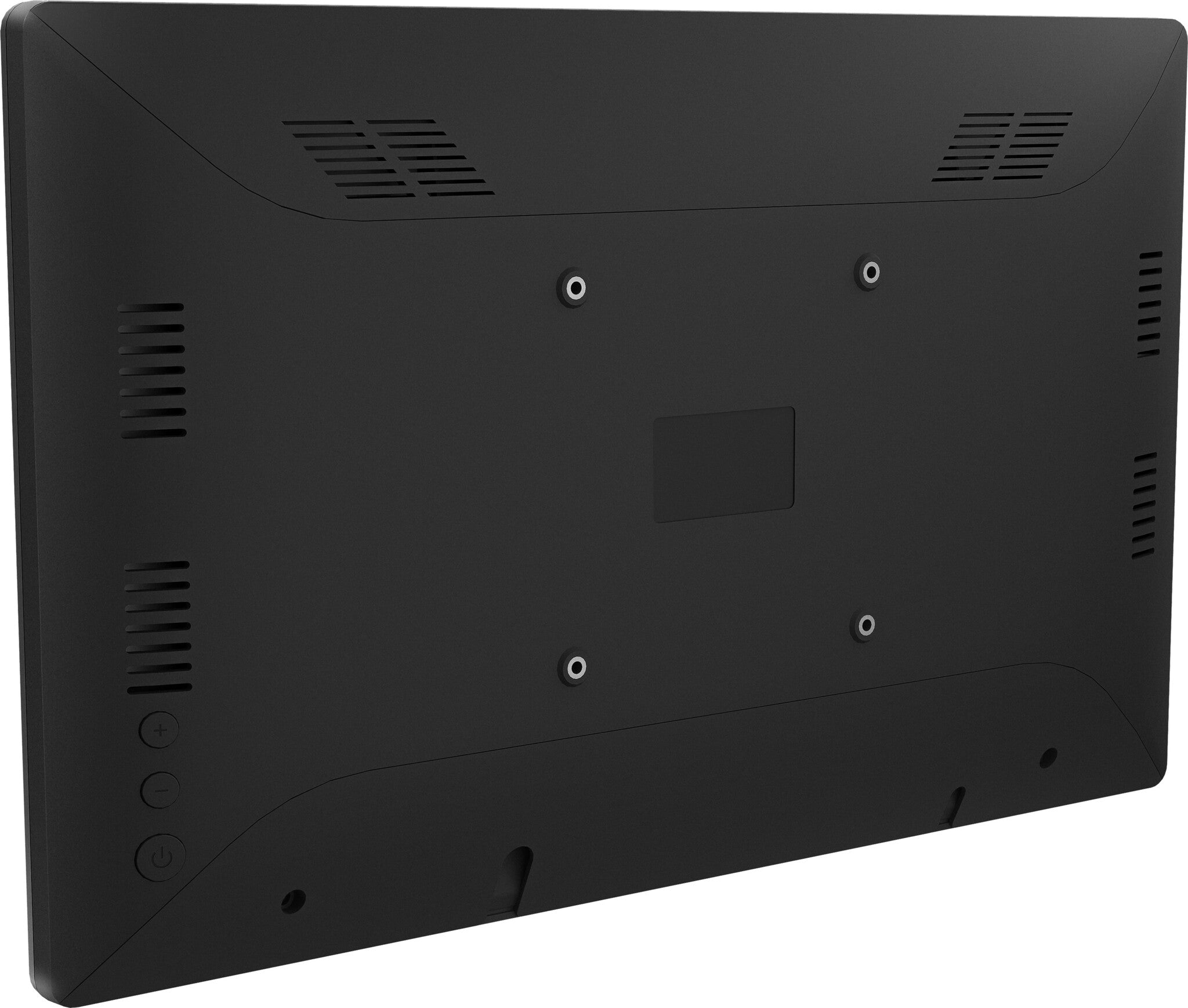

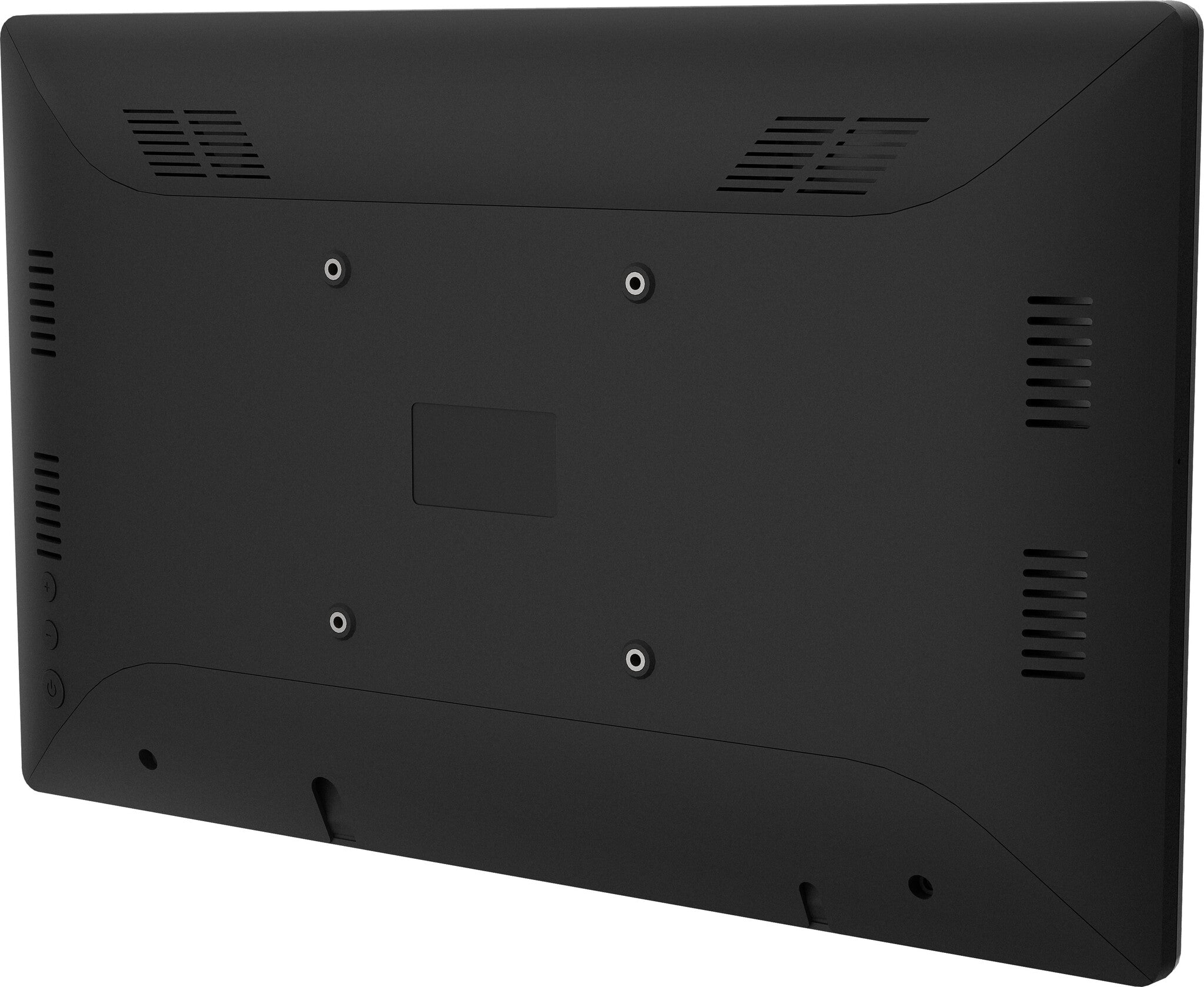

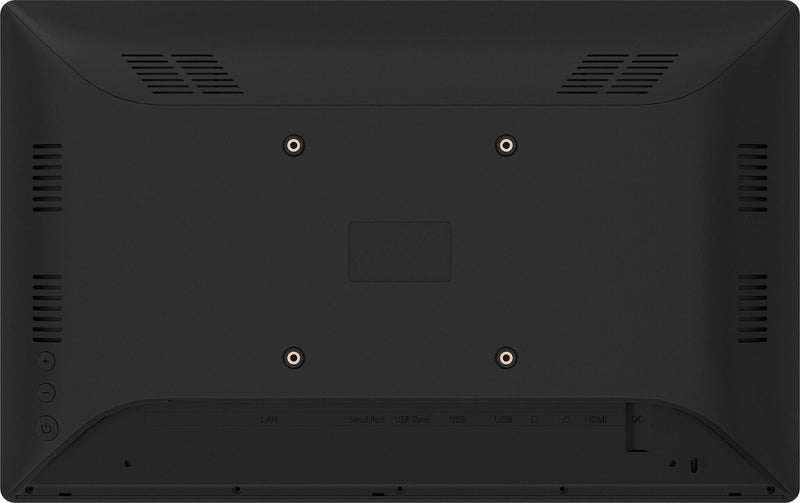

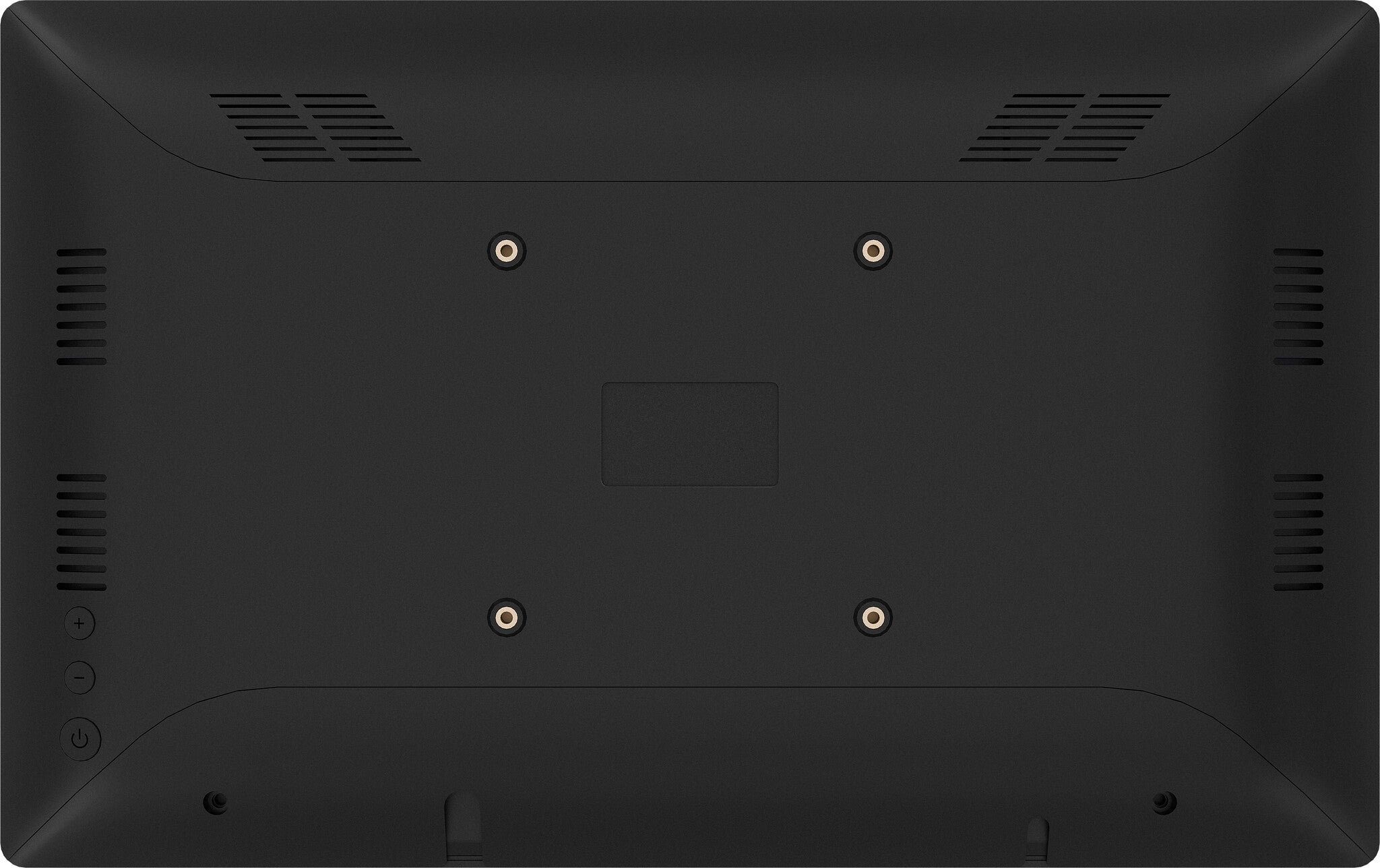

| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 9 W |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 1.5 kg |
| Height (with stand) | 244 mm |
| Depth (with stand) | 30.5 mm |
| Width (with stand) | 387 mm |
| Packaging data | |
|---|---|
| Package weight | 2.45 kg |
| Package height | 298 mm |
| Package depth | 477 mm |
| Package width | 477 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Power adapter included | Yes |
| Other features | |
|---|---|
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| Placement supported | Indoor |
| Multi-touch | Yes |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Built-in processor | Yes |
| USB ports quantity | 3 |
| Thin Client | |
|---|---|
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Processor model | RK3568 |
| Processor architecture | ARM Cortex-A55 |
| Processor family | ARM Rockchip |
