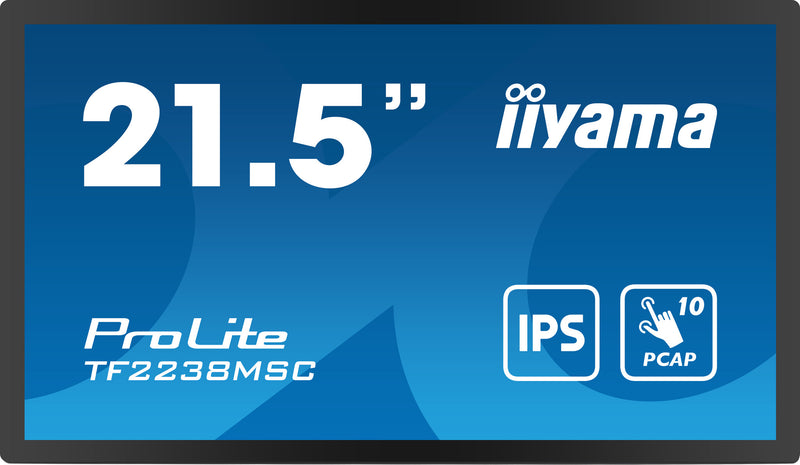

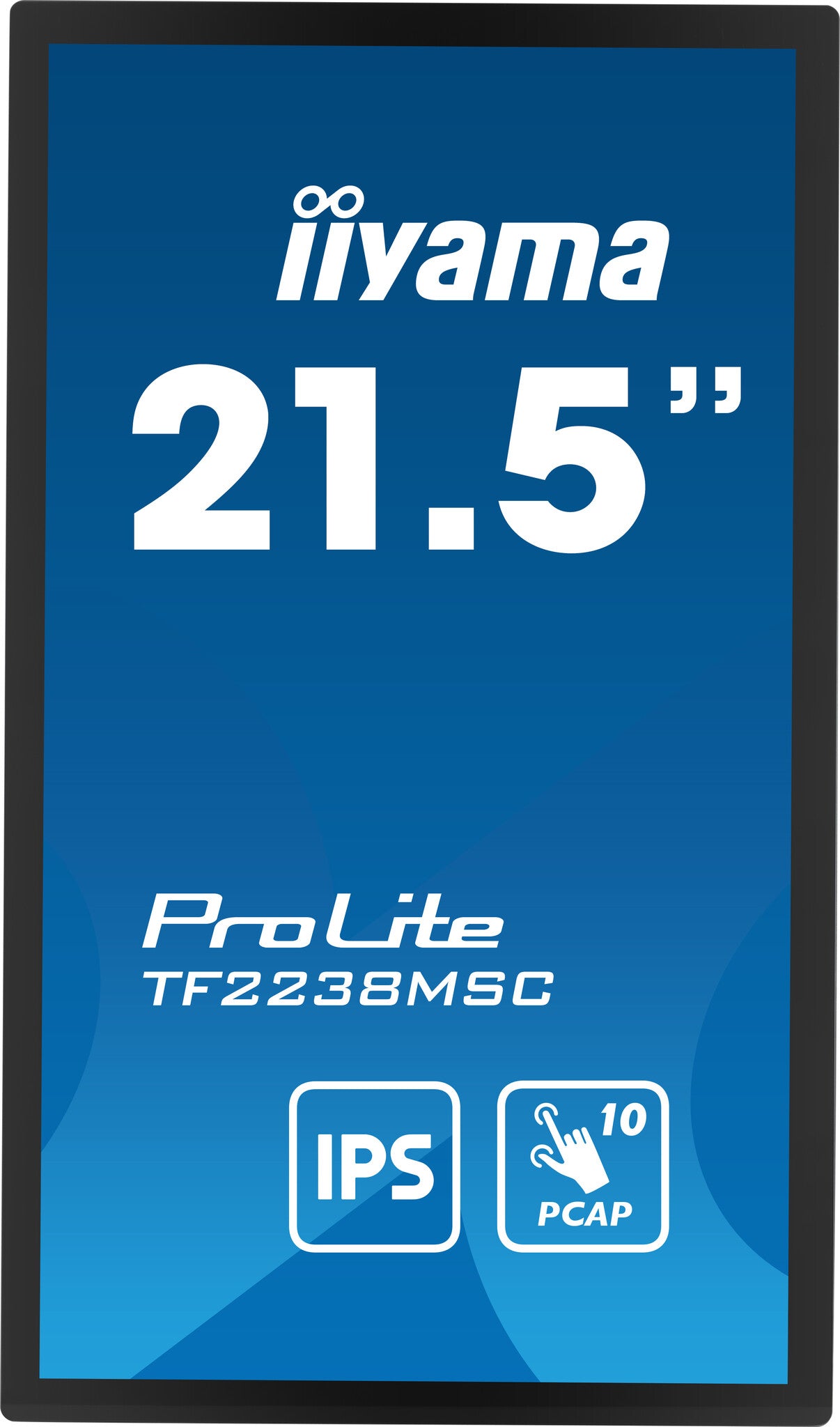

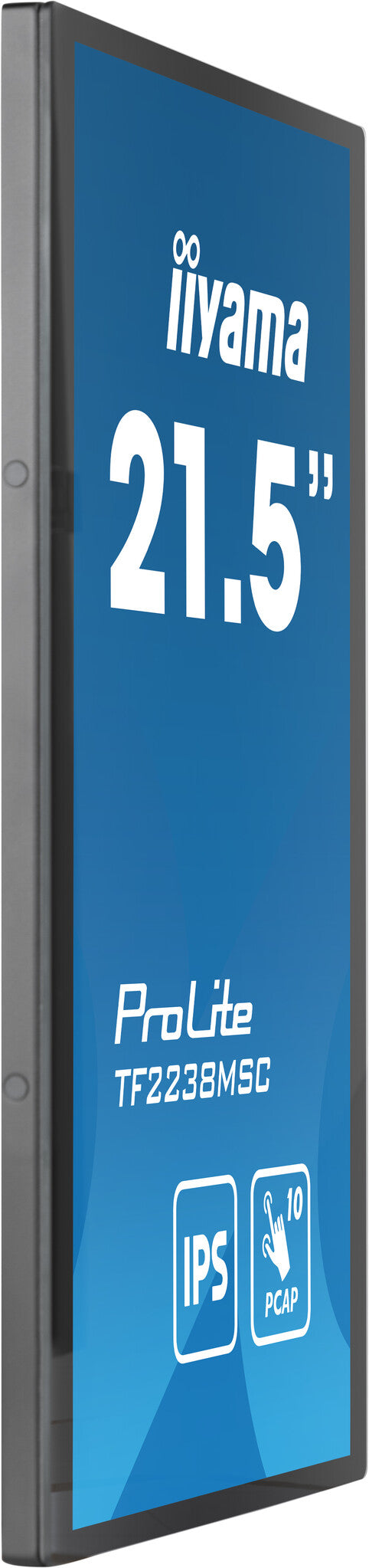

iiyama TF2238MSC-B1 computer monitor 53.3 cm (21") 1920 x 1080 pixels Full HD LED Touchscreen Black
Couldn't load pickup availability
- OPTICAL BONDED PCAP
- OPEN FRAME LFD
- IPS TECHNOLOGY
- SCRATCH RESISTANCE
- SPEAKERS

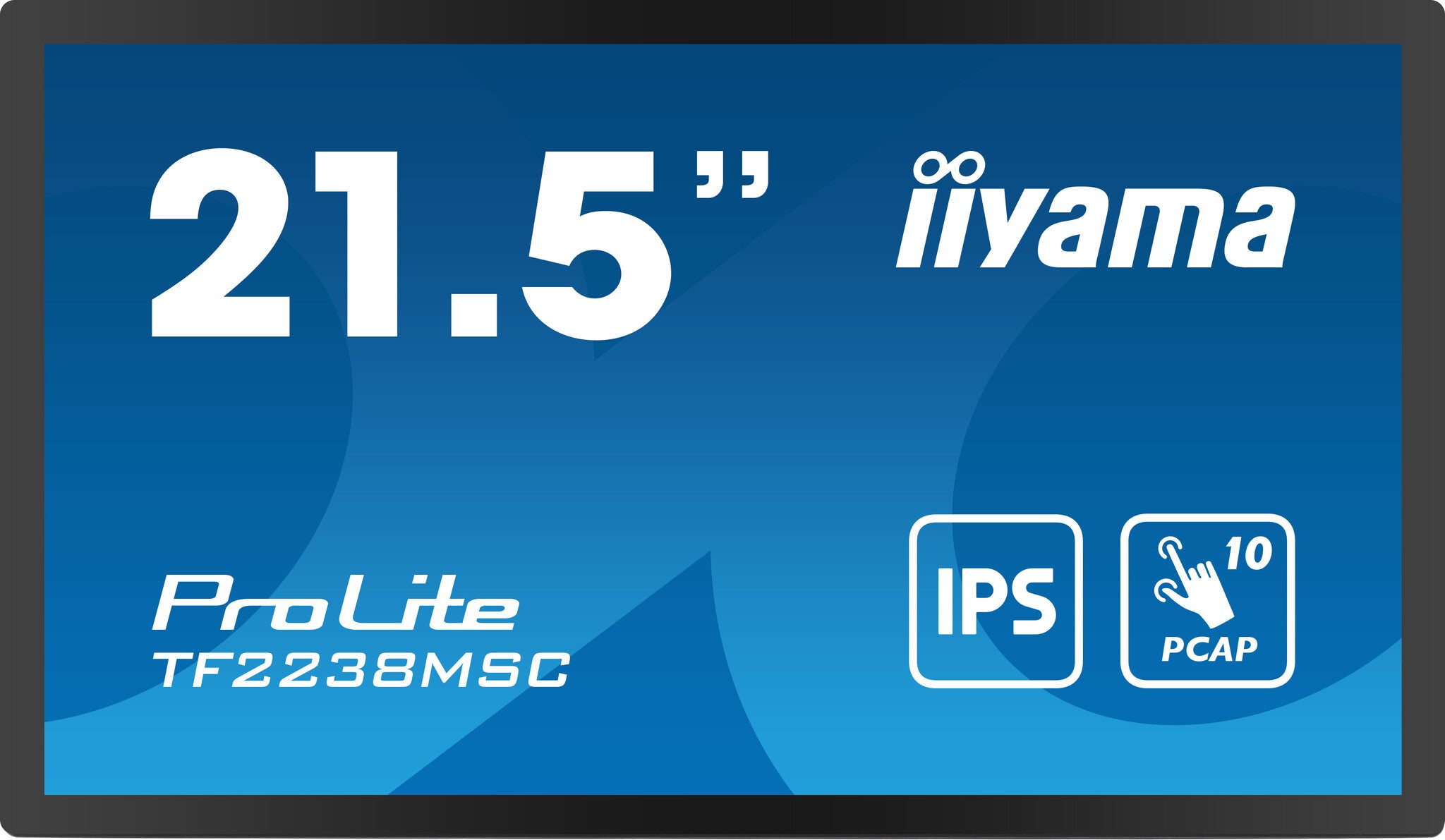

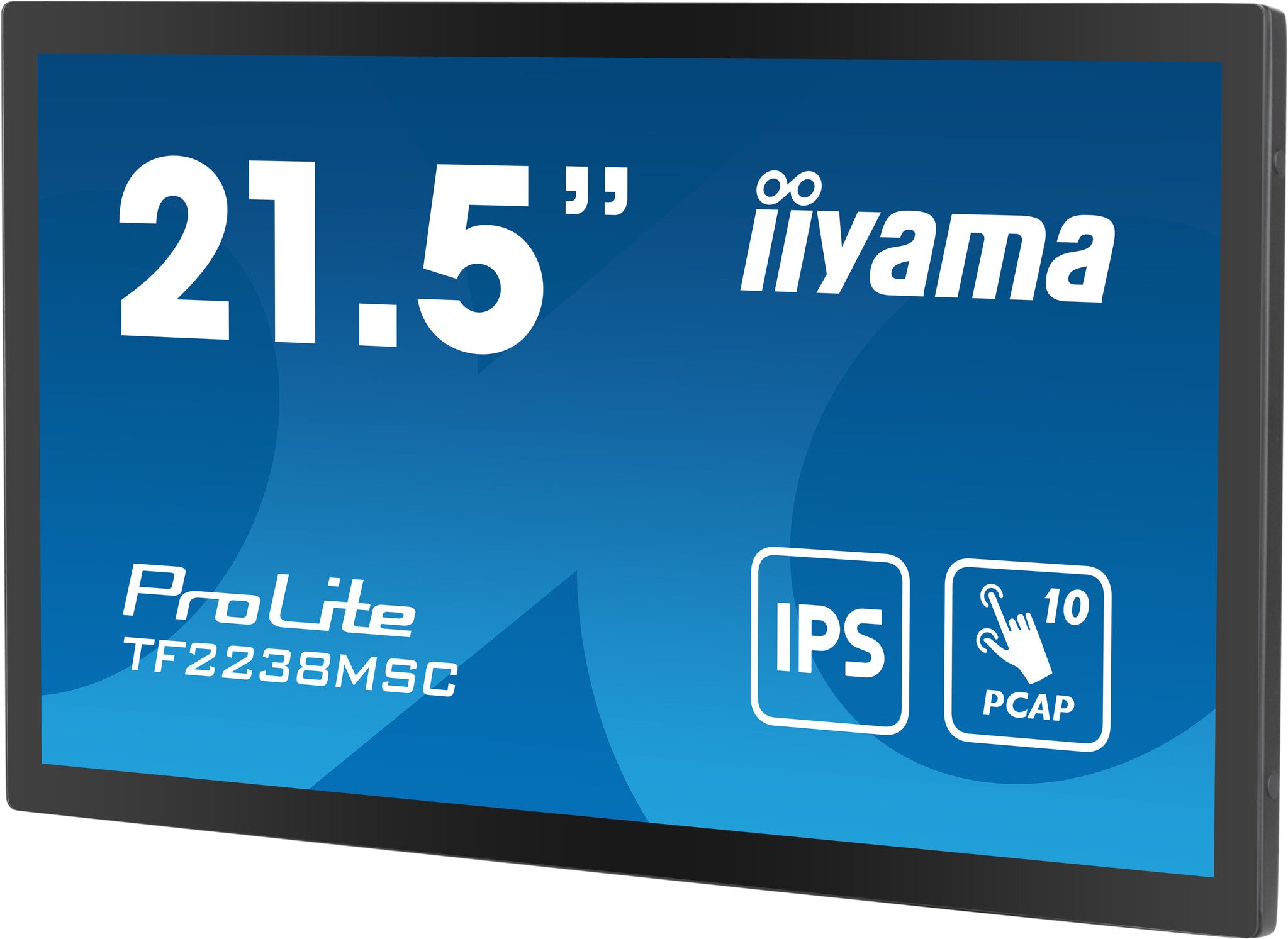

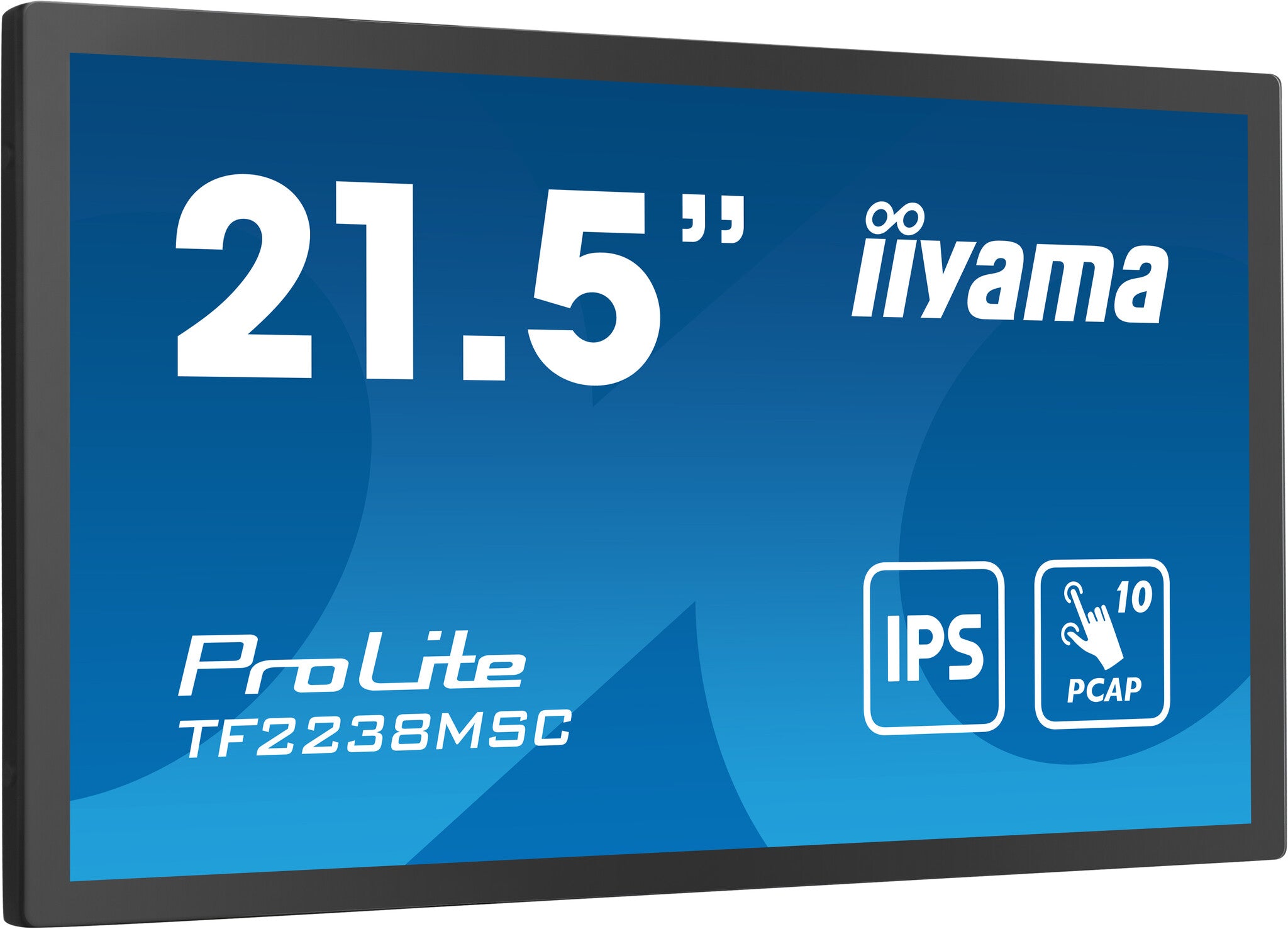

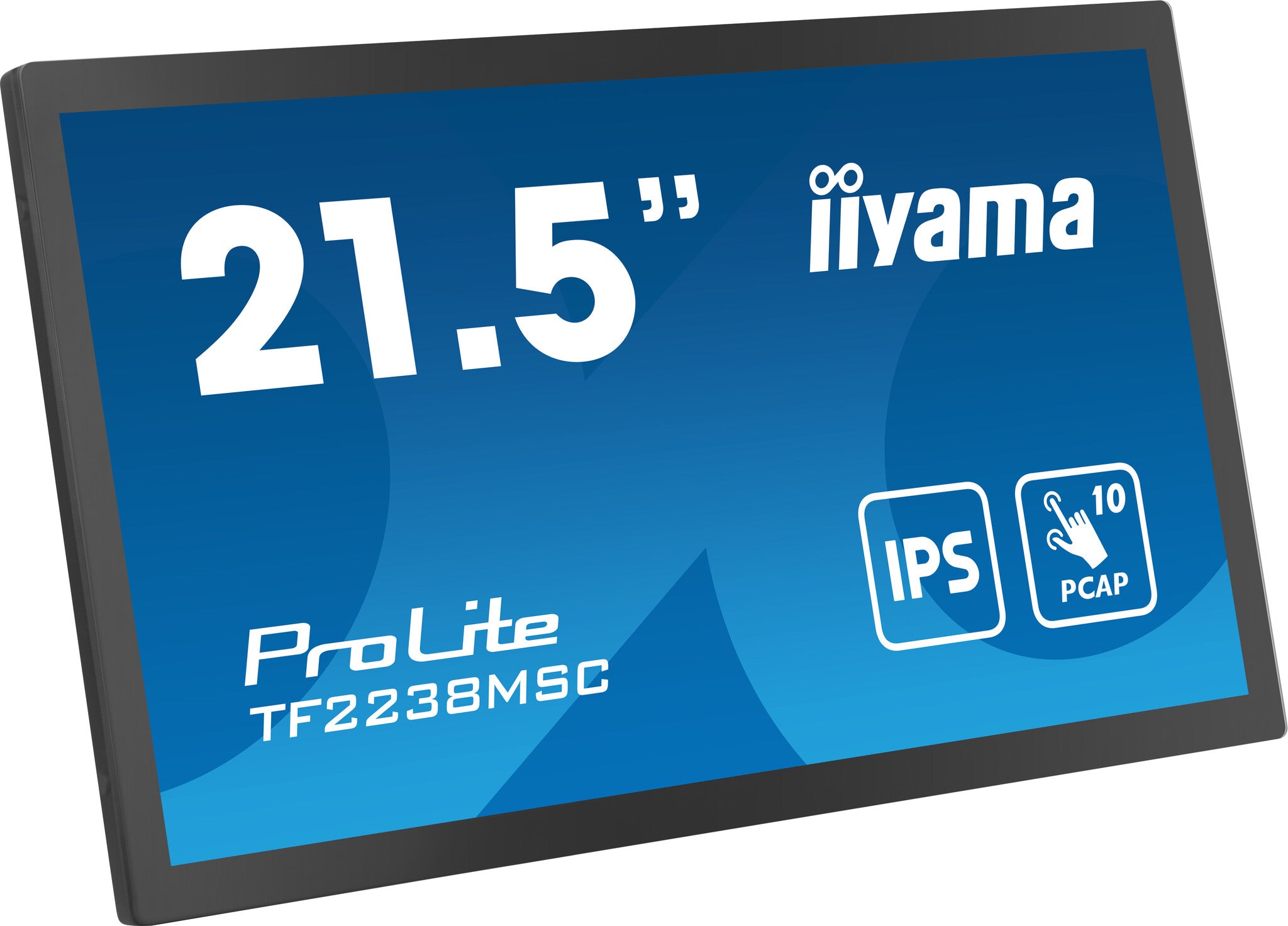

The Full HD (1920x1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
| Display | |
|---|---|
| Surface hardness | 7H |
| Display diagonal (metric) | 54.5 cm |
| Viewable size, vertical | 26 cm |
| Viewable size, horizontal | 47.9 cm |
| Horizontal scan range | 30 - 83 kHz |
| Pixel pitch | 0.249 x 0.249 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 5 ms |
| Display brightness | 600 cd/m² |
| Display brightness (typical) | 600 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 53.3 cm (21") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 3.6 mm |
| Front bezel colour | Black |
| Product colour | Black |

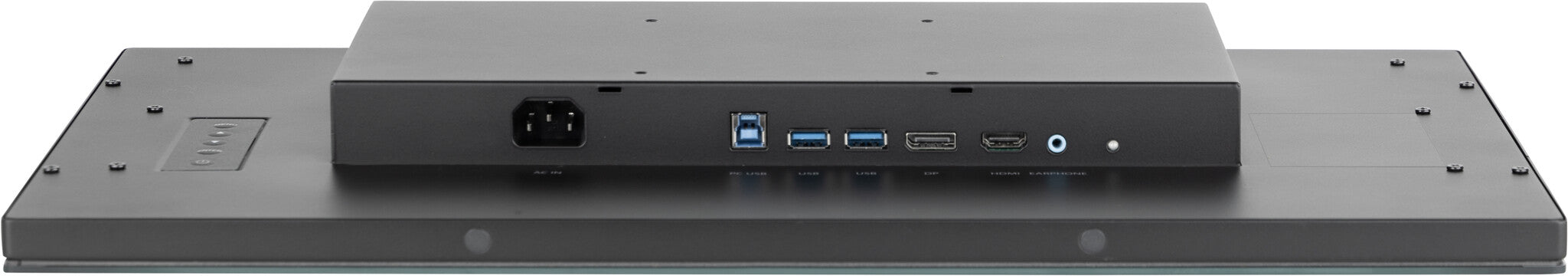

| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| USB Touch port | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Network | |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Simplified Chinese, German, English, French, Japanese, Polish, Russian |

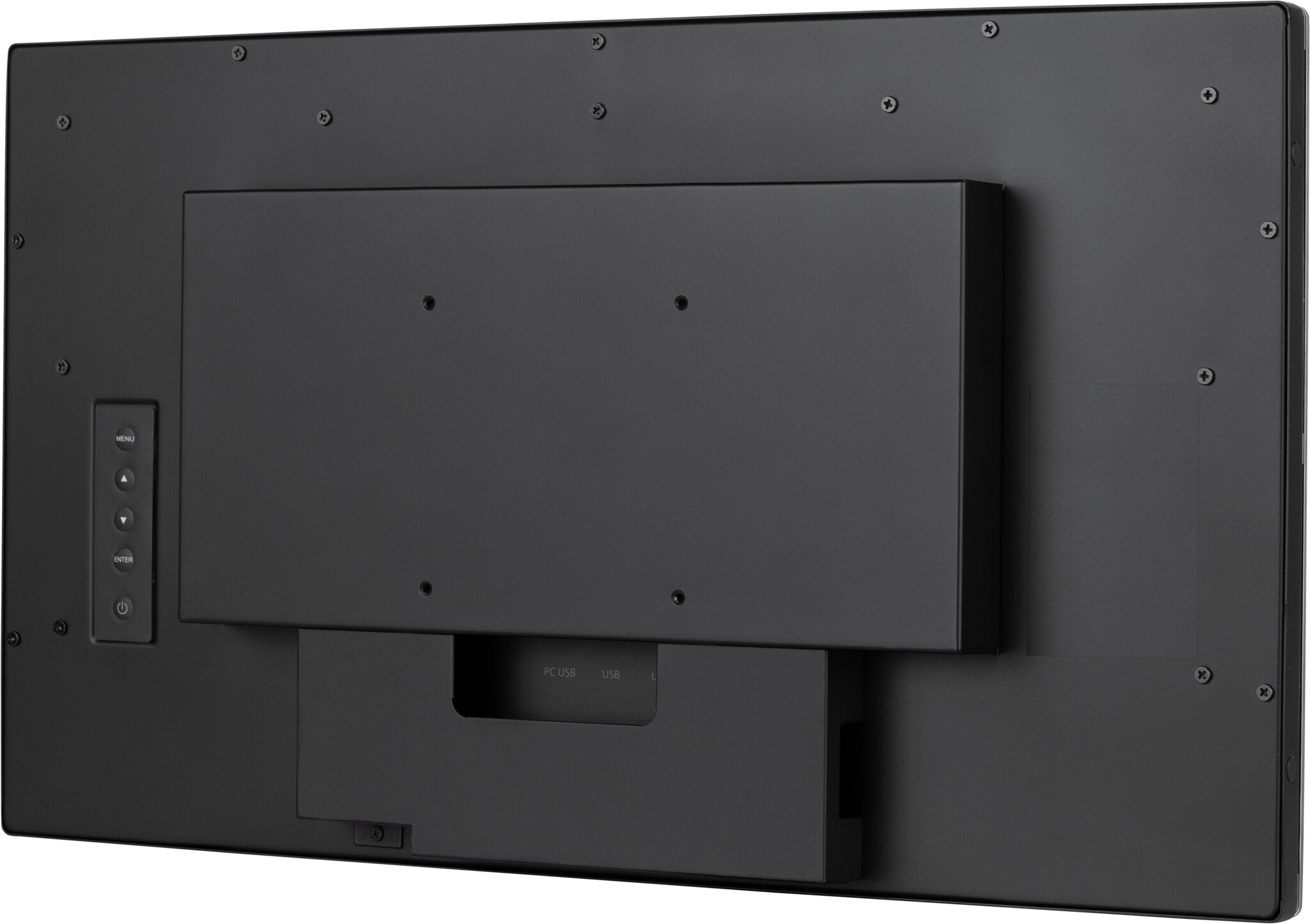

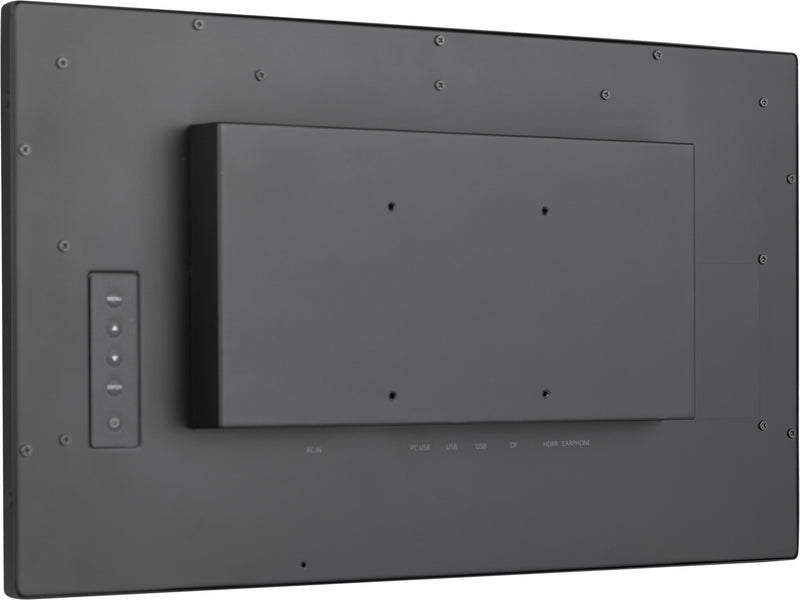

| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Power supply type | Internal |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 17 W |
| Energy efficiency class (SDR) | D |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.98 cm |
| Bezel width (top) | 1.98 cm |
| Bezel width (side) | 1.7 cm |
| Weight (with stand) | 5.1 kg |
| Height (with stand) | 300 mm |
| Depth (with stand) | 47 mm |
| Width (with stand) | 512.5 mm |
| Packaging data | |
|---|---|
| Package weight | 6.4 kg |
| Package height | 364 mm |
| Package depth | 572 mm |
| Package width | 572 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB |
| Other features | |
|---|---|
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Mean time between failures (MTBF) | 50000 h |
| Placement supported | Indoor |
| Active display area (W x H) | 479 x 260 mm |
| Built-in processor | No |
| USB ports quantity | 2 |
| International Protection (IP) code | IP1X |
