iiyama OTF1616MC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Couldn't load pickup availability
- Touchscreen 39.6 cm (15.6") LCD VA
- Full HD 1920 x 1080 pixels 16:9
- 60 Hz 25 ms 1100 cd/m² 800:1
- E 11 kWh 24 W

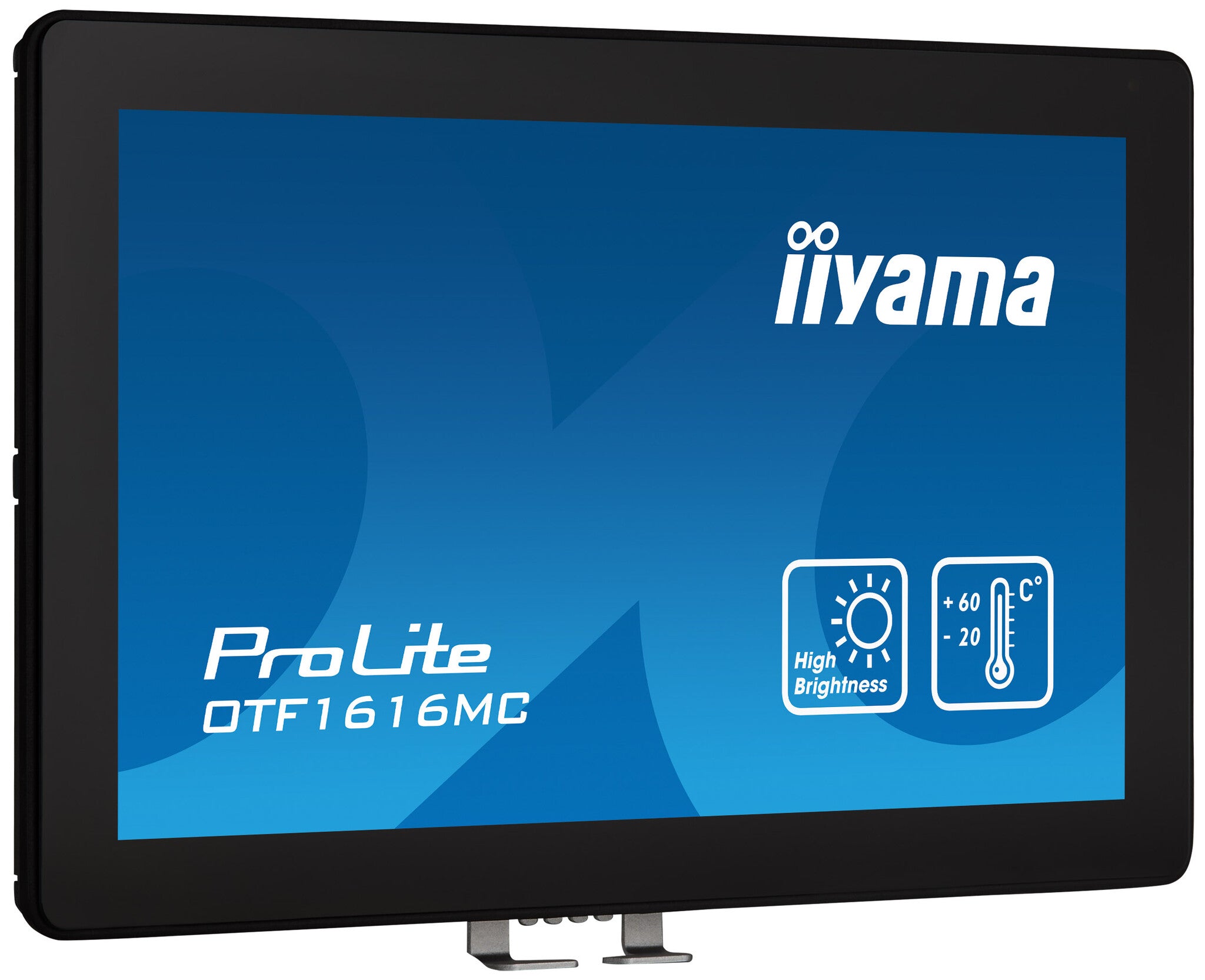

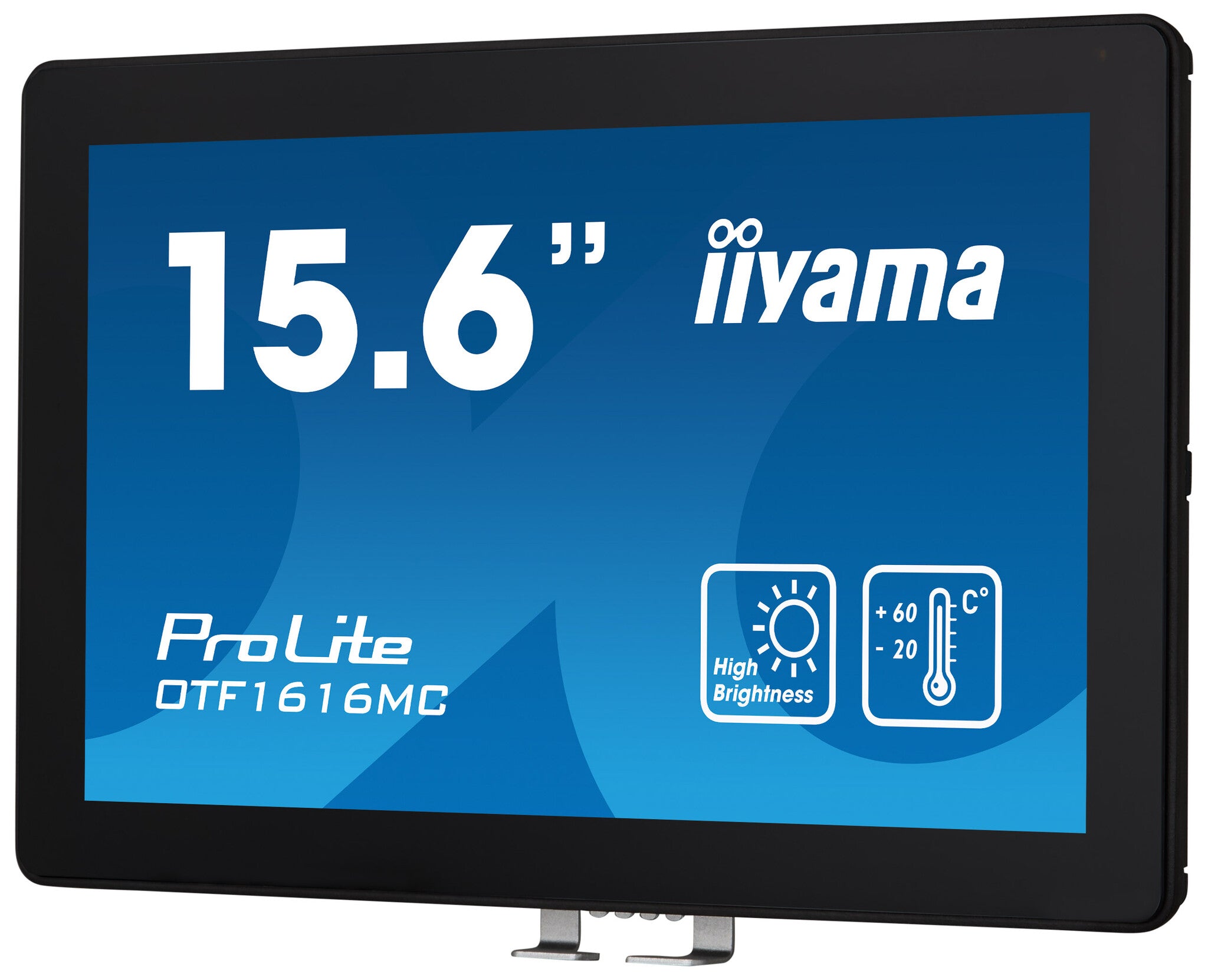

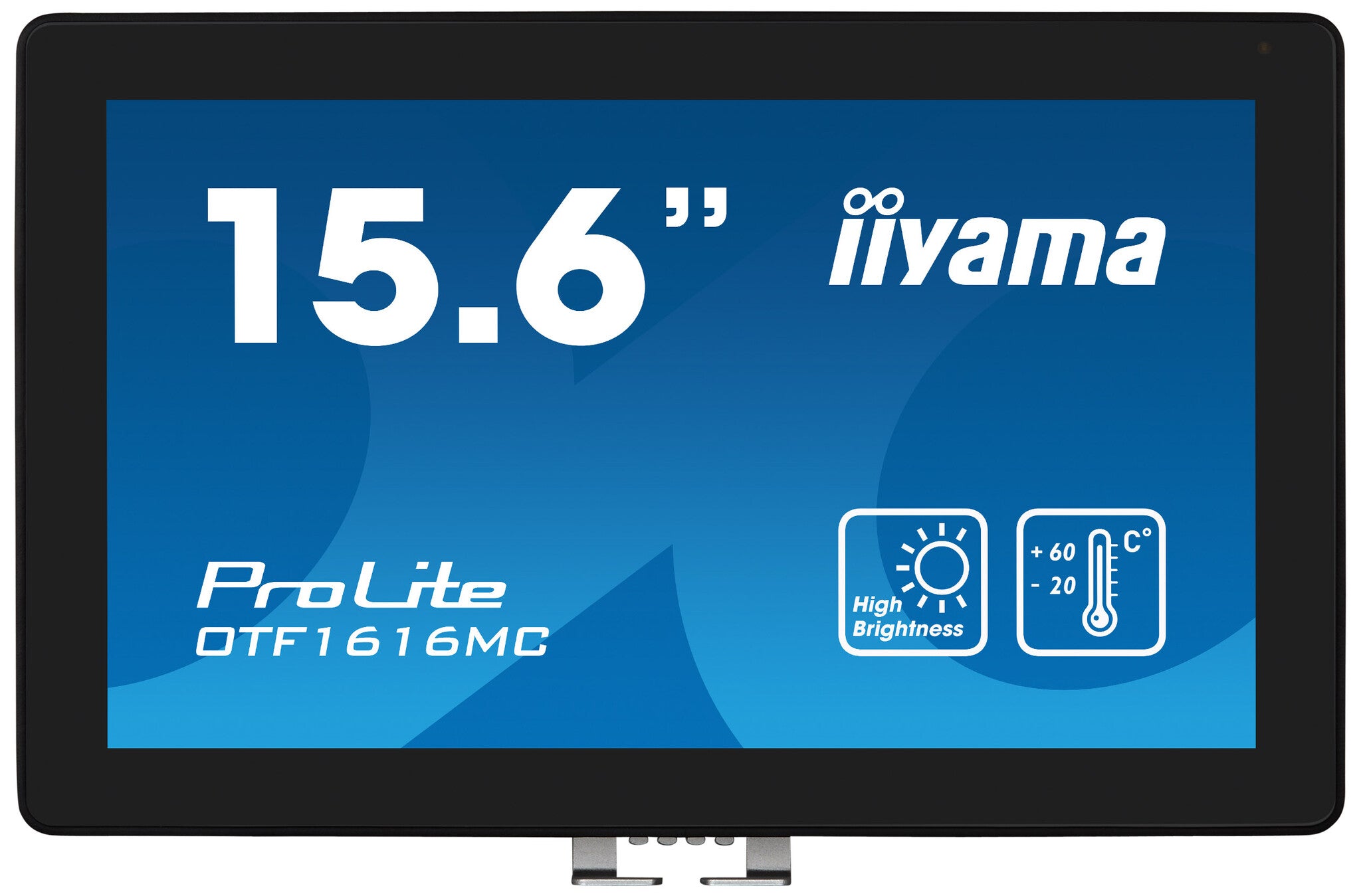

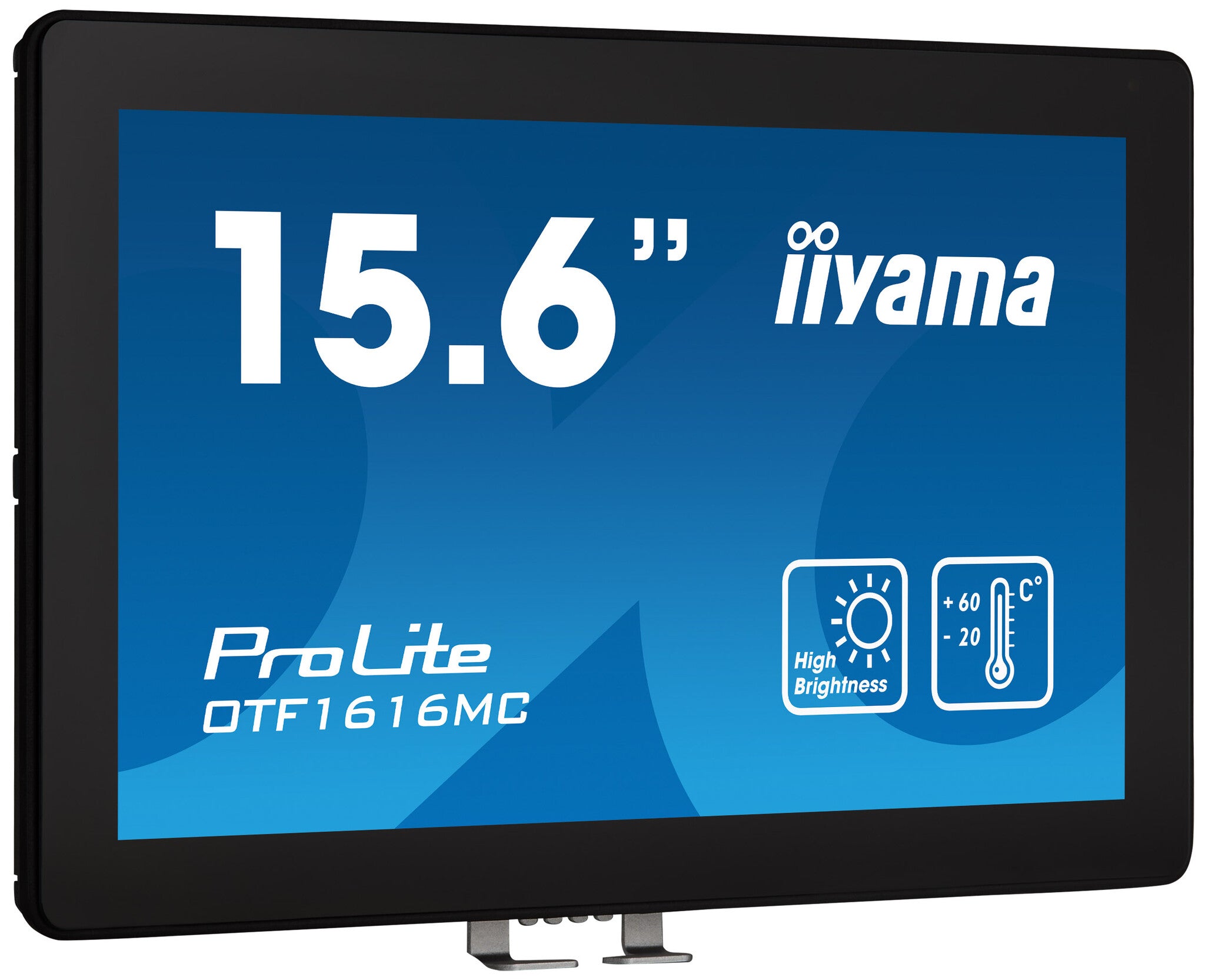

Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.
| Display | |
|---|---|
| Surface hardness | 7H |
| Display diagonal (metric) | 39.5 cm |
| Digital horizontal frequency | 31.5 - 67.5 kHz |
| Viewable size, vertical | 19.5 cm |
| Viewable size, horizontal | 34.5 cm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Pixel pitch | 0.179 x 0.179 mm |
| Display number of colours | 16.2 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 800:1 |
| Screen shape | Flat |
| Response time | 25 ms |
| Display brightness | 1100 cd/m² |
| Display brightness (typical) | 1100 cd/m² |
| Display brightness (peak) | 1100 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LCD |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Design | |
|---|---|
| Glass thickness | 3.15 mm |
| Front bezel colour | Black |
| Product colour | Black |
| Market positioning | Office |

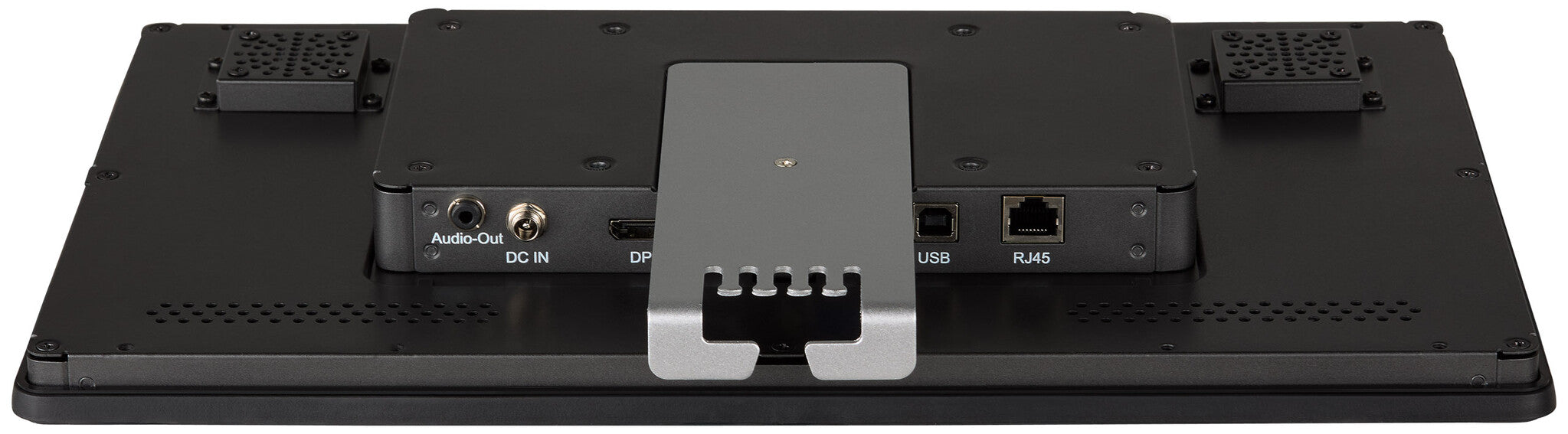

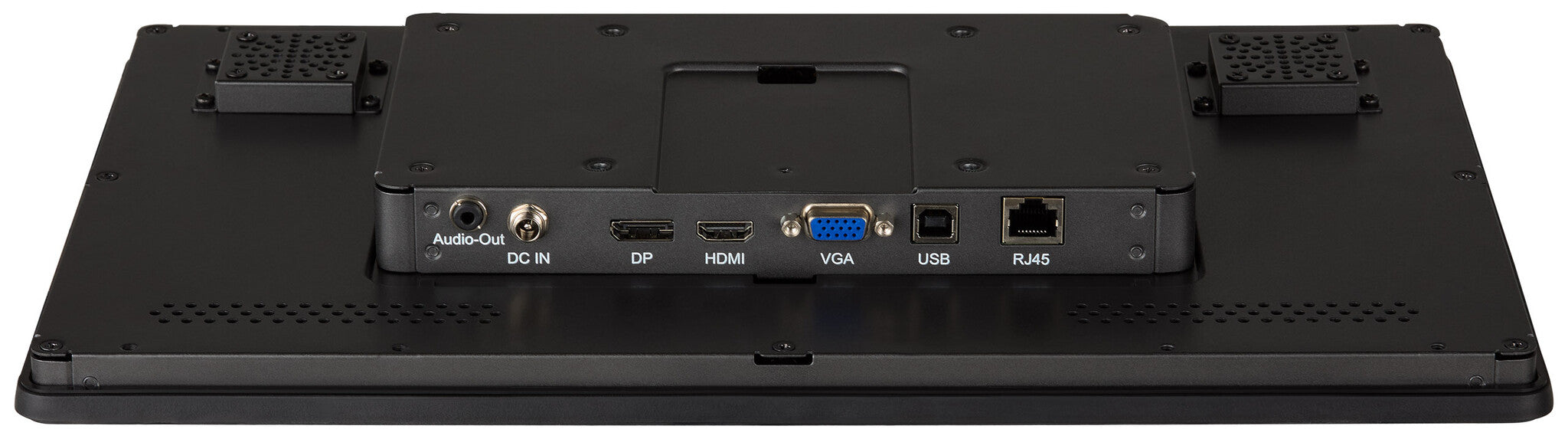

| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Headphone out | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 24 W |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 3 kg |
| Height (without stand) | 246 mm |
| Depth (without stand) | 42 mm |
| Width (without stand) | 398.5 mm |
| Weight (with stand) | 3 kg |
| Height (with stand) | 246 mm |
| Depth (with stand) | 42 mm |
| Width (with stand) | 398.5 mm |
| Packaging data | |
|---|---|
| Package weight | 4.62 kg |
| Package height | 370 mm |
| Package depth | 485 mm |
| Package width | 485 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Other features | |
|---|---|
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| Mean time between failures (MTBF) | 60000 h |
| Placement supported | Indoor |
| Active display area (W x H) | 345.2 x 194.6 mm |
| International Protection (IP) code | IP65 |
