Additional Technical Specifications
Signal Specifications
Input Video: DisplayPort 1.2a
Output Video: HDMI 1.4b
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 1.62Gbps/2.7Gbps
Resolution: Up to 4Kx2K@30HZ
Supports Multiple Color Format: RGB 6/8/10/12-bit per component(bpc) and YCbCr 4:4:4, YCbCr 4:2:2, 8/10/12bpc
Supports 10/12-bit deep color 1080p up to 2.25Gbps
3D Video Formats: (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps
Support up to 8 channel LPCM, compressed audio (AC-3,DTS) and HBR audio format
Electrical Specifications
Power Consumption (Max): 1W
External Power Supply: No external power needed
Physical Specifications
Operating Temperature: 0°C to +45°C
Operating Humidity: 10% to 85% RH (no condensation)
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 90% RH (no condensation)
Physical Characteristics

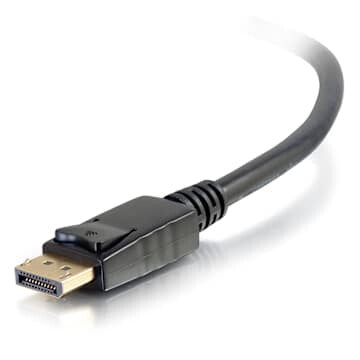

Input: DisplayPort Male 20pin

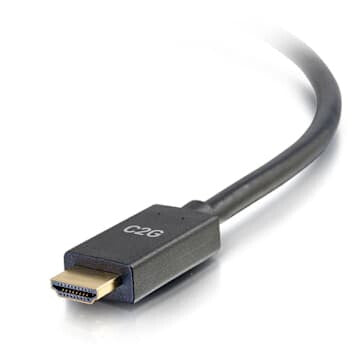

Output: HDMI Male Type A 19pin

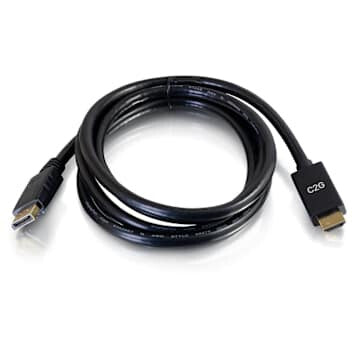

Dimensions: Cable Length: 1830±30mm, DisplayPort Male Connector Length: 10.68mm, HDMI Male Connector Length: 9.2±0.3mm
Regulatory Approvals: FCC, CE
