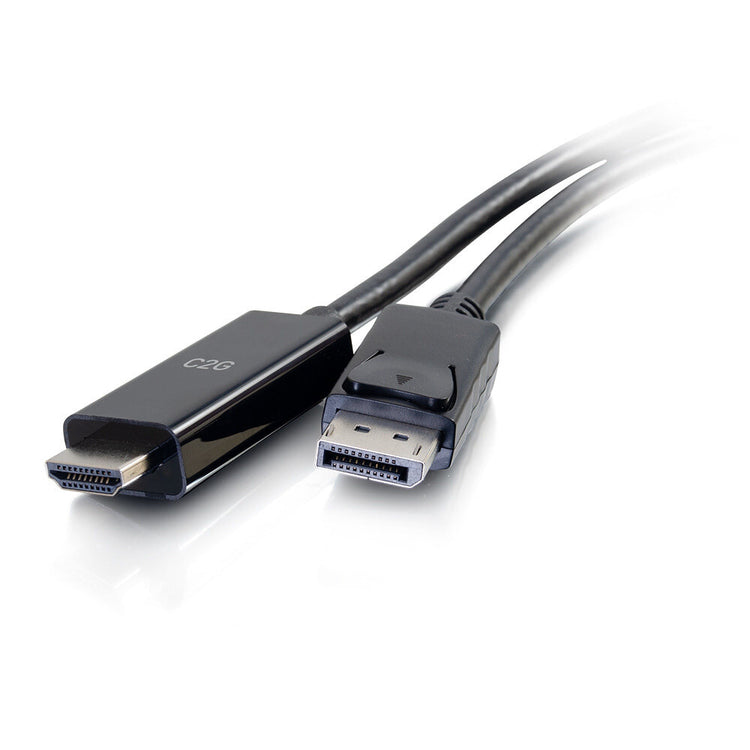

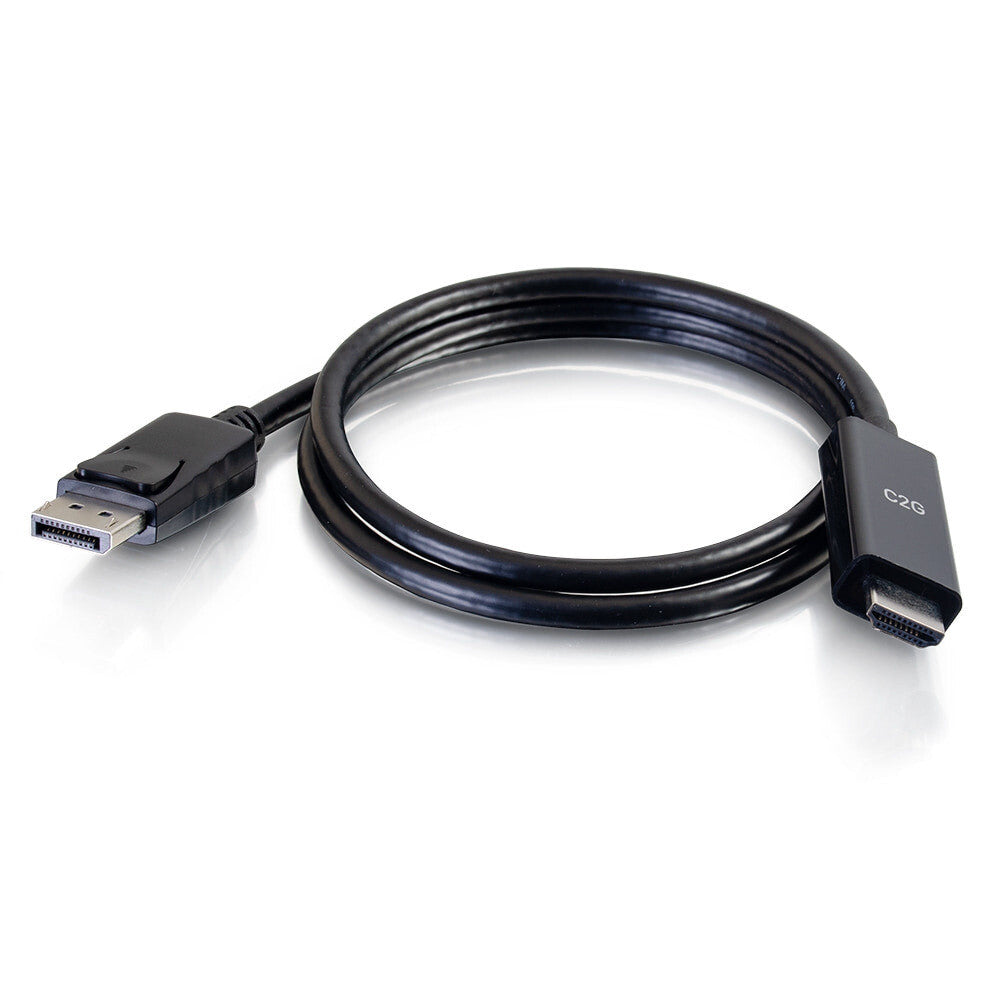

The DisplayPort Male to HDMI Male Active Adapter Cable allows you to connect the DisplayPort output of a video source to a display which accepts an HDMI input # making it an ideal solution for the office or work space applications.
Convenience
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.
Performance
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 4K (4096 x 2160 at 60hz), allowing it to deliver a high quality video image to the connected display.
Features and Benefits
Support for resolutions up to 4K (4096 x 2160 at 60hz)
Adapter in cable form factor
Active DisplayPort 1.2 to HDMI 2.0 conversion
Support for 3D video and HDCP 2.2
Plug and Play — no driver required
Additional Technical Specifications
Electrical Specifications
Voltage Rating: 30V
Conductor Resistance: 30AWG-381
/km Max. at 20°C
Insulation Resistance: FOAM-PE/PE DC-500V 100M
. km Min. at 20°C
Dielectric Strength: AC 500V/1 Sec. Min.
Impedance: 100±5
Physical Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -25°C to 70°C

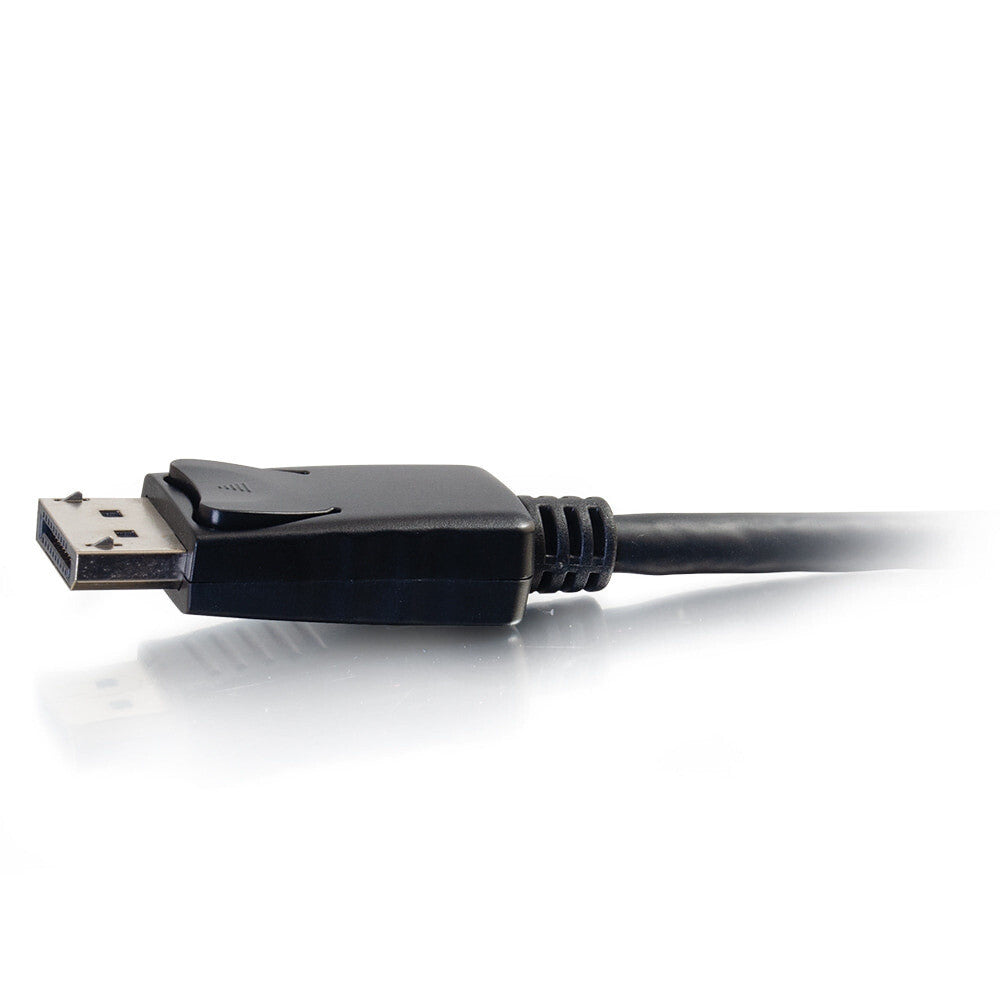

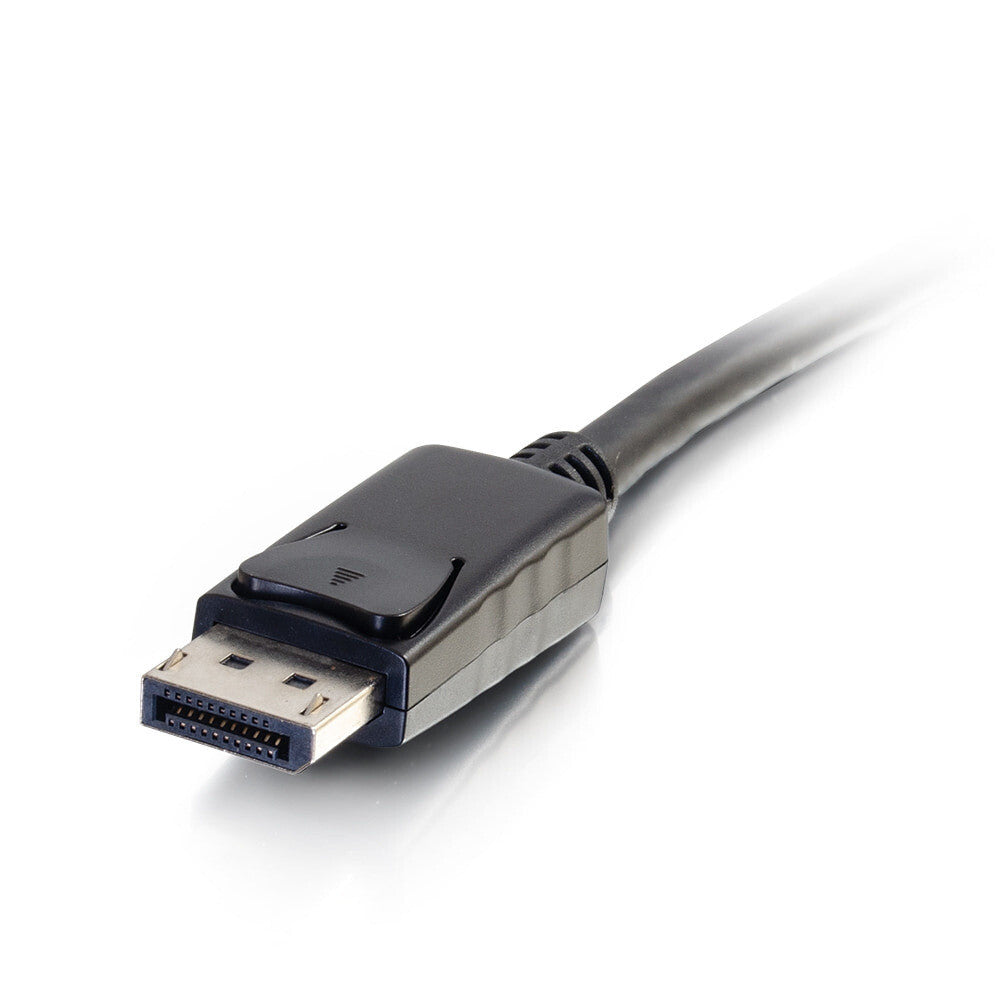

Connector 1: DP Male: Nickel Plated Shell: SPCC; Gold Plated Terminal: C5191; Black Core: LCP

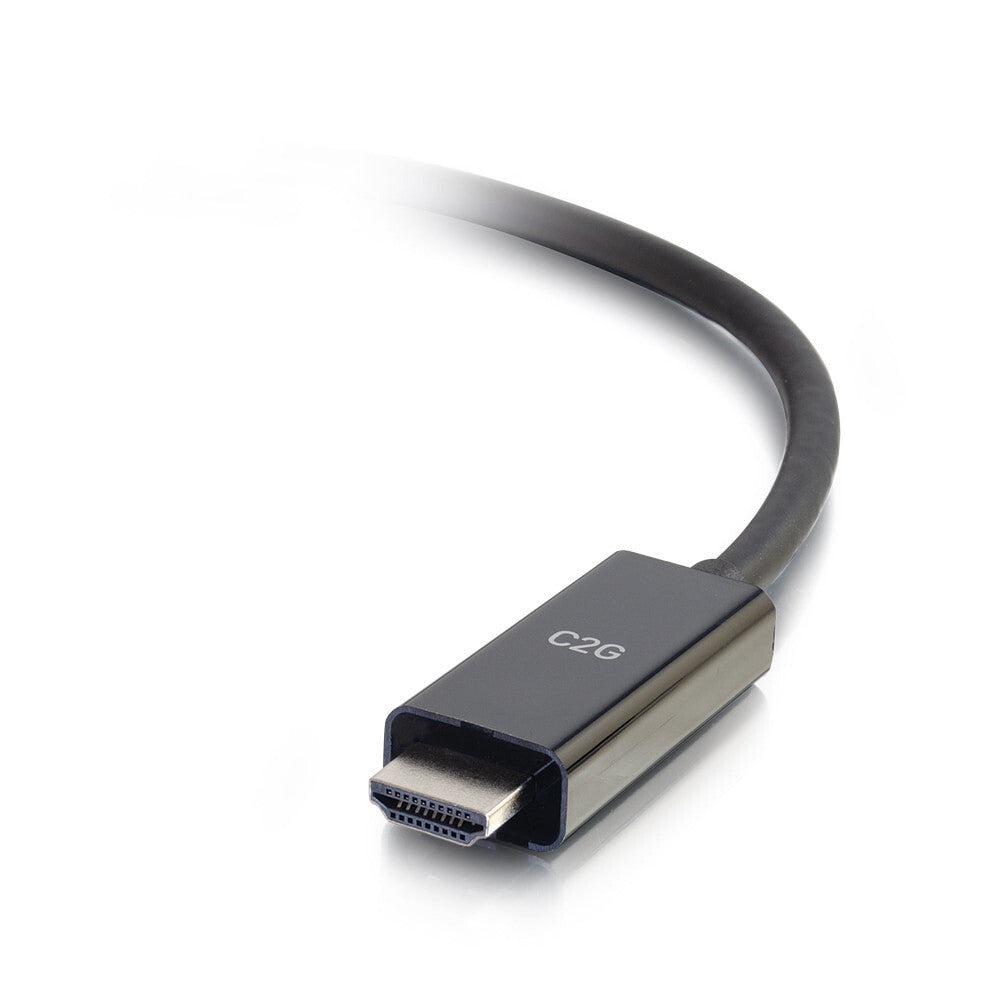

Connector 2: PCBA/Mini DP to HDMI A/M Plywood, Black Rubber Core (IC: PS176) PCB 'A, Nickel Plated Connector (Fog Surface) HDMI M Connector, Nickel Plated Shell: C2680; Gold Plated Terminal: C5191; Black Core: LCP
Shell: Connector 1, Connector 2: Black ABS Finish Shell, SR Molding Black PVC
Cable OD: 6.0, (7/0.10Tx1P+D+AL+Mylar)x5P+7/0.10Tx5C+F+ADB16/5/0.12, Jacket PVC Black
Cable Marking: DisplayPort Cable E301195 UL AWM Style 20276 80°C 30V VW-1
QC Inspection
100% Test for Open/Short
Mechanical Test for Connectors
Mean Time Between Failure is 400,000 Hours
Approvals: CE marked and conforms to 2011/65/EU ROHS 2
