£472.99

Stock Available: 0
  • 14.5 cm (5.7") 1440 x 720 pixels Touchscreen
  • 4 GB
  • Compatible memory cards: MicroSD (TransFlash)
  • 2 GHz
  • GPS (satellite) Android 11
  • Bluetooth Bluetooth Low Energy (BLE) Data network: 2G, 3G, 4G Near Field Communication (NFC) Wi-Fi
  • Built-in camera 13 MP
  • Auto focus Built-in microphone RFID reader
  • 4800 mAh
  • Black

M10
Mobile Computers

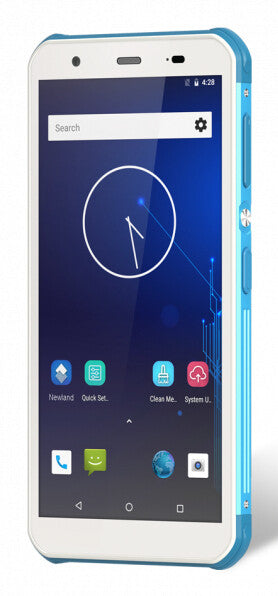

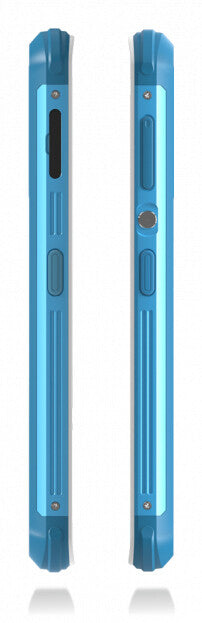

Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the M10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7”, it’s one of the largest durable touchscreens on the market. It features edge to edge screen protection by a metal housing that’s designed to withstand high drops and offer reliable performance in all weathers. The M10 features a white anti-microbial casing that makes it perfect for healthcare applications.

The M10 Pilot Pro uses an ultra-slim megapixel barcode scanner with left and right scan solutions for comfortable data capture, all housed in a design that matches the look and feel of high-end modern consumer phones. With Newland’s standard warranty, extended warranty options and Ndevor MDM solutions, the M10 Pilot Pro has all the style, functionality and support needed for any enterprise.

Comprehensive data capture.
The M10 Pilot Pro can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode Comprehensive data capture. The M10 can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode scanning, NFC RFID reading, fingerprint recognition and GPS/Beidou/GLONASS.

Versatile connectivity.
With dual band 802.11 a/b/g/n/ac WiFi and 4G/3G/2G support, the M10 keeps you connected. Further optimizing this, the dual SIM option allows you to use the most suitable provider no matter where you are. It's a match for any leading consumer-brand mobile phone experience.

Powerful performance.
The Android 11.0 operating system helps you get more from your mobile computer. It's intuitive, fast and tailored to you and your choice of software, applications and operational use. A 2.0GHz octa­core processor keeps you running even smoother.

Long Lasting Battery.
The M10 is equipped with a 4800mAh battery. Supplemented by a low-power design, the usage time is significant. The device is so power-efficient that you won't need to change the battery to operate well beyond a standard shift. To top it off, it supports fast-charging via its Type-C port.

Android Enterprise Recommended.
The M10 is the first Newland unit to be Android Enterprise recommended. Additionally, GMS services are included.

Antimicrobial Casing.
With healthcare in mind, the M10 features an antimicrobial casing that is built to resist even the harshest cleaning agents.

Biometric Security.

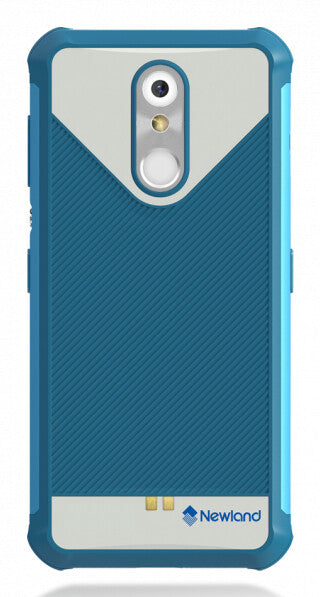

The M10 has fingerprint biometrics for extra security and a faster login. Positioned on the back of the device, the device can be comfortably unlocked with one hand without having the press the front of the screen.

Display
Touchscreen Yes
Touchscreen type Capacitive
Display resolution 1440 x 720 pixels
Display diagonal 14.5 cm (5.7")
Memory
Maximum memory card size 128 GB
Compatible memory cards MicroSD (TransFlash)
Flash memory 64 GB
Internal memory 4 GB
Processor
Number of cores 8
Processor frequency 2 GHz
Network
Near Field Communication (NFC) Yes
Networking standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data network 2G, 3G, 4G
SIM card type NanoSIM
Internal modem Yes
Bluetooth Low Energy (BLE) Yes
Bluetooth version 5.0
Bluetooth Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi Yes
GPS Performance
Galileo Yes
BeiDou Yes
GLONASS Yes
Assisted GPS (A-GPS) Yes
GPS (satellite) Yes
Camera
Auto focus Yes
Built-in flash Yes
Front camera resolution (numeric) 2 MP
Front camera Yes
Rear camera resolution (numeric) 13 MP
Built-in camera Yes
Audio
Speakers Yes
Built-in microphone Yes
Performance
Certification CE RED, FCCID, RoHS, IEC6247
LED indicators Yes
International Protection (IP) code IP67
Drop proof Yes
Vibrating alert Yes
2D (matrix & stacked) barcodes supported Code 39, Data Matrix, PDF417, QR Code
Scanner type 1D/2D
Barcode reader Yes
RFID reader Yes
Product colour Black
Software
Bundled software Ndevor, SOTI, Airwatch
Operating system version 11
Operating system installed Android
Power
AC adapter output current 2 A
AC adapter output voltage 5 V
AC adapter frequency 50/60 Hz
AC adapter input voltage 100 - 240 V
Battery voltage 3.8 V
Battery capacity 4800 mAh
Weight & dimensions
Height 157 mm
Depth 12.6 mm
Width 76.3 mm
Weight 231 g
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 55 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Keypad number of keys 10
Electrostatic Discharge (ESD) protection (air) 15 kV
Electrostatic Discharge (ESD) protection (contact) 8 kV
