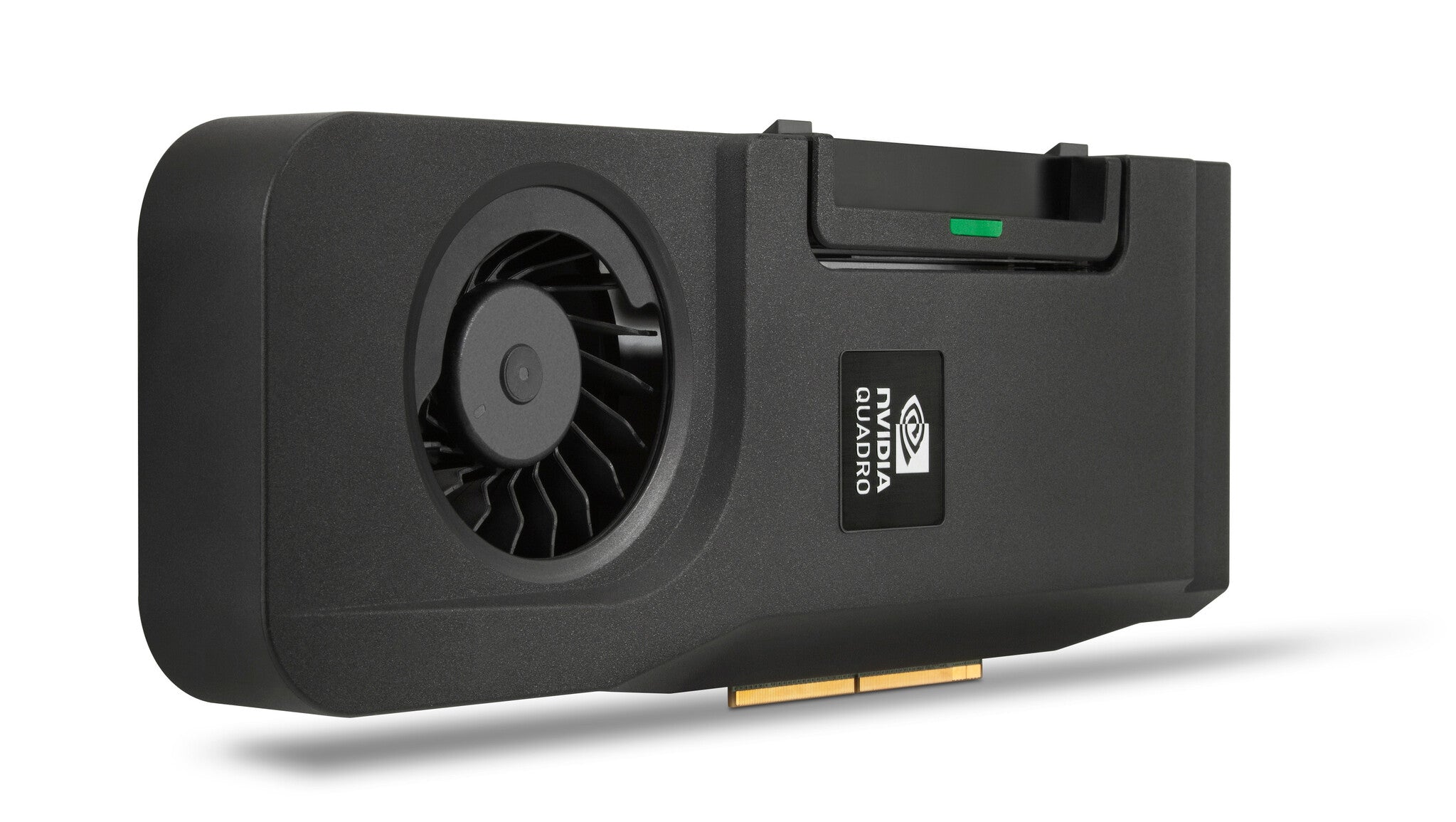

HP C3G86AA graphics card NVIDIA Quadro K4000M 4 GB GDDR5
£1,226.99
Couldn't load pickup availability
- NVIDIA Quadro K4000M 4 GB GDDR5
- 2560 x 1600 pixels 256 bit
- DirectX version: 11 OpenGL version: 4.1
- 100 W

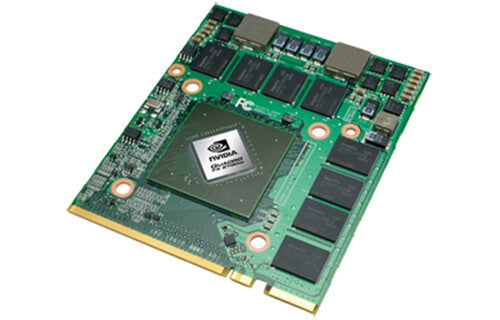

The NVIDIA Quadro® K4000M graphics board (N14E-Q3) is a graphics processing unit (GPU) module designed using the MXM™ version 3.0 Type B specification. This graphics board is targeted for high end professional 3D workstation graphics applications.
Performance and Features
This graphics offering replaces the Quadro 4000M graphics for the HP Z1.
The Quadro K4000M offers a boost in CUDA core count to 960 and a fast GDDR5 4GB memory subsystem. Along with GPU architectural improvements, the K4000M provides a great boost in performance over its predecessor.
Compatibility
Supported on HP Z1 workstation.
| Processor | |
|---|---|
| Processor frequency | 600 MHz |
| CUDA cores | 960 |
| CUDA | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Graphics processor | Quadro K4000M |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory bandwidth (max) | 89 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR5 |
| Discrete graphics card memory | 4 GB |
| Performance | |
|---|---|
| Full HD | Yes |
| OpenGL version | 4.1 |
| Shader model version | 5.0 |
| DirectX version | 11 |
| TV tuner integrated | No |
| PhysX | No |
| Power | |
|---|---|
| Power consumption (typical) | 100 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Other features | |
|---|---|
| Graphics card interface | MXM v3.0 Typ B (82 mm x 105 mm) |
| Compatible operating systems | Windows 8 32-bit and 64-bitWindows 7 32-bit and 64-bitSUSE Linux Enterprise Desktop 11HP Linux Installer Kit |
| Connector(s) | 1 x MXM v3.0 285-pin |
