ASUS Prime -RTX5080-O16G-EVO NVIDIA GeForce RTX 5080 16 GB GDDR7
Couldn't load pickup availability
- NVIDIA GeForce RTX 5080 16 GB GDDR7
- 7680 x 4320 pixels 256 bit 30 Gbit/s PCI Express 5.0

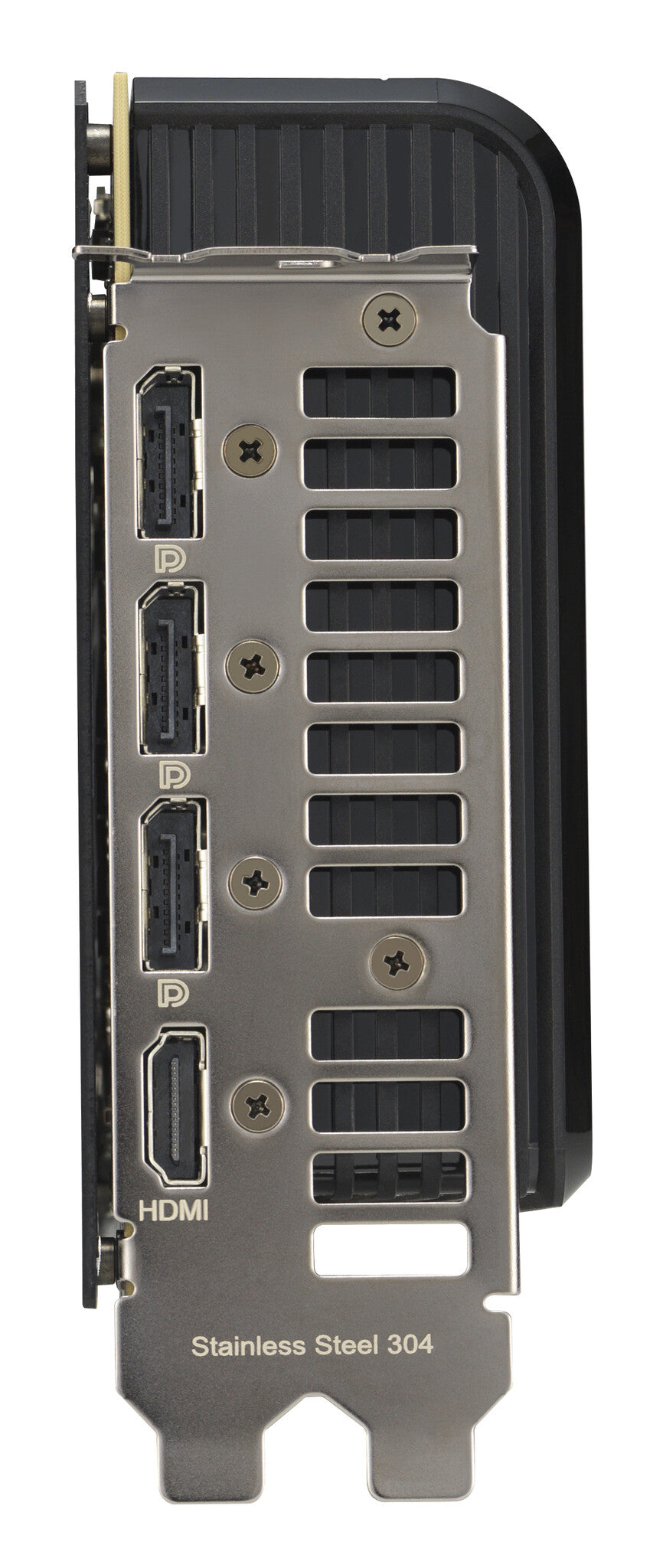

- HDMI ports quantity: 1 DisplayPorts quantity: 3
- OpenGL version: 4.6
- 1x 16-pin
Primed for Power

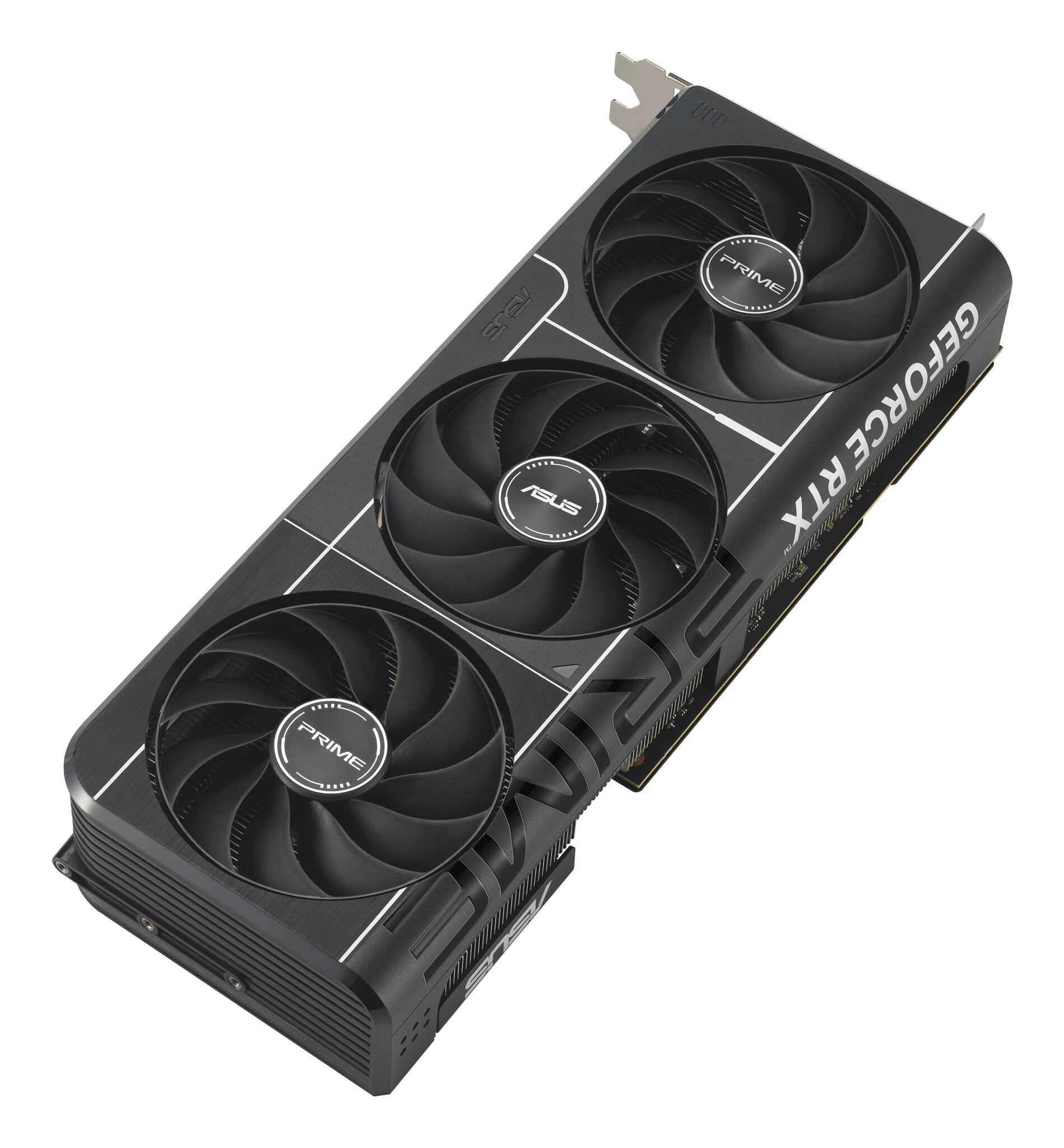

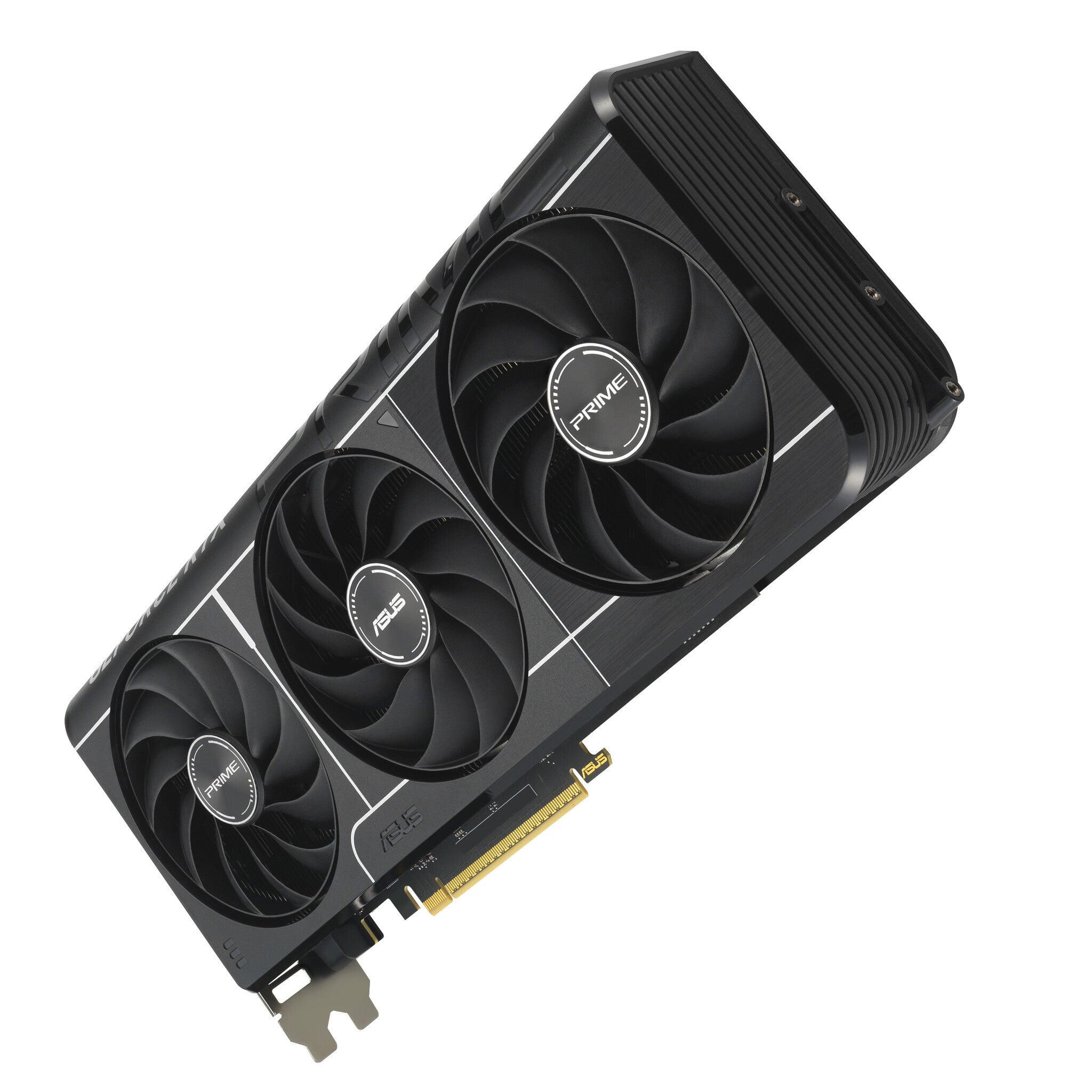

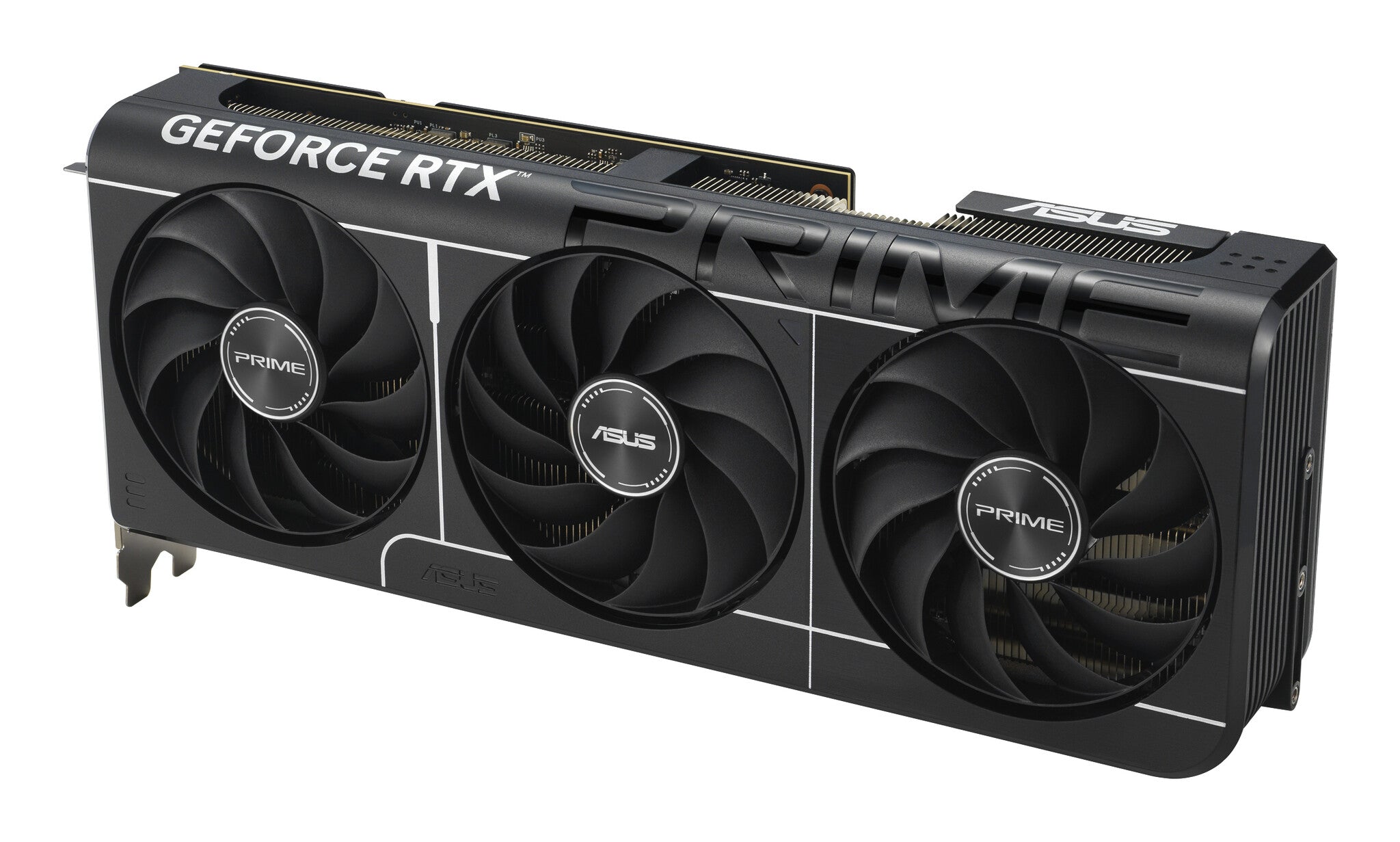

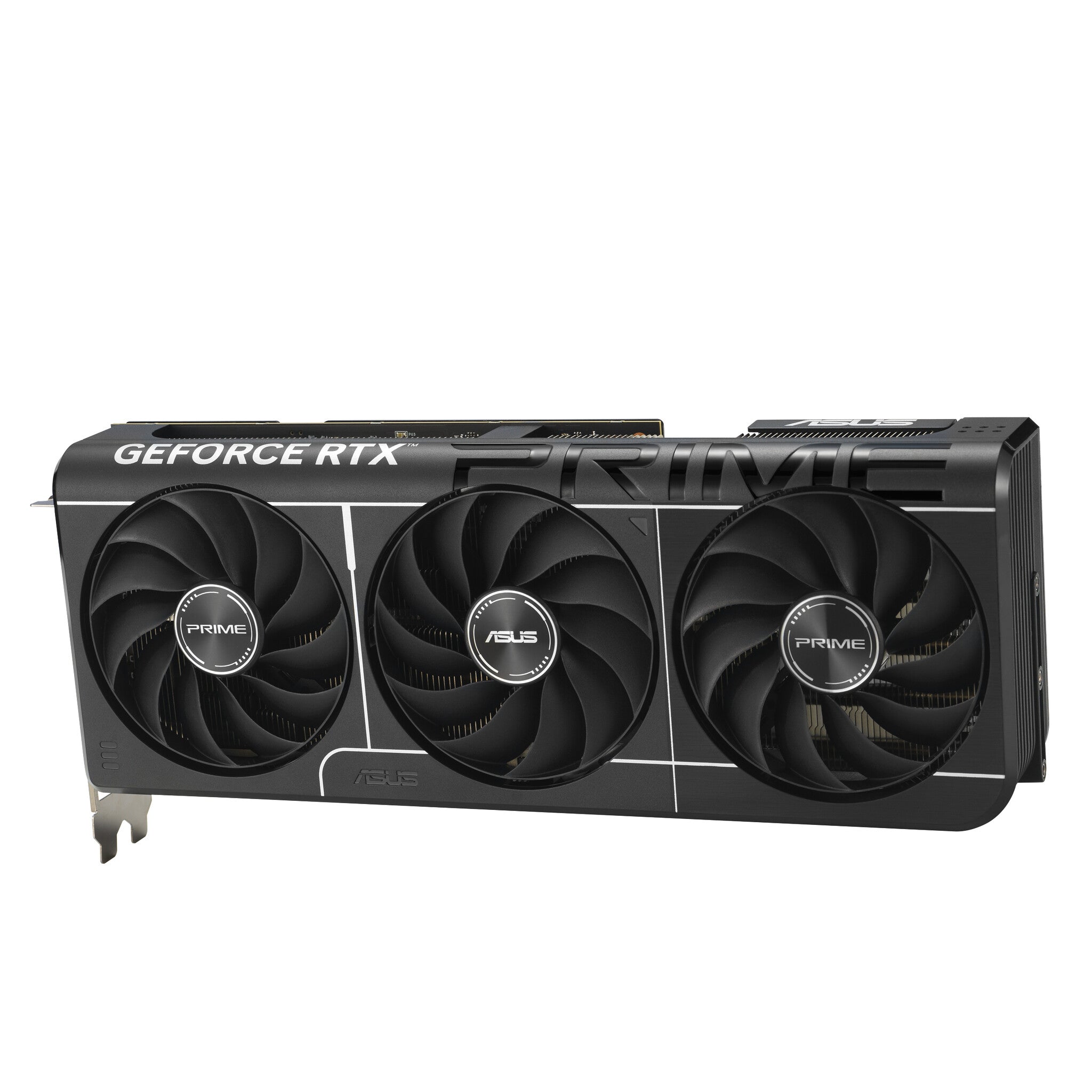

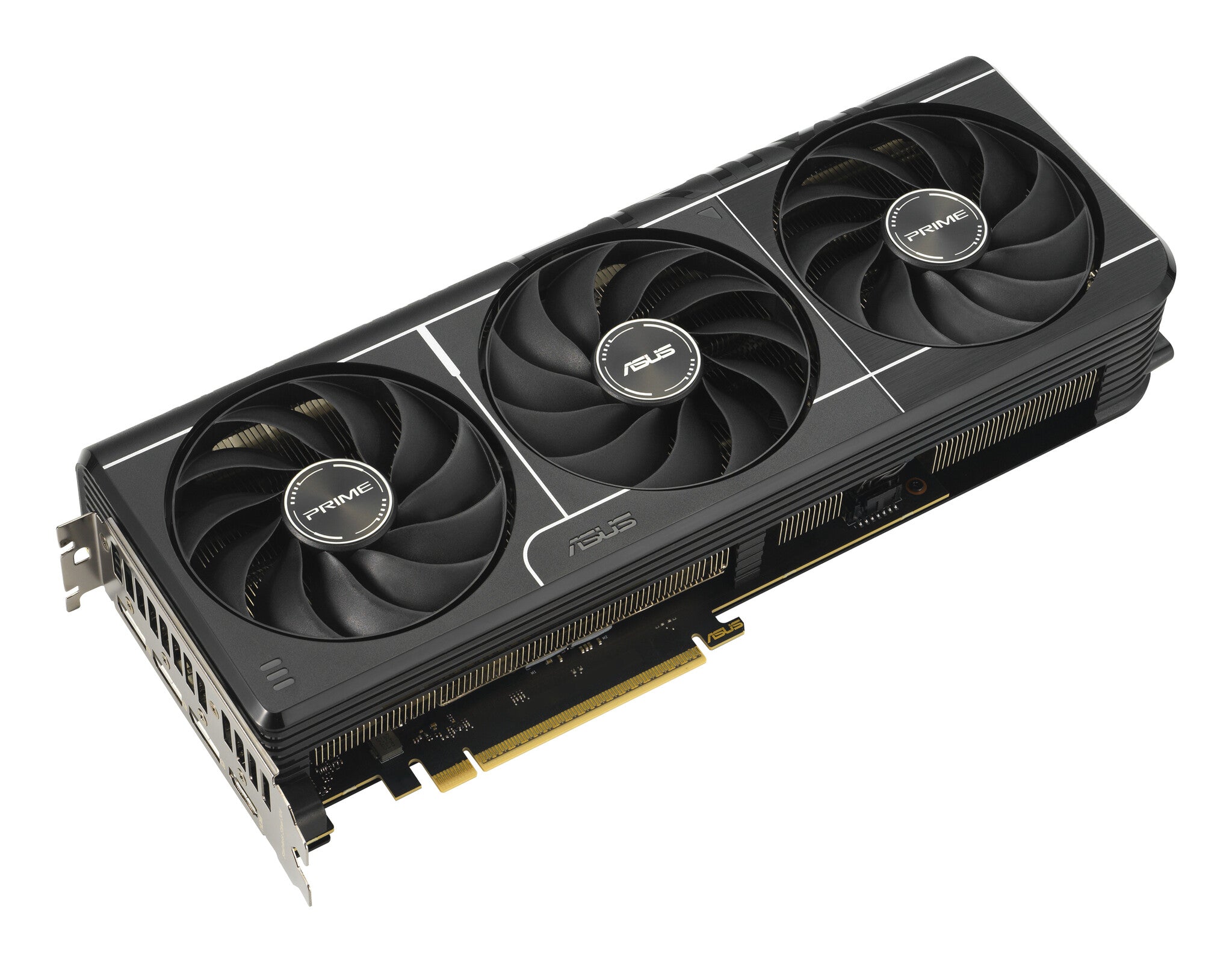

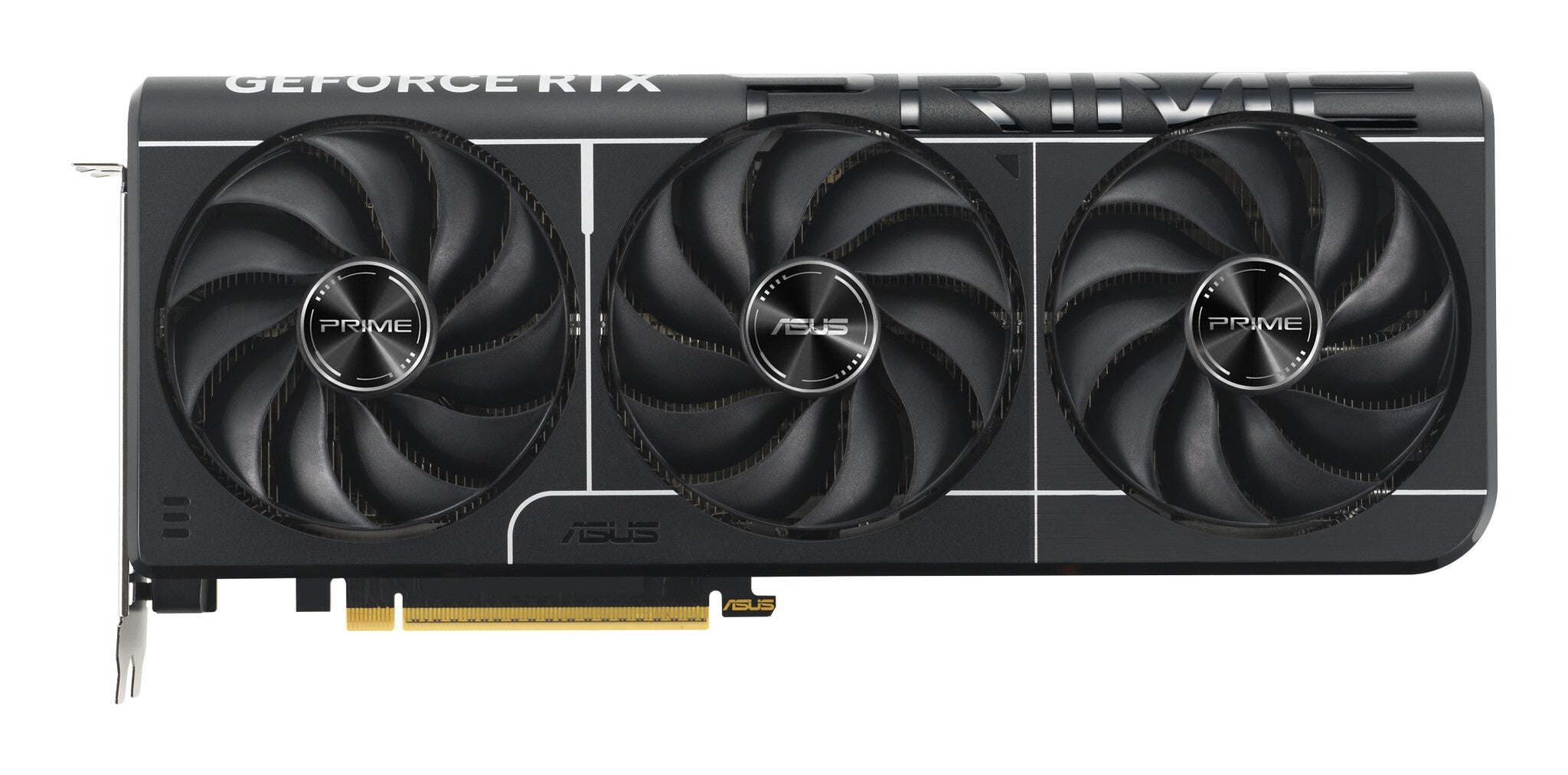

Experience Primal performance with the PRIME GeForce RTX 5080 EVO, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow for supreme cooling.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design

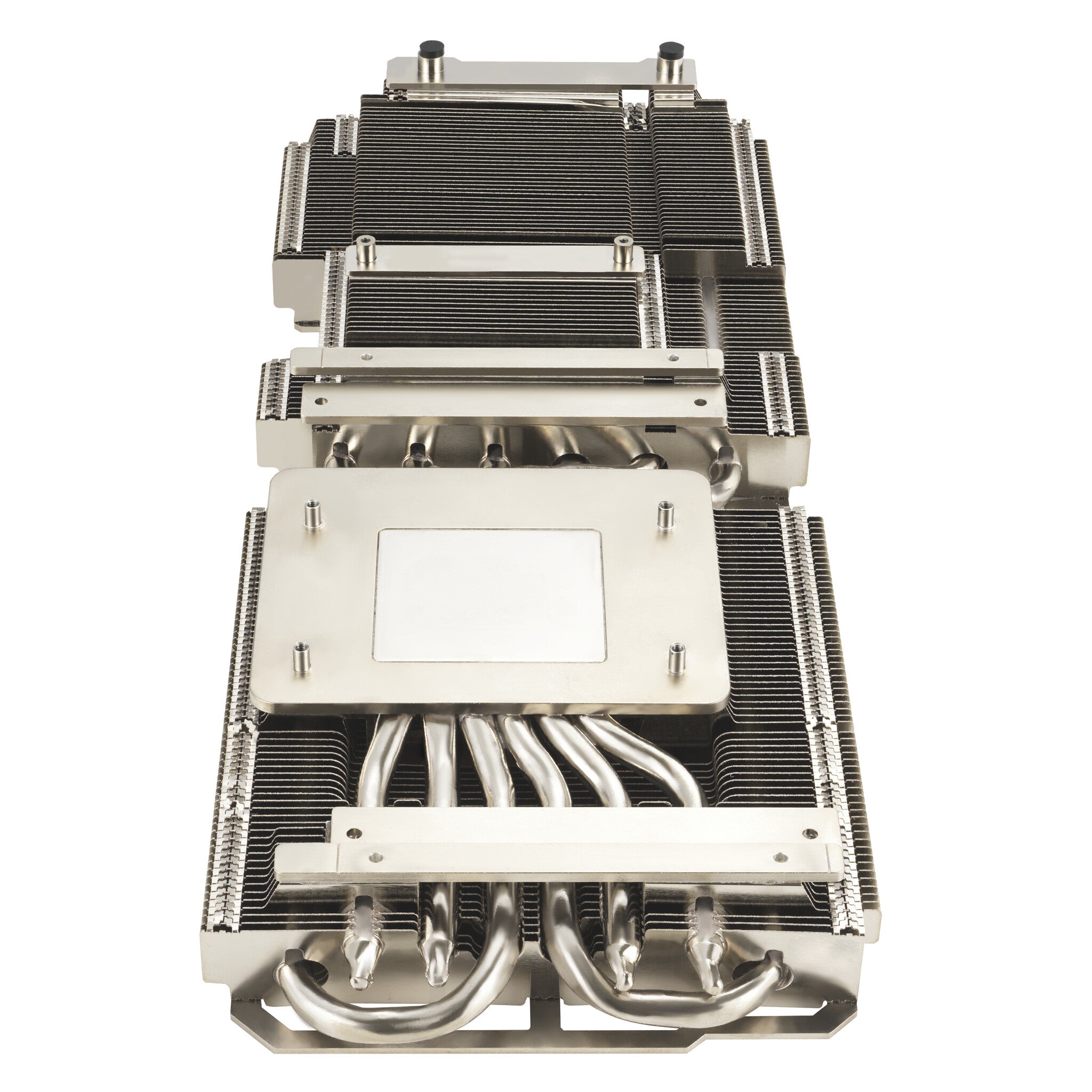

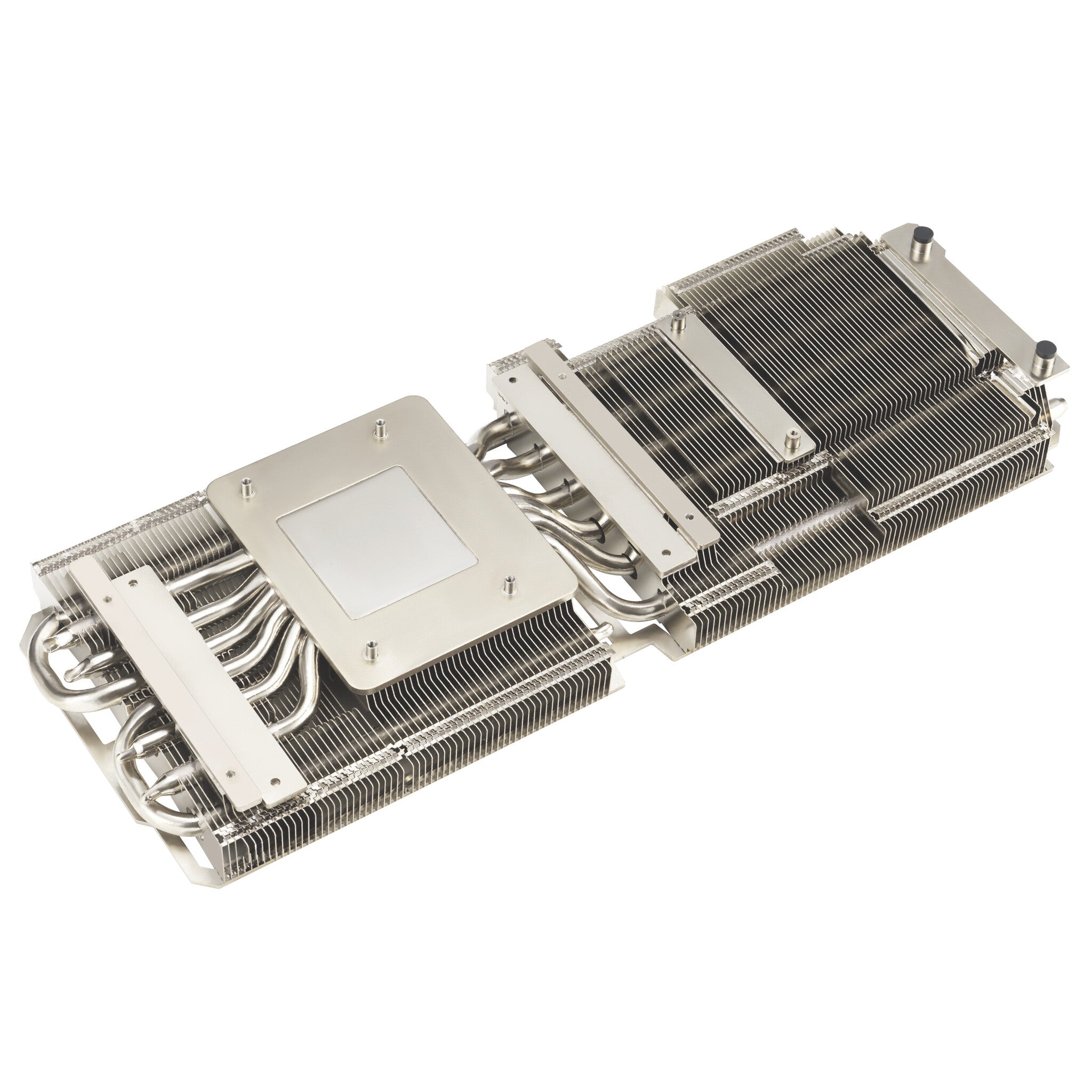

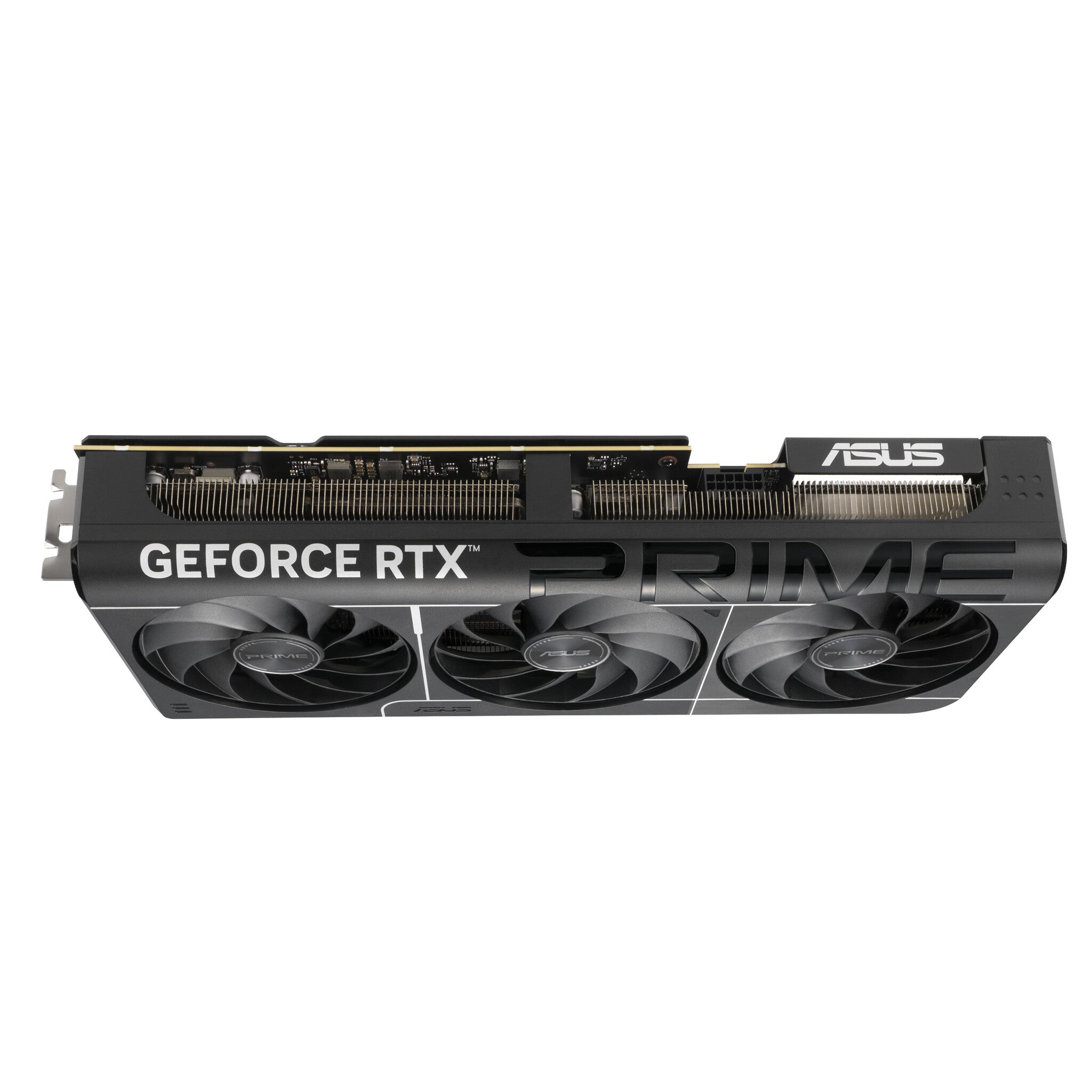

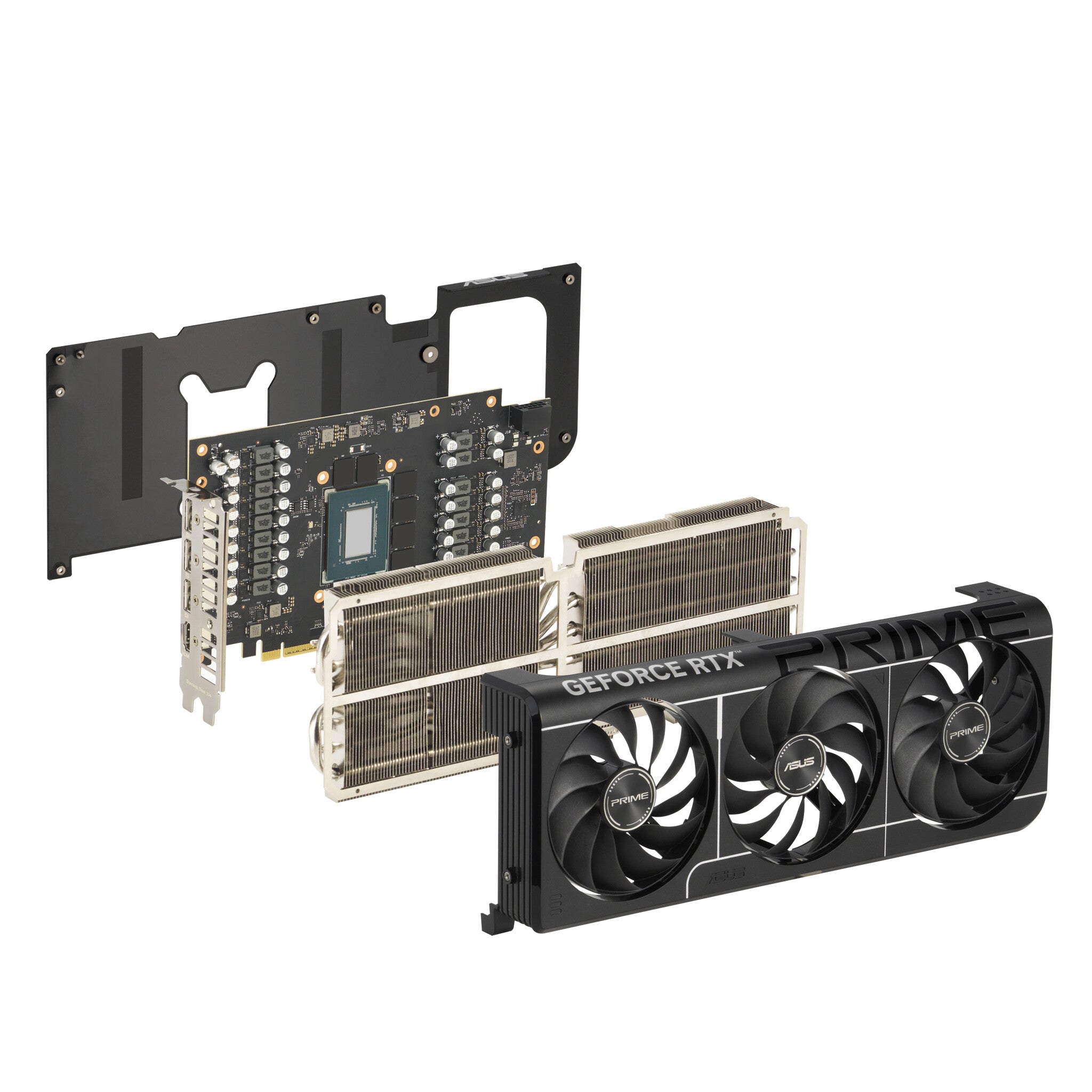

The Prime GeForce RTX 5080 EVO features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency (OC mode) | 2685 MHz |
| Processor boost clock speed | 2655 MHz |
| CUDA cores | 10752 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5080 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 30 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1b |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 5.0 |
| Performance | |
|---|---|
| Overclocked (OC) edition | Yes |
| NPU performance up to | 1801 TOPs |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| HDCP | Yes |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| SFF ready | Yes |
| Number of slots | 2.5 |
| Number of fans | 3 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 850 W |
| Weight & dimensions | |
|---|---|
| Height | 126 mm |
| Depth | 50 mm |
| Length | 304 mm |
| Weight | 1.34 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.99 kg |
| Package height | 88.5 mm |
| Package depth | 233 mm |
| Package width | 405 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| General | |
|---|---|
| Product family | Prime |
