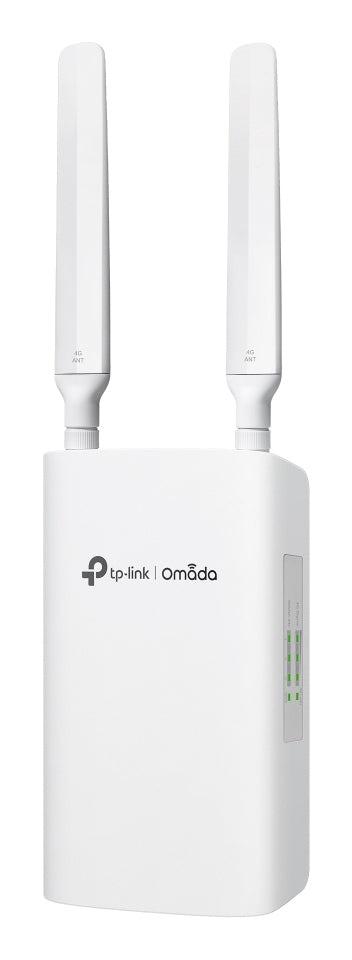

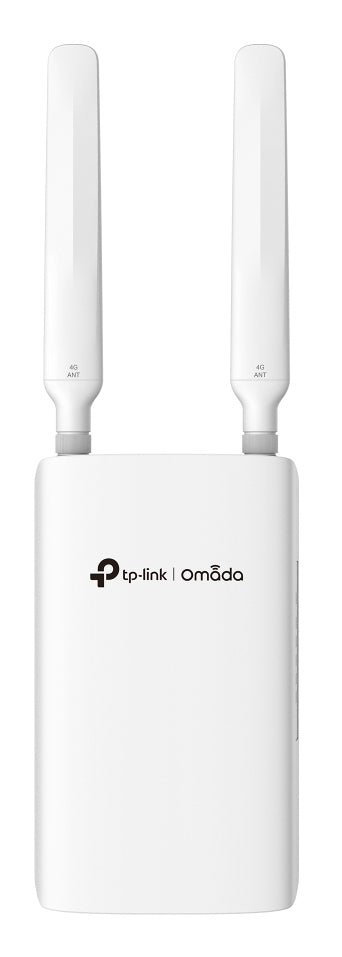

TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s
Couldn't load pickup availability
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized Management
- IP55 Weatherproofing
All-in-one Device
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play

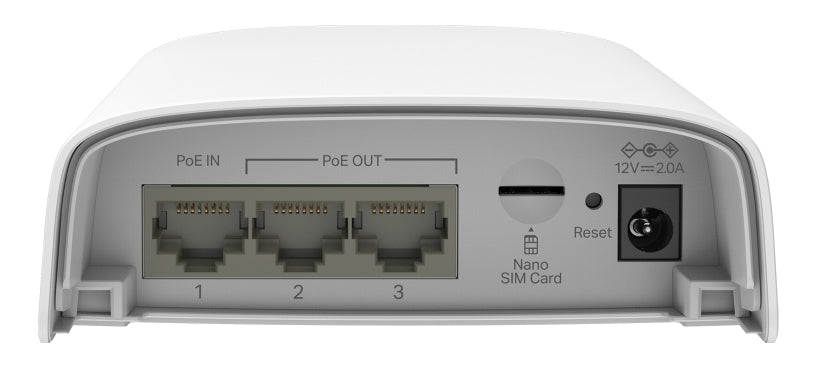

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation

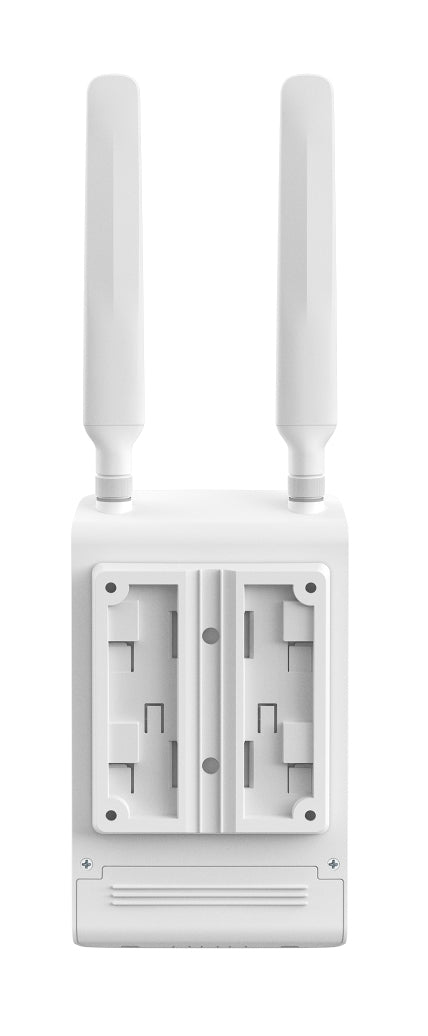

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
| Design | |
|---|---|
| Product colour | White |
| Mounting type | Wall mounting |
| LED indicators | Status |
| Features | |
|---|---|
| Antenna type | External |
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
| Short Message Service (SMS) | Yes |
| Performance | |
|---|---|
| Control display unit | No |
| Internal memory type | DDR4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Network | |
|---|---|
| Forwarding rate | 1453489 Mpps |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3at, IEEE 802.3bt |
| Wi-Fi | Yes |
| Mobile network generation | 4G |
| Data network | LTE |
| Downlink/uplink speed | 300/50 Mbit/s |
| GSM bands supported | 850,900,1800,2100 MHz |
| Frequency band | 2.4/5 GHz |
| All services ready time | 3.8 s |
| SSL VPN tunnels (max) | 50 |
| PPTP/L2TP VPN tunnels (max) | 50 |
| SSL VPN throughput | 0.0866 Gbit/s |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | SSID, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| SIM card type | NanoSIM |
| SIM card slot | Yes |
| DC-in jack | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Power | |
|---|---|
| Power consumption (max) | 16.6 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Height | 38.7 mm |
| Depth | 100.4 mm |
| Width | 174 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
