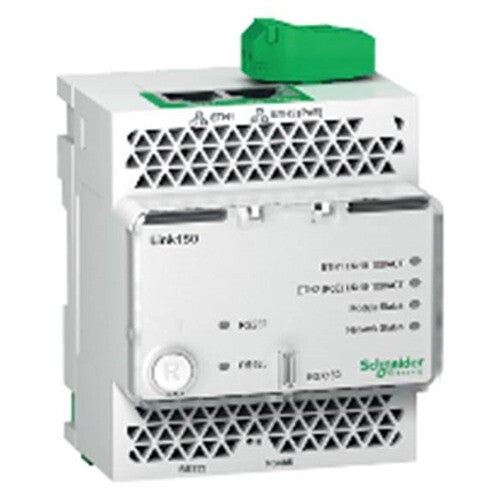

Schneider Electric Link150 gateway/controller 10, 100 Mbit/s
£707.99
Couldn't load pickup availability
- 10,100 Mbit/s
- IP20, IP40
- Grey
A vendor-neutral, scalable monitoring software which collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
| Design | |
|---|---|
| International Protection (IP) code | IP20, IP40 |
| LED indicators | Yes |
| Product colour | Grey |
| Performance | |
|---|---|
| Control display unit | No |
| Protocols | |
|---|---|
| Supported network protocols | TCP/IP |
| Management protocols | SNMP |
| Network | |
|---|---|
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security | |
|---|---|
| Security algorithms | 128-bit SSL |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232, RS-485 |
| Ethernet LAN (RJ-45) ports | 2 |
| Management features | |
|---|---|
| Web-based management | Yes |
| Power | |
|---|---|
| DC input voltage | 24 V |
| Weight & dimensions | |
|---|---|
| Weight | 175 g |
| Width | 72 mm |
| Depth | 105 mm |
| Height | 71 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -25 - 70 °C |
| Certificates | |
|---|---|
| Certification | CUL us FCC Class A China RoHS CUL UL RCM CEAS/NZS 60950-1IEC 60950-1UL 61010-1IEC 61000-6-2CSA C22.2 No 60950-1UL 60950-1UL 61010-2-201 |
