£12,990.99

Stock Available: 0
  • 1000,10000 Mbit/s
  • Rack mounting
  • Black

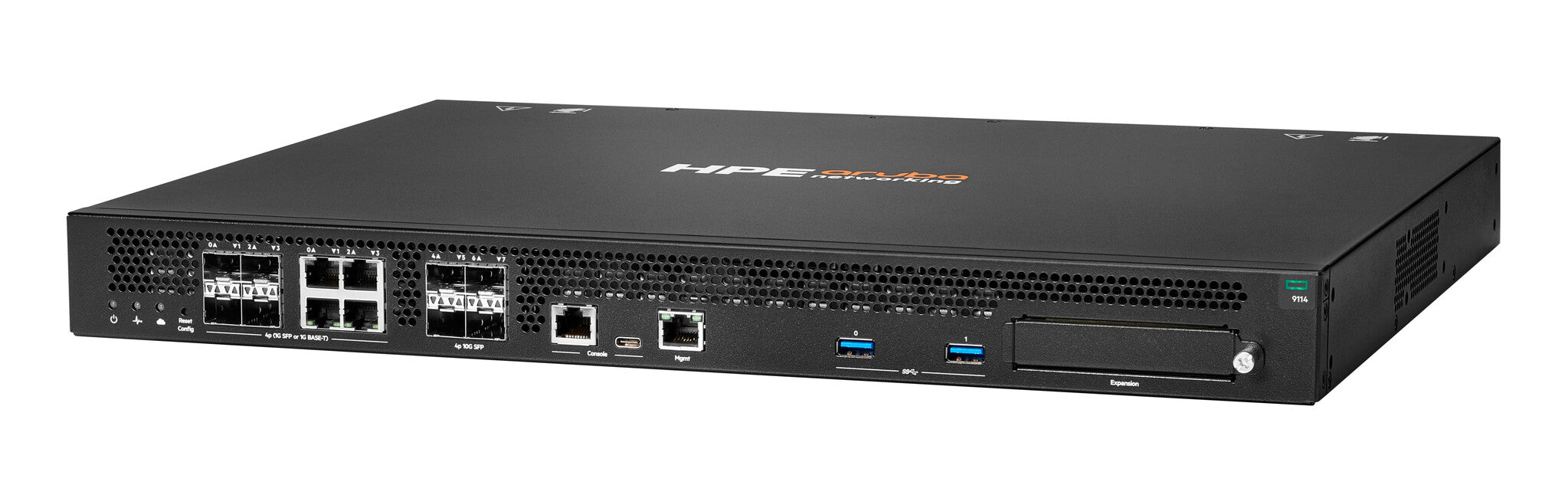

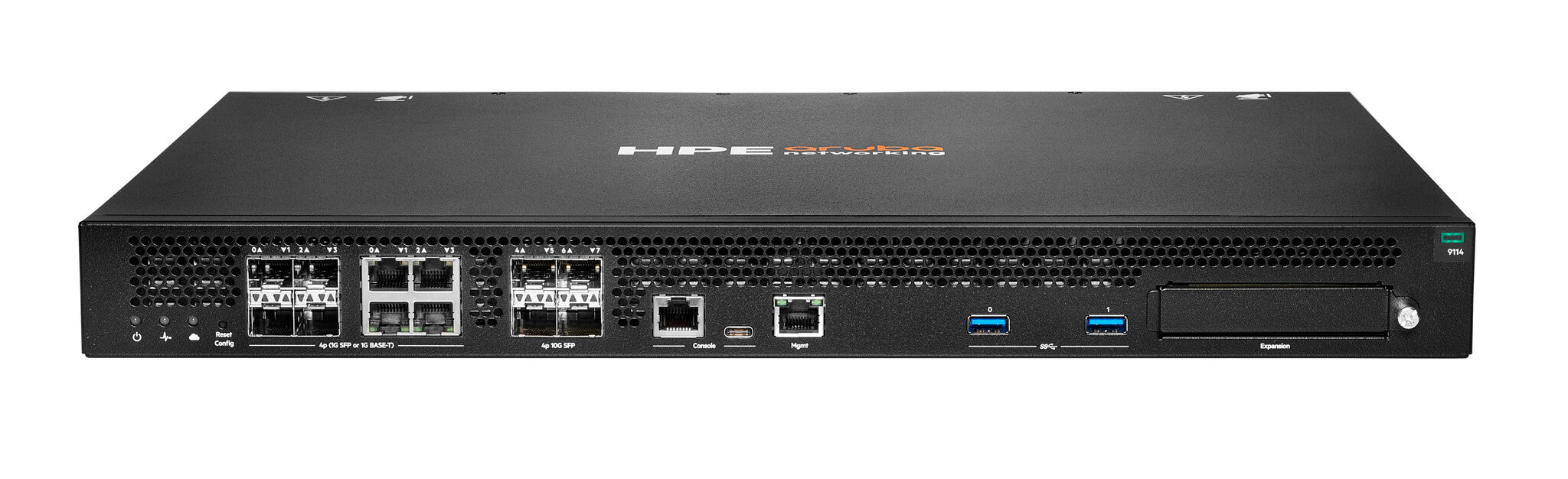

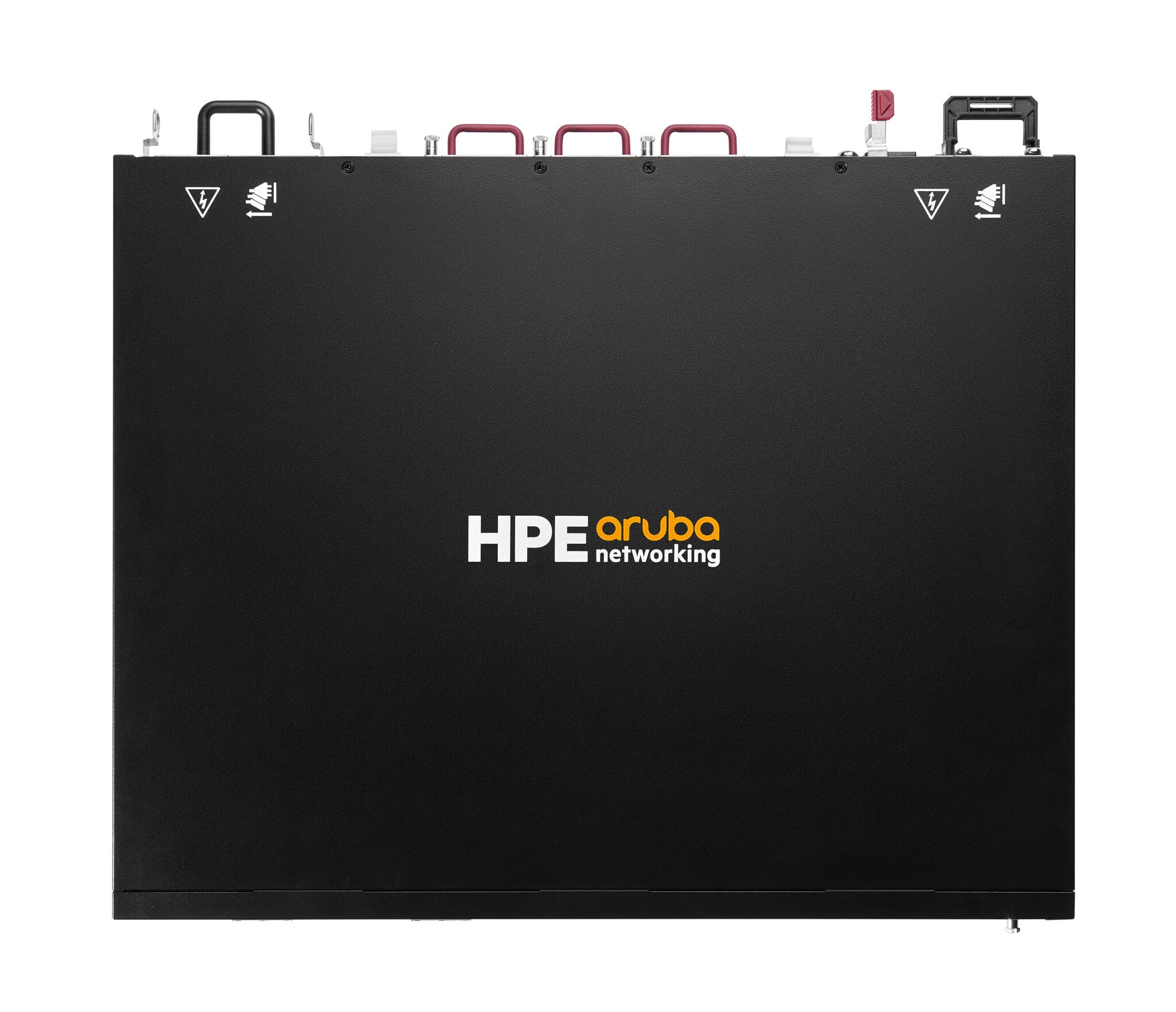

The HPE Aruba Networking 9100 Series Hybrid Gateway is a cloud-optimized edge appliance designed to securely and seamlessly extend enterprise services to medium branch, large branch and small campus networks. Using cloud architecture scale and efficiency together with intelligent edge device security and performance capabilities, the 9100 Hybrid Gateway delivers scalable, high-performance Wi-Fi with enhanced security to the edge. This purpose-built high-performance edge appliance delivers seamless roaming, 24/7 reliability, and always-on connectivity - even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, delivered by AOS-10 and HPE Aruba Networking Central, simplify and power IT operations. This versatile gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and automated and unified role-based policy enforcement for users and IoT across LAN, WAN, and SD-WAN.

What is new supporting point:
High-speed wired connectivity with 10GbE fiber ports for up to 20Gbps throughput.
Dynamic segmentation for automated role-based policy enforcement across users, devices, and IoT.
Always-on high availability with live upgrades, clustering, and redundancy.
Versatile scalable platform for cloud-based wireless gateway, SD-branch device, or VPN concentrator use cases.
Cloud-native AOS-10 architecture as part of HPE Aruba Networking Central provides IT operational efficiency with unified cloud-based management and control of wired, wireless, and SD-WAN.
Scales to meet medium branch, large branch and small campus needs supporting up to 4K APs and 10K clients.

Design
Mounting type Rack mounting
Rack capacity 1U
Product colour Black
Features
Mean time between failures (MTBF) 280165 h
Network
Firewall throughput 20000 Mbit/s
3DES/AES throughput 20 Gbit/s
Ethernet LAN data rates 1000,10000 Mbit/s
Security
MAC address filtering Yes
Access Control List (ACL) Yes
Ports & interfaces
SFP+ ports quantity 4
Combo SFP ports quantity 4
Console port RJ-45
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Power
Output voltage 12 V
Input frequency 50 - 60 Hz
Input voltage 100 - 240 V
Power consumption (max) 185 W
Weight & dimensions
Weight 6.2 kg
Width 442 mm
Depth 351 mm
Height 43.7 mm
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification None
