£2,217.99

Stock Available: 0
  • 100,1000 Mbit/s
  • Power over Ethernet (PoE) VLAN support
  • Rack mounting
  • Black

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.

What is new supporting point:
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.

Design
LED indicators LAN, Status, WAN
Mounting type Rack mounting
Product colour Black
Performance
Control display unit No
Network
Ethernet LAN data rates 100,1000 Mbit/s
Security
Firewall security Yes
VLAN support Yes
Security algorithms IPSec, SSL/TLS
Ports & interfaces

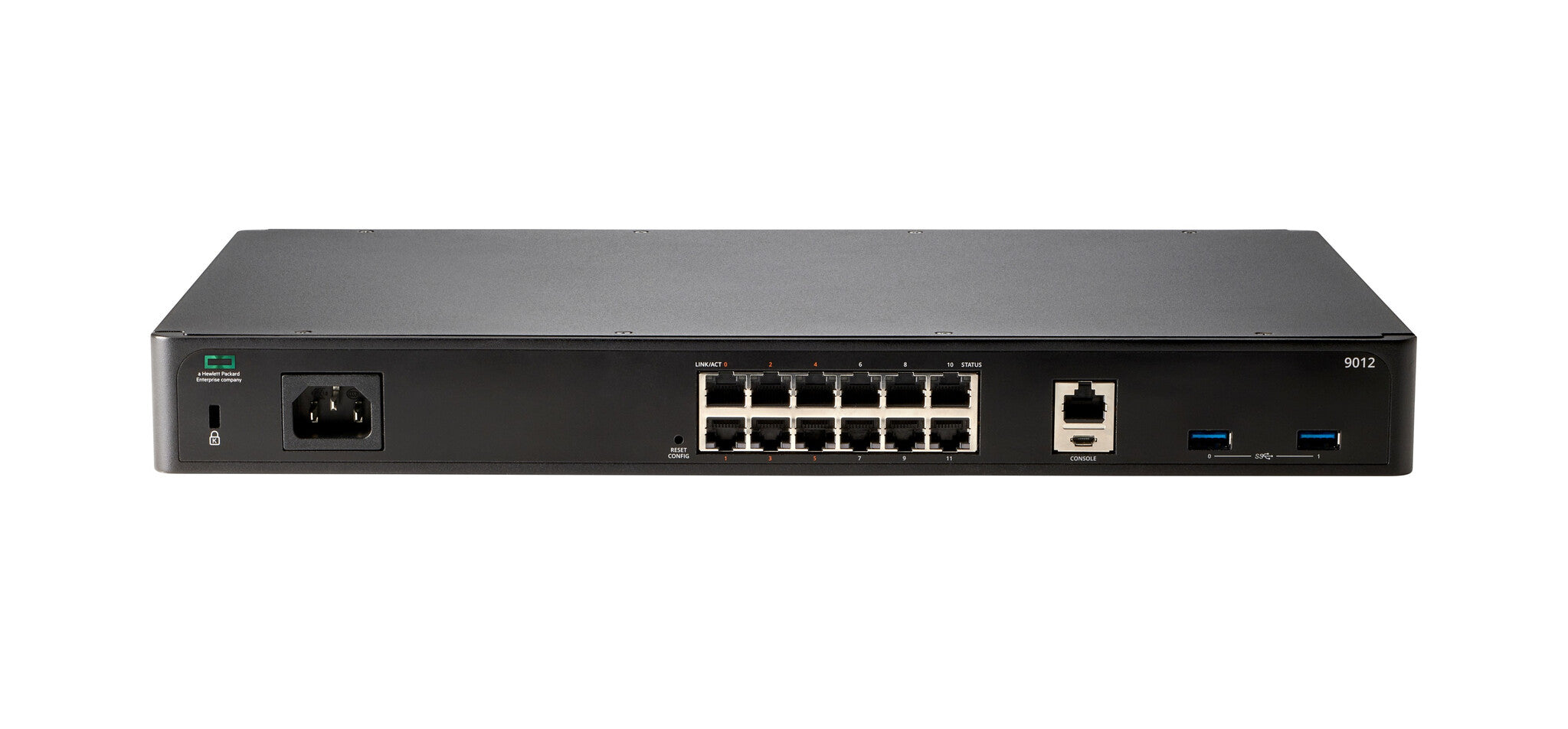

Ethernet LAN (RJ-45) ports 12
Console port micro USB, RJ-45
Power
Power over Ethernet (PoE) Yes
Input current 3 A
Input frequency 47 - 63 Hz
Input voltage 90 - 264 V
Weight & dimensions
Weight 3.42 kg
Width 43.7 mm
Depth 260 mm
Height 43.7 mm
Operational conditions
Operating altitude 0 - 3048 m
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification None
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, EN 60950:2005, IEC 60950-1, EN/IEC 62368-1
Logistics data
Harmonized System (HS) code 85176990
