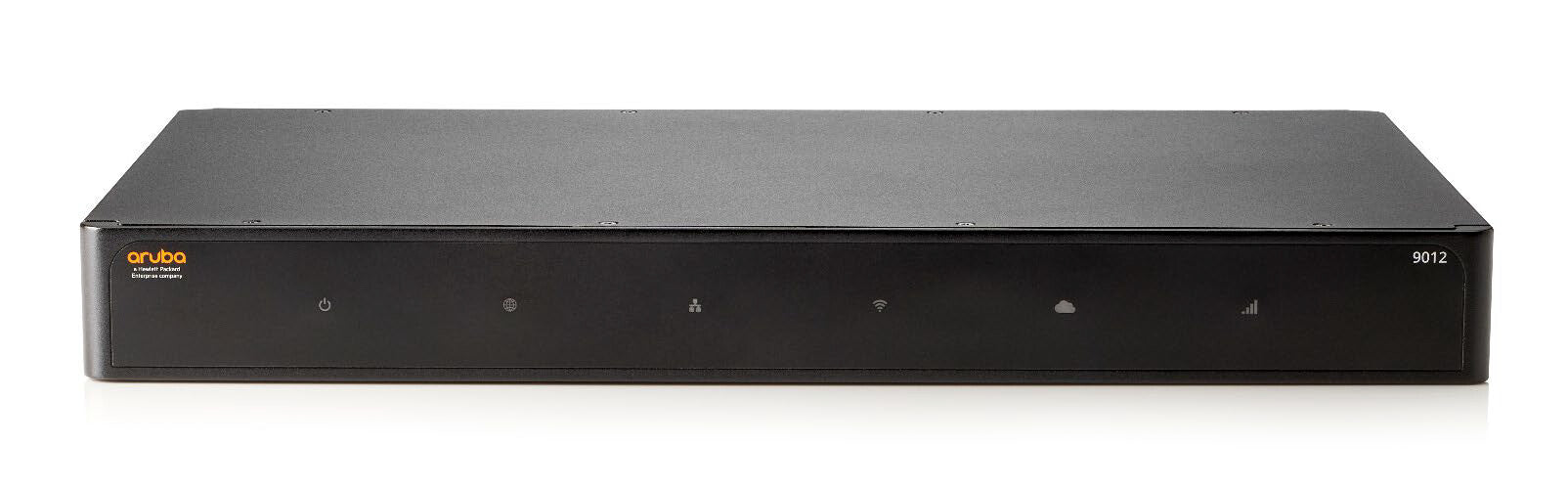

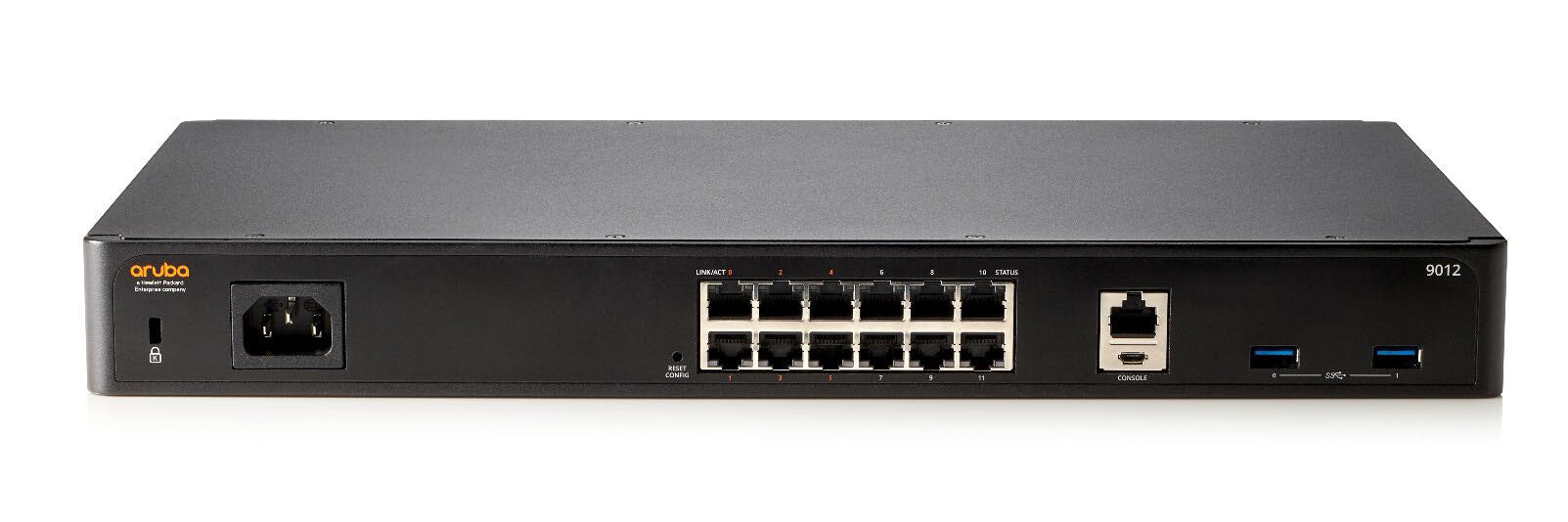

HPE Aruba 9012 (RW) 12xGbE 6xPoE+ Branch gateway/controller 100, 1000 Mbit/s
HPE Aruba 9012 (RW) 12xGbE 6xPoE+ Branch gateway/controller 100, 1000 Mbit/s
HPE Aruba 9012 (RW) 12xGbE 6xPoE+ Branch gateway/controller 100, 1000 Mbit/s
HPE Aruba 9012 (RW) 12xGbE 6xPoE+ Branch gateway/controller 100, 1000 Mbit/s

HPE Aruba 9012 (RW) 12xGbE 6xPoE+ Branch gateway/controller 100, 1000 Mbit/s

Hewlett Packard Enterprise
£1,922.99
Stock Available: 0
  • 100,1000 Mbit/s
  • Power over Ethernet (PoE) VLAN support
  • Rack mounting
  • Black

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the HPE Aruba Networking 9000 series serves a key role within HPE Aruba Networking’s SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises.

The HPE Aruba Networking 9000 series can be easily configured and managed using HPE Aruba Networking Central, a cloudbased network operations, assurance, and security platform. Onsite deployment is accomplished with a simple mobile installer application.

Design
LED indicators LAN, Status, System, WAN
Mounting type Rack mounting
Rack capacity 1U
Product colour Black
Performance
Control display unit No
Protocols
DHCP client Yes
Network
Firewall throughput 6000 Mbit/s
3DES/AES throughput 6 Gbit/s
Number of concurrent sessions (max) 2048
Ethernet LAN data rates 100,1000 Mbit/s
Security
VLAN support Yes
Access Control List (ACL) Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 12
Number of console ports 2
Console port micro USB, RJ-45
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Power
Power over Ethernet (PoE) Yes
Input frequency 47 - 63 Hz
Input voltage 90 - 264 V
Power consumption (max) 160 W
Weight & dimensions
Weight 3.42 kg
Width 395 mm
Depth 260 mm
Height 43.7 mm
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
