Axis 01964-003 gateway/controller 10, 100, 1000 Mbit/s
£1,307.99
Couldn't load pickup availability
- Centralized system management; Flexible and scalable; High speed supervised offloading; Single system integration point

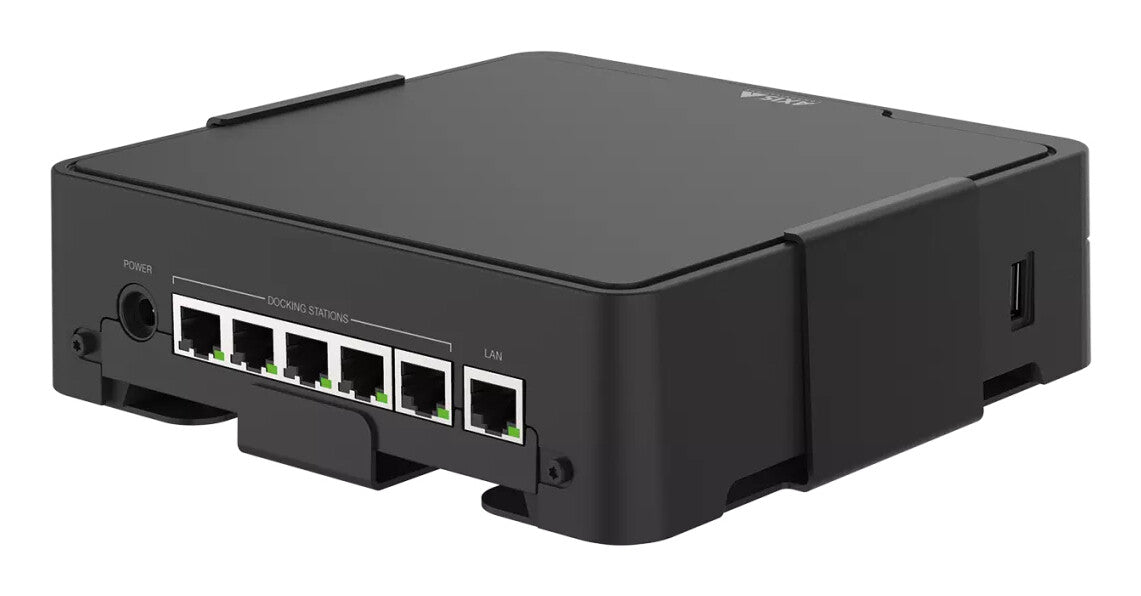

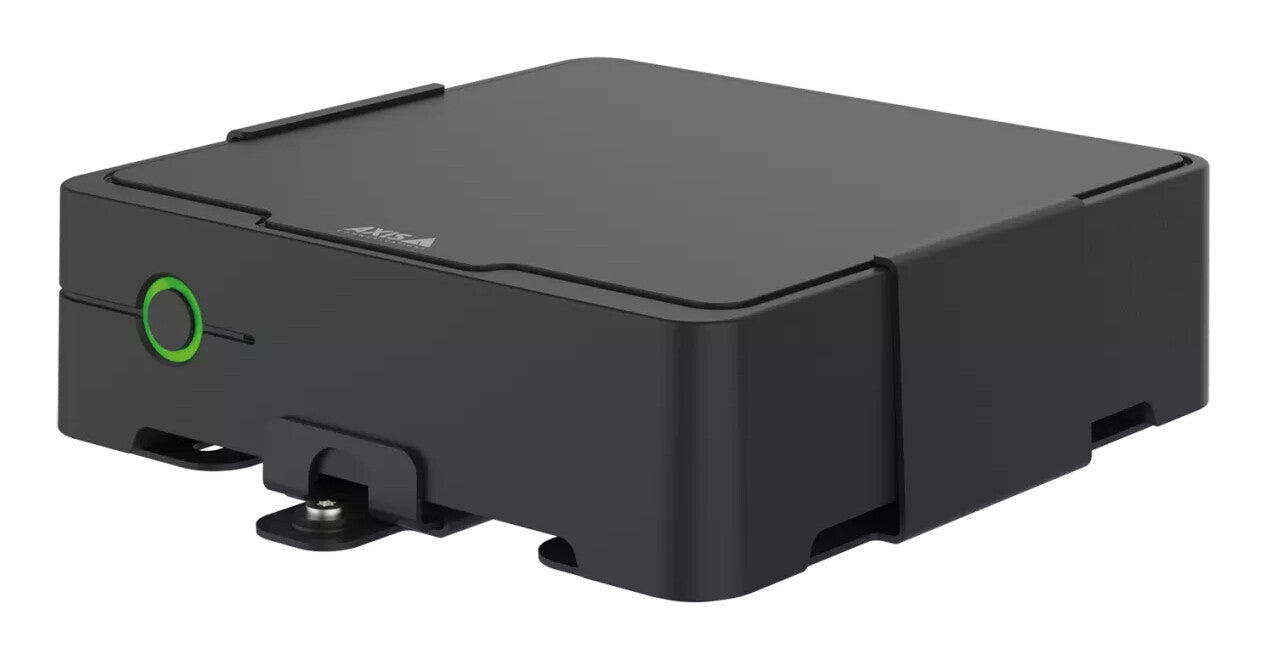

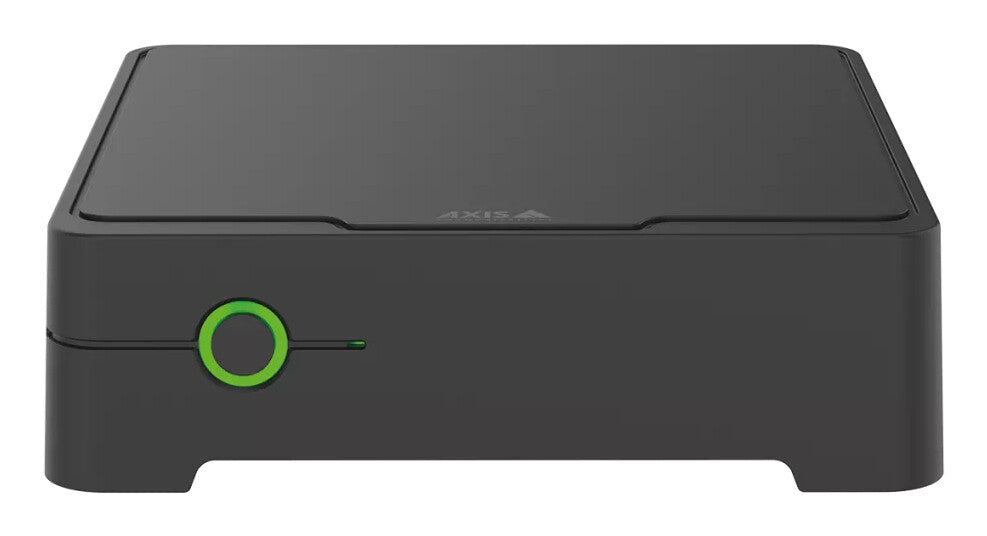

AXIS W800 System Controller is the central integration and management point of the body worn solution. The modular design of the system controller ensures a flexible and highly scalable system. A single AXIS W800 supports up to five docking stations and 40 cameras but can easily be extended with additional system controllers for larger body worn systems.
| Design | |
|---|---|
| International Protection (IP) code | IP3X |
| Product colour | Black |
| Performance | |
|---|---|
| SSD capacity | 480 GB |
| Control display unit | No |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6 USGv6, HTTPS , Bonjour, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security | |
|---|---|
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB 2.0 ports quantity | 1 |
| Power | |
|---|---|
| DC input voltage | 12 V |
| Power consumption (typical) | 12.25 W |
| Weight & dimensions | |
|---|---|
| Weight | 765 g |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 53 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024,EN 61000-6-1, EN 61000-6-2, FCC 15 B A,ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 AIEC/EN/UL 62368-1IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27,IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3XNIST SP500-267 |
