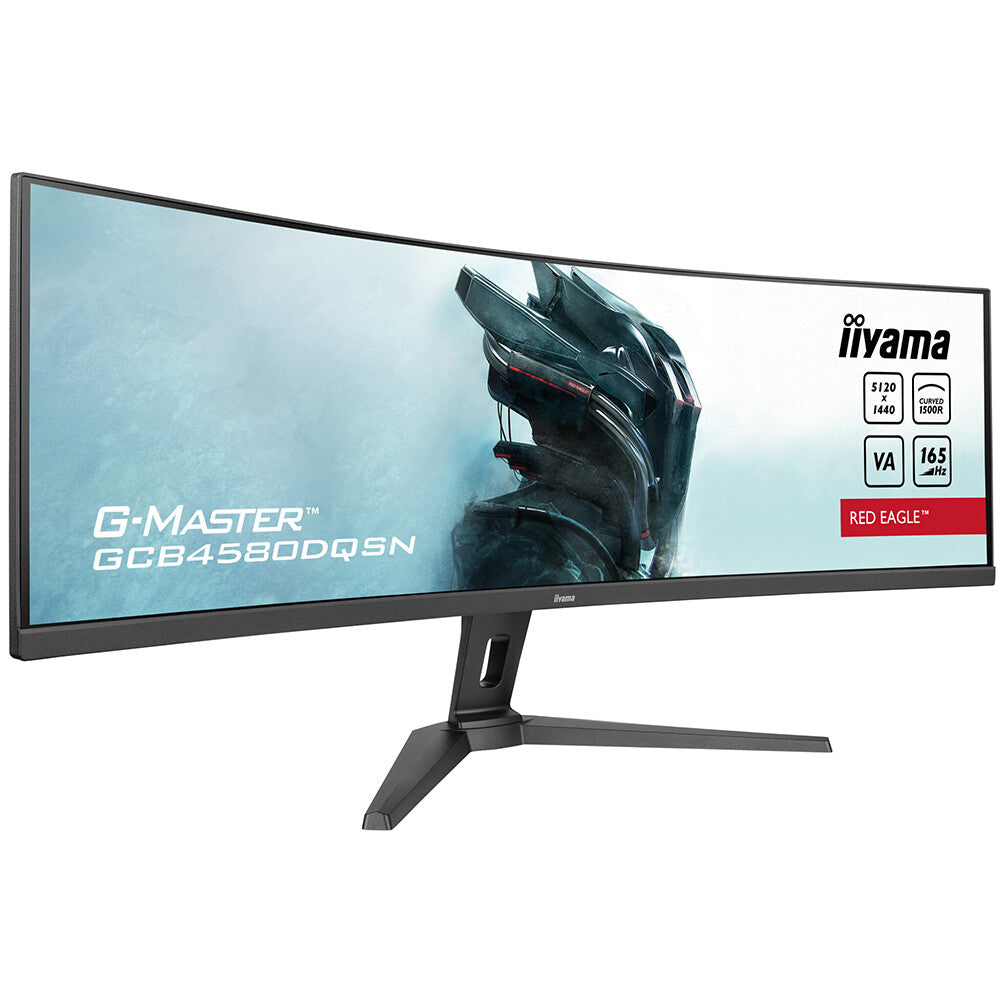

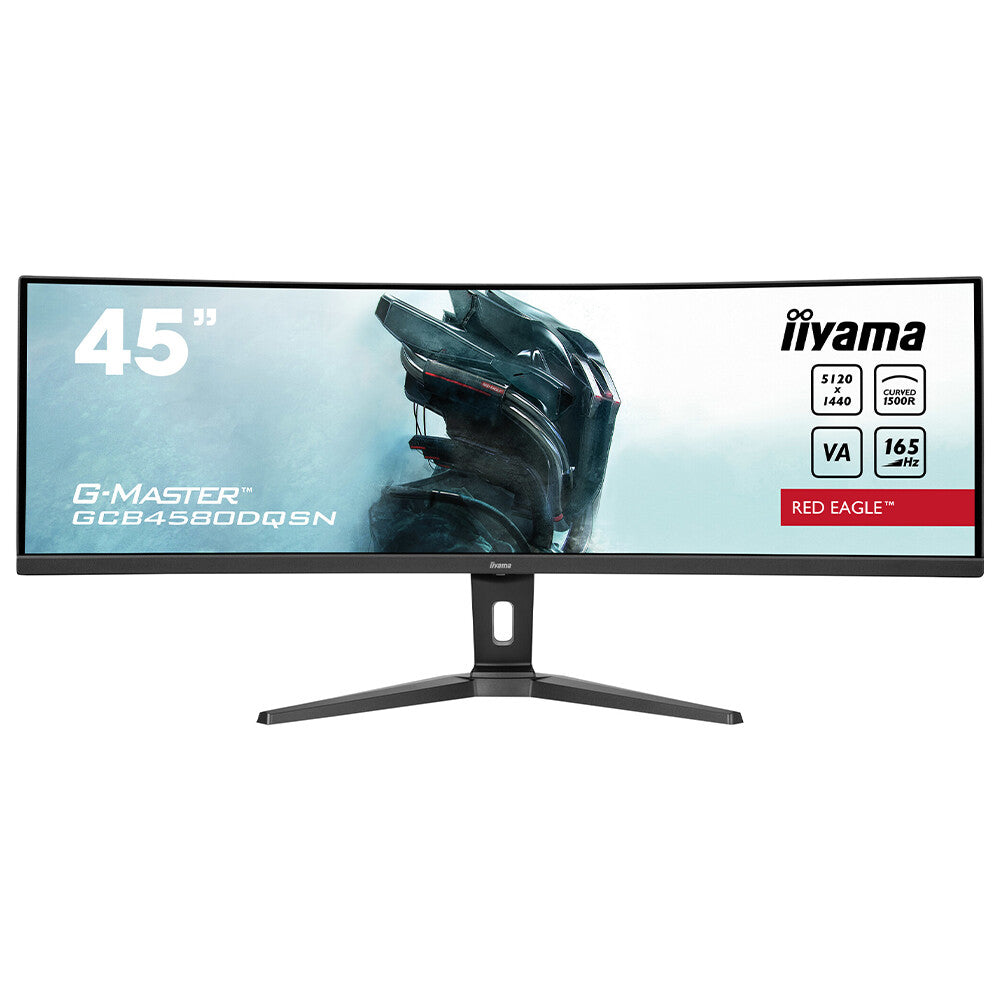

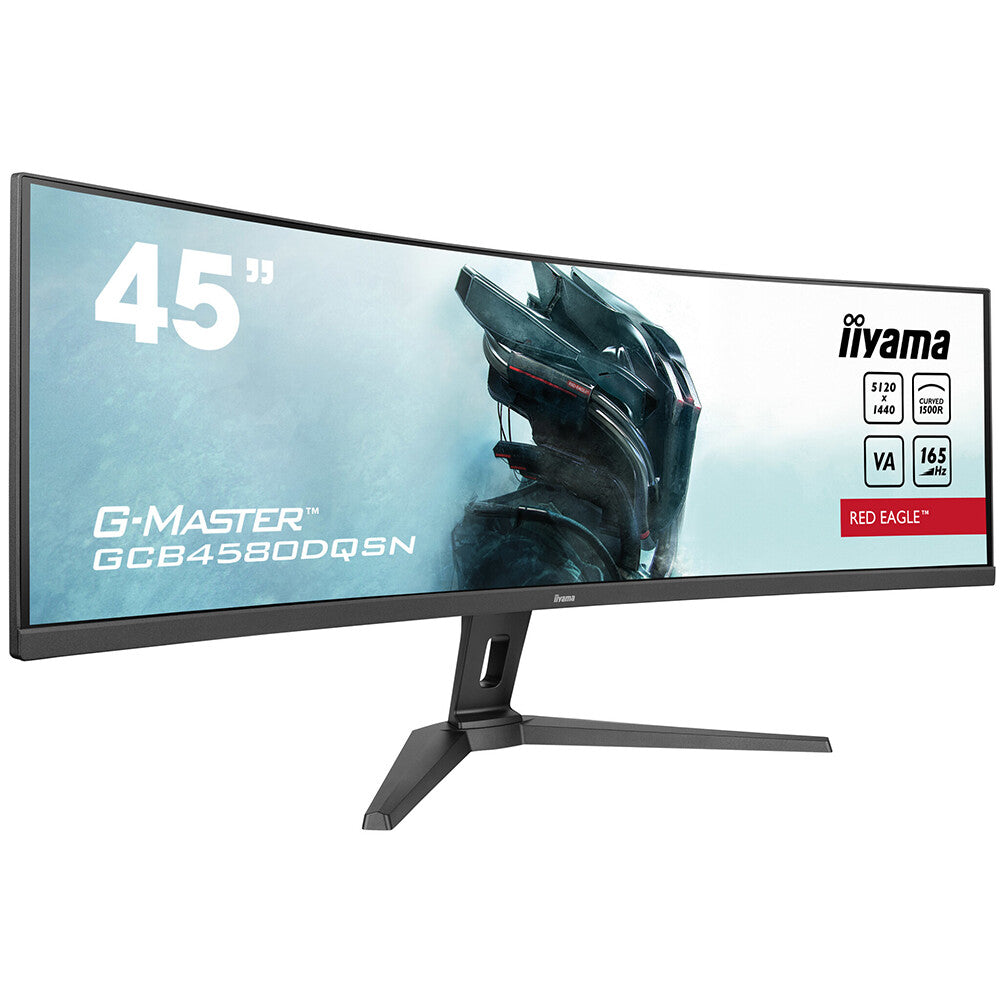

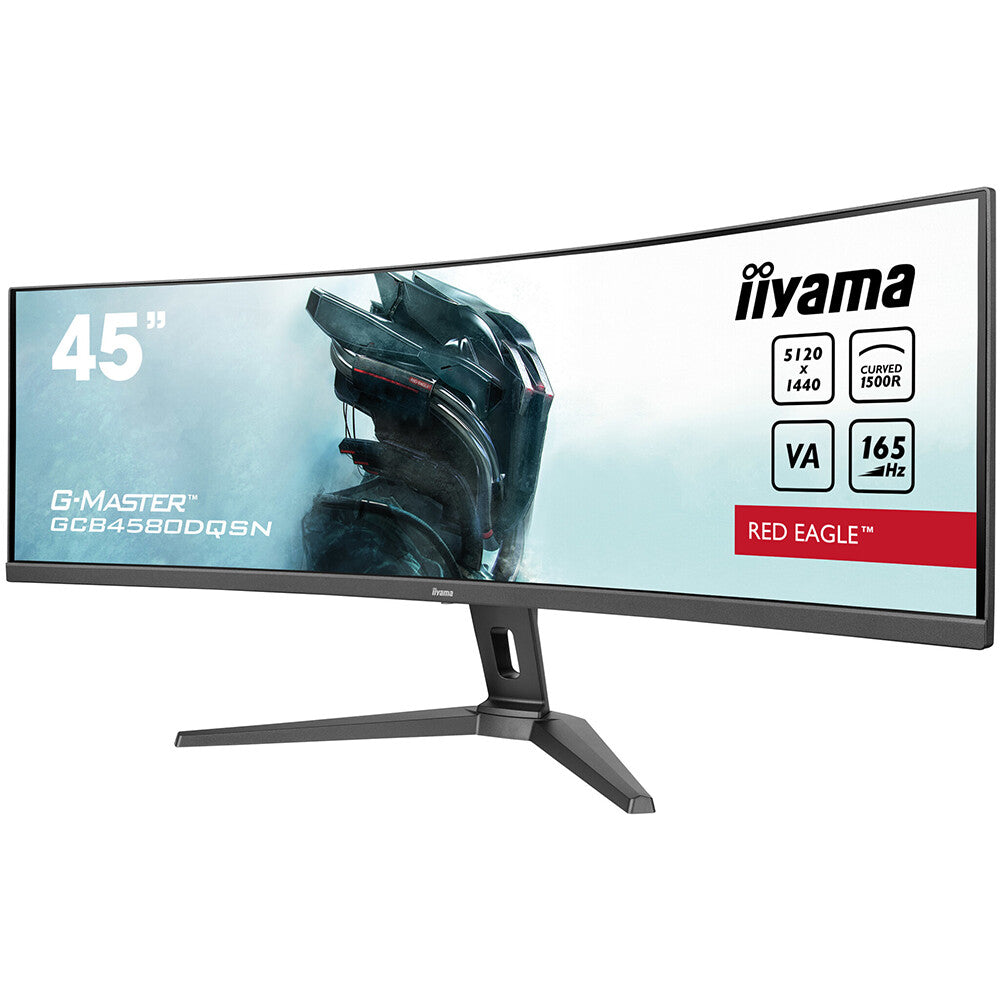

iiyama G-Master 45" Ultra-Wide Quad HD, 165Hz AdaptiveSync Curved Monitor (GCB4580DQSN-B1)

iiyama

iFrame
×
£536.99
Stock Available: 24
  • 113 cm (44.5") Black
  • Height adjustment 13 cm Built-in speaker(s)
  • USB upstream port type: USB Type-C HDMI DisplayPorts quantity: 1 DisplayPort version: 1.4
  • Screen shape: Curved
  • Maximum refresh rate: 165 Hz Response time: 0.8 ms Response time (MPRT): 0.8 ms
  • 5120 x 1440 pixels Dual QHD Panel type: VA
  • Energy efficiency class (SDR): F ErP CE, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE

DQHD
Ultra-wide 32:9 monitors boasting DQHD 5120 x 1440 resolution, also recognized as Dual QHD, guarantee razor-sharp images that bring your games to life. These monitors empower you to organize your gaming setup for an unparalleled gaming experience. You won't miss a single detail!

165Hz & 0.8ms MPRT
With 165Hz refresh rate and 0.8ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.

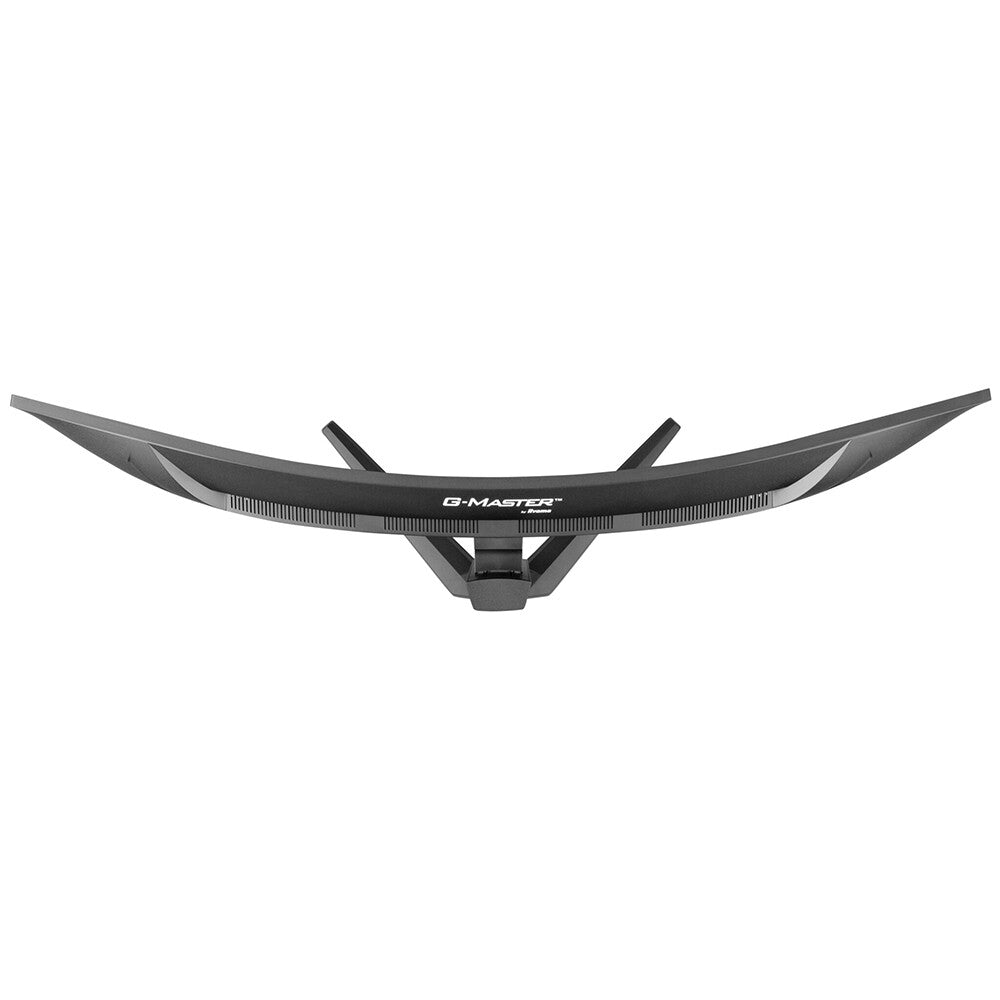

CURVED DESIGN 1500R
The 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.

VA PANEL TECHNOLOGY
Guaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible.

Black Tuner
The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.

Display
Display diagonal 113 cm (44.5")
Display resolution 5120 x 1440 pixels
Native aspect ratio 32:9
Display technology LED
Touchscreen No
HD type Dual QHD
Panel type VA
Backlight type LED
Display brightness (typical) 450 cd/m²
Response time 0.8 ms
Response time (MPRT) 0.8 ms
Display surface Matt
Screen shape Curved
Screen curvature rating 1500R
Aspect ratio 32:9
Contrast ratio (typical) 3000:1
Contrast ratio (dynamic) 80000000:1
Maximum refresh rate 165 Hz
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.212 x 0.212 mm
Horizontal scan range 30 - 260 kHz
Viewable size, horizontal 108.8 cm
Viewable size, vertical 30.6 cm
Digital horizontal frequency 30 - 260 kHz
Display diagonal (metric) 113 cm
High Dynamic Range (HDR) supported Yes
High Dynamic Range (HDR) technology High Dynamic Range (HDR) 400
DDC/CI Yes
Colour depth 8 bit
sRGB coverage (typical) 100%
NTSC coverage (typical) 80%
Performance
AMD FreeSync Yes
ConnectShare (USB) Yes
Flicker-free technology Yes
Low Blue Light technology Yes
Multimedia
Built-in speaker(s) Yes
Number of speakers 2
RMS rated power 6 W
Built-in camera No
Design
Market positioning Gaming
Product colour Black
Detachable stand Yes
Feet colour Black

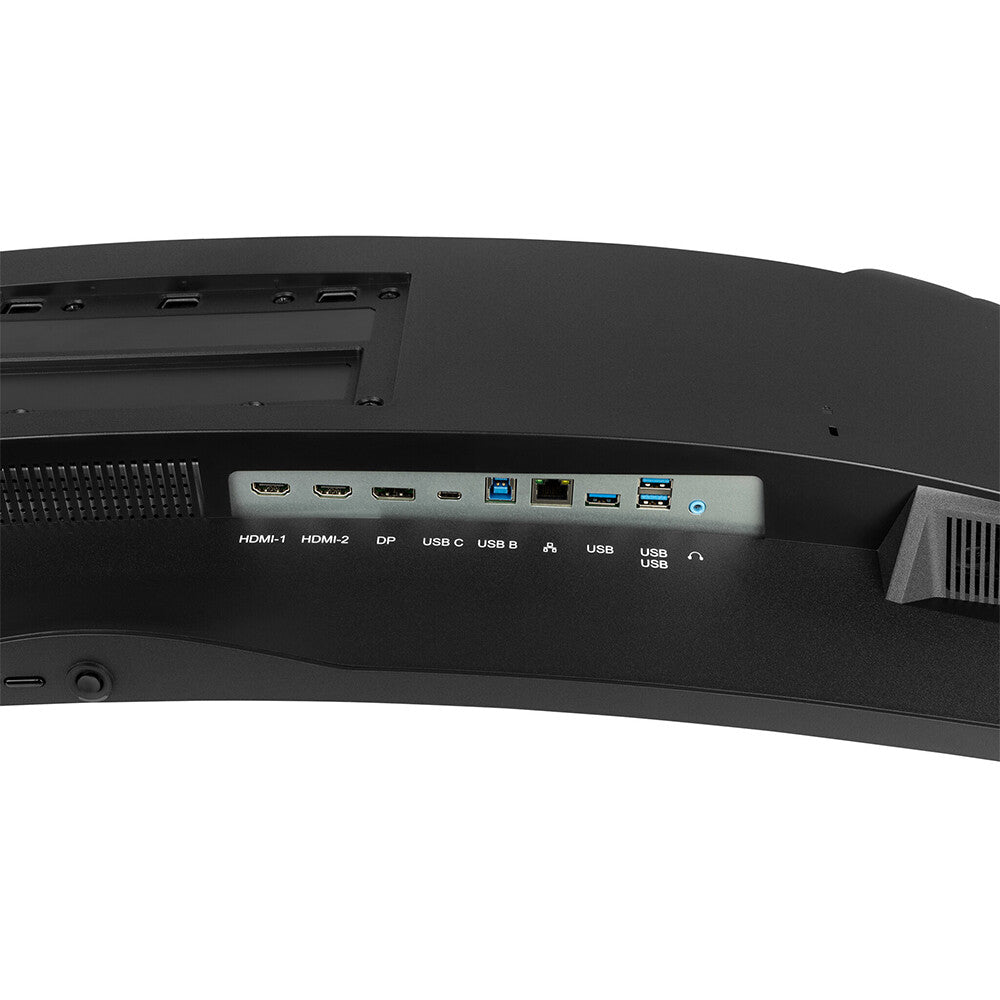

Ports & interfaces
Built-in USB hub Yes
USB hub version 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type USB Type-C
Number of downstream ports 3
Number of USB Type-C upstream ports quantity 1
USB Type-A downstream ports quantity 3
USB Type-C downstream ports quantity 1
USB Power Delivery (USB PD) Yes
USB Power Delivery up to 90 W
HDMI Yes
HDMI ports quantity 2
DisplayPorts quantity 1
DisplayPort version 1.4
Headphone out Yes
Headphone outputs 1
Built-in KVM switch Yes
HDCP Yes
Network
Ethernet LAN Yes
Ergonomics
VESA mounting Yes
Panel mounting interface 100 x 100,200 x 100 mm
Wall mountable No
Cable management Yes
Cable lock slot Yes
Cable lock slot type Kensington
Height adjustment Yes
Adjustable height (max) 13 cm
Tilt adjustment Yes
Tilt angle range 3 - 20°
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Czech, German, English, French, Italian, Japanese, Dutch, Polish, Russian
Number of OSD languages 9
Power
Energy efficiency class (SDR) F
Energy efficiency class (HDR) G
Energy consumption (SDR) per 1000 hours 37 kWh
Energy consumption (HDR) per 1000 hours 67 kWh
Power consumption (typical) 37 W
Power consumption (standby) 37 W
Power consumption (off) 0.3 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power supply type Internal
Energy efficiency scale A to G
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Weight & dimensions
Width (with stand) 1090 mm
Depth (with stand) 275 mm
Height (with stand) 539 mm
Weight (with stand) 11.2 kg
Height (without stand) 409 mm
Weight (without stand) 8.9 kg
Packaging data
Package width 1260 mm
Package depth 315 mm
Package height 470 mm
Package weight 16.4 kg
Packaging content
Stand included Yes
Cables included AC, USB, HDMI, DisplayPort
Power adapter included Yes
Quick start guide Yes
Manual Yes
Sustainability
Sustainability certificates ErP
Sustainability compliance Yes
General
Product family G-MASTER
Other features
Brand specific technologies Black Equalizer, Eye Saver
Packaging content quick start guide, safety guide
Volume control Buttons
Compliance certificates CE, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Depth 275 mm
Width 1090 mm
Height 409 mm
Weight 11.2 kg
Ethernet LAN (RJ-45) ports 1
Control panel navigation button: Menu/Execution, Down (i-Style Colour), Up (Input Select), Right (Volume), Left (Night Mode), Power
User controls picture (brightness, contrast, Black Tuner, Sharpness, OD, Adv. Contrast, Night Mode, X-Res Technology), colour (warm, normal, cool, user colour, blue light reducer, gamma), input select, PBP (PBP mode, sub win input, PBP Swap, audio input), audio (volume, mute), i-Style Mode, language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu (memory recall, MST, DSC, HDMI, KVM, USB-C, USB BC, video adjust mode, HDMI RGB range, direct drive, Adaptive Sync, MBR, HDR, opening logo, LED)
Supplied AC adapter type LED, PC monitor, -,-
