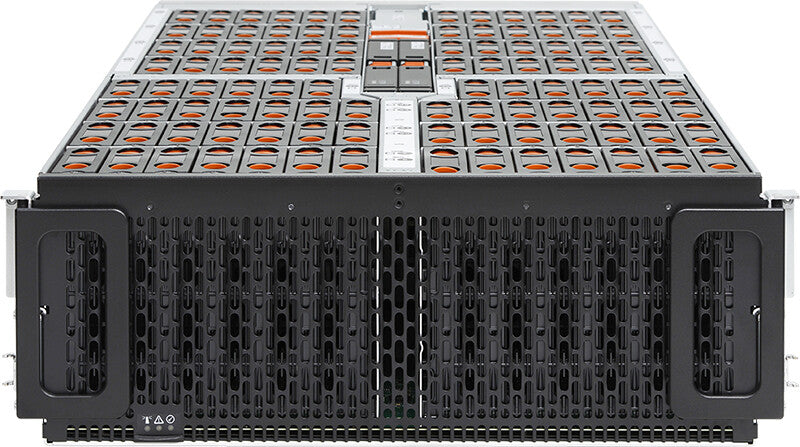

Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey

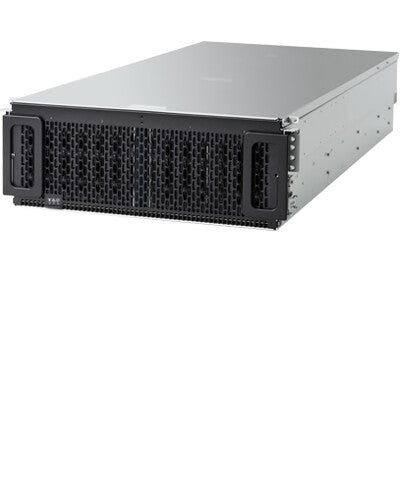

Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 2

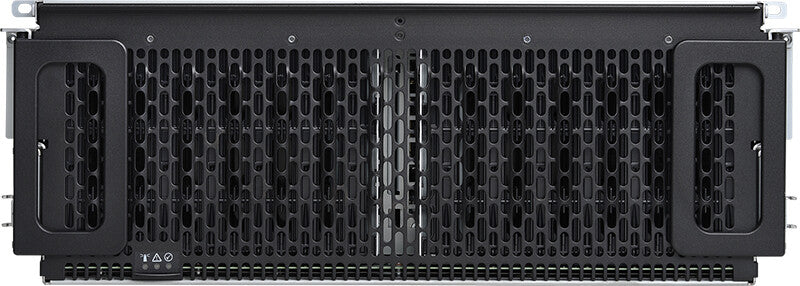

Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 3

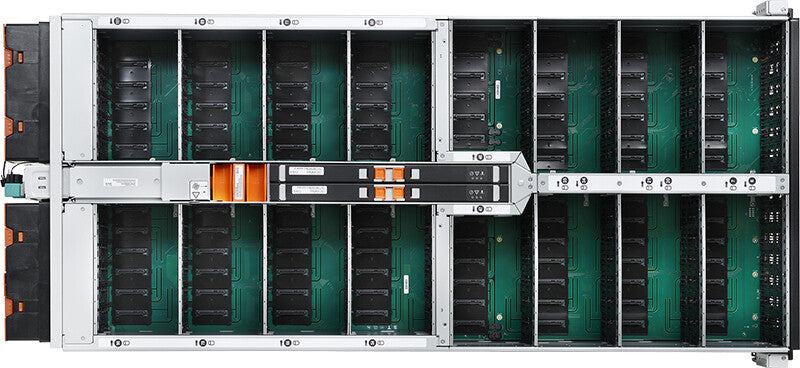

Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 4

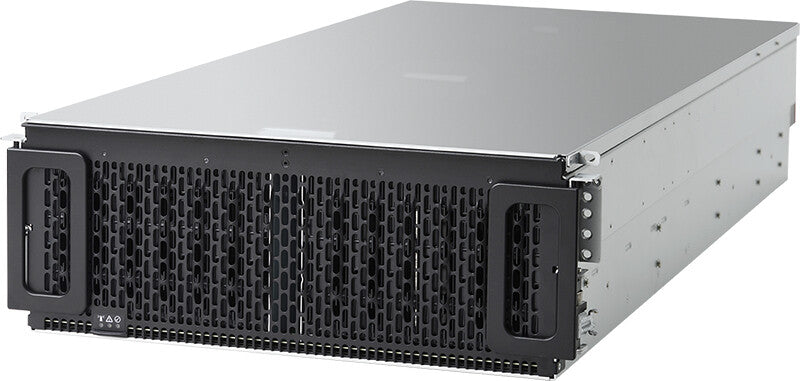

Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 5
Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey
Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 2
Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 3
Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 4
Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey - image 5

Western Digital Ultrastar Data102 disk array 1836 TB Rack (4U) Black, Grey

Western Digital
£136,786.99
Stock Available: 0
  • Small & Medium Business
  • Rack (4U) Black, Grey
  • HDD Storage drives installed 1836 TB
  • Hot-swap drive bays
  • 1600 W

The Ultrastar Data102 is a key element of next‑generation disaggregated storage and software-defined storage (SDS) systems, delivering extreme density and the flexibility to balance performance with cost.

- High Density – Up to 102 HGST HelioSeal® HDDs providing up to 1.2PB of raw storage in a 4U enclosure
- Flexible – Choice of SAS or SATA and up to 24 slots can be populated with SSDs for a data acceleration tier
- Innovative – Patented IsoVibe™ and ArcticFlow™ technologies improve performance and cooling

Storage
Storage drives installed Yes
Installed storage drive type HDD
Total installed storage capacity 1836 TB
Supported storage drive types HDD & SSD
Number of storage drives supported 102
Storage drive interface Serial ATA III
Storage drive size 3.5"
Supported storage drive interfaces SAS, Serial ATA III
Storage drive sizes supported 3.5"
Data transfer rate 6 Gbit/s
Hot-swap drive bays Yes
Ports & interfaces
USB connectivity No
Number of mini-SAS host ports 12
Mini-SAS host port Yes
Serial interface type RJ-45
Design
Device class Small & Medium Business
Chassis type Rack (4U)
Product colour Black, Grey
LED indicators Yes
Number of fans 6 fan(s)
Redundant fans support Yes
Built-in display No
Power
Power supply unit (PSU) capacity 1600 W
Number of power supply units 2
Redundant power supply (RPS) support Yes
AC input voltage 200 - 240 V
AC input frequency 50 / 60 Hz
Weight & dimensions
Width 447 mm
Depth 1047 mm
Height 175 mm
Packaging data
Package weight 31.8 kg
General
Product series DC HC570
Product family Ultrastar
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Operating relative humidity (H-H) 5 - 85%
Storage temperature (T-T) -40 - 60 °C
Operating altitude 0 - 915 m
