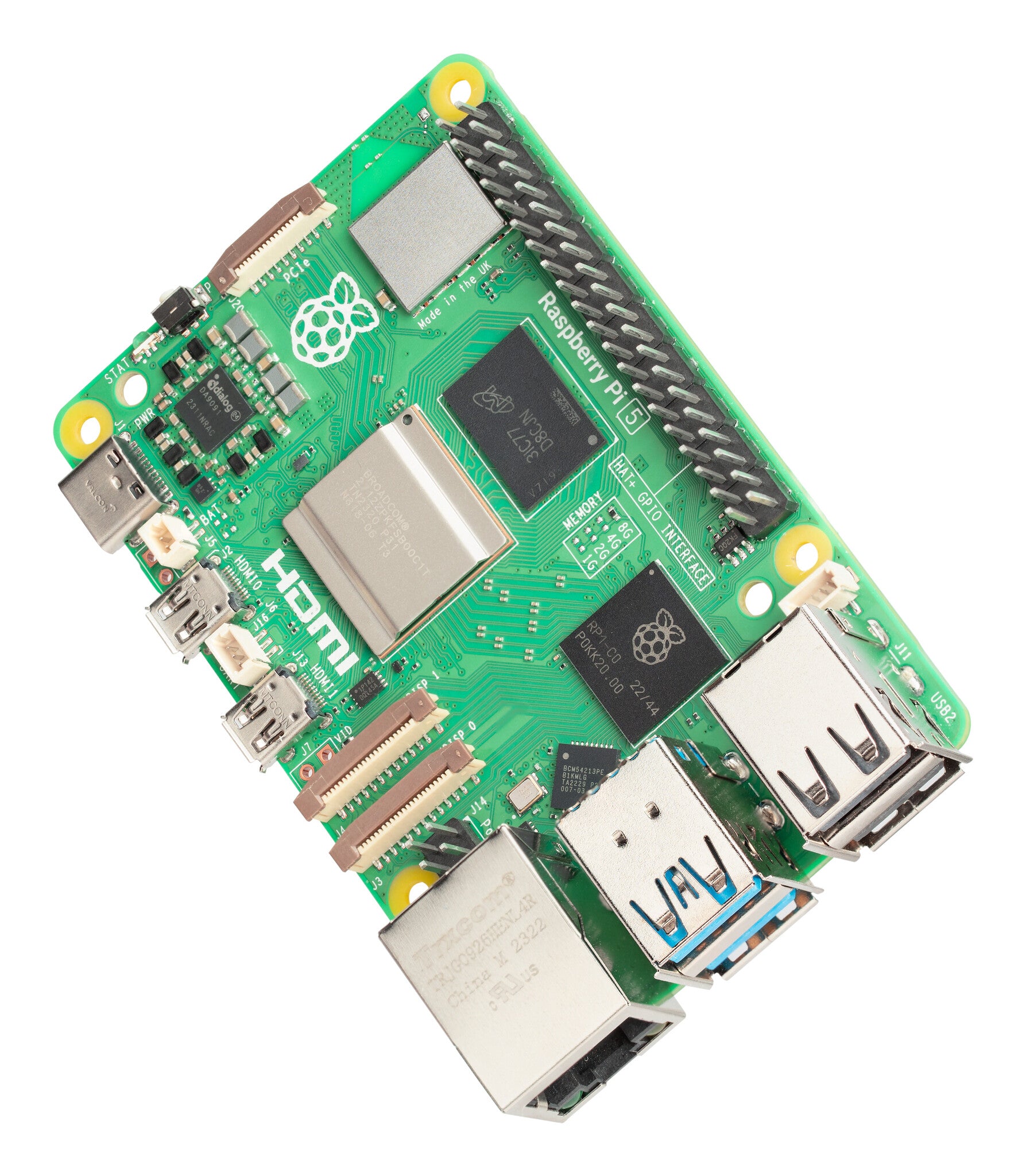

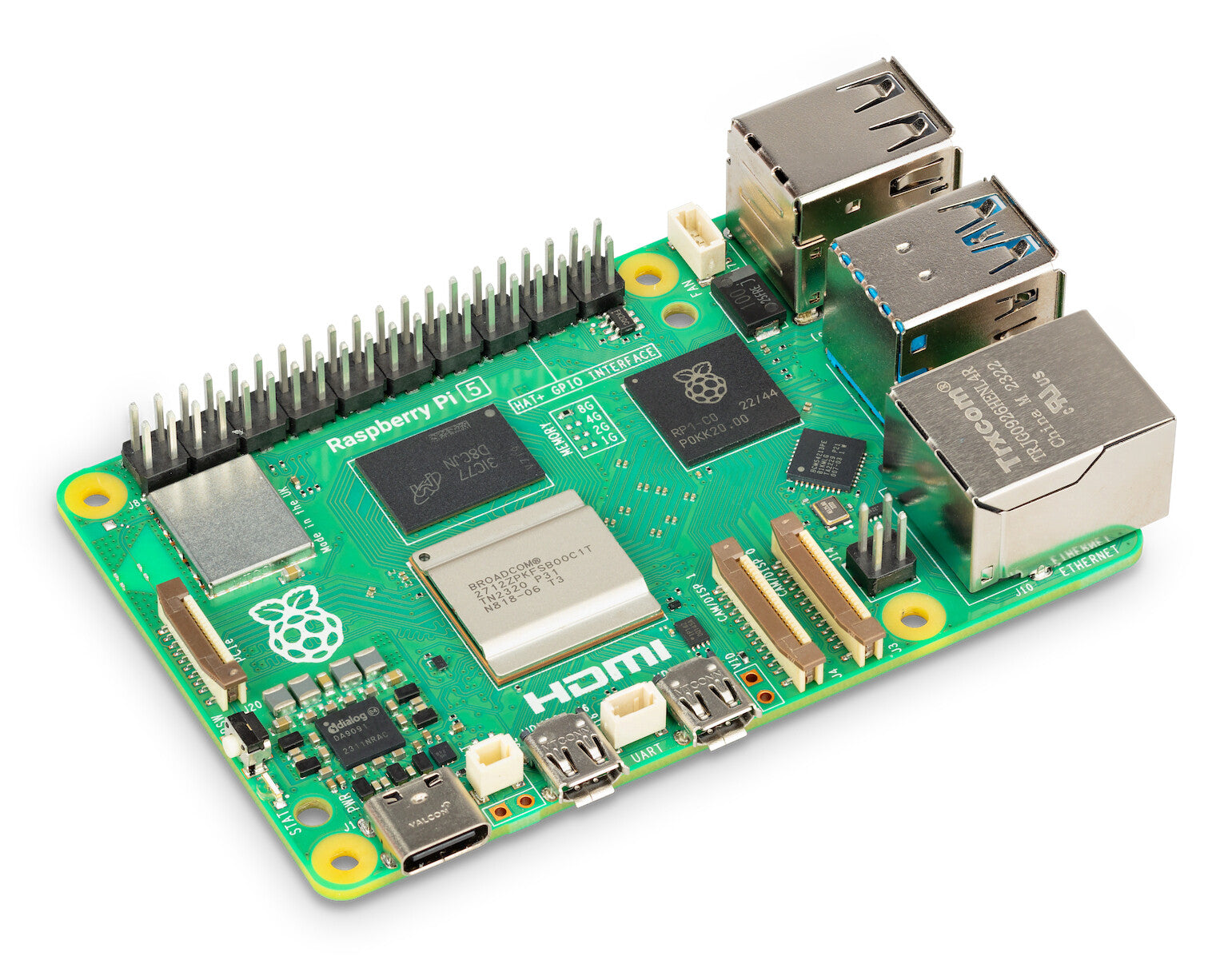

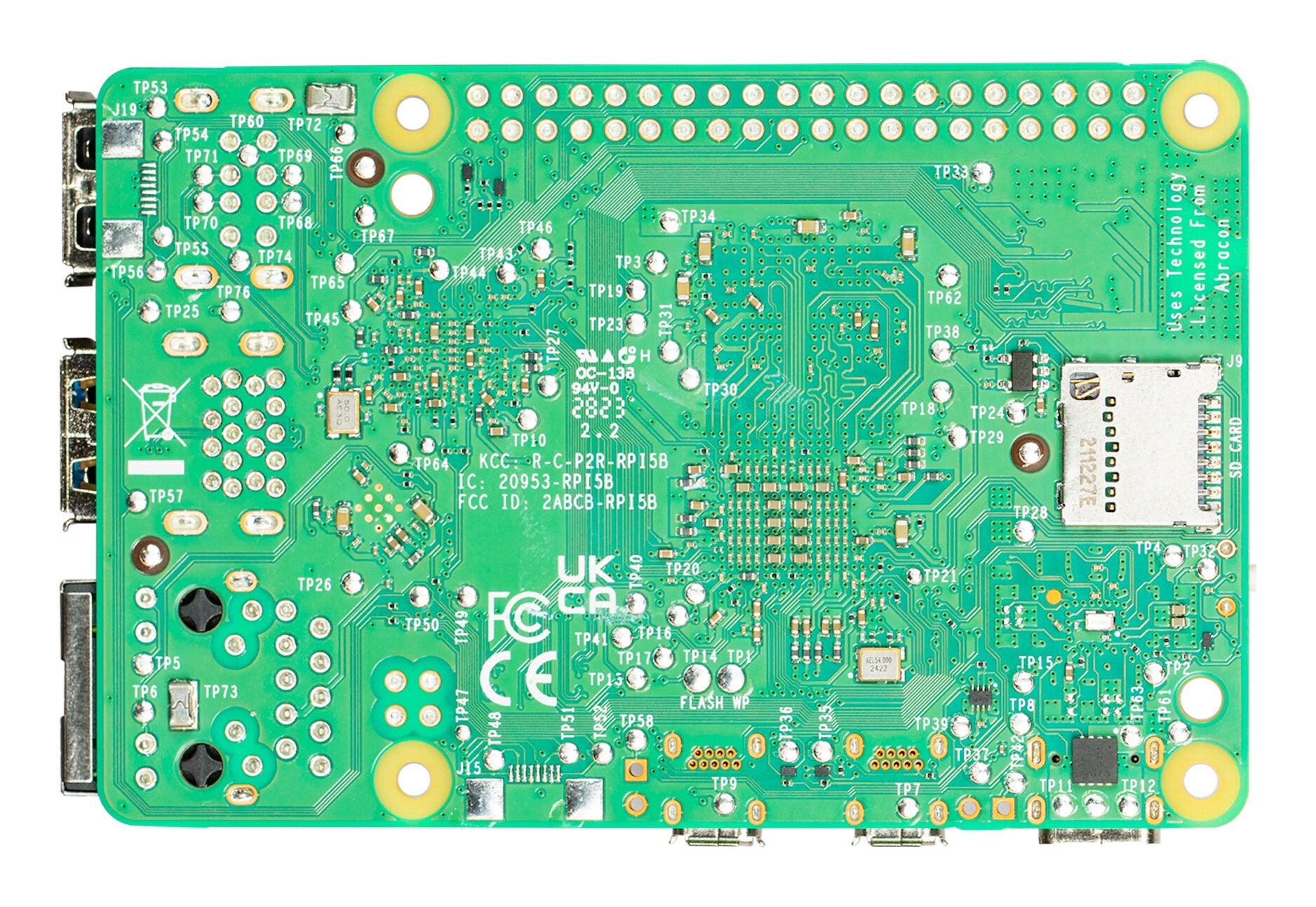

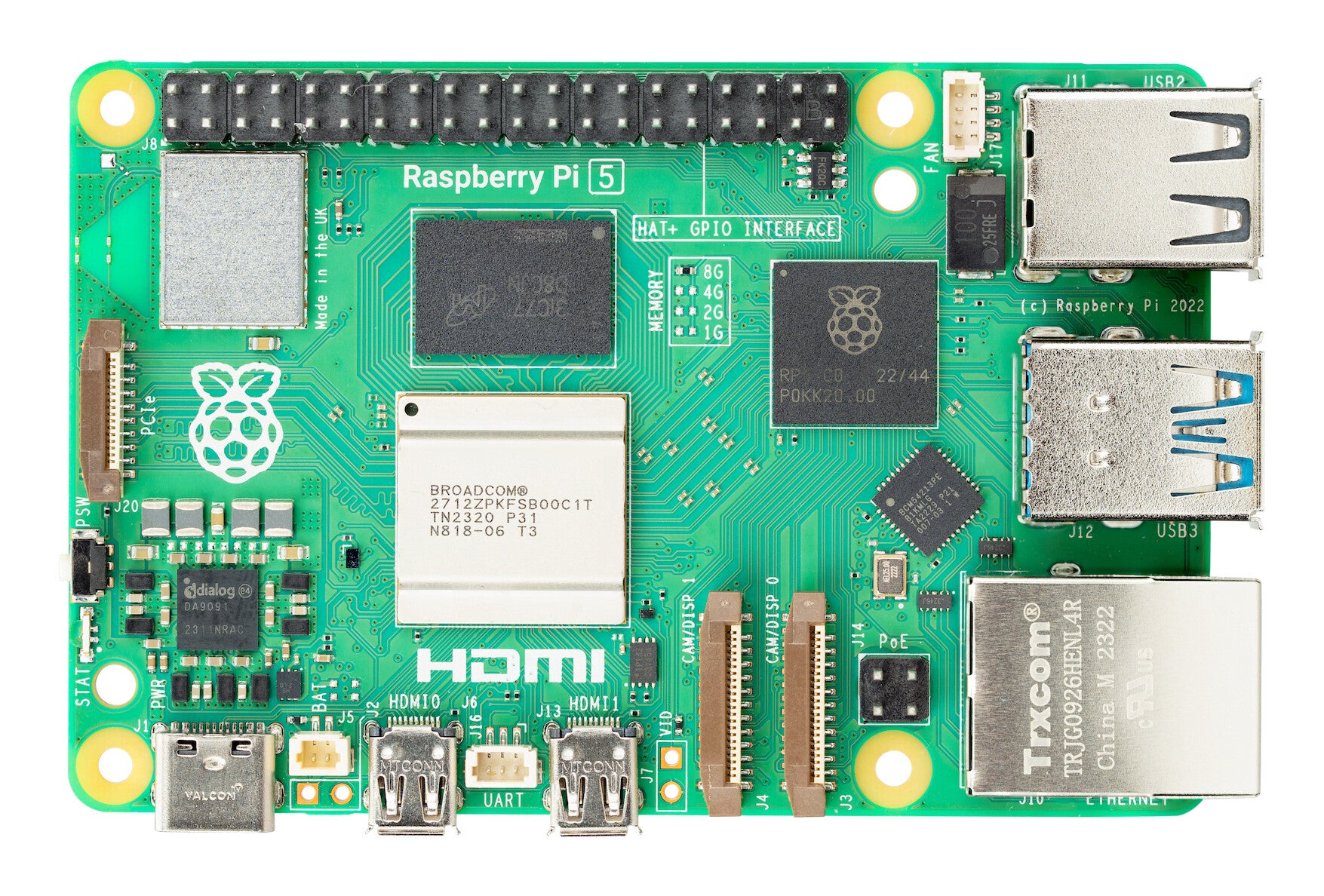

Raspberry Pi 5 development board 2400 MHz Arm Cortex-A76
£1,343,999.99
Couldn't load pickup availability

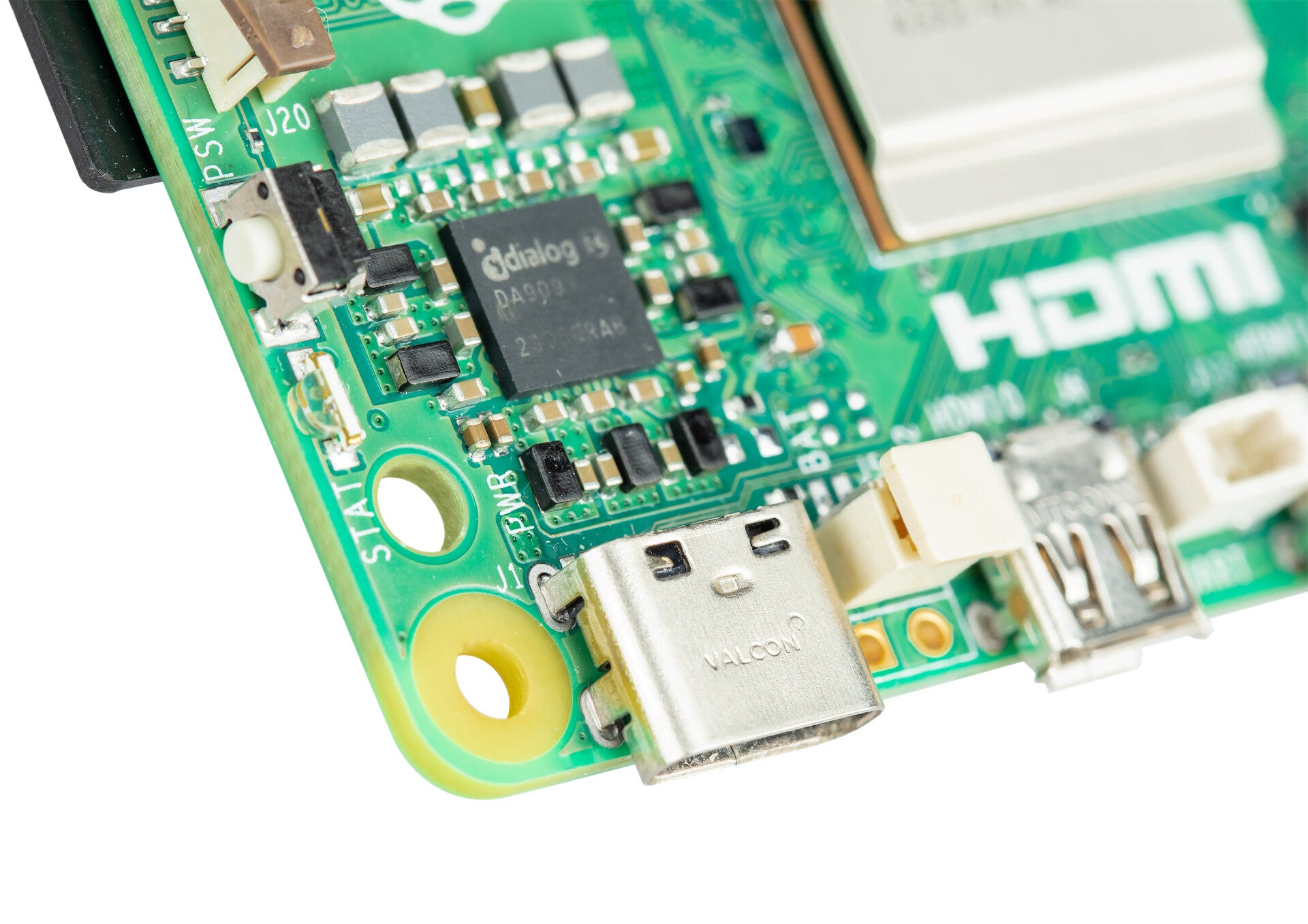

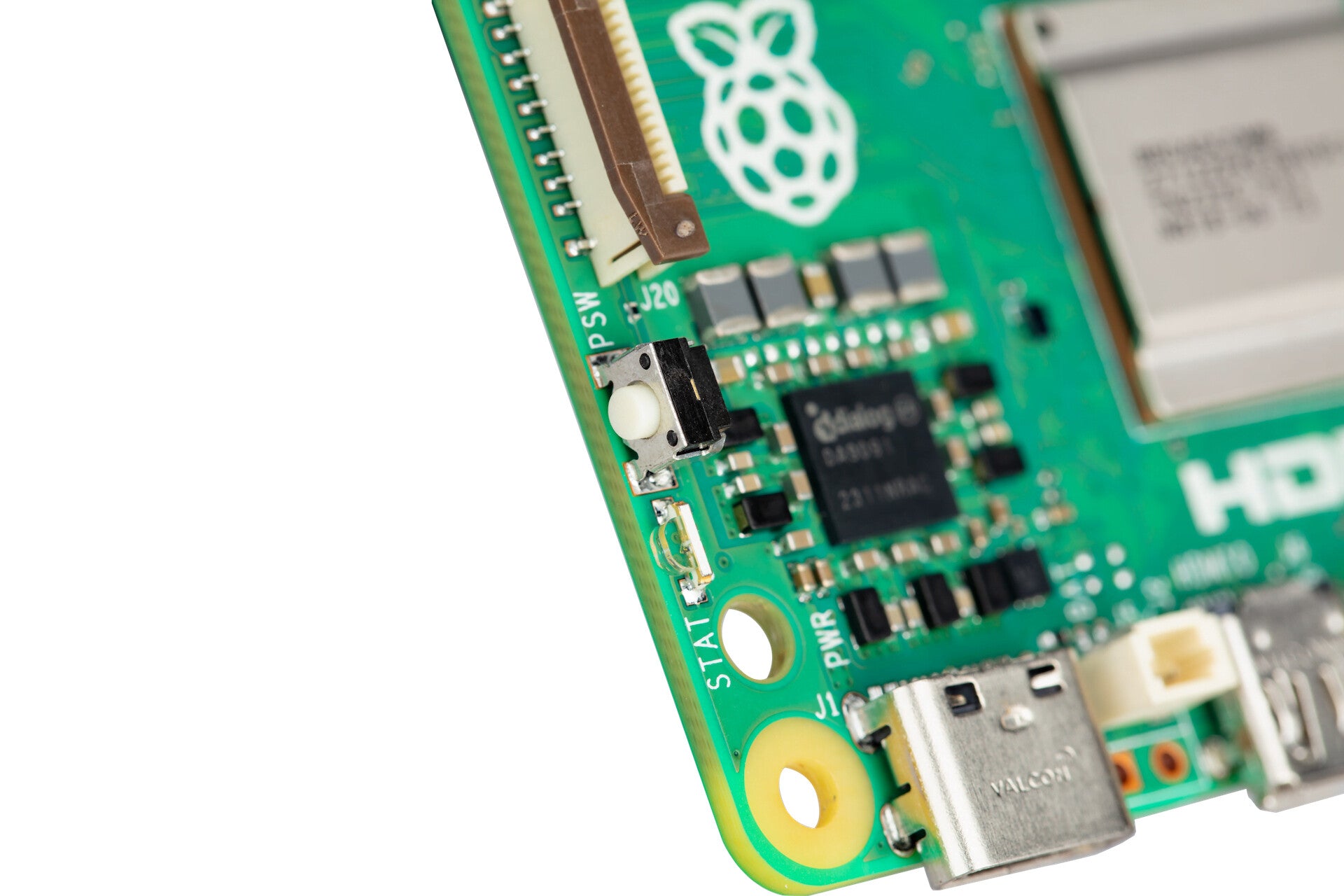

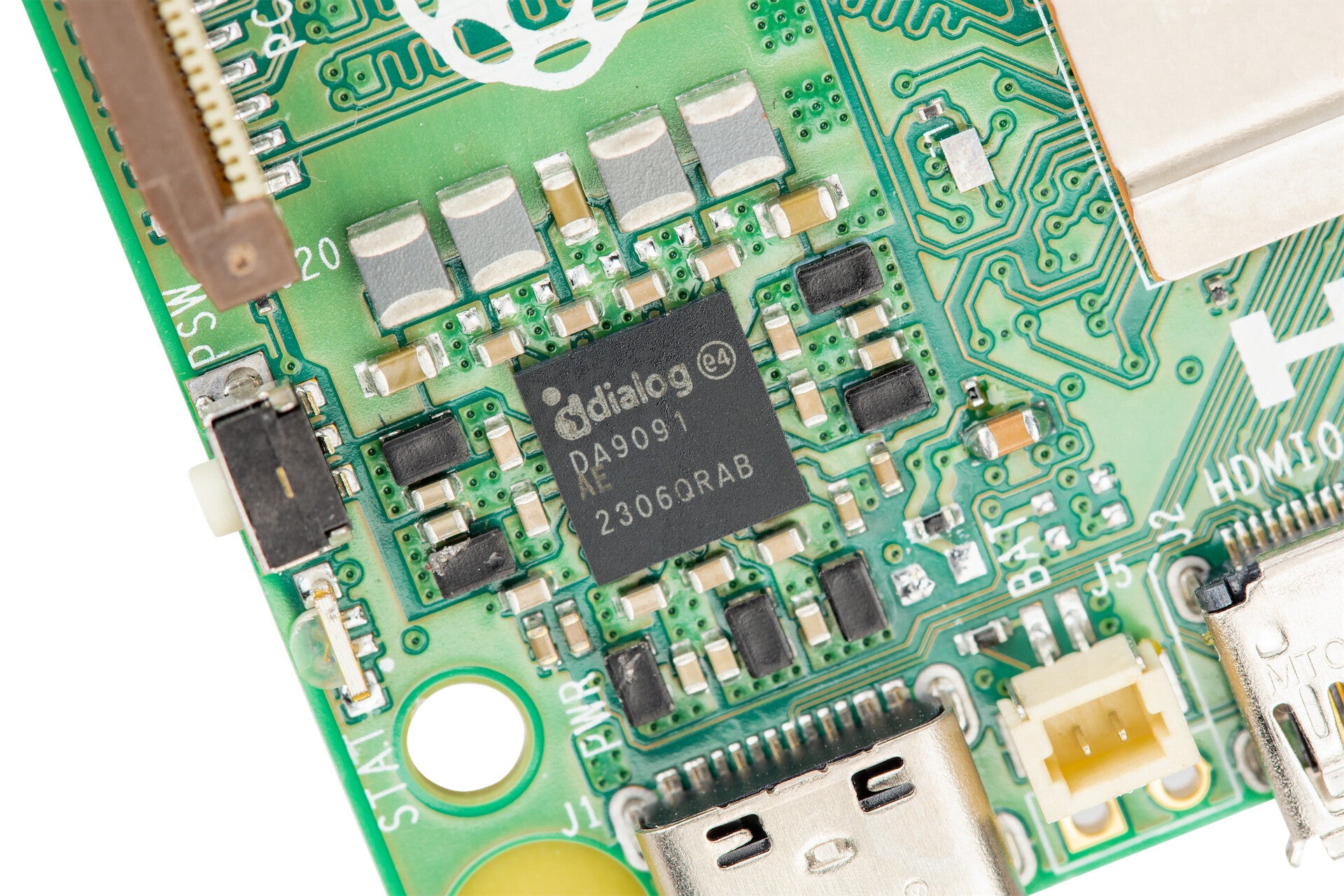

- Power button

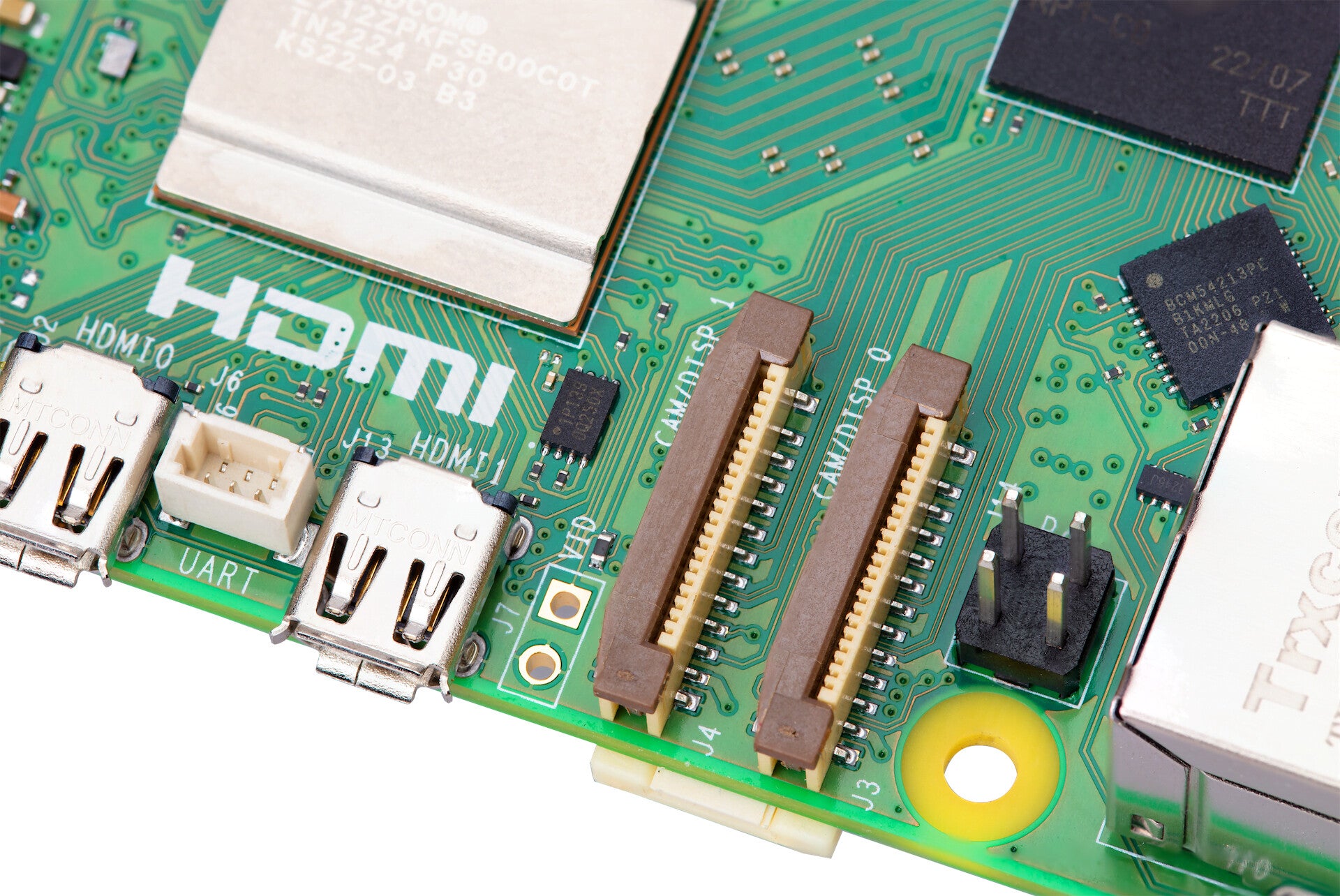

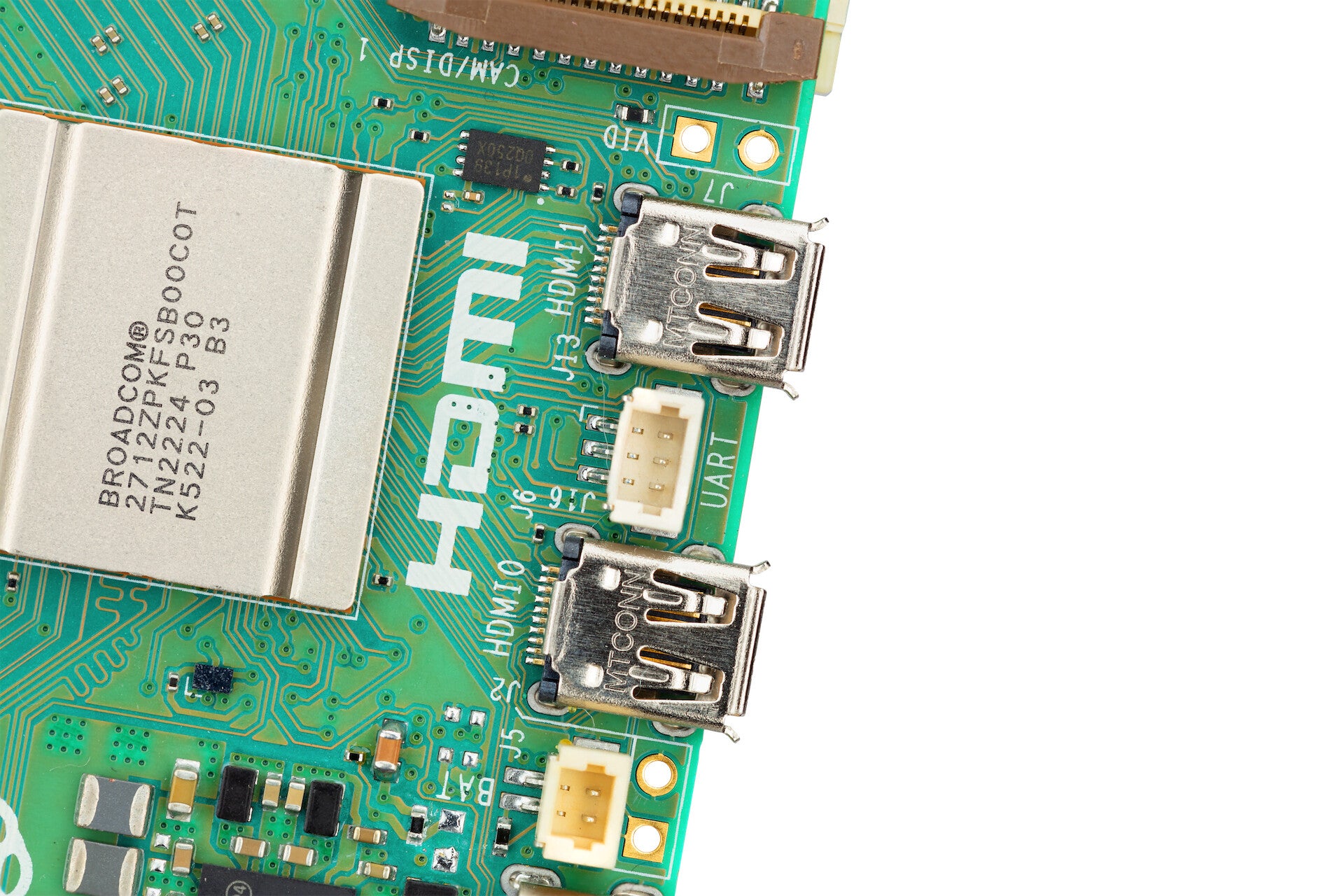

- Dual 4Kp60
- Real-time clock
- UART debug port
The everything computer. Optimised.
With 2–3× the speed of the previous generation, and featuring silicon designed in‑house for the best possible performance, we’ve redefined the Raspberry Pi experience.
Raspberry Pi 5 16GB
For power users and professional applications.
Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.
| Processor | |
|---|---|
| 64-bit computing | Yes |
| Processor cores | 4 |
| Processor cache | 512 KB |

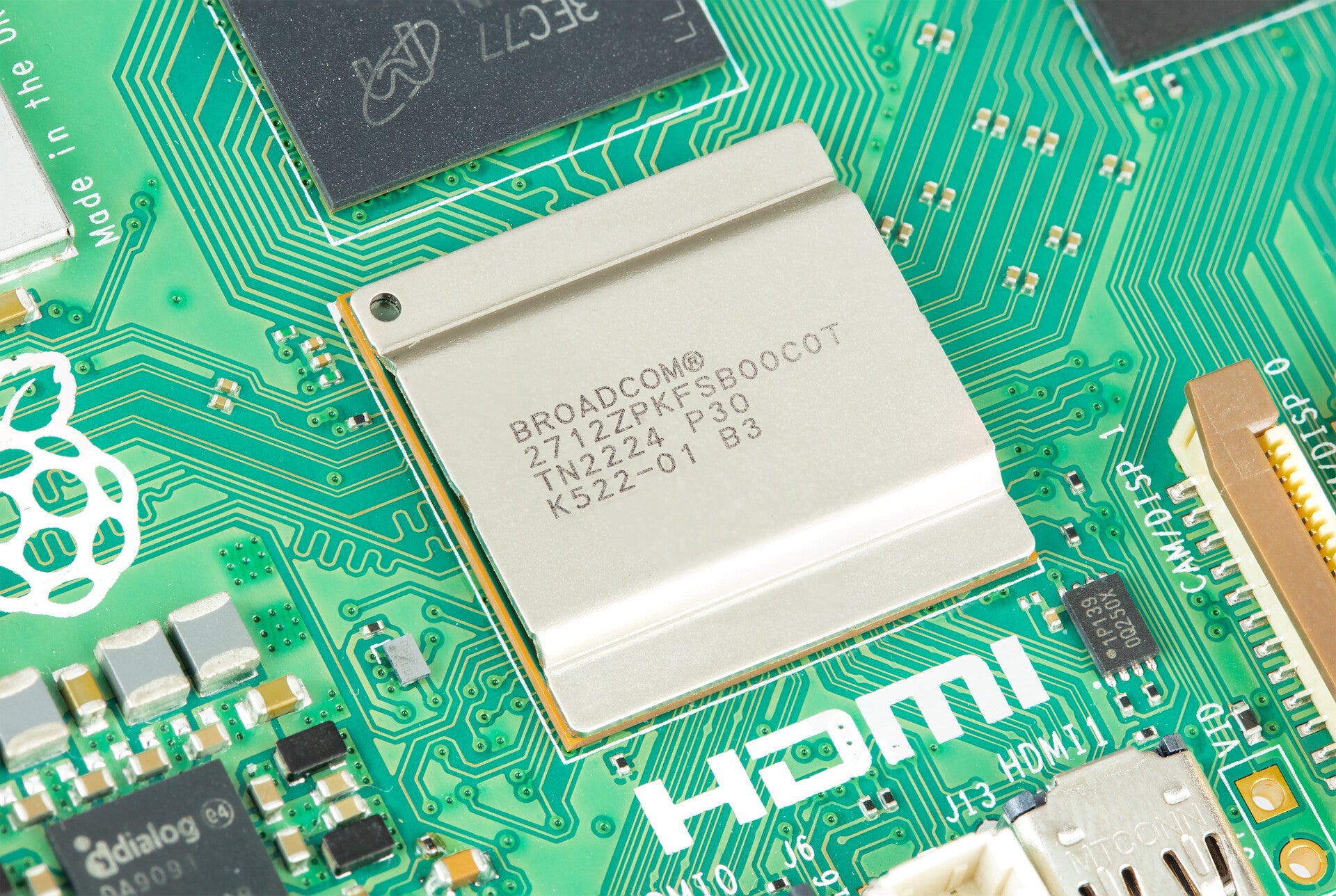

| Processor model | Arm Cortex-A76 |
| Processor manufacturer | ARM |
| Processor frequency | 2400 MHz |
| Memory | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory type | LPDDR4x-SDRAM |
| Maximum internal memory | 16 GB |
| Ports & interfaces | |
|---|---|

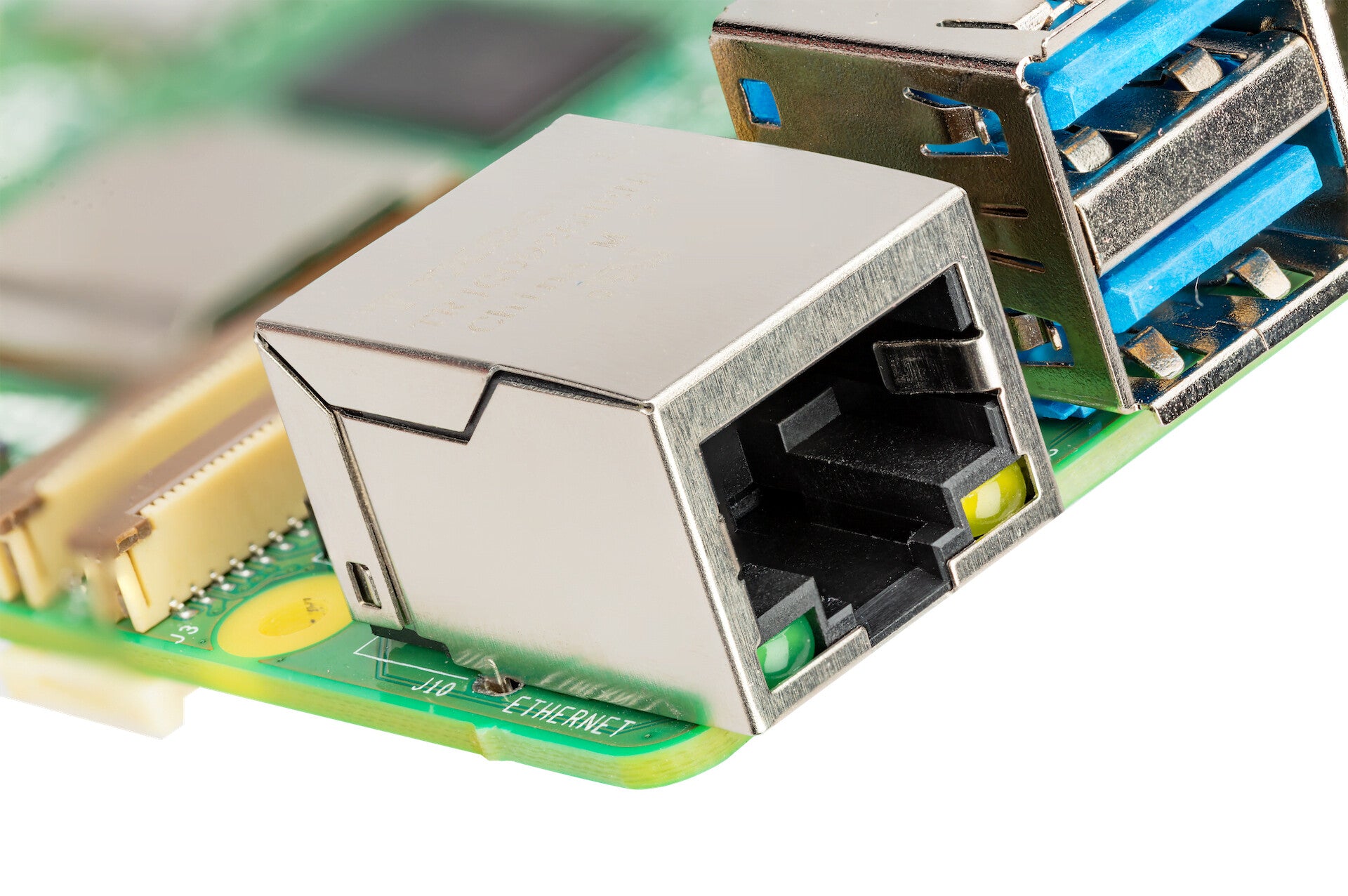

| Ethernet LAN (RJ-45) ports | 1 |

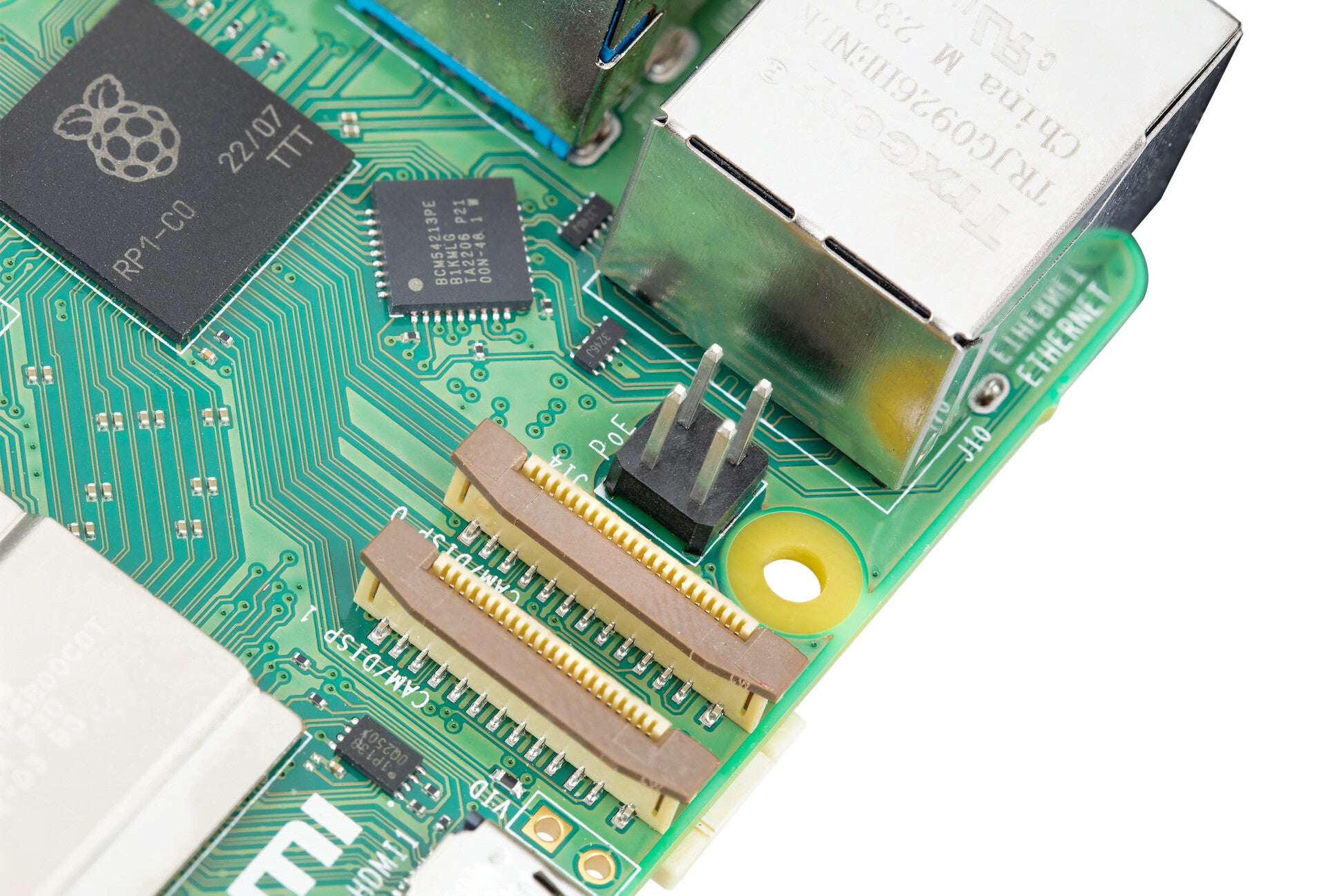

| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
| Integrated LAN | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| USB ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Expansion slots | |
|---|---|
| PCI Express interface data lanes | x1 |
| PCI version | 2.0 |
| Features | |
|---|---|
| On/off button | Yes |
| Real-time clock (RTC) | Yes |
| Power | |
|---|---|
| USB powered | Yes |
| Input current | 5 A |
| DC input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Width | 85 mm |
| Depth | 49 mm |
| Board dimensions | 85 x 49 mm |
