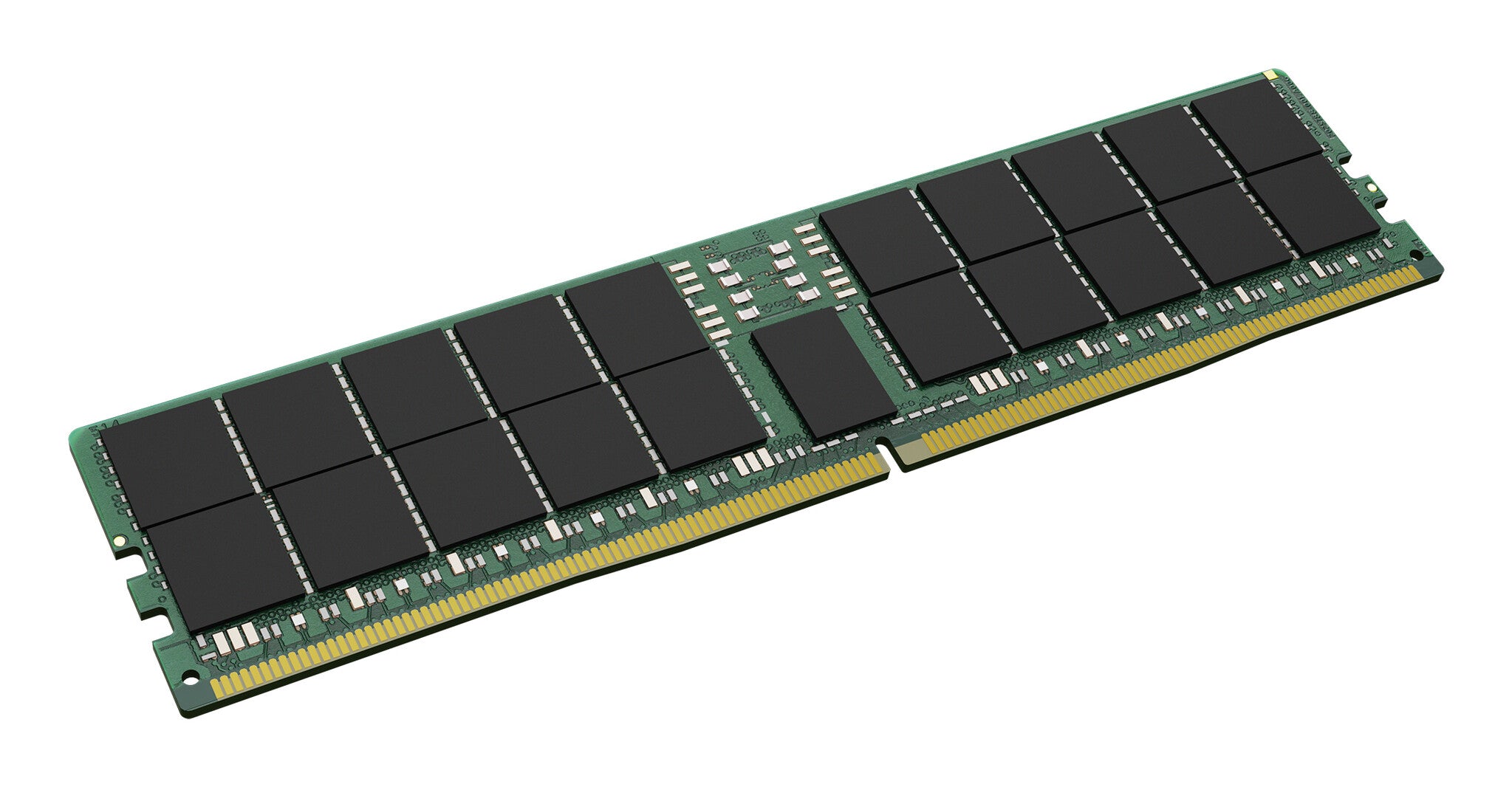

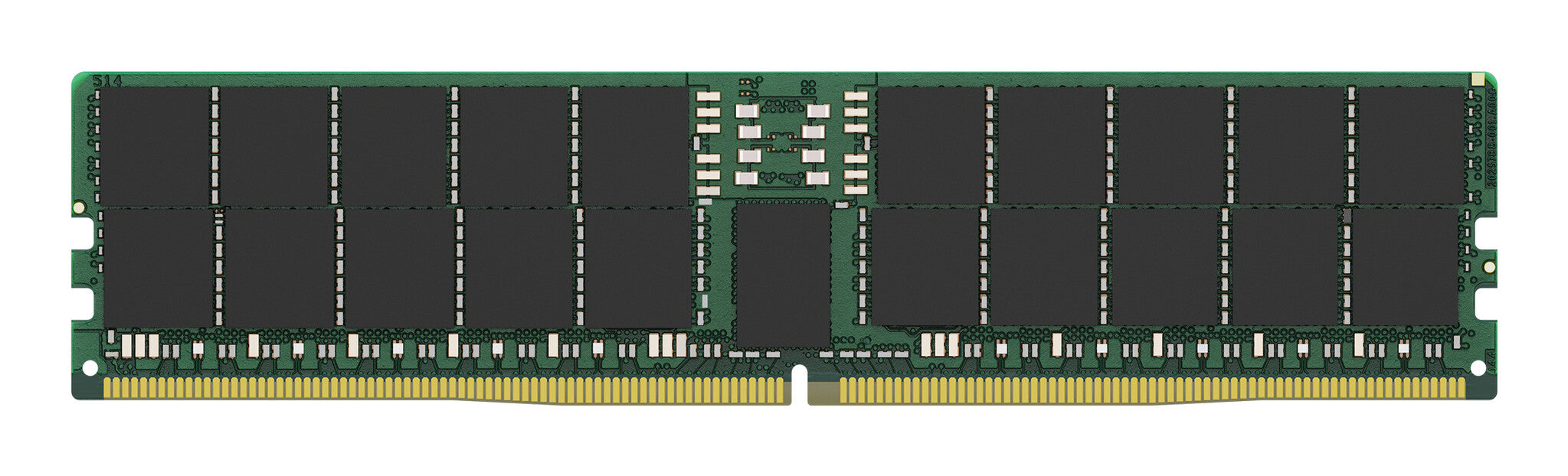

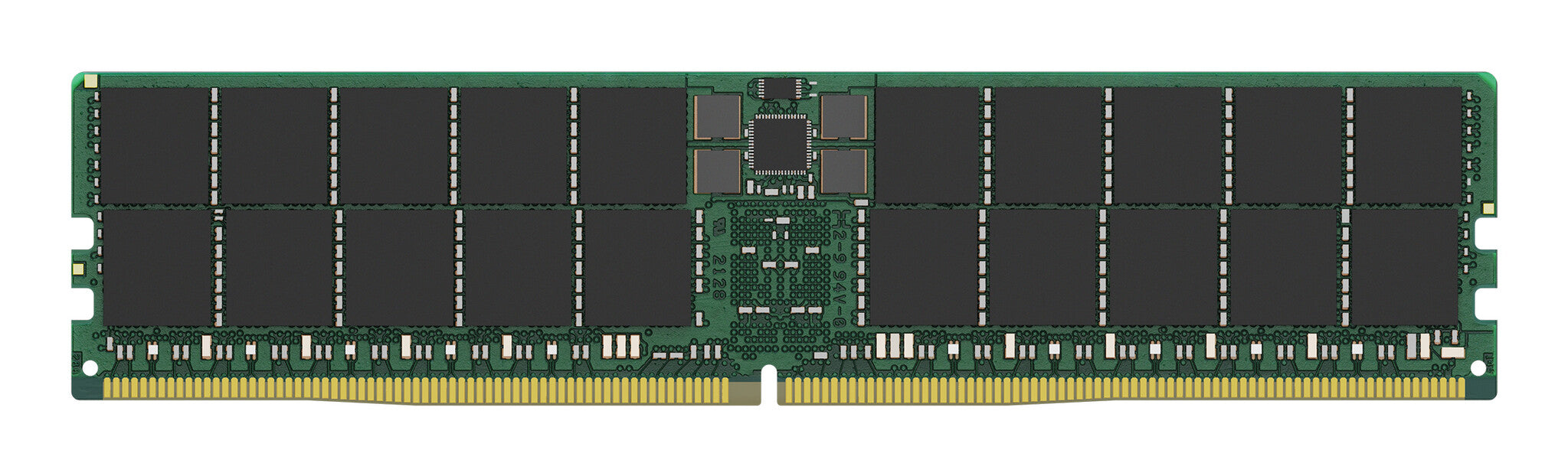

Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s
Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s
Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s
Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s
Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s
Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s

Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s

Kingston Technology
£2,034.99
Stock Available: 0
  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • RoHS Compliant and Halogen-Free

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
JEDEC standard Yes
Lead plating Gold
SPD profile Yes
Programming power voltage (VPP) 1.8 V
Row active time 32 ns
Refresh row cycle time 295 ns
Row cycle time 48 ns
Module configuration 8192M x 80
Memory voltage 1.1 V
Memory ranking 2
Memory data transfer rate 6400 MT/s
CAS latency 52
On-Die ECC Yes
ECC No
Memory form factor 288-pin DIMM
Component for PC/Server
Internal memory type DDR5
Memory layout (modules x size) 1 x 64 GB
Internal memory 64 GB
Buffered memory type Registered (buffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 95 °C
Sustainability
Doesn't contain Halogen
Technical details
Compliance certificates RoHS
Weight & dimensions
Height 31.2 mm
Width 133.3 mm
