Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC
Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC
Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC
Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s ECC

Kingston Technology
£3,169.99
Stock Available: 0
  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • RoHS Compliant and Halogen-Free

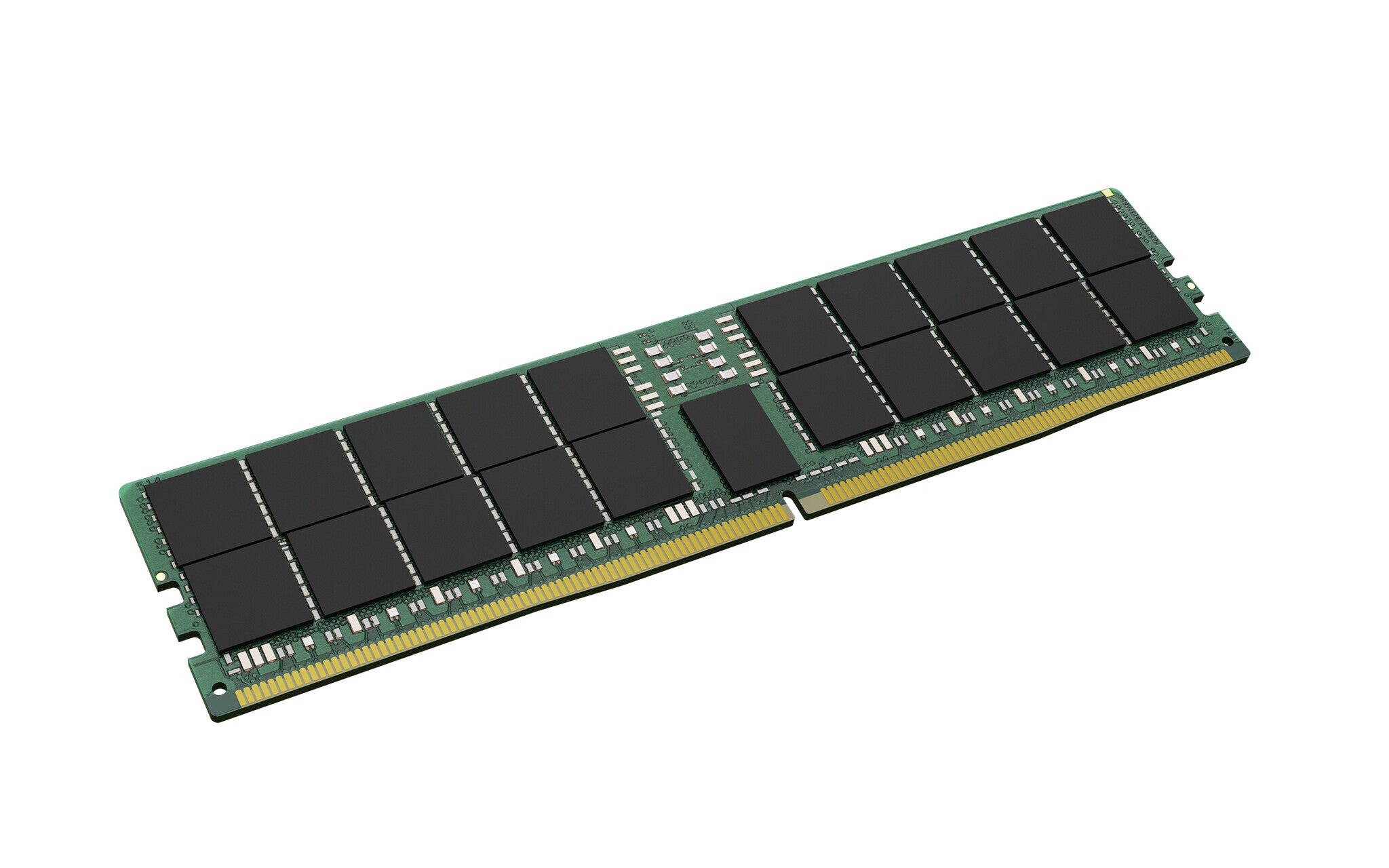

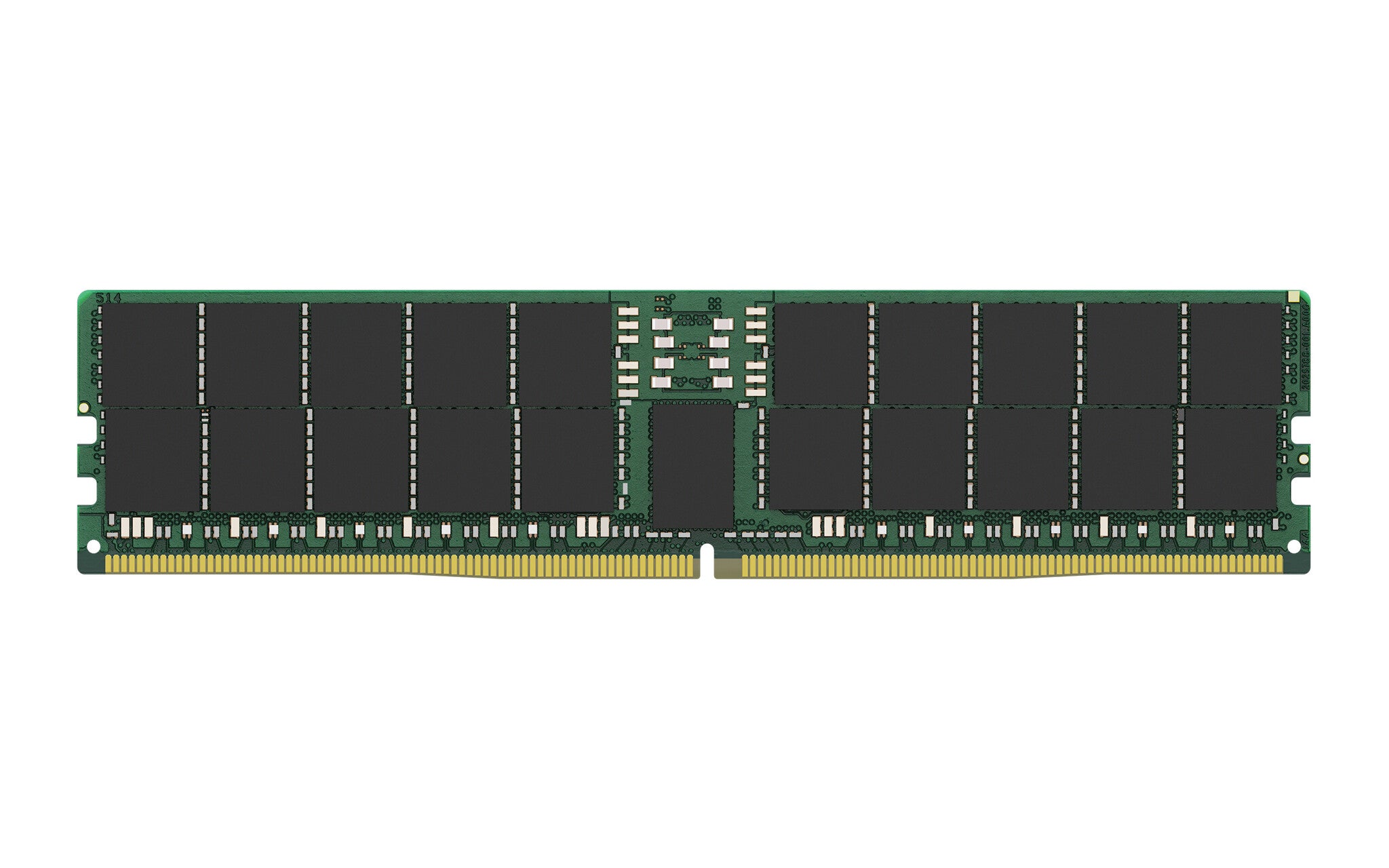

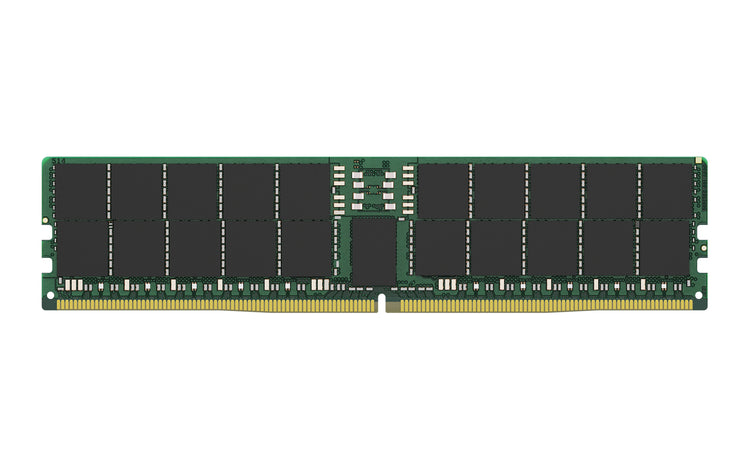

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
JEDEC standard Yes
Lead plating Gold
Backlight No
SPD profile Yes
Programming power voltage (VPP) 1.8 V
Row active time 32 ns
Refresh row cycle time 295 ns
Row cycle time 48 ns
Module configuration 12288M x 80
Memory voltage 1.1 V
Memory ranking 2
Memory data transfer rate 5600 MT/s
CAS latency 46
On-Die ECC Yes
ECC Yes
Memory form factor 288-pin DIMM
Component for PC/Server
Internal memory type DDR5
Memory layout (modules x size) 1 x 96 GB
Internal memory 96 GB
Buffered memory type Registered (buffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 95 °C
Sustainability
Sustainability compliance Yes
Doesn't contain Halogen
Technical details
Compliance certificates RoHS
Weight & dimensions
Height 31.2 mm
Width 133.3 mm
