Kingston Technology KSM32SES8/8HD memory module 8 GB DDR4 3200 MT/s ECC

Kingston Technology KSM32SES8/8HD memory module 8 GB DDR4 3200 MT/s ECC

Kingston Technology
£116.99
Stock Available: 0
  • 8 GB DDR4 3200 MT/s
  • 260-pin SO-DIMM
  • CAS latency: 22
  • 1.2 V
  • ECC
  • Backlight

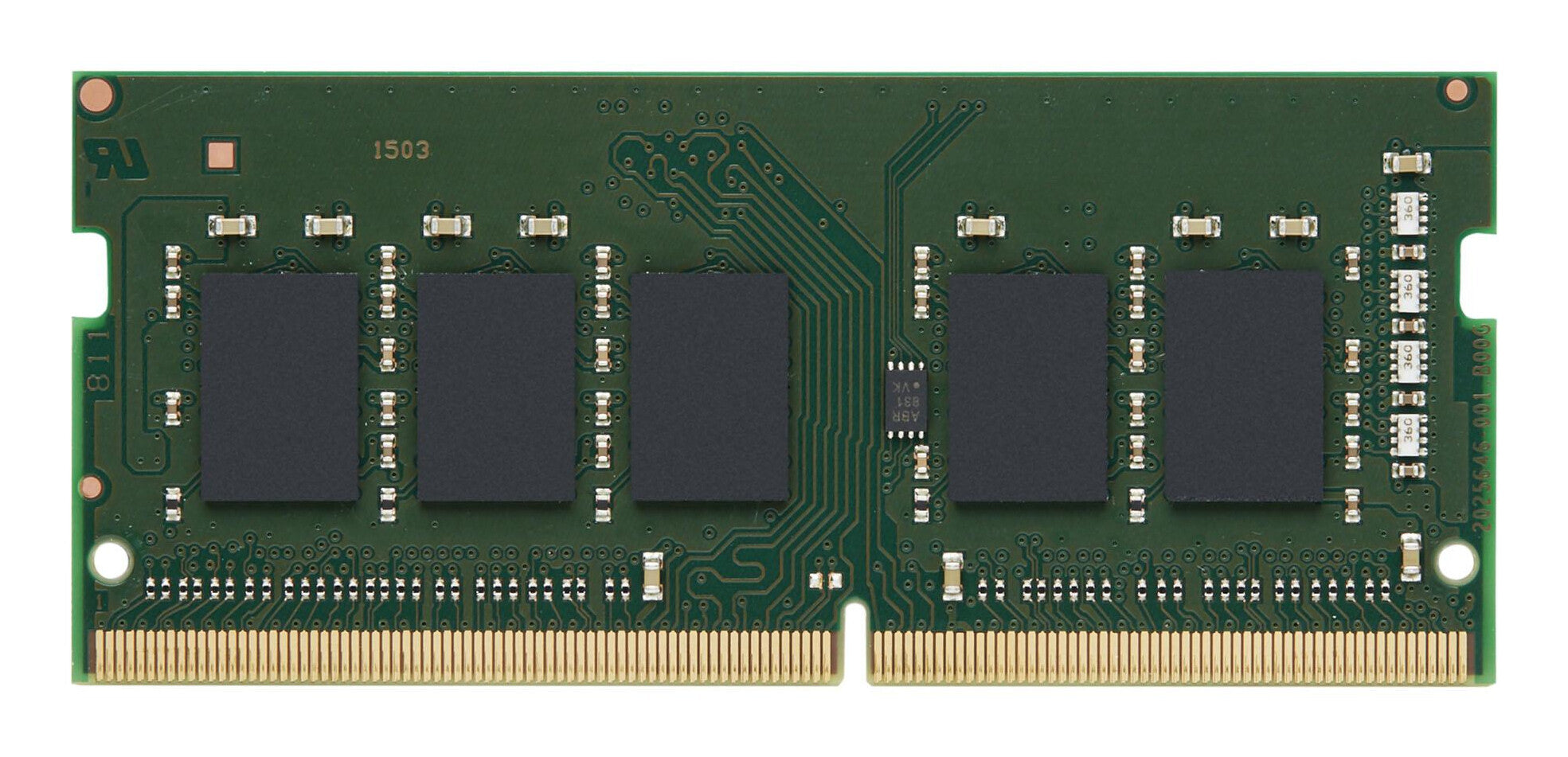

Kingston's KSM32SES8/8HDis a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM uses gold contact fingers.

Features
JEDEC standard Yes
Backlight Yes
SPD profile Yes
Programming power voltage (VPP) 2.5 V
Row active time 32 ns
Refresh row cycle time 350 ns
Row cycle time 45.75 ns
Module configuration 1024M x 72
Memory voltage 1.2 V
Memory ranking 1
Memory data transfer rate 3200 MT/s
CAS latency 22
On-Die ECC Yes
ECC Yes
Memory form factor 260-pin SO-DIMM
Internal memory type DDR4
Internal memory 8 GB
Buffered memory type Unregistered (unbuffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 85 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733020
Other features
Supported data transfer rates PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
