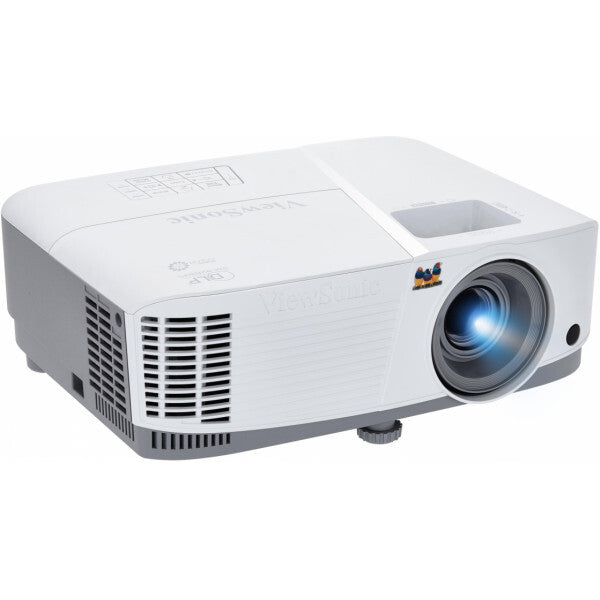

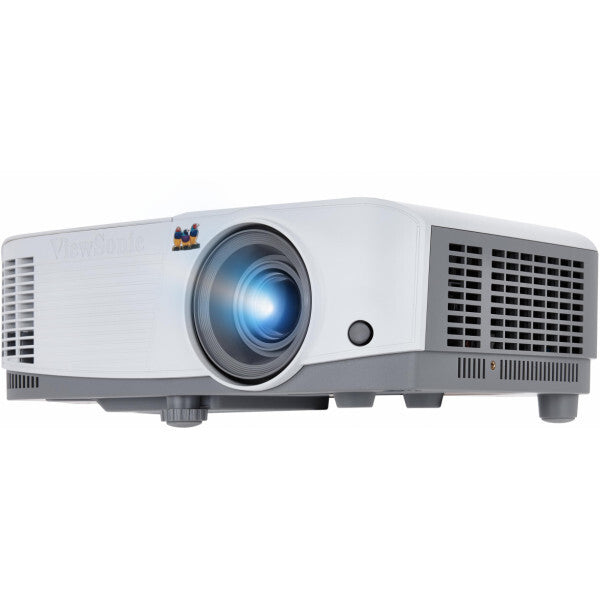

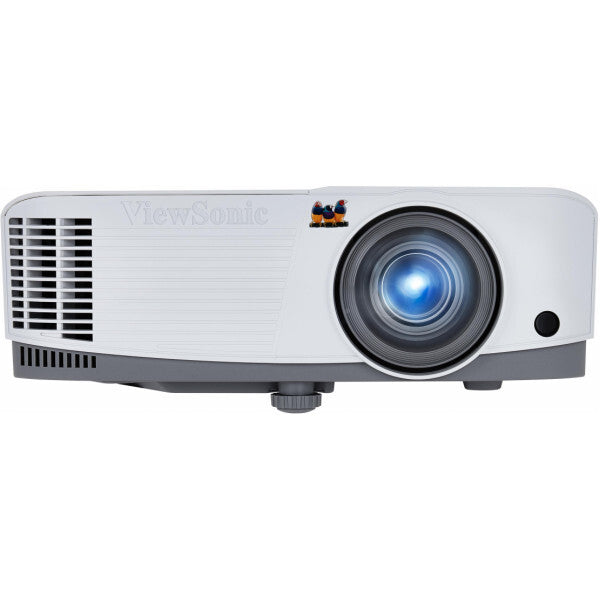

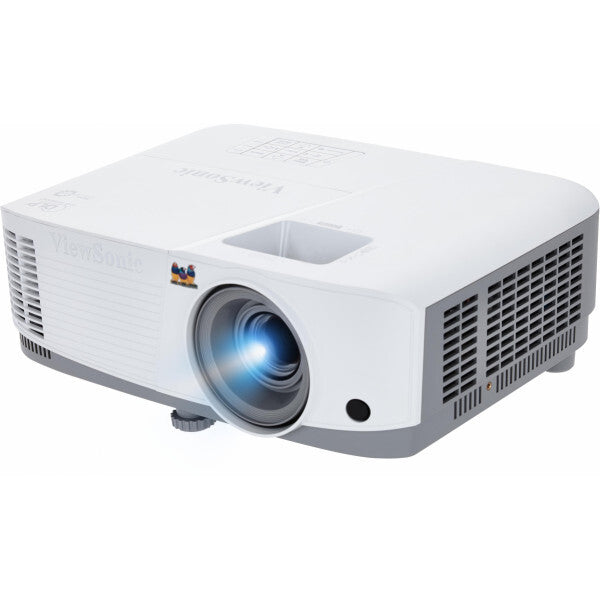

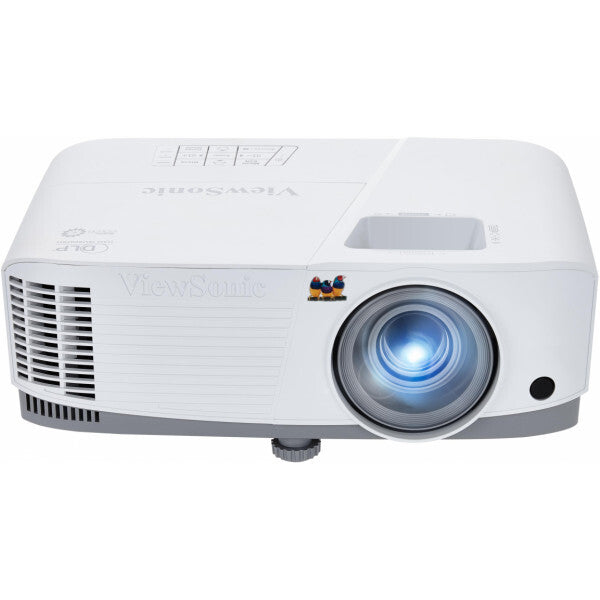

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
£326.99
Couldn't load pickup availability
- Presentation Standard throw projector White
- DMD 3800 ANSI lumens
- Lamp 5000 h
- WXGA (1280x800) 22000:1
- Screen size compatibility: 762 - 7620 mm (30 - 300") Number of colours: 1.07 billion colours
- Focus: Manual Zoom capability
- Built-in speaker(s) 2 W
- AC 260 W
Description
The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
| Projector | |
|---|---|
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Number of colours | 1.07 billion colours |
| Projection distance | 1 - 10.98 m |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Contrast ratio (typical) | 22000:1 |
| Projector native resolution | WXGA (1280x800) |
| Projection technology | DMD |
| Projector brightness | 3800 ANSI lumens |

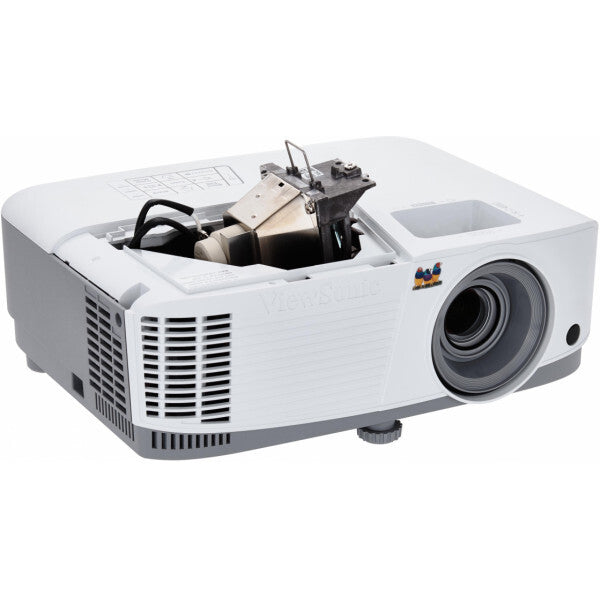

| Light source | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Lamp power | 200 W |
| Service life of light source (economic mode) | 15000 h |
| Service life of light source | 5000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Offset | 100% |
| Throw ratio | 1.55-1.7 |
| Zoom ratio | 2.0:1 |
| Zoom capability | Yes |
| Aperture range (F-F) | 2.56 - 2.68 |
| Focal length range | 22 - 24.1 mm |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Analog signal format system | NTSC, PAL, SECAM |

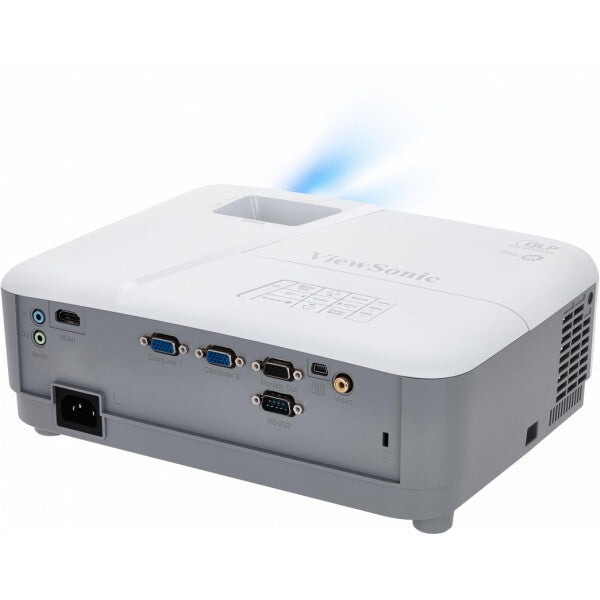

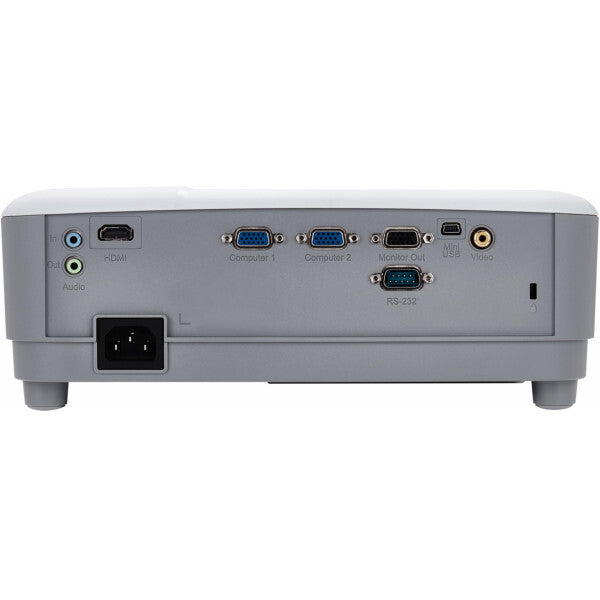

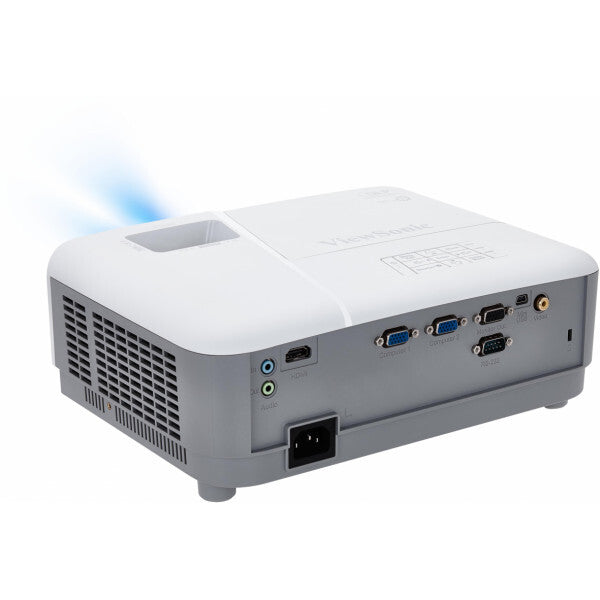

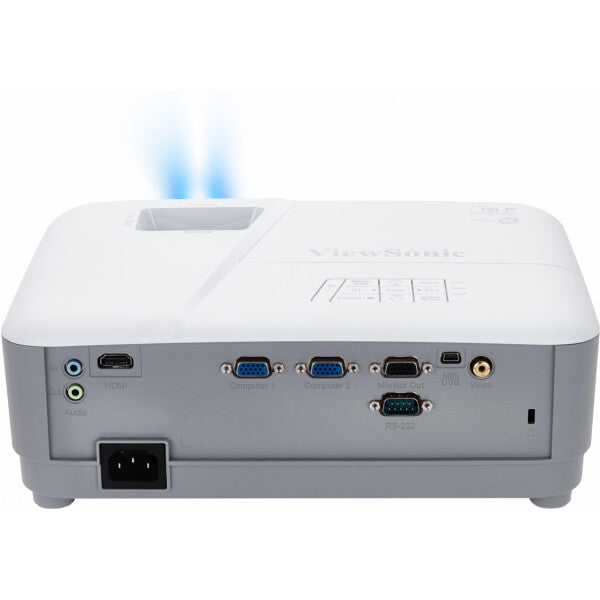

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Mobile High-Definition Link (MHL) | No |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232 |
| Mini-USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI version | 1.4 |
| HDMI connector type | Full-size |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 3 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Number of OSD languages | 22 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Noise level | 31 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Placement | Desktop, Ceiling |
| Product colour | White |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 260 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 3.24 kg |
| Package height | 188 mm |
| Package depth | 300 mm |
| Package width | 365 mm |
| Height | 110 mm |
| Depth | 218 mm |
| Width | 294 mm |
| Weight | 2.22 kg |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Pallet gross length | 74 cm |
| Pallet gross width | 90 cm |
| Pallet gross height | 2.21 m |
| Harmonized System (HS) code | 8528620000 |
| Products per master (outer) case | 1 pc(s) |
