£1,145.99
Stock Available: 12
  • Up to 100-inch display and outstanding quality: HD-ready WXGA resolution with Epson 3LCD technology
  • Reliable: Improved reliability and a longer lamp life
  • Wireless Connectivity (Optional): Allows content to be shown from a range of devices
  • Long lamp life: Up to 10,000 hours in eco mode
  • Ultra short throw projection: For maximum installation flexibility

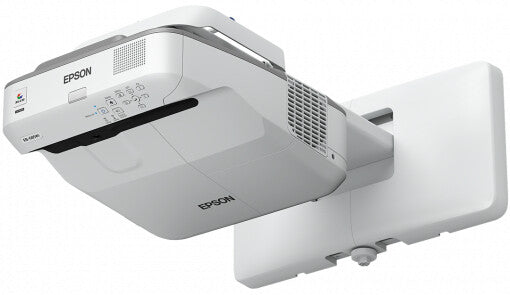

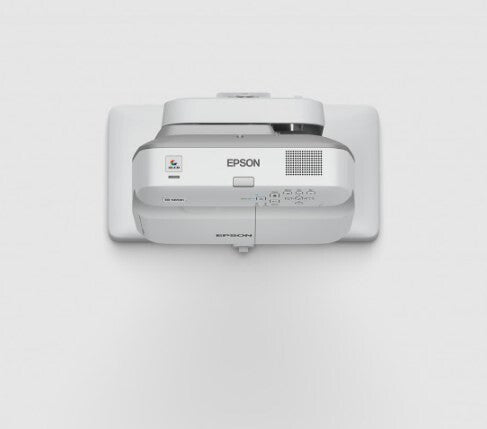

HD-ready classroom projector
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.

High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors{s1.

Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.

Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App{s2.

Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.

Projector
Projector brightness 3500 ANSI lumens
Projection technology 3LCD
Projector native resolution WXGA (1280x800)
Contrast ratio (typical) 300:1
Native aspect ratio 16:10
Supported aspect ratios 16:10
Screen size compatibility 1524 - 2540 mm (60 - 100")
Projection distance 0.4 - 0.6 m
Projection distance (wide) 0 - 0.4 m
Projection distance (tele) 0 - 0.6 m
Contrast ratio (dynamic) 14000:1
Number of colours 1.073 billion colours
Projector brightness (economic mode) 2900 ANSI lumens
Matrix size 1.5 cm (0.59")
Keystone correction, vertical ±3°
Keystone correction, horizontal ±3°
Light source
Light source type Lamp
Service life of light source 5000 h
Service life of light source (economic mode) 10000 h
Lamp power 250 W
Lens system
Focus Manual
Focal length range 0 - 3.76 mm
Zoom capability Yes
Zoom ratio 1.35:1
Digital zoom 1.35x
Video
Full HD No
HD-Ready Yes
3D No
Video colour modes Blackboard, Cinema, Dynamic, Presentation, sRGB
Colour modes (2D) Cinema, Dynamic
Video processing 10 bit

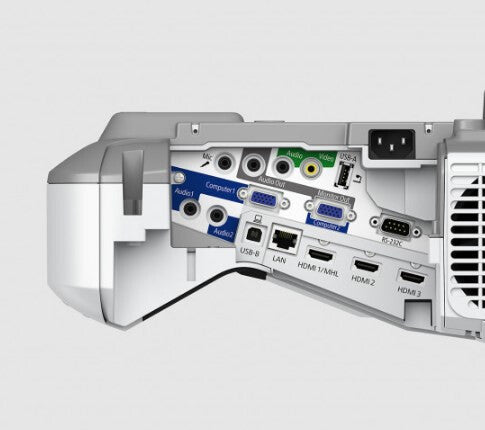

Ports & interfaces
VGA (D-Sub) ports quantity 3
HDMI ports quantity 3
DVI port No
Composite video in 1
USB 2.0 ports quantity 2
Audio (L/R) in 1
Headphone outputs 1
Microphone in Yes
Serial interface type RS-232
USB connector type USB Type-A, USB Type-B
Mobile High-Definition Link (MHL) Yes
AC (power) in Yes
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100 Mbit/s
Ethernet LAN (RJ-45) ports 1
Storage
Card reader integrated No
Features
Noise level 35 dB
Noise level (economic mode) 28 dB
On Screen Display (OSD) Yes
Air filter Yes
Country of origin Philippines
Password protection Yes
Multimedia
Built-in speaker(s) Yes
Number of built-in speakers 1
RMS rated power 16 W
Design
Product type Ultra short throw projector
Product colour Grey, White
Placement Wall
Cable lock slot type Kensington
Cable lock slot Yes
Display
Built-in display No
Power
Power source AC
Power consumption (typical) 354 W
Power consumption (standby) 0.39 W
Power consumption (PowerSave) 310 W
AC input voltage 220 - 240 V
AC input frequency 50 - 60 Hz
Software
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Weight 5.7 kg
Width 367 mm
Depth 400 mm
Height 149 mm
Package width 490 mm
Package depth 730 mm
Package height 335 mm
Package weight 18.5 kg
Packaging content
Remote control included Yes
Remote control type IR
Batteries included Yes
Manual Yes
Cables included USB
Bundled software EasyMP Monitor, EasyMP Multi PC Projection
Logistics data
Quantity per pack 1 pc(s)
Pallet height (UK) 141 cm
Pallet width (UK) 100 cm
Pallet length (UK) 120 cm
Products per pallet (UK) 12 pc(s)
Products per pallet layer (UK) 2 pc(s)
Products per pallet layer 2 pc(s)
Pallet gross height 141 cm
Pallet gross width 80 cm
Pallet gross length 120 cm
Products per pallet 12 pc(s)
Other features
RS-232 ports 1
