ATEN 4-port USB 3.0 Peripheral Sharing Device

Aten
£77.99
Stock Available: 0
  • Enables 4 computers to share 4 USB 3.2 Gen1 devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
  • LEDs indicates which computer is active
  • Over-current protection
  • Multiplatform support – Windows, Linux and Mac
  • Bus-powered
  • Micro USB power jack for additional power supply
  • Hot pluggable, no driver or software required

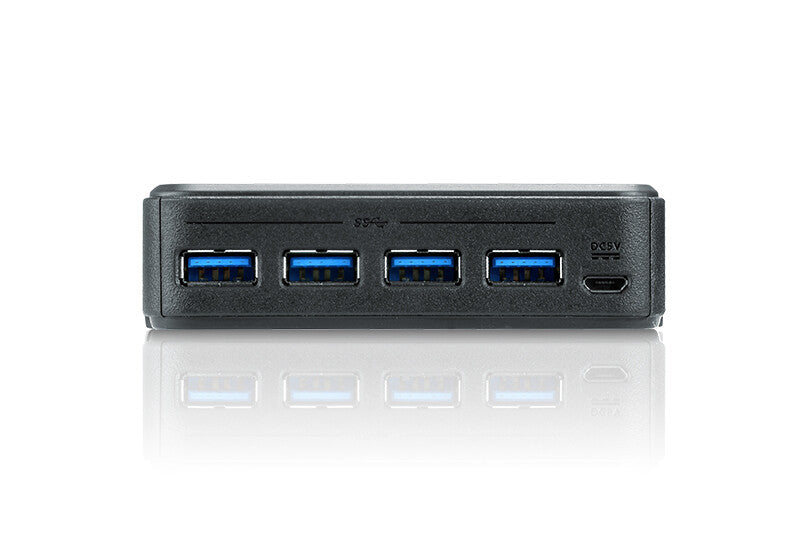

ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 4
DC-in jack Yes
Performance
Maximum data transfer rate 5 Gbit/s
Remote control function Yes
LED indicators Yes
Power connector Micro-USB Type-B
Product colour Black
Housing material Plastic
Technical details
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 36.6 mm
Depth 93.7 mm
Height 26.8 mm
Weight 439 g
Packaging data
Package depth 163 mm
Package width 70 mm
Package height 195 mm
Package weight 576 g
Logistics data
Master (outer) case net weight 4.39 kg
Master (outer) case gross weight 6.46 kg
Master (outer) case height 182 mm
Master (outer) case width 395 mm
Master (outer) case length 405 mm
Products per master (outer) case 10 pc(s)
