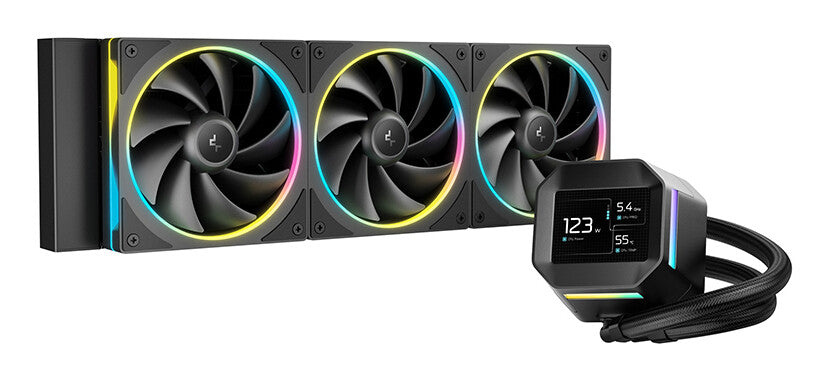

The DeepCool LM360 is a premium 360 mm all-in-one liquid CPU cooler designed for high-performance gaming systems, workstations, and overclocked builds. Featuring a large aluminium radiator and three high-efficiency FL12 SE 120 mm fans, it delivers powerful thermal performance while maintaining smooth, controlled acoustics.

At the centre of the system is DeepCool’s advanced 6th-generation pump, operating between 2,500 and 3,600 RPM to ensure fast and reliable coolant circulation. The pump top includes a 2.4? IPS display capable of showing hardware stats, custom images, or MP4 animations, offering a highly customisable aesthetic upgrade for any build.

With full ARGB lighting on both the pump and fans, the LM360 integrates seamlessly with 5V-ARGB motherboard headers, allowing coordinated lighting effects across your system. DeepCool’s patented Anti-Leak Technology actively regulates internal pressure to improve long-term safety and durability.

The LM360 offers wide compatibility with modern Intel and AMD platforms — including Intel LGA 1851 and 1700, and AMD AM5 — and includes a full mounting kit for straightforward installation. With its strong cooling capacity, vibrant ARGB illumination, and premium display interface, the LM360 is ideal for users demanding performance and style.

Full Specifications

Model / MPN:
LM360 (R-LM360-BKDMMC-1)

Type:
AIO (All-in-One) Liquid CPU Cooler

Supported Sockets:
Intel: LGA 1851, LGA 1700, LGA 1200, LGA 1151/1150/1155
AMD: AM5, AM4

Net Weight:
1,729 g

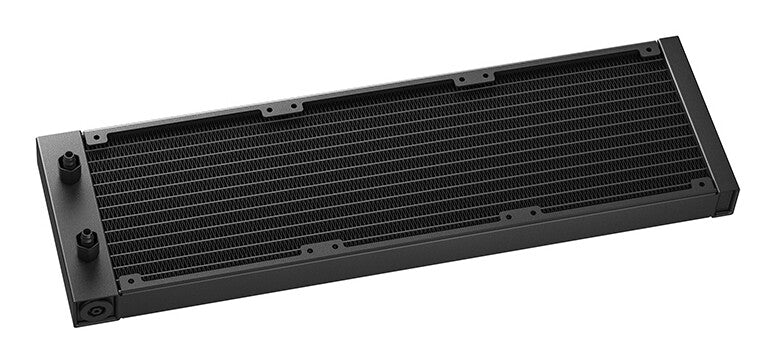

Radiator Dimensions:
402 X 120 X 27 mm (L X W X H)

Radiator Material:
Aluminium

Tubing Length:
410 mm

Pump Dimensions:
90 X 80 X 63 mm

Pump Speed (RPM):
2,500 – 3,600 RPM ±10%

Pump Connector:
4-pin PWM

Pump Rated Voltage:
12 V DC

Pump Rated Current:
0.29 – 0.34 A

Pump Power Consumption:
3.48 – 4.08 W (approx.)

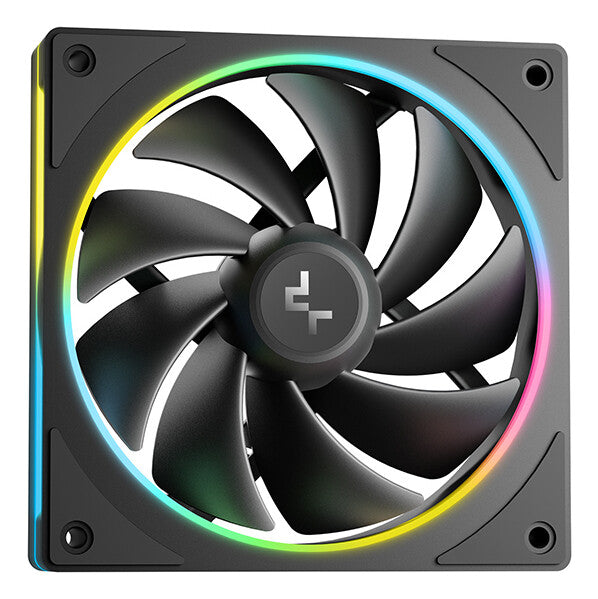

Fans:
3 X 120 mm FL12 SE (120 X 120 X 25 mm)

Fan Speed:
400 – 2,400 RPM ±10%

Fan Airflow:
66.23 CFM per fan

Fan Air Pressure:
3.27 mmAq

Noise Level (Max):
36.07 dB(A)

Bearing Type:
Hydro (hydraulic) bearing

Fan Connector:
4-pin PWM

LED Type:
Addressable RGB (ARGB)

LED Connector:
3-pin (+5V-D-G)

LED Rated Voltage:
5 V DC

LED Power Consumption:
1.5 W (Pump) / approx. 3.5 W (Fans combined)

Display:
2.4? IPS screen, 320 X 240 resolution, supports MP4 video playback

Special Features:
Anti-Leak Technology (pressure regulation system)

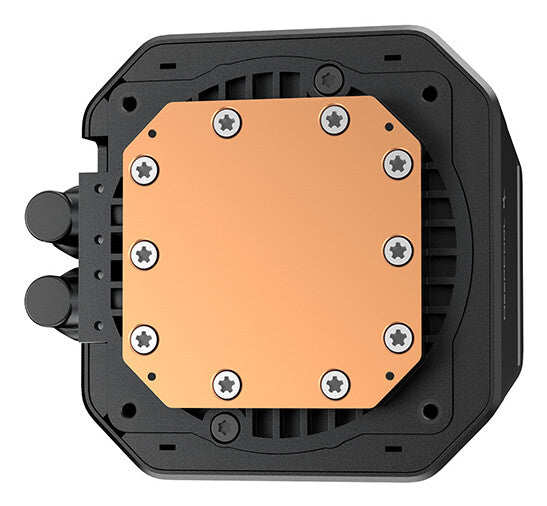

Material (Block / Tubes):
Copper block, aluminium radiator

Colour / Finish:
Black

Warranty:
3 years

EAN / Barcode:
6933412729471

Performance
Fan speed (max)	2400 RPM
Pump motor speed (min)	2500 RPM
Pump motor speed (max)	3400 RPM
Fan speed (min)	400 RPM
Quantity per pack	1 pc(s)
Pump connector	4-pin
Fan noise level (max)	36.07 dB
Bearing type	Hydraulic
Pulse-width modulation (PWM) support	Yes
Maximum air pressure	3.27 mmH2O
Maximum airflow	66.23 cfm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Fan diameter	12 cm
Type	Liquid cooling kit
Suitable location	Processor

Design
Display type	IPS
Fan connector	4-pin
LED connector type	3-pin
Illumination LED	Yes
Number of fan blades	9
Number of fans	3 fan(s)
Radiator material	Aluminum
Product colour	Black

Power
LED power consumption (fan)	3.5 W
Pump voltage	12 V
LED power consumption (pump)	1.5 W
LED voltage	5 V
Fan voltage	12 V
Fan current	0.18 A
Pump current	290 mA
Pump power consumption	3.48 W
Fan power consumption	2.16 W

Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	1.73 kg
Pump height	6.3 cm
Pump depth	9 cm
Pump width	8 cm
Tube length	41 cm
Radiator height	2.7 cm
Radiator depth	40.2 cm
Radiator width	12 cm

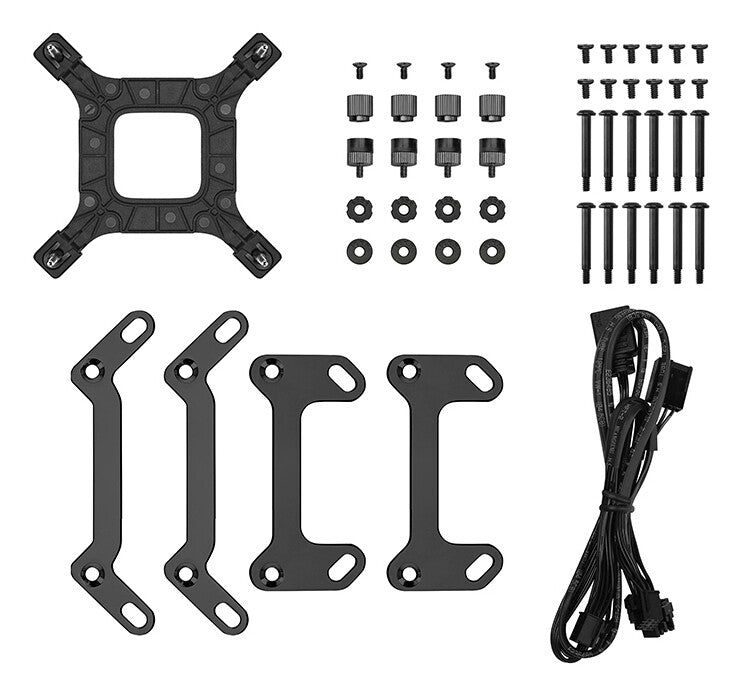

Packaging content
CPU bracket(s)	Yes
CPU socket spacer(s)	Yes
Screws included	Yes
Mounting kit	Yes
Cables included	3-pin, 4-pin
Package type	Box
