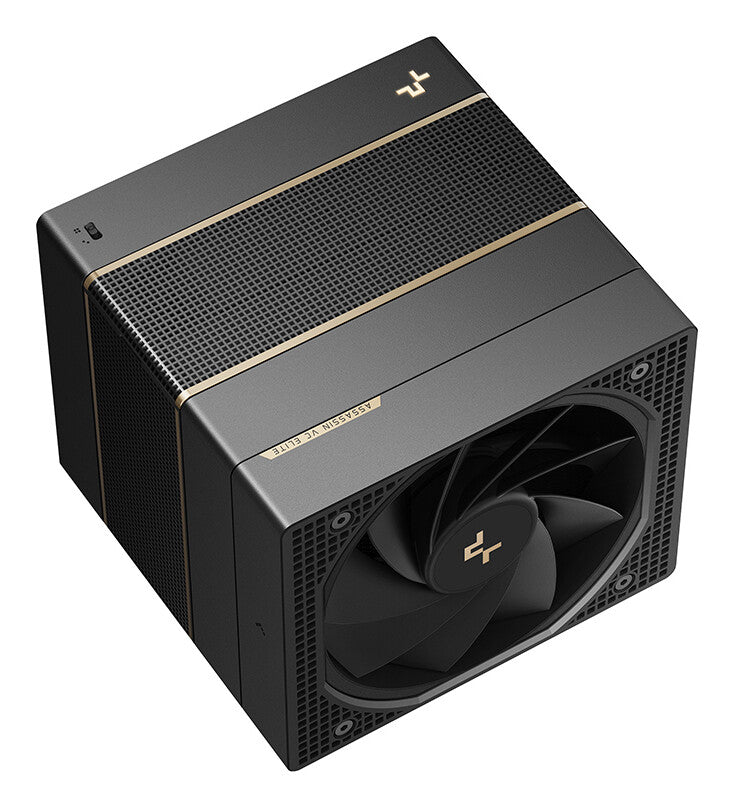

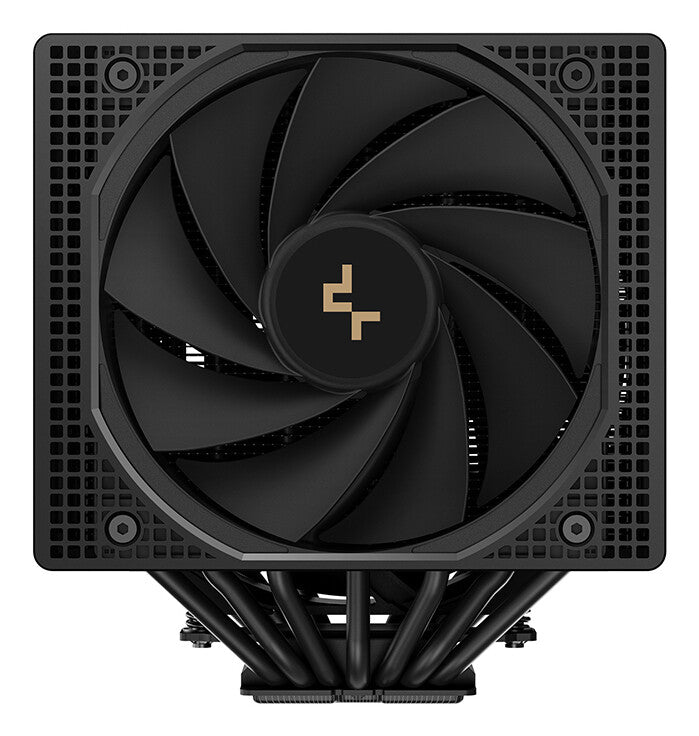

DeepCool ASSASSIN VC ELITE Processor Air cooler 120/140 mm Black 1 pc(s)
iFrame
£88.99
Couldn't load pickup availability
- Processor Air cooler 120/140 mm
- Supported processor sockets: Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
- 29.3 dB 61.25 cfm 3.76 mmH2O Fluid Dynamic Bearing (FDB)
- Pulse-width modulation (PWM) support
- 140 x 140 x 25 mm
- Black
- 1 pc(s)
Deepcool ASSASSIN VC ELITE
The ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE. With the new black-gold aesthetic, the ASSASSIN VC ELITE includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!
VAPOR CHAMBER-ENHANCED
Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!
IN QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN VC ELITE can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
ALL CLEAR!
The ASSASSIN VC ELITE's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN VC ELITE's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN VC ELITE comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN

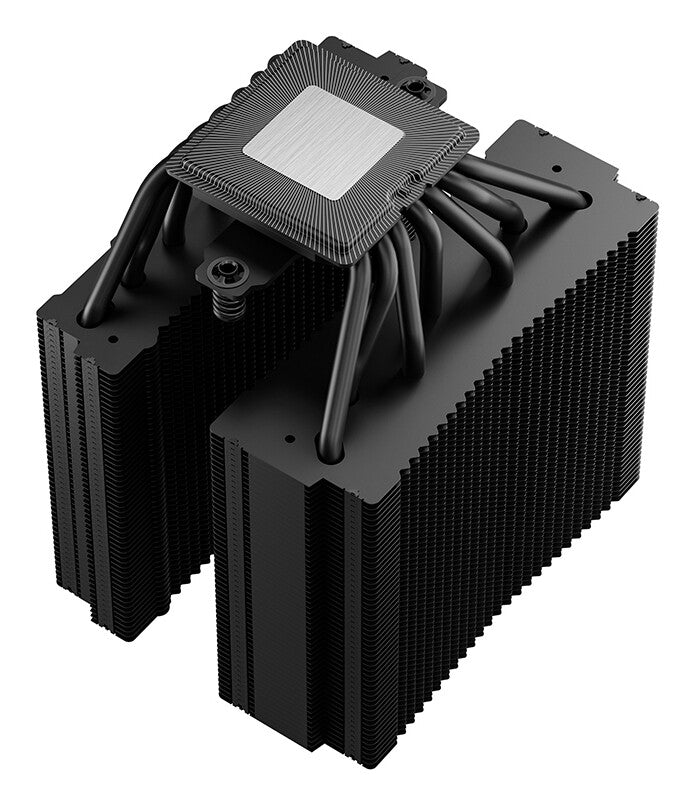

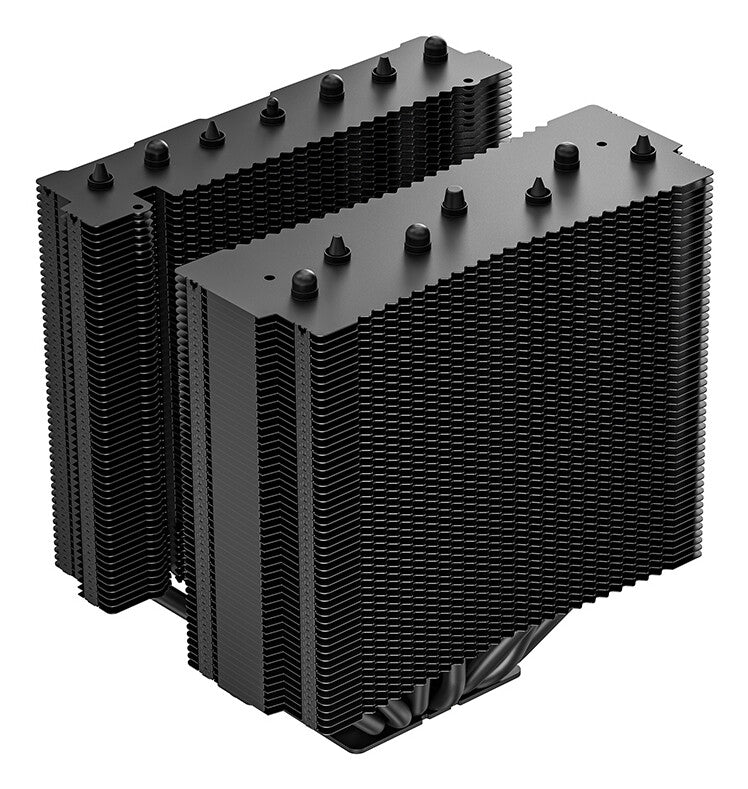

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissipation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN VC ELITE, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
WIDE RANGE OF MODERN CPU SOCKET COMPATIBILITY
The ASSASSIN VC ELITE supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1851 and AM5.
Specifications
Product Dimensions -144x147x164 mm(LxWxH)
Heatsink Dimensions- 140x110x160 mm(LxWxH)
Net Weight- 1772 g
Heatpipe - Ø6 mmx7 pcs

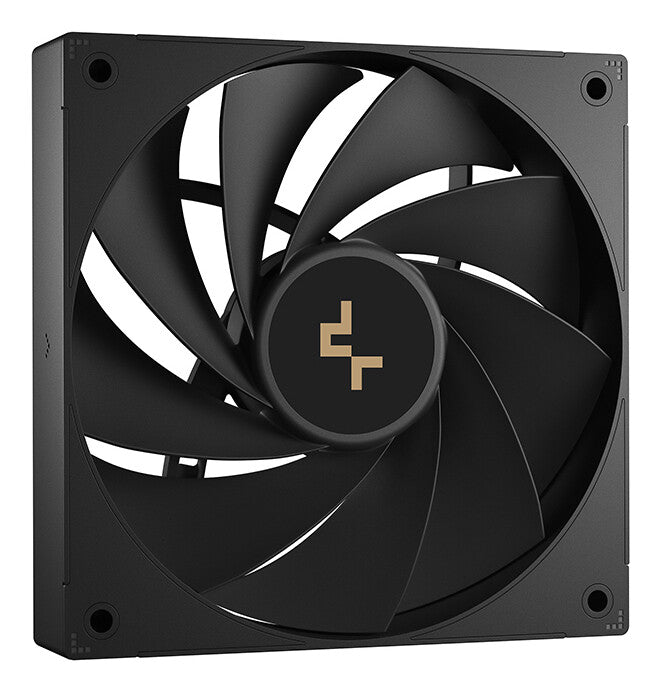

Fan Dimensions- 140x140x25 mm(LxWxH) / 120x120x25 mm(LxWxH)
Fan Speed (Performance Mode)- 500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)- 61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)- 3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode) - =29.3 dB(A)
Fan Speed (Quiet Mode) - 500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode) - 48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode) - 2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode) - =22.6 dB(A)
Fan Connector- 4-pin PWM
Bearing Type - Fluid Dynamic Bearing
Motor Type - 6-Pole Fan Motor
Fan Rated Voltage - 12 VDC
Fan Rated Current - 0.2 A / 0.2 A
Fan Power Consumption- 2.4W / 2.4 W
Rated Voltage- 12 VDC
Power Consumption(Performance Mode)- 4.8 W
Power Consumption(Performance Mode) - 4.8 W
The ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE. With the new black-gold aesthetic, the ASSASSIN VC ELITE includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!
VAPOR CHAMBER-ENHANCED
Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!
IN QUIET OR PERFORMANCE MODE
With a simple slide of a switch, the ASSASSIN VC ELITE can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
ALL CLEAR!
The ASSASSIN VC ELITE's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALM
A key factor in the ASSASSIN VC ELITE's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN VC ELITE comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissipation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
THE FLOW BELOW
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN VC ELITE, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
WIDE RANGE OF MODERN CPU SOCKET COMPATIBILITY
The ASSASSIN VC ELITE supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1851 and AM5.
Specifications
Product Dimensions -144x147x164 mm(LxWxH)
Heatsink Dimensions- 140x110x160 mm(LxWxH)
Net Weight- 1772 g
Heatpipe - Ø6 mmx7 pcs
Fan Dimensions- 140x140x25 mm(LxWxH) / 120x120x25 mm(LxWxH)
Fan Speed (Performance Mode)- 500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)- 61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)- 3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode) - =29.3 dB(A)
Fan Speed (Quiet Mode) - 500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode) - 48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode) - 2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode) - =22.6 dB(A)
Fan Connector- 4-pin PWM
Bearing Type - Fluid Dynamic Bearing
Motor Type - 6-Pole Fan Motor
Fan Rated Voltage - 12 VDC
Fan Rated Current - 0.2 A / 0.2 A
Fan Power Consumption- 2.4W / 2.4 W
Rated Voltage- 12 VDC
Power Consumption(Performance Mode)- 4.8 W
Power Consumption(Performance Mode) - 4.8 W
| Performance | |
|---|---|
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Fan 2 maximum air pressure | 2.46 mmH2O |
| Fan 2 maximum airflow | 48.55 cfm |
| Fan 2 rotational speed (max) | 1700 RPM |
| Fan 2 rotational speed (min) | 500 RPM |
| Maximum air pressure | 3.76 mmH2O |
| Minimum air pressure | 2.1 mmH2O |
| Maximum airflow | 61.25 cfm |
| Noise level (high speed) | 29.3 dB |
| Noise level (low speed) | 22.6 dB |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 120/140 mm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fan blades | 9 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 300 W |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Fan power consumption | 2.4 W |
| Power consumption (typical) | 4.8 W |
| Weight & dimensions | |
|---|---|
| Heat pipes diameter | 6 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Weight | 1.77 kg |
| Height | 164 mm |
| Depth | 144 mm |
| Radiator height | 16 cm |
| Radiator depth | 14 cm |
| Radiator width | 11 cm |
| Width | 147 mm |

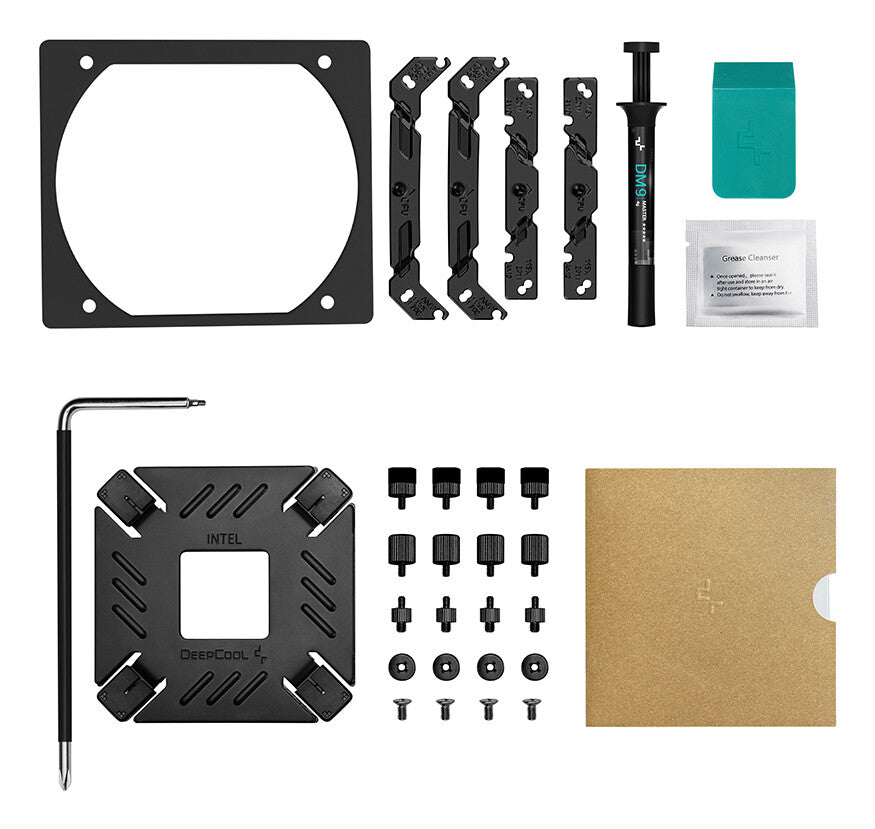

| Packaging content | |
|---|---|
| CPU bracket(s) | Yes |
| CPU socket spacer(s) | Yes |
| Thermal pad included | Yes |
| Screws included | Yes |
| Package type | Box |
