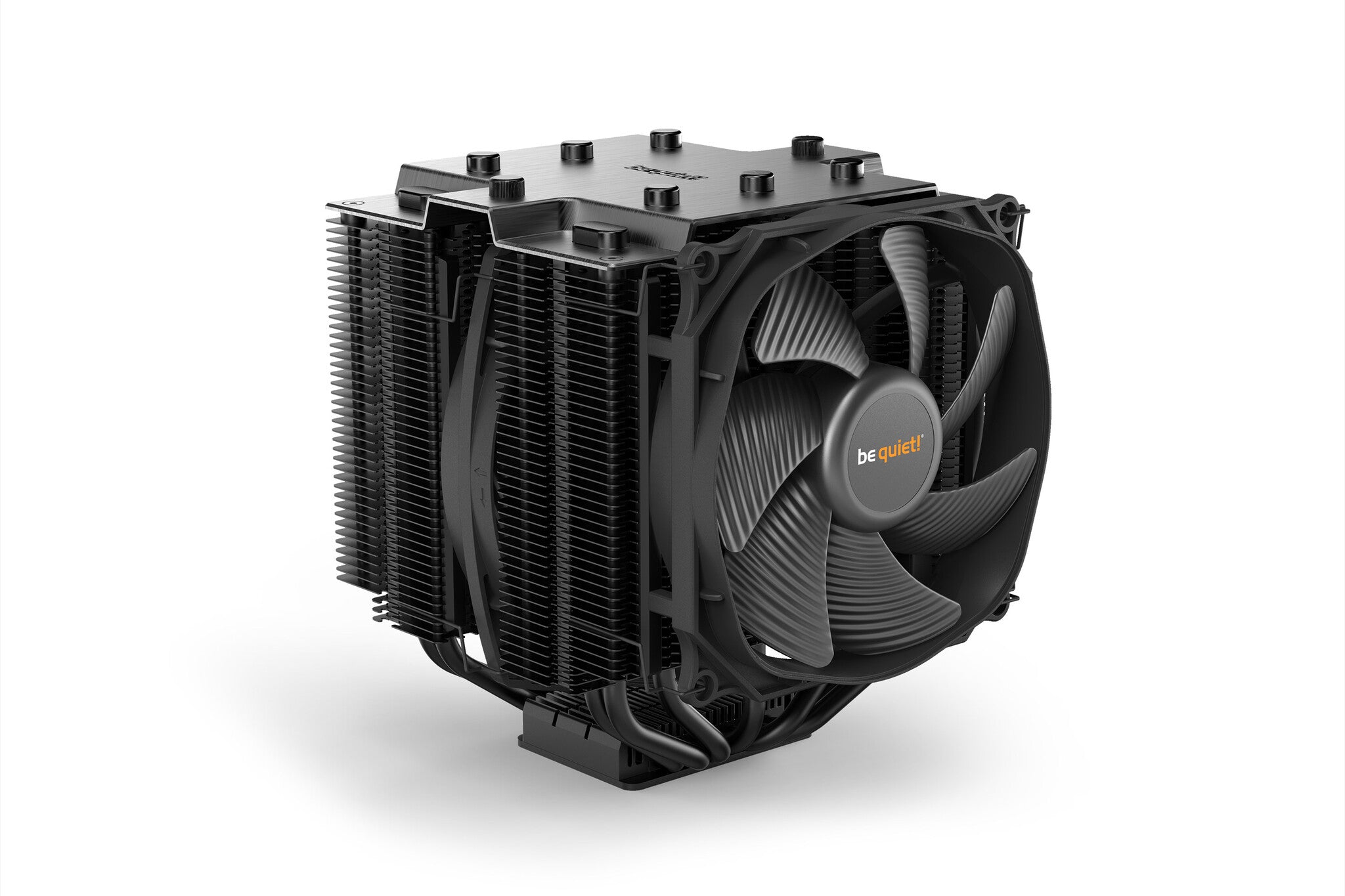

be quiet! Dark Rock Pro TR4 Processor Cooler 120/135 mm
£87.99
Couldn't load pickup availability
- Designed for AMD sTRX4 and TR4 and recommended for CPUs with up to 32 cores in very well ventilated cases
- Two Silent Wings PWM fans feature advanced fluid-dynamic bearings and smooth 6-pole motors
- Funnel-shaped frame of the front Silent Wings 3 fan provides extremely high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes provide maximal heat conductance
- Wave-contoured cooling fins for increased air circulation

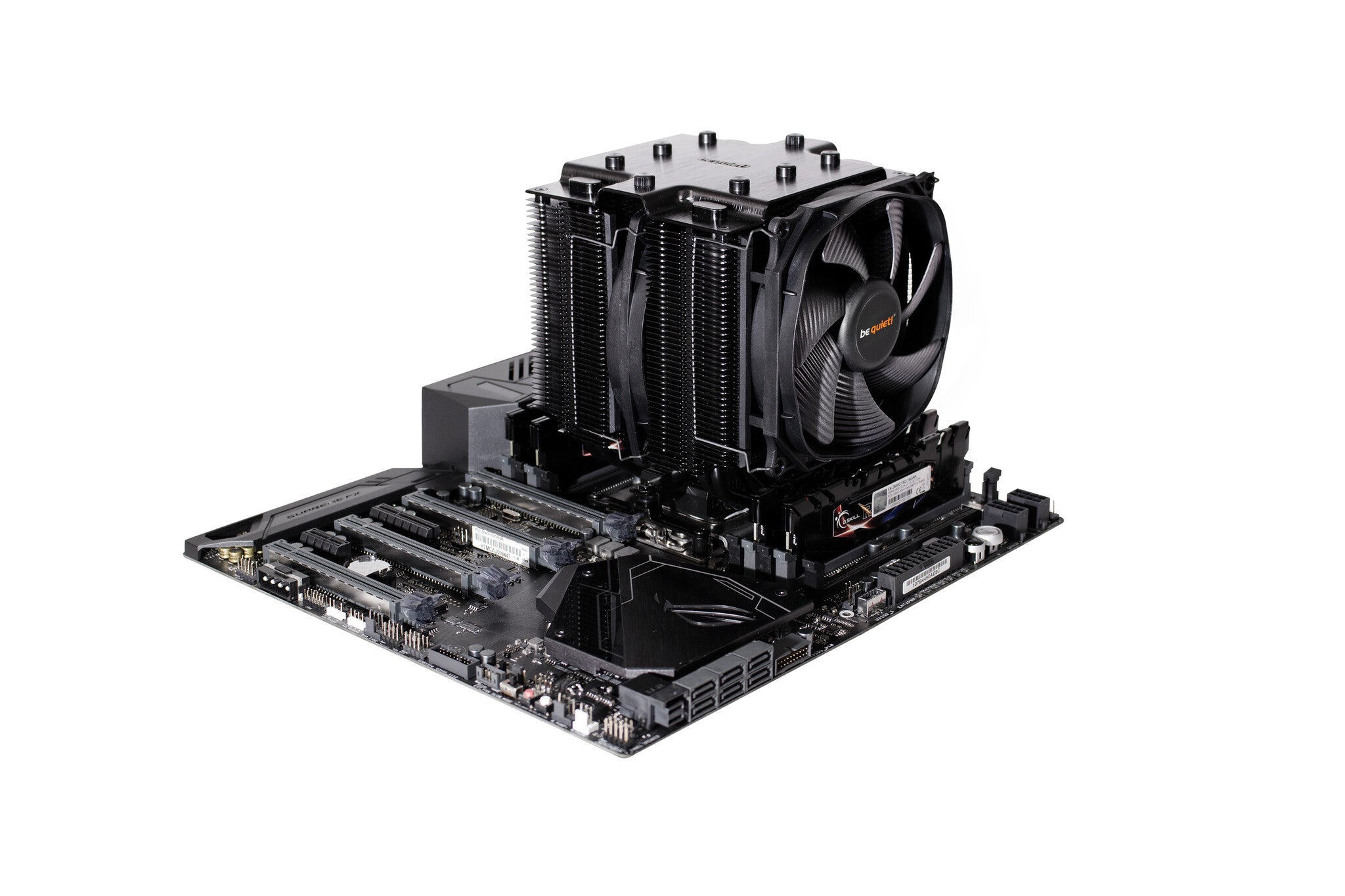

- Cutouts on the cooling fins enhance the RAM compatibility
- Special black coating with ceramic particles enables perfect heat transfer

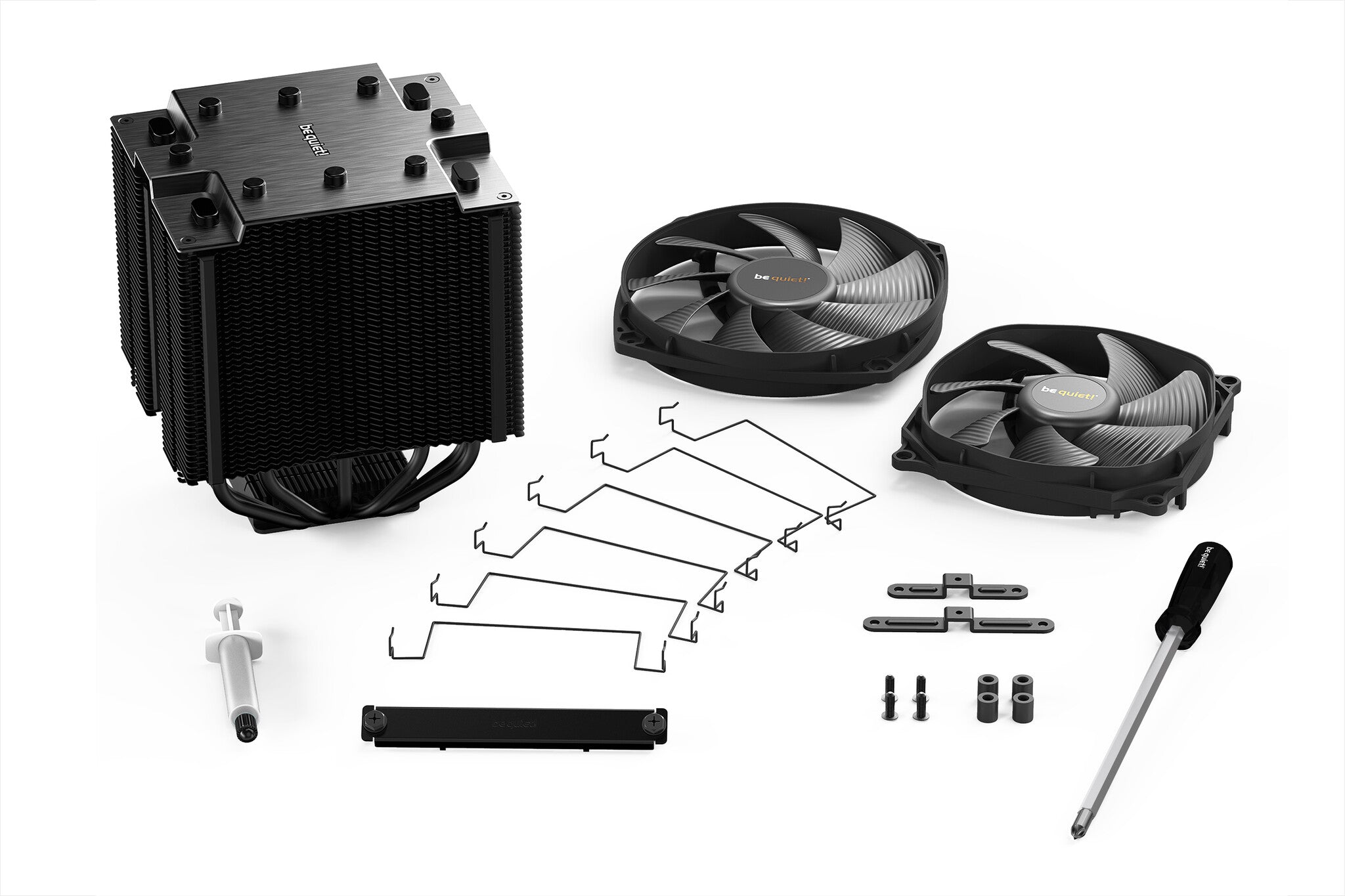

- Supports an additional 120mm fan; clips are included in scope of delivery
- Easily installable black installation kit can be mounted from above

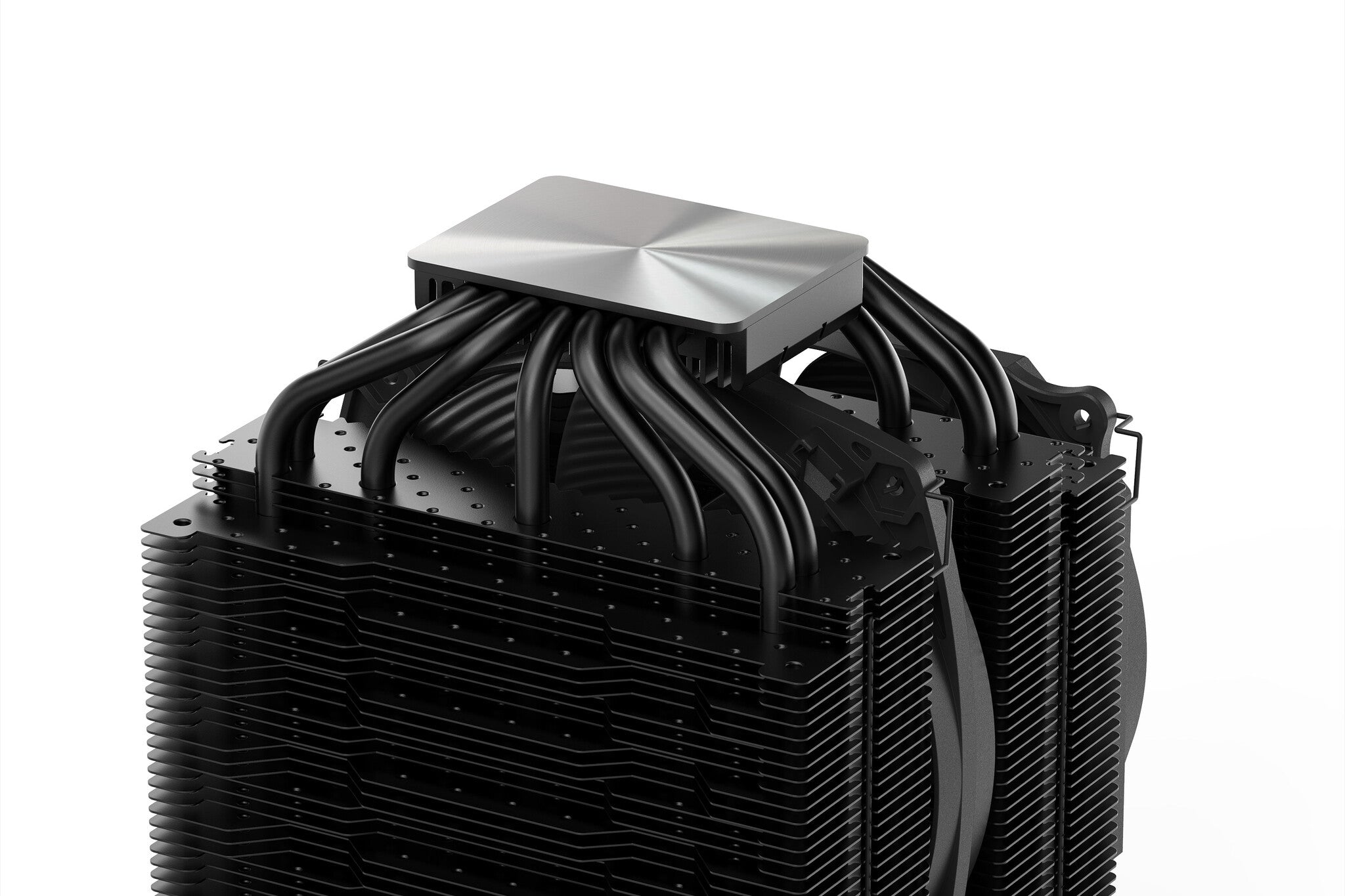

- Elegant, brushed aluminum top cover with diamond cut finish
- German product conception, design and quality control
Dark Rock Pro TR4 offers immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for high-end systems and demanding workstations.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Noise level (high speed) | 24.3 dB |
| Noise level (low speed) | 12.8 dB |
| Rotational speed (max) | 1500 RPM |
| Compatible processor series | AMD Ryzen |
| Supported processor sockets | Socket TR4, Socket sTRX4 |
| Fan diameter | 120/135 mm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Material | Aluminium |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 250 W |
| Rated current | 0.08 A |
| Weight & dimensions | |
|---|---|
| Package weight | 1.58 kg |
| Package height | 212 mm |
| Package depth | 181 mm |
| Package width | 205 mm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Weight | 1.18 kg |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Cables included | Fan |
| Package type | Box |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 300000 h |
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case gross weight | 20.8 kg |
| Master (outer) case height | 459 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case width | 561 mm |
| Harmonized System (HS) code | 84733080 |
