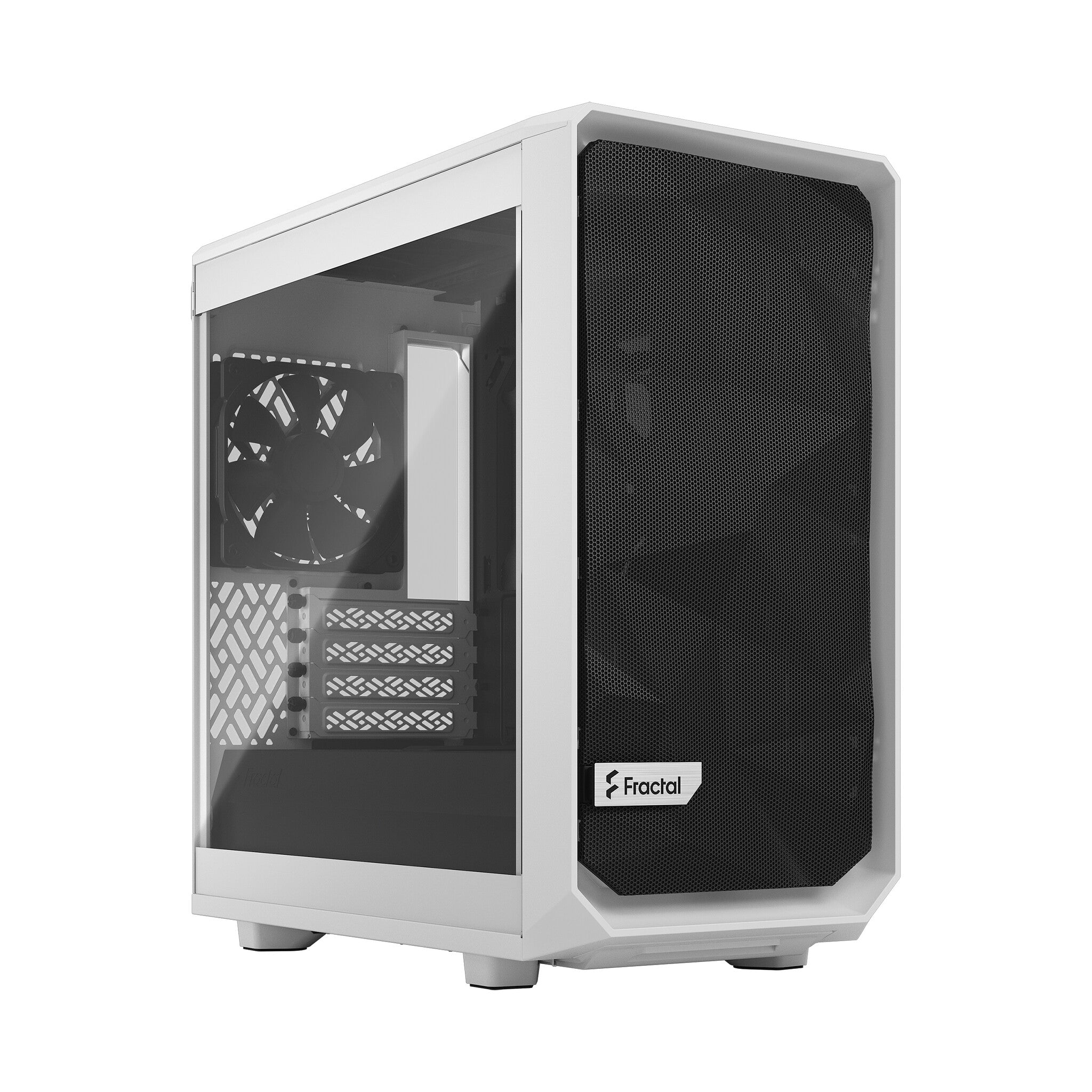

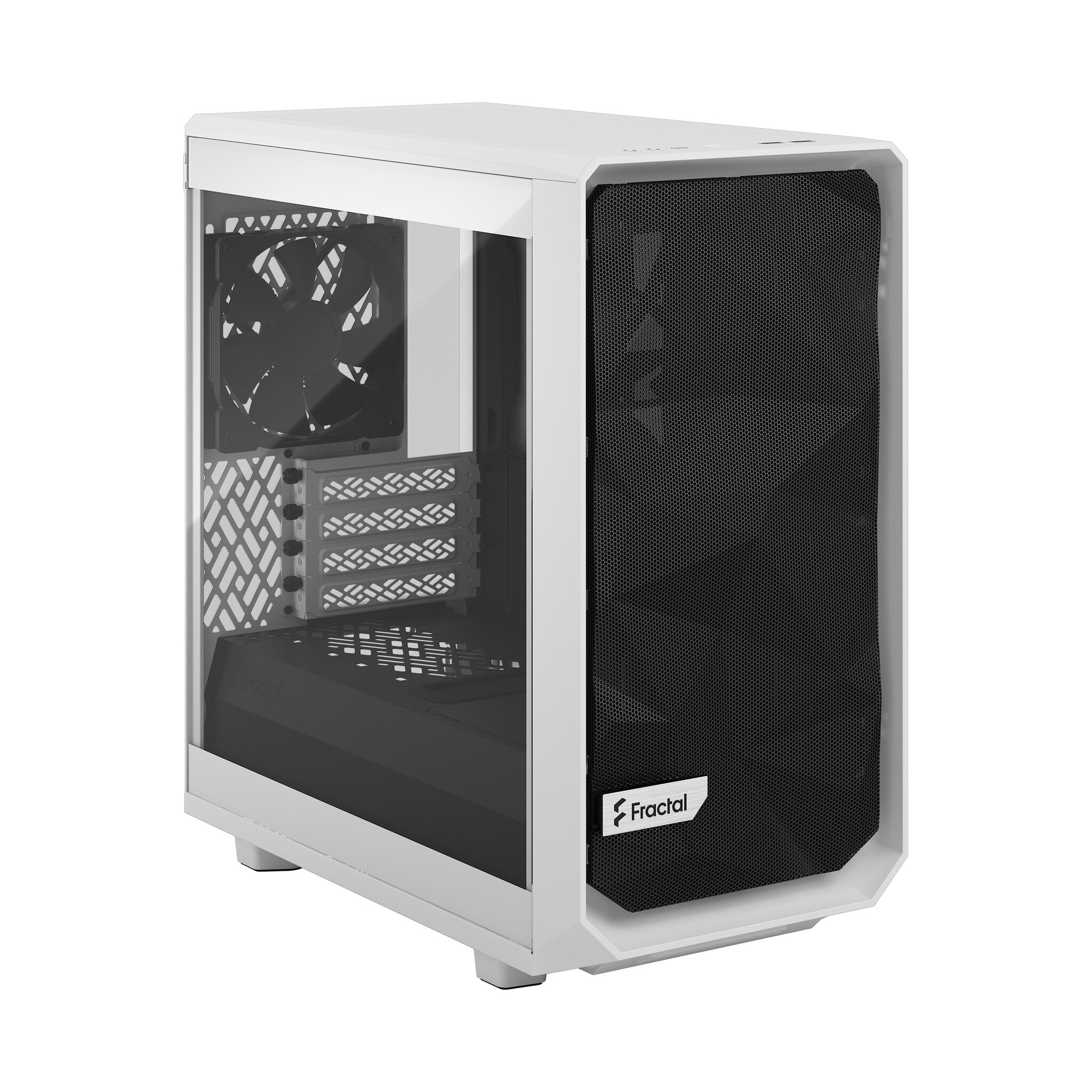

Fractal Design Meshify 2 Mini Tower White
Couldn't load pickup availability

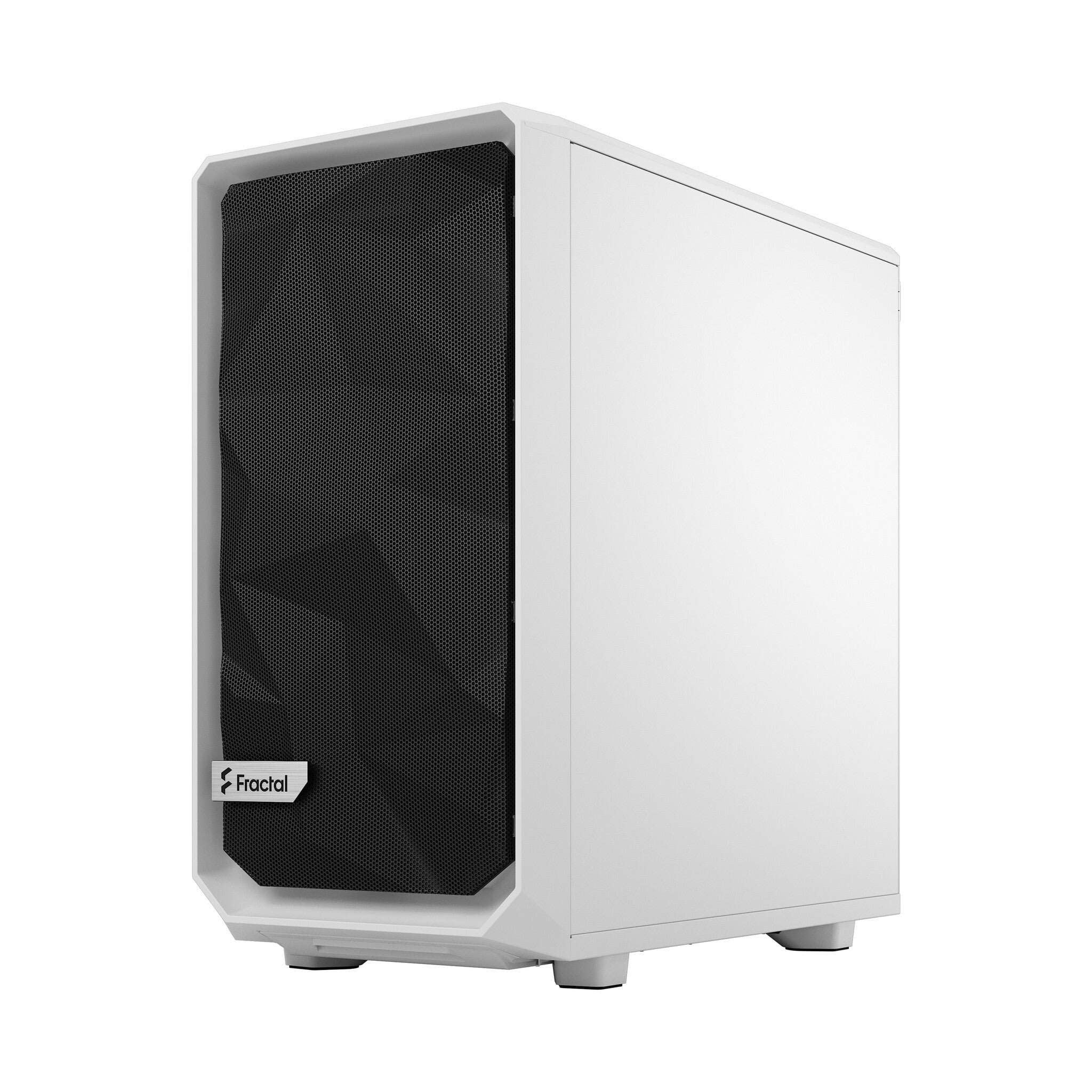

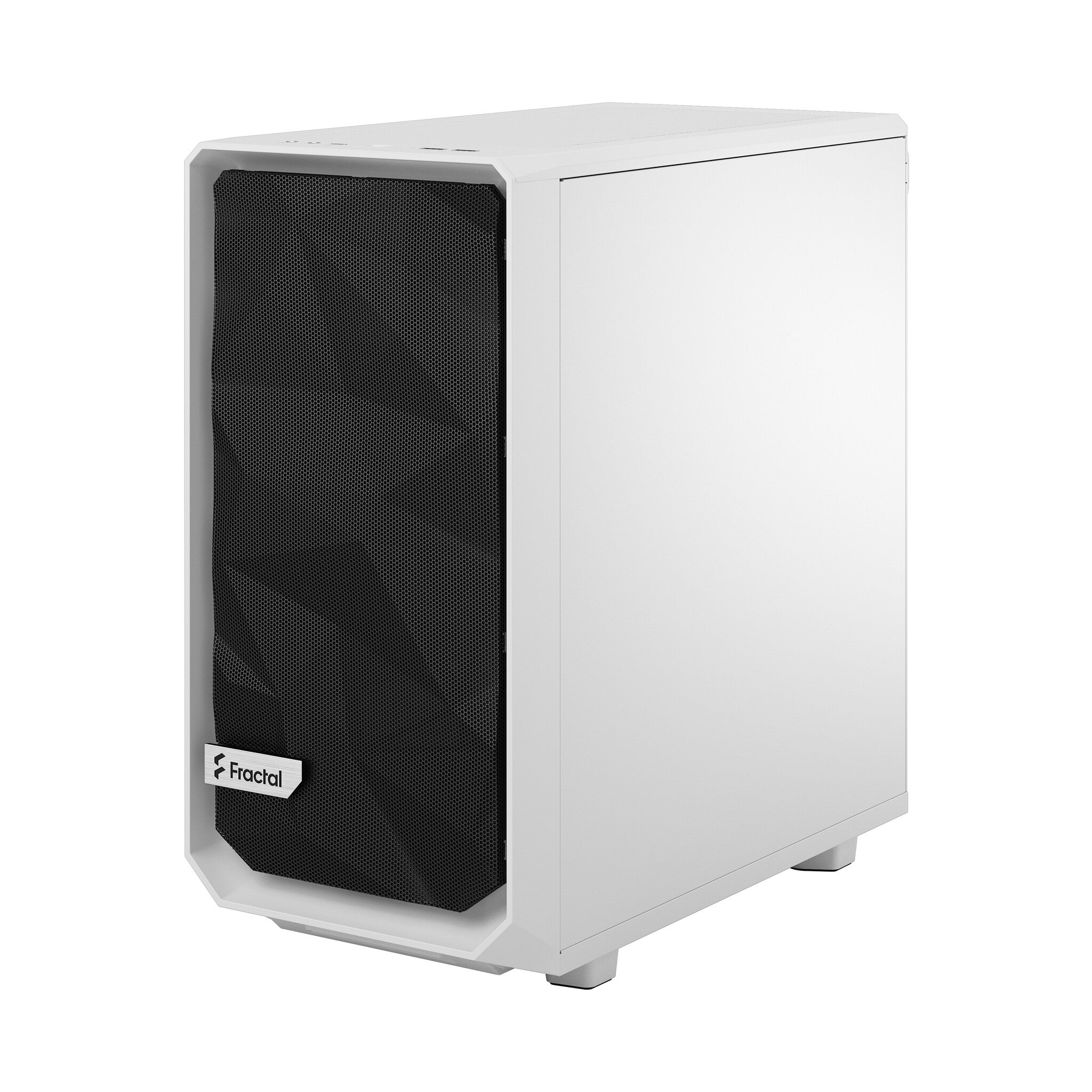

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support

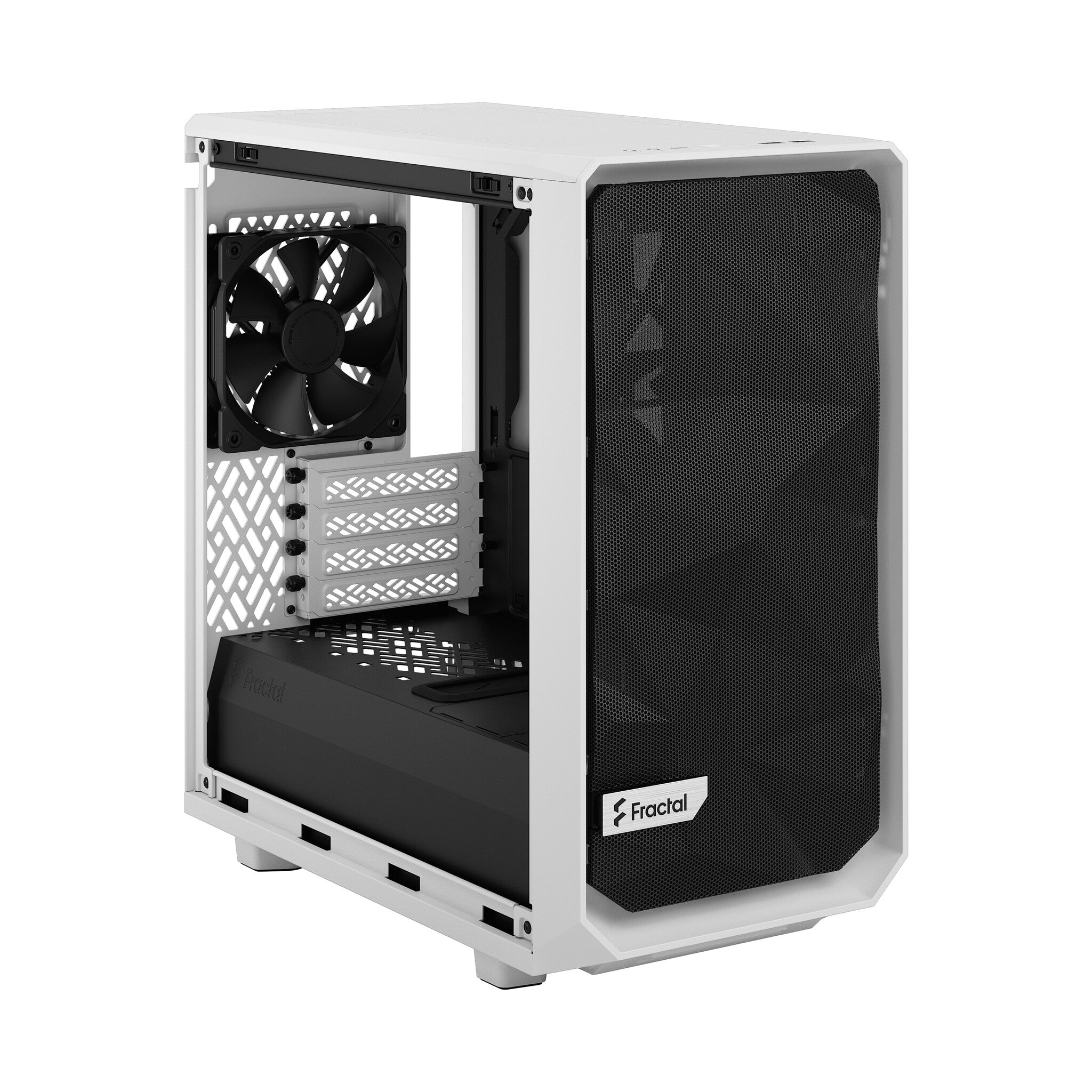

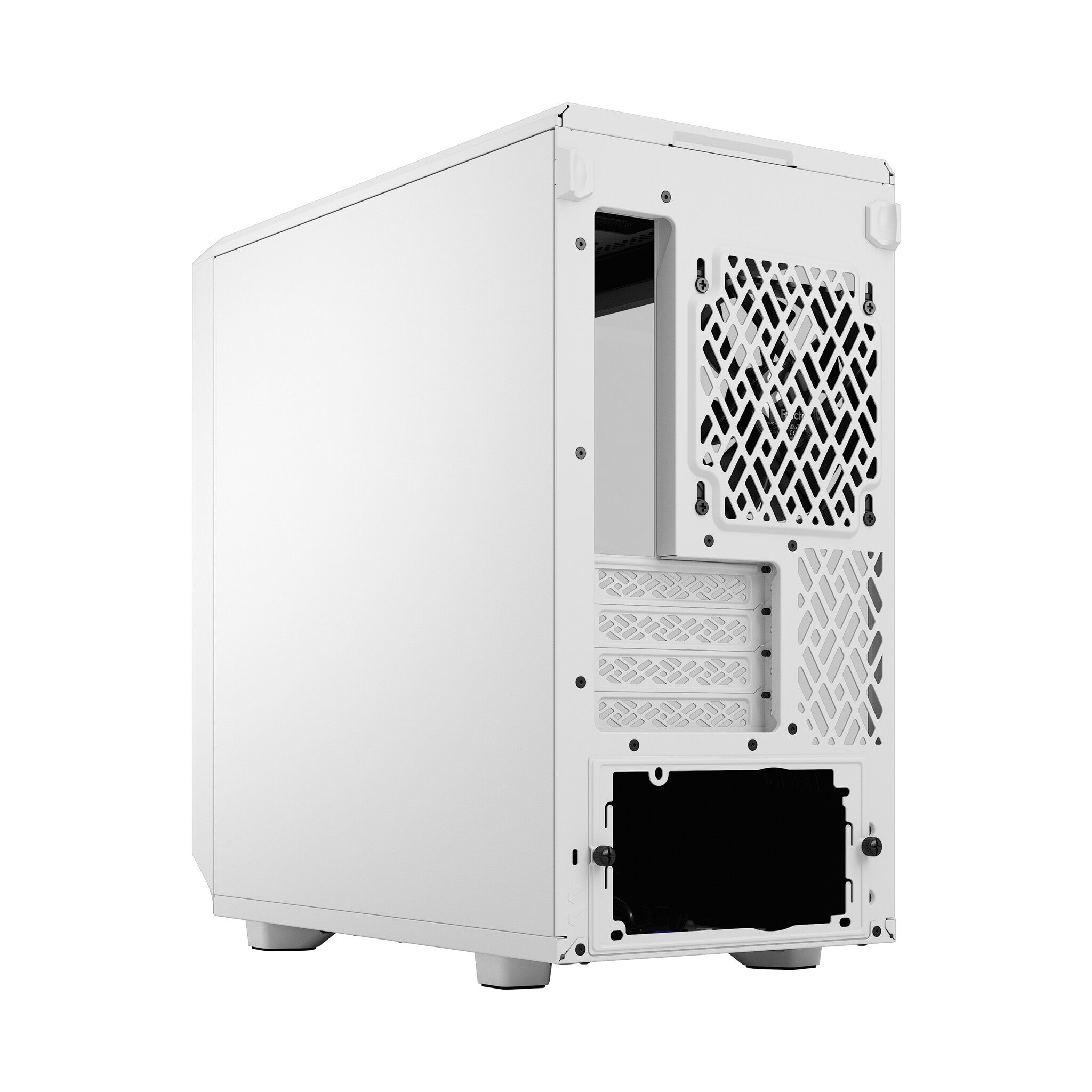

- Open interior layout creates a smooth airflow path from front intake to rear exhaust
Slick and streamlined
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
Detachable front filter

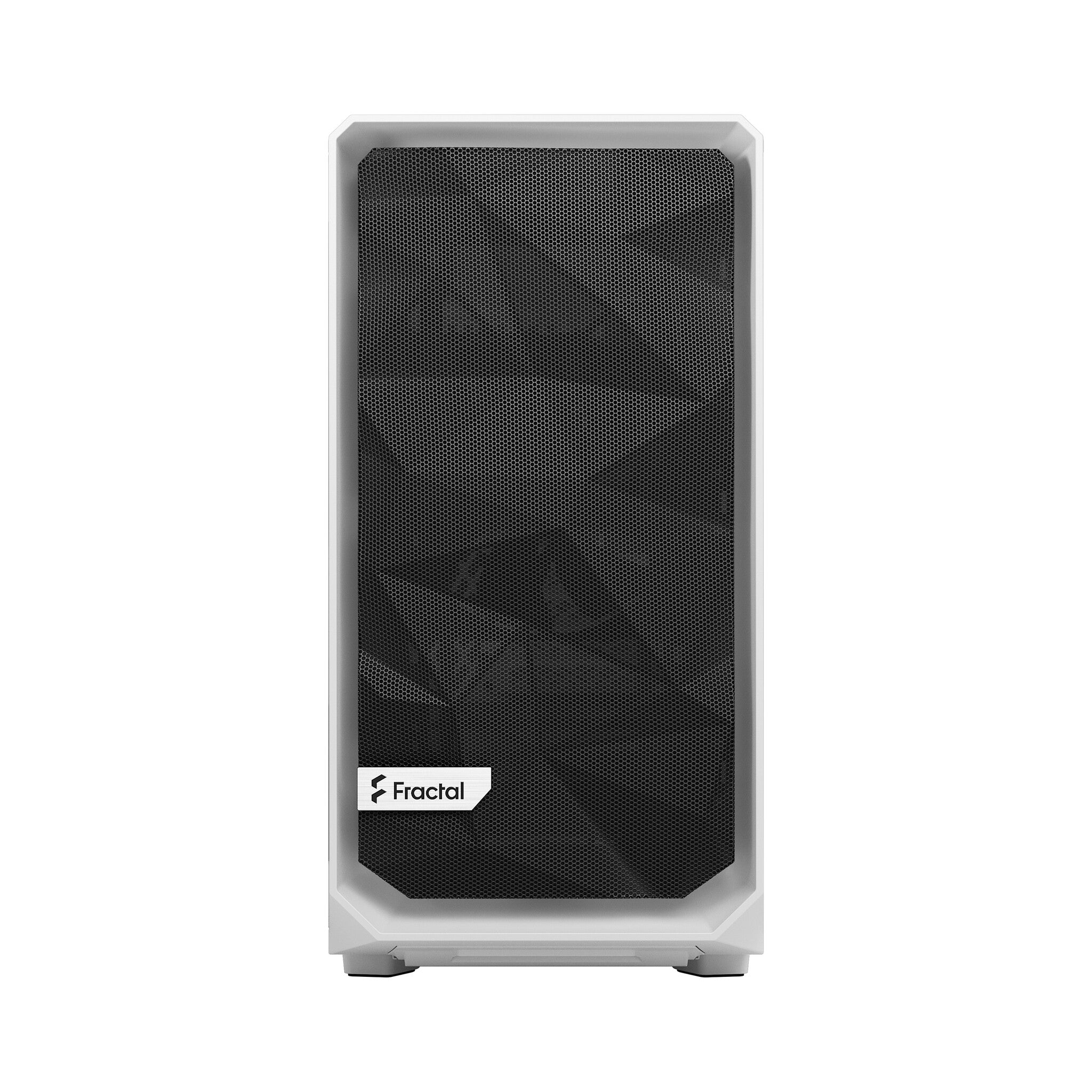

- Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Double layered front filter with detachable nylon for increased airflow
Refined airflow
- The open interior layout creates a smooth airflow path from intake to rear exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 GP fans included)

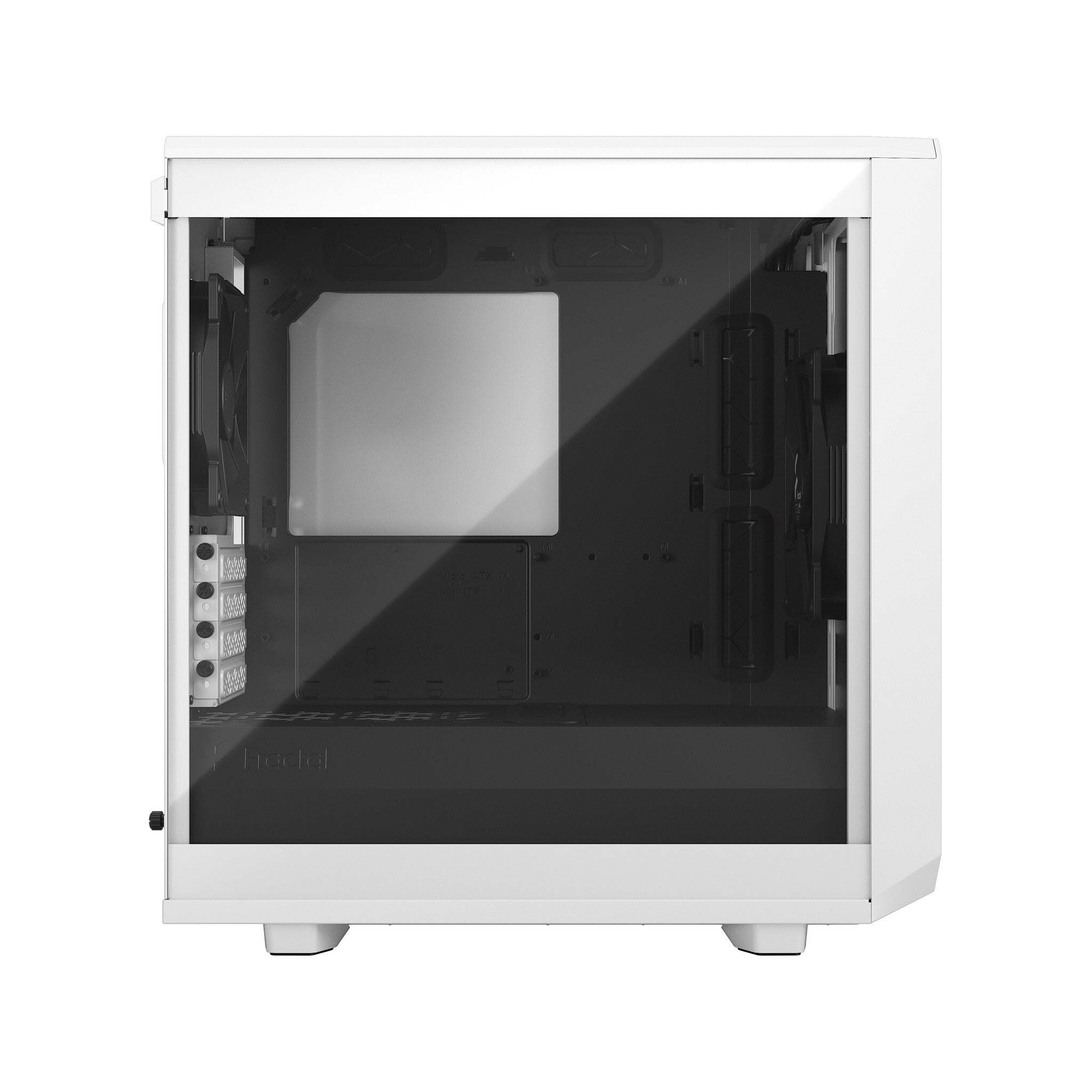

Bolt-free glass

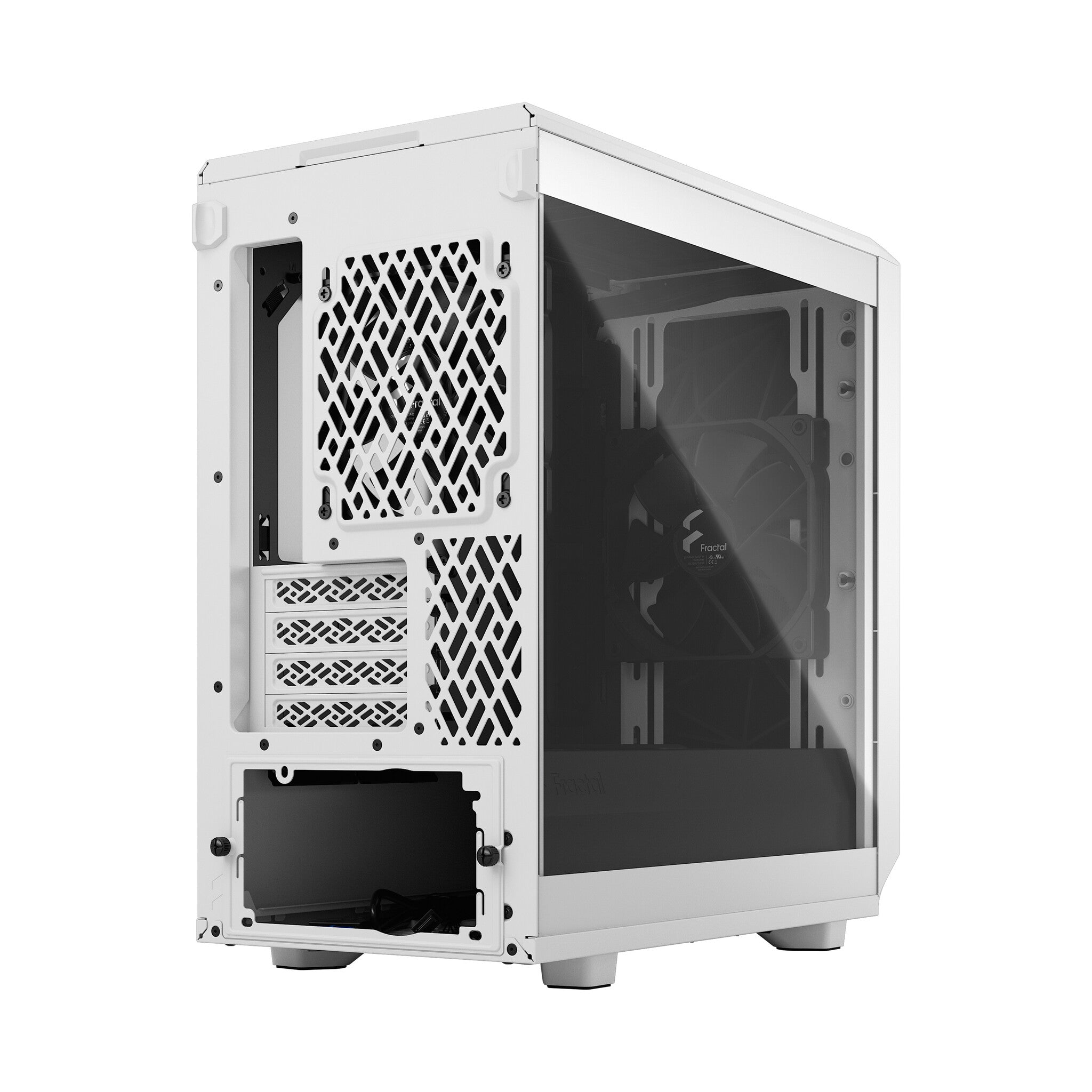

Seamless, top-latching tempered glass panels make for a stylish exterior
All access
- The fully removable top panel and fan bracket offers excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
More in store
- Flexible storage options with two HDD/SSD drive trays and four dedicated SSD mounts (2 brackets included)
- Integrated cable guides with cable straps further simplify cable management behind the board

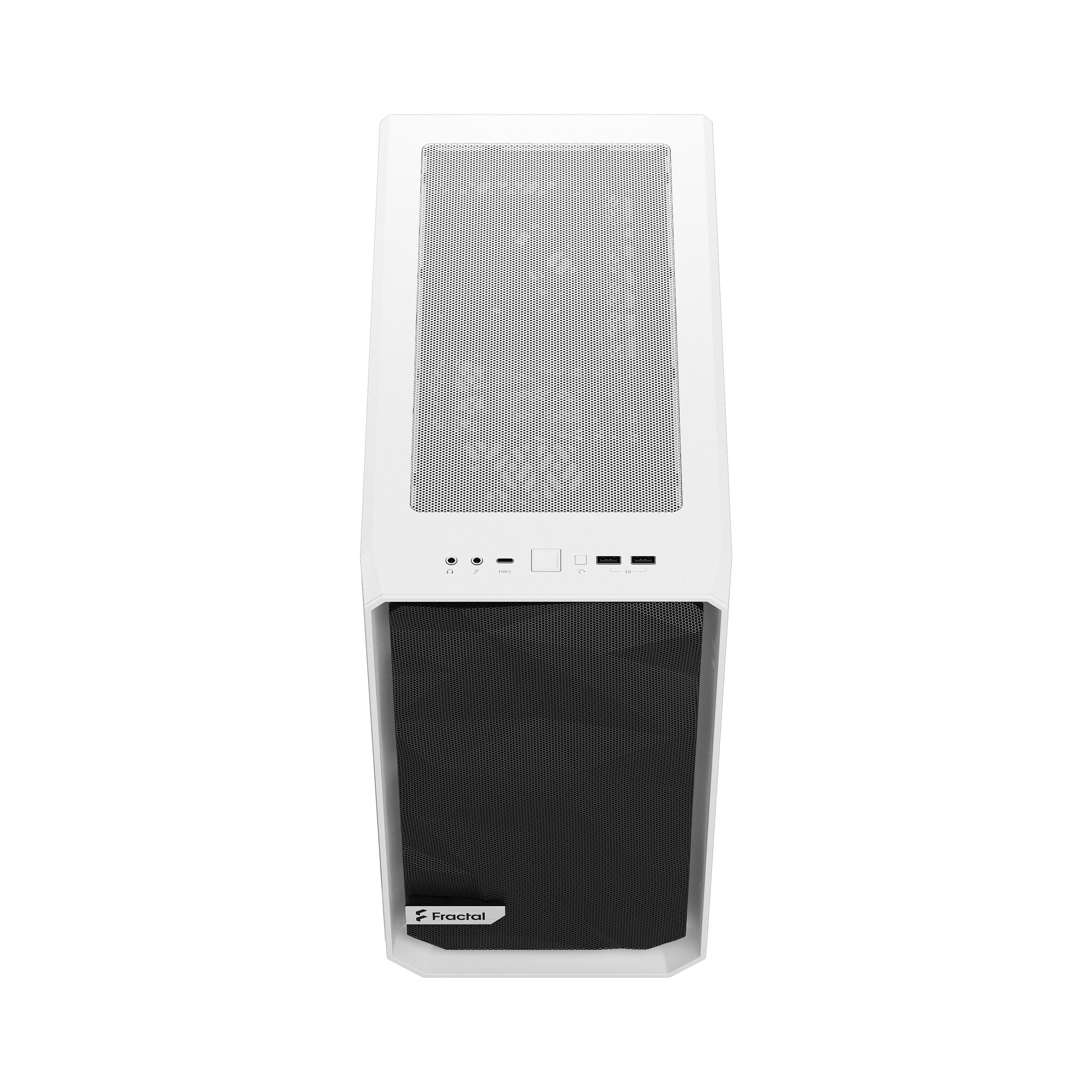

Type-C Interface
USB Type-C front I/O offers quick access to fast charging and speeds up to 10 Gbps
| Design | |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Steel, Tempered glass |
| Product colour | White |
| Supported motherboard form factors | DTX, micro ATX, Mini-DTX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | No |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16.7 cm |
| Maximum graphics card length | 33.1 cm |
| Maximum PSU length | 20 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
|---|---|
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 60,120,140,200,240,280 mm |
| Bottom radiator sizes supported | 120 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,180,240 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Width | 205 mm |
| Depth | 396 mm |
| Height | 406 mm |
| Weight | 6.62 kg |
| Packaging data | |
|---|---|
| Package width | 277 mm |
| Package depth | 457 mm |
| Package height | 462 mm |
| Package weight | 7.68 kg |
