Cooler Master Elite 690 Wood Midi Tower Black
Couldn't load pickup availability
- Midi Tower PC Gaming
- ATX, ITX, micro ATX
- Supported HDD sizes: 2.5,3.5"
- Number of 2.5" bays: 1 Number of 3.5" bays: 1
- Side window Illumination Multi Tempered glass panel(s)
- Steel, Tempered glass, Wood
- Black
Natural Aesthetics. Immersive View. Advanced Cooling.

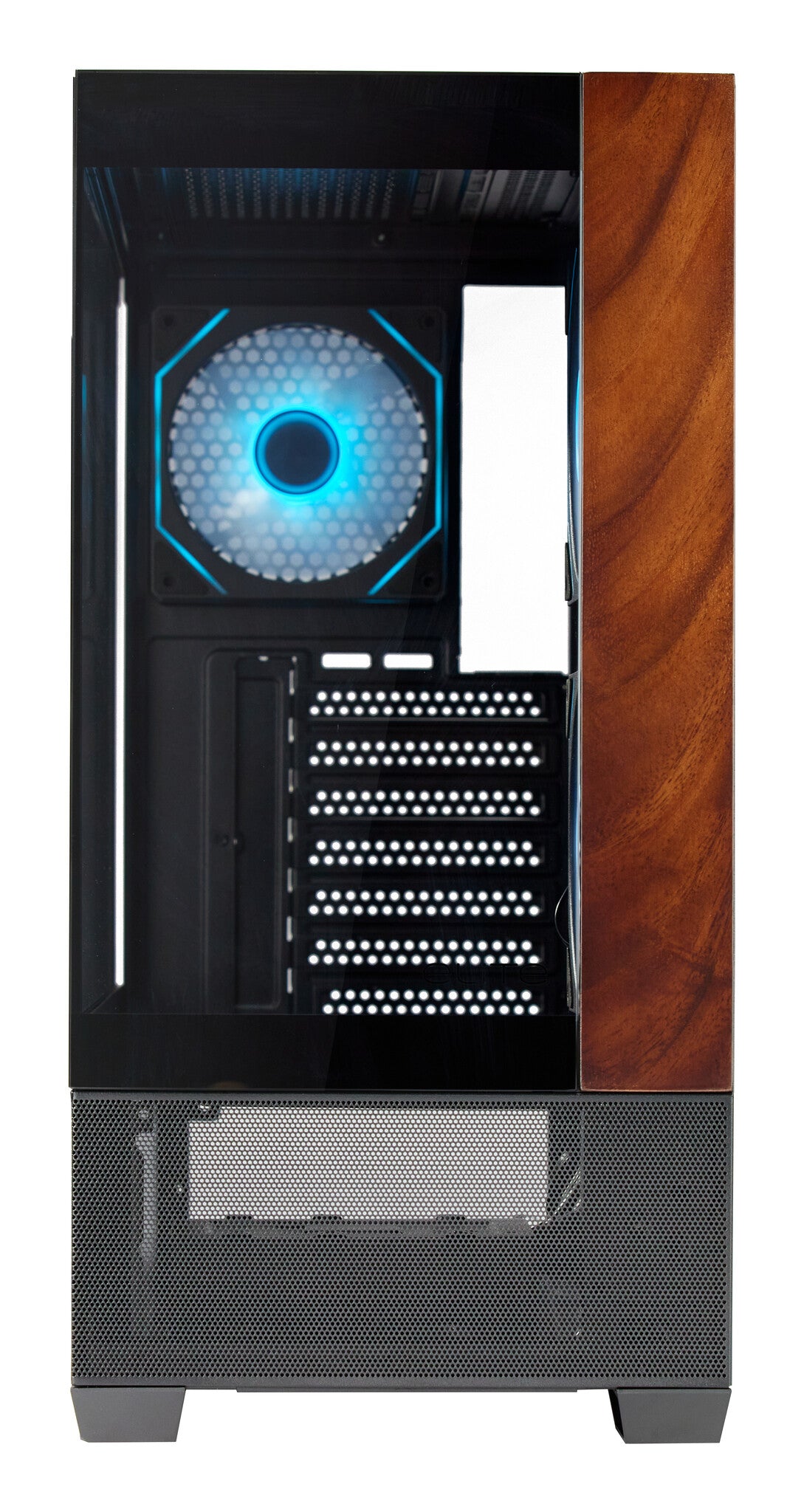

Elite 690 Wood
The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups—perfect for performance-driven or style-focused builds.

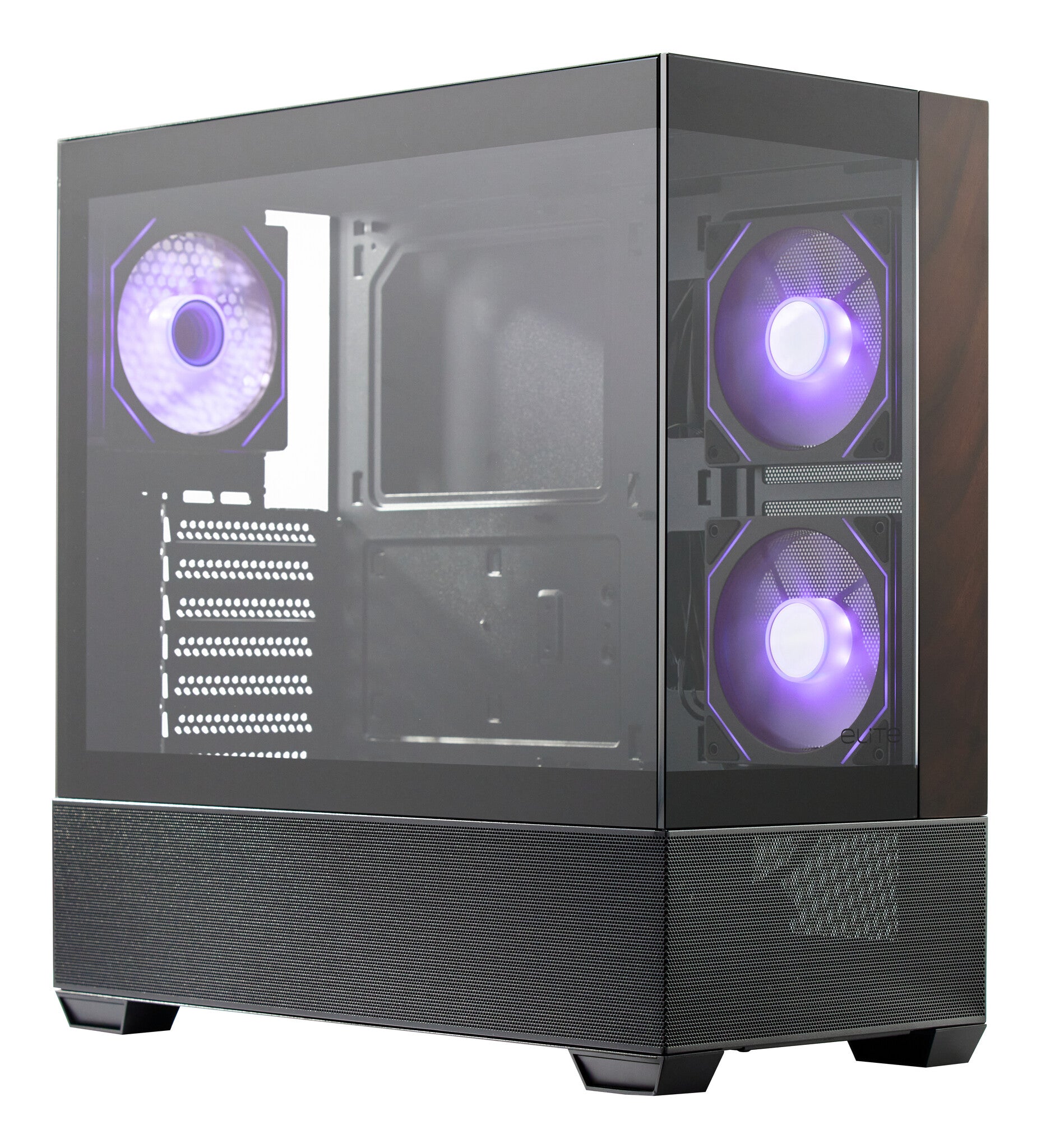

270° Panoramic Tempered Glass
Beveled glass panels create an immersive, seamless showcase of your build.
Natural Wood Front Panel
Crafted from real wood, the front panel adds a warm, organic touch to any space.

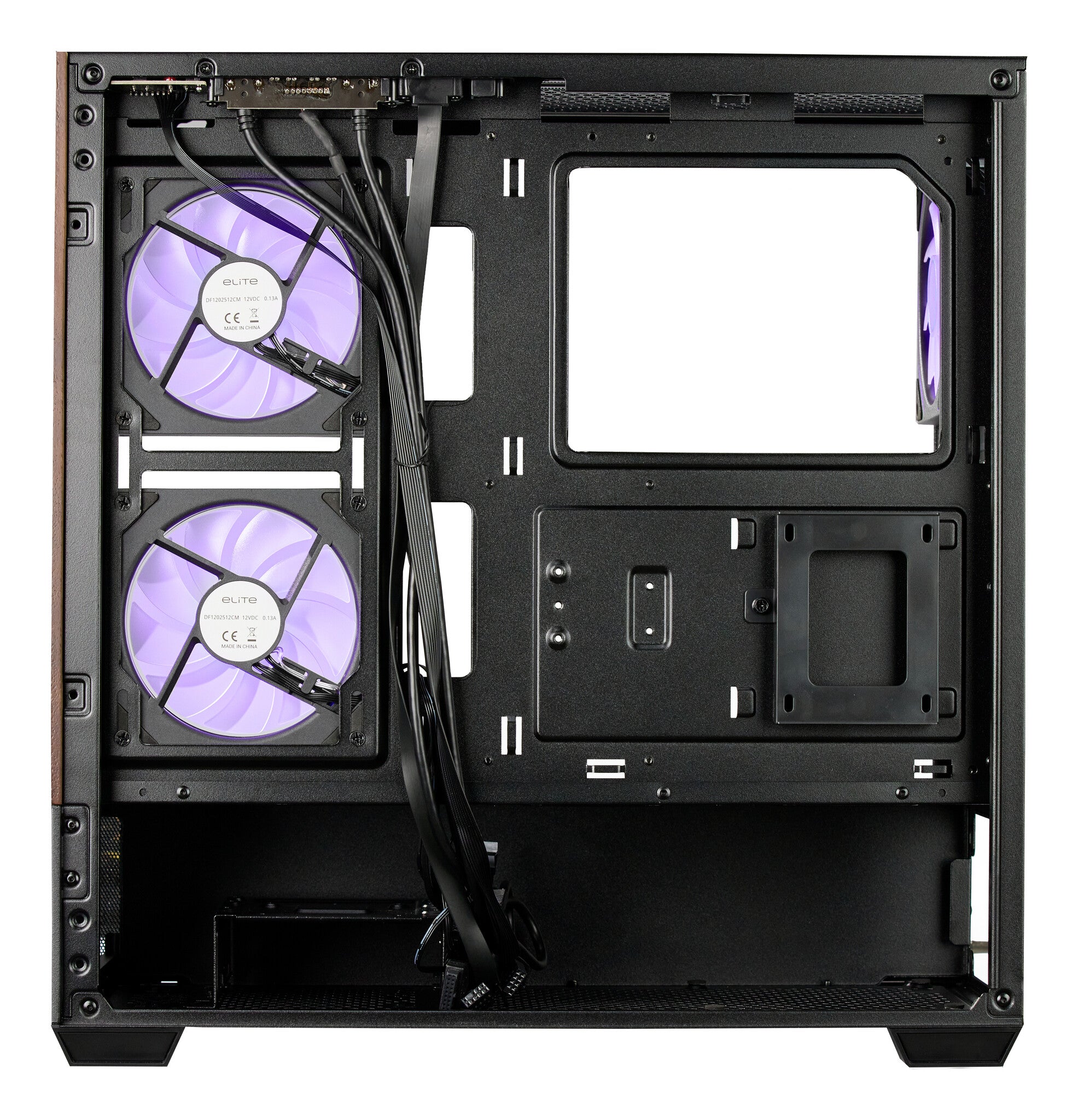

Optimized Tower with PSU Chamber
Vertical layout separates thermal zones for better airflow and cleaner cable routing.
Vertical Cooling Architecture
Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.
Pre-installed ARGB Fans with Sync
Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.
High-Performance Radiator Support
Top 360mm and side 240mm radiator support for powerful cooling setups.
Top & Bottom Mesh Ventilation
Mesh panels ensure enhanced airflow and system-wide thermal performance.
Next-Gen GPU Ready
Supports up to 425mm GPUs—ready for RTX 50 Series and beyond.
High-Speed I/O Panel
USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.
| Design | |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Steel, Tempered glass, Wood |
| Product colour | Black |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 1 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 42.5 cm |
| Maximum PSU length | 25 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Cooling | |
|---|---|
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Side radiator sizes supported | 120,240 mm |
| Bottom radiator sizes supported | 120,240,360 mm |
| Top radiator sizes supported | 120,240,360 mm |
| Pulse-width modulation (PWM) support | Yes |
| General | |
|---|---|
| Product family | Elite |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Width | 218 mm |
| Depth | 434 mm |
| Height | 454 mm |
| Weight | 6.3 kg |
| Packaging data | |
|---|---|
| Package width | 280 mm |
| Package depth | 495 mm |
| Package height | 515 mm |
| Package weight | 7.48 kg |
| Other features | |
|---|---|
| Volume | 42.93 L |
