Cooler Master CMP 510 Midi Tower Black
Couldn't load pickup availability
- ARGB Strip
- Large Filtered Intakes
- Versatile Cooling Options
- Full Black Coating & PSU Cover
- Breathable Power Supply Shroud
- Room For Upgrades

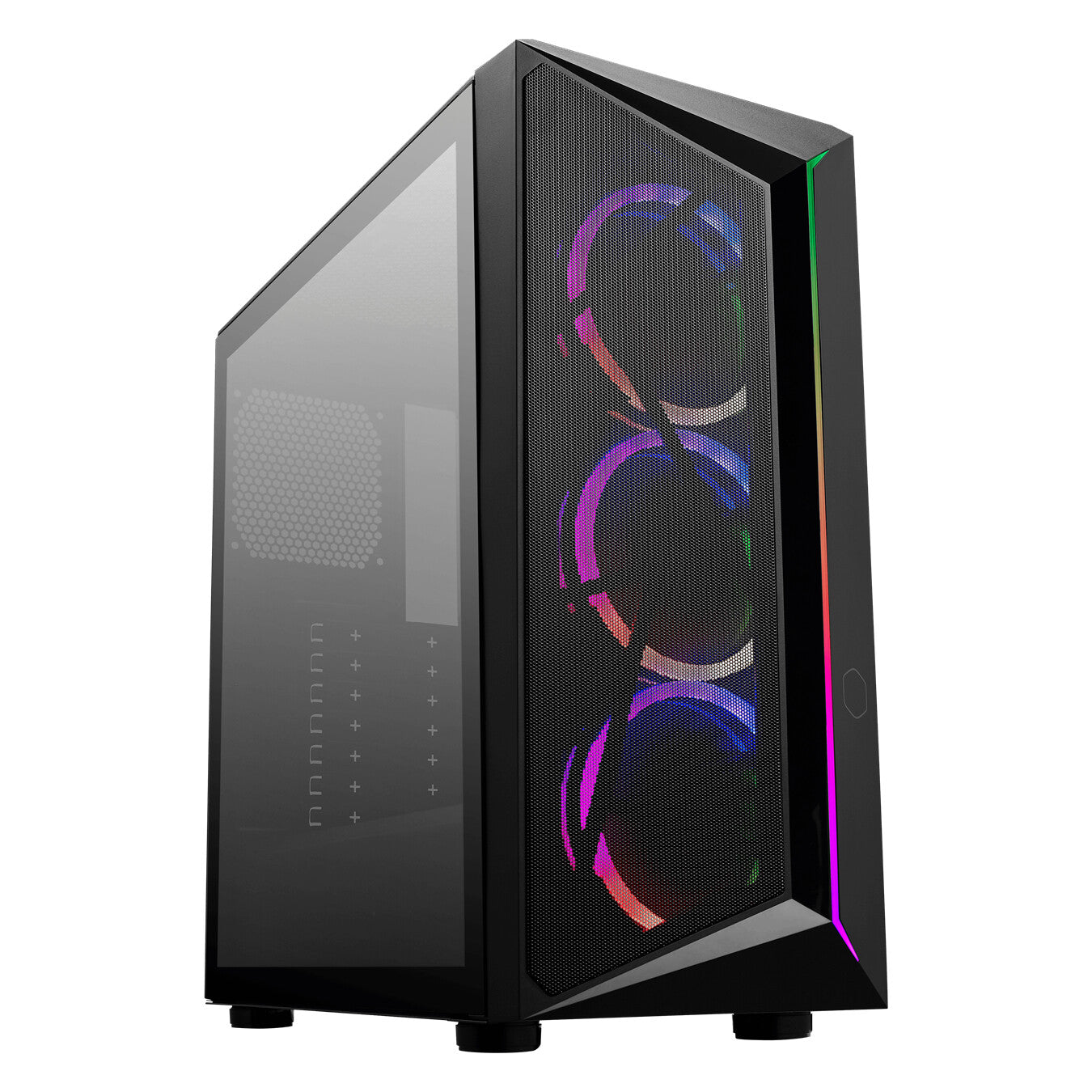

The Saber's Edge
With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential.
Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards.
ARGB Strip

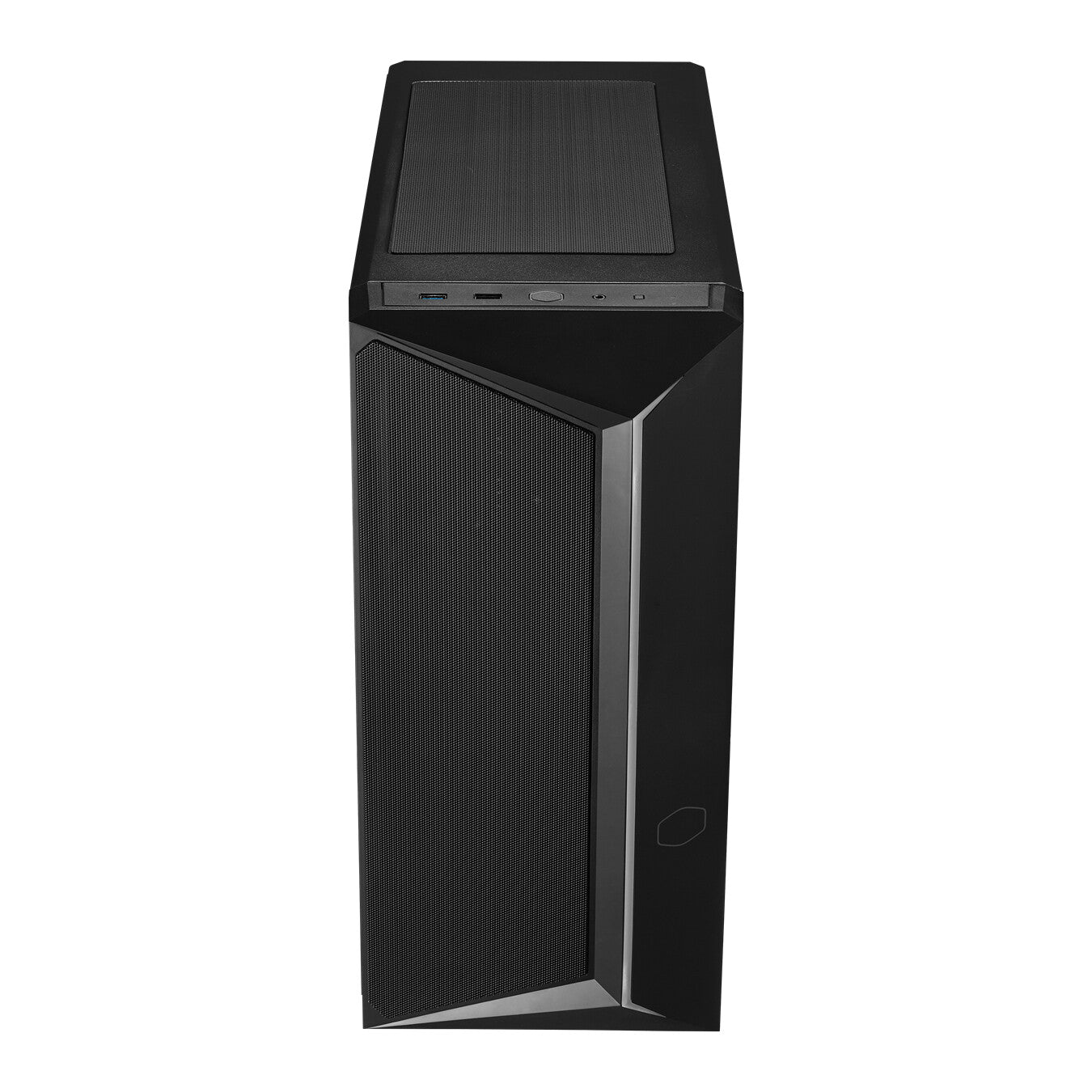

A glowing ARGB edge is cut into the clean geometry of the front panel design.

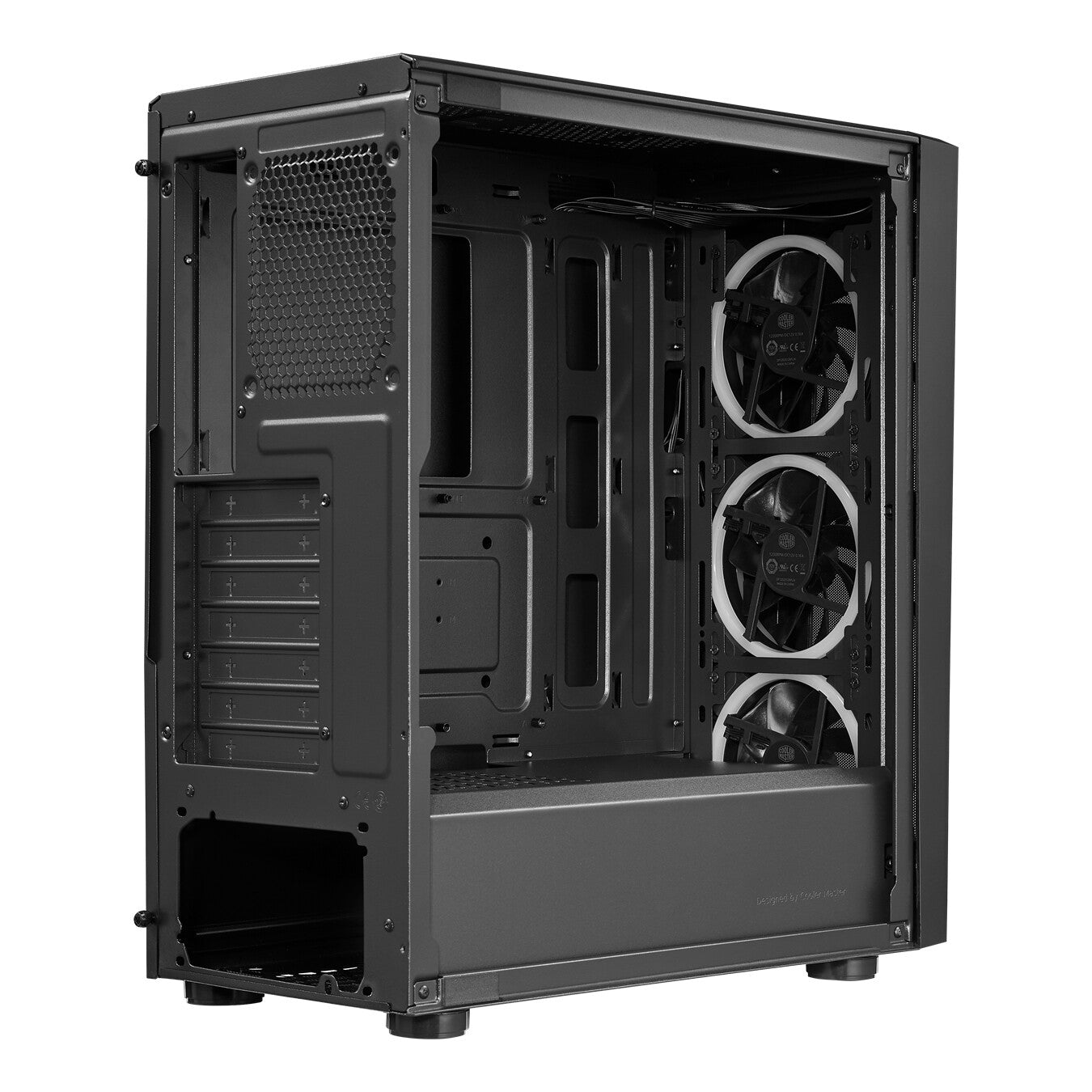

Versatile Cooling Options

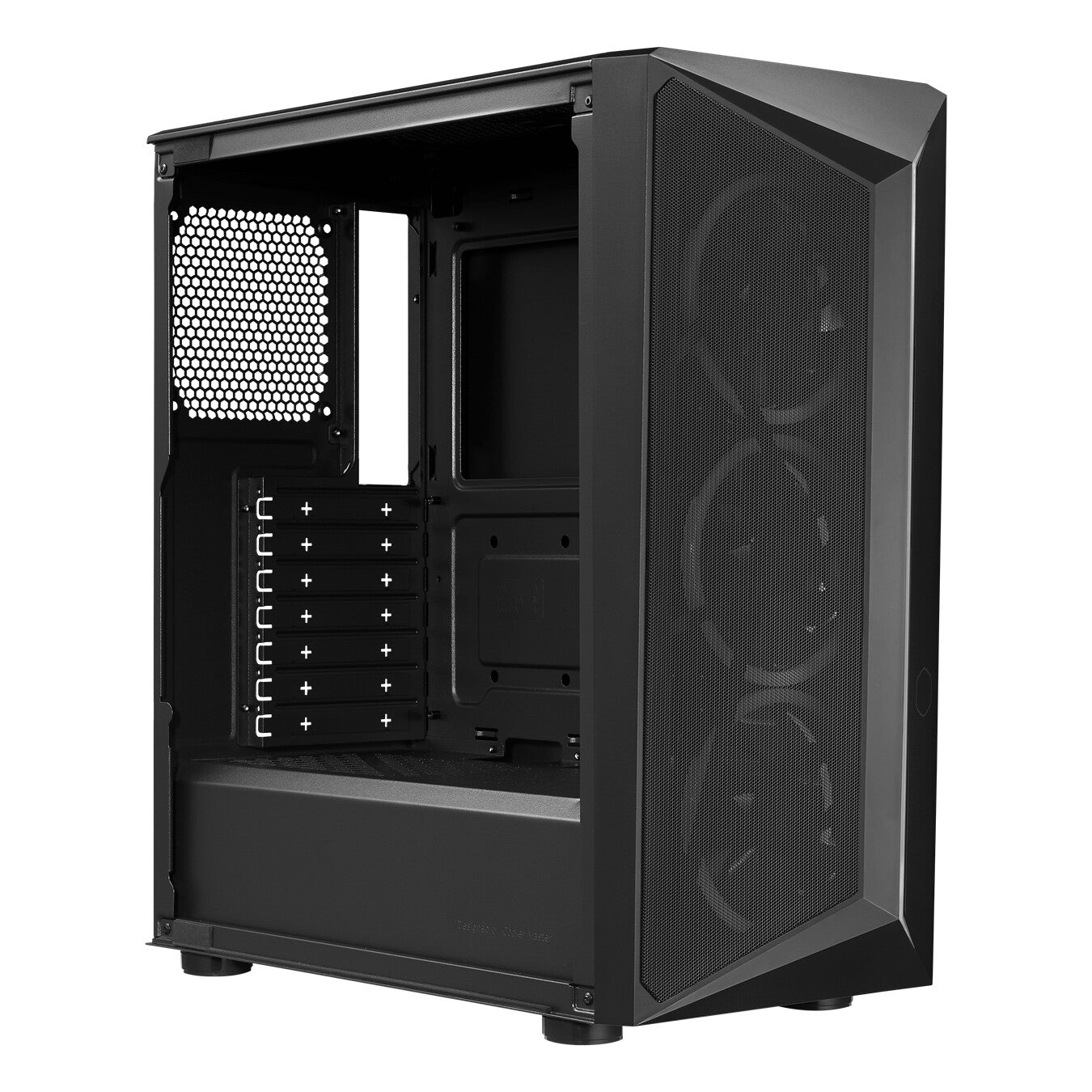

Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

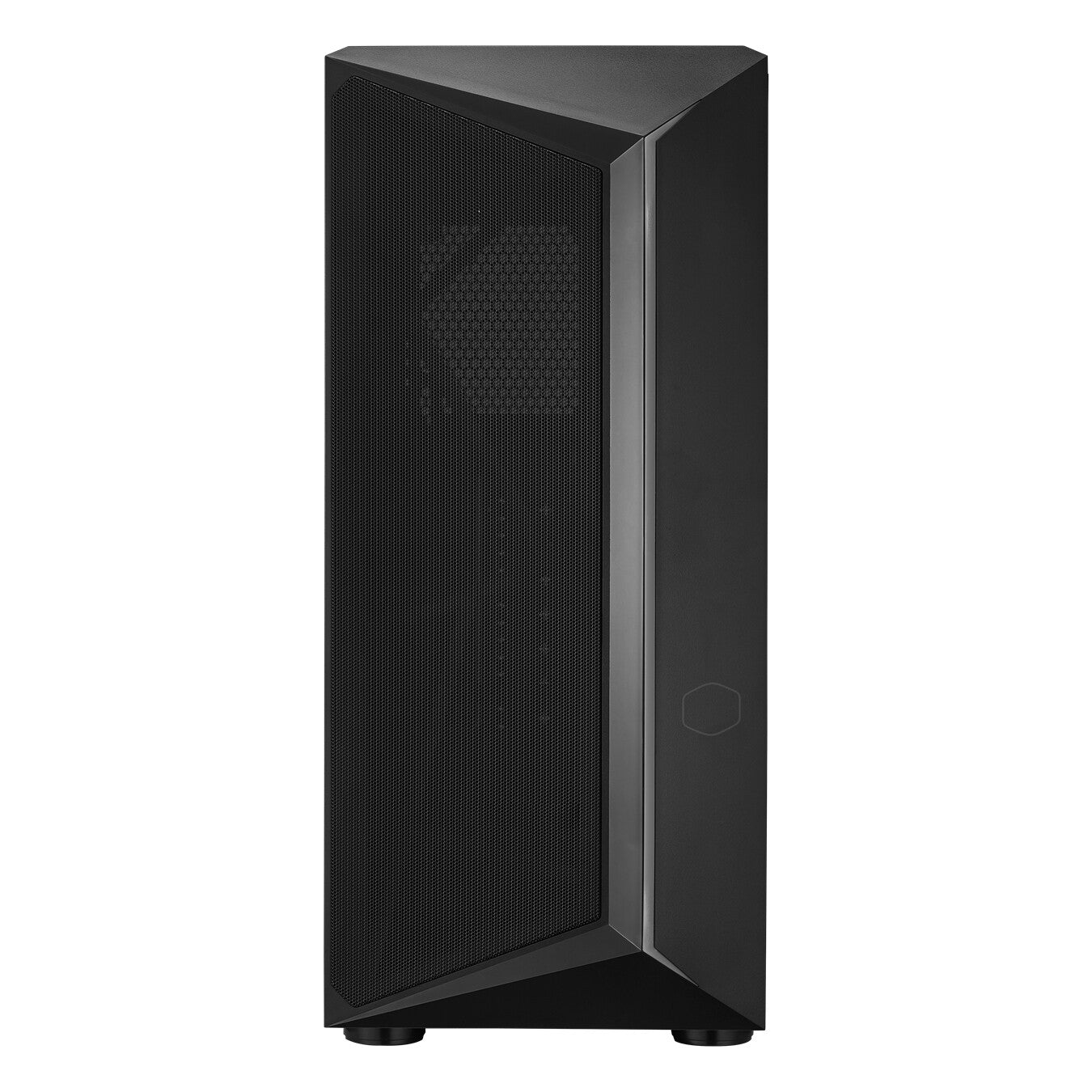

Large Filtered Intakes
The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.

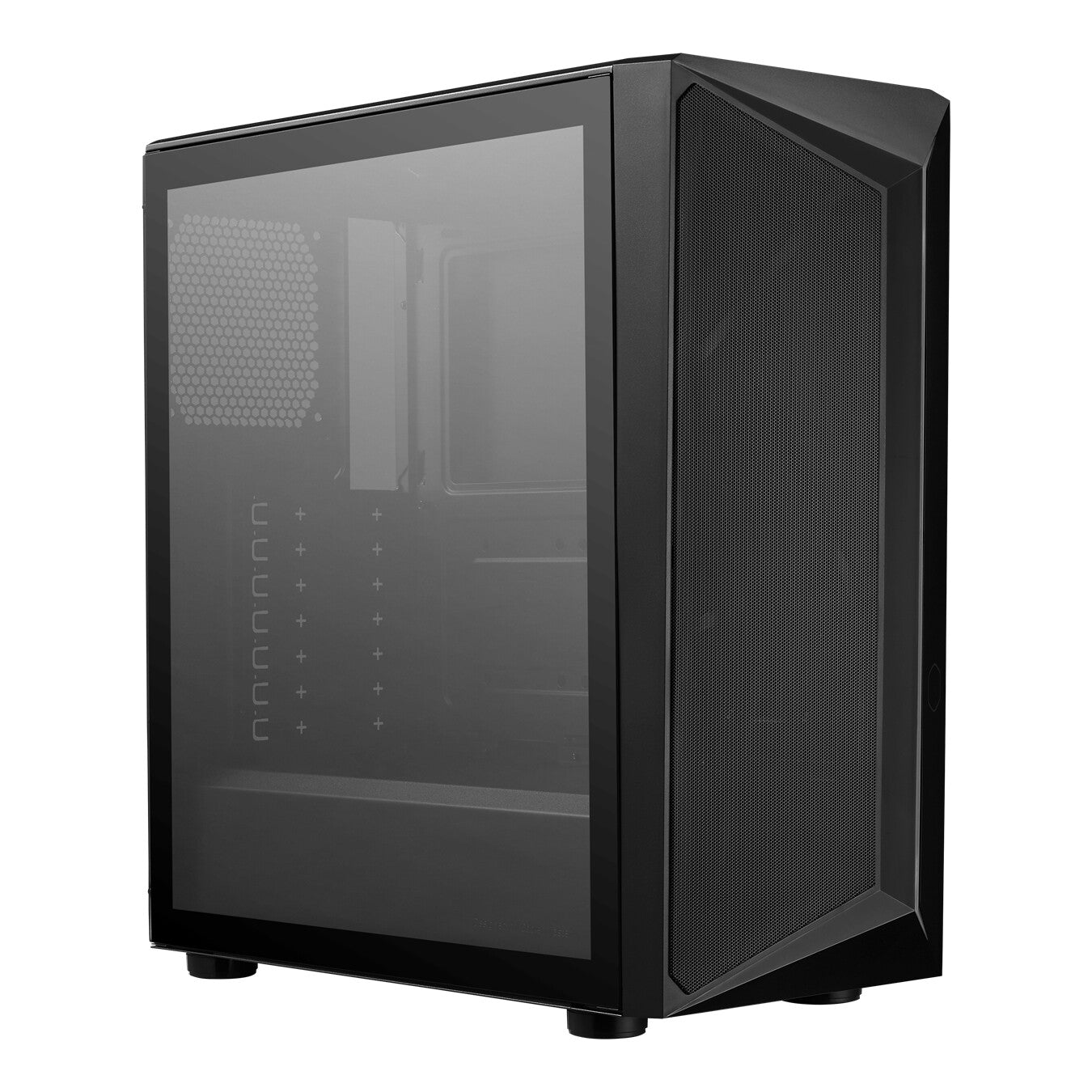

Full Black Coating & PSU Cover
Let your system stand out with an all-black background and a PSU cover to hide cables.

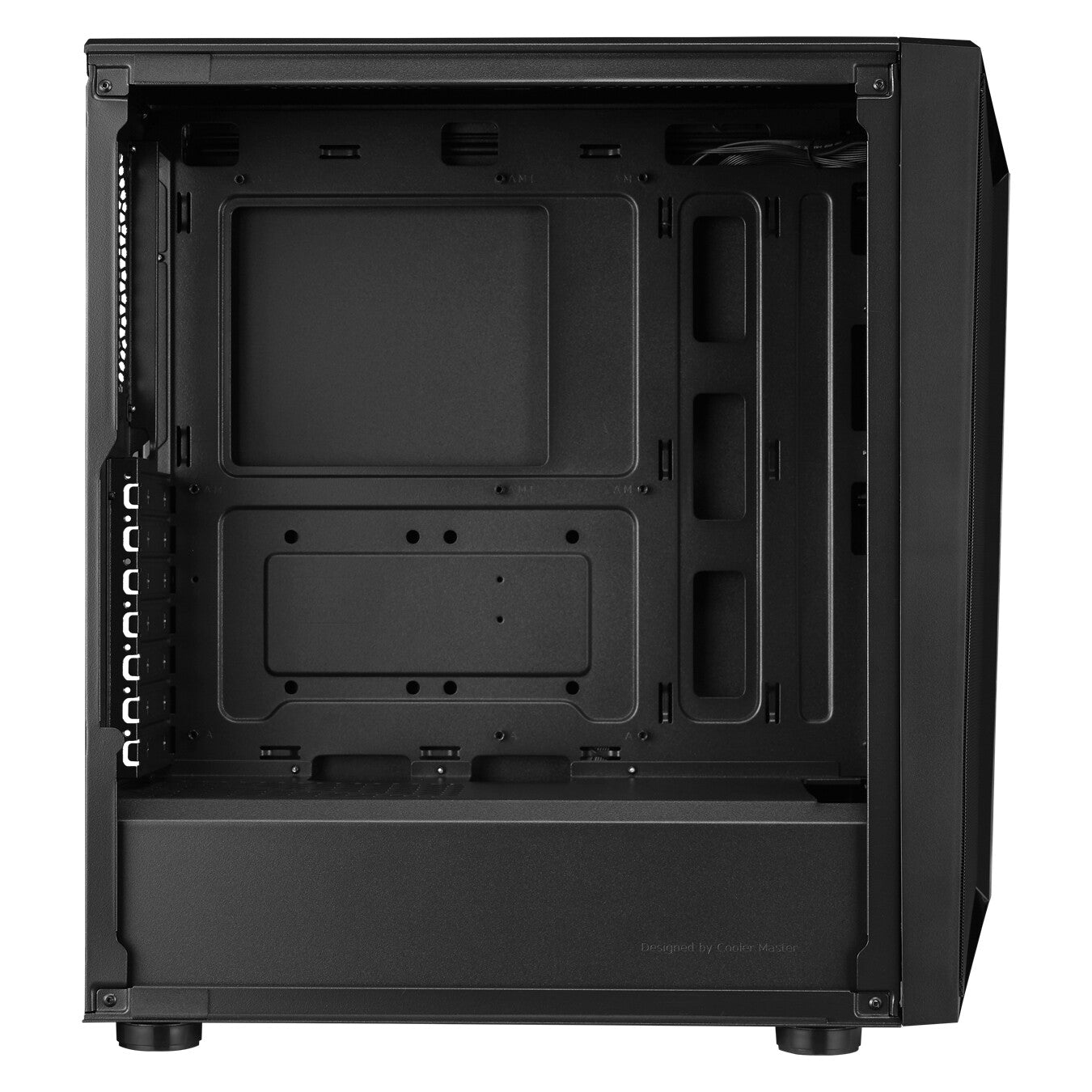

Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
Room For Upgrades
Support for up to a 350mm graphics card, a 162mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
| Design | |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Anti-dust filter | Yes |
| Maximum CPU cooler height | 16.1 cm |
| Maximum graphics card length | 35 cm |
| Maximum PSU length | 16 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140 mm |
| General | |
|---|---|
| Product family | CMP |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Weight & dimensions | |
|---|---|
| Width | 204 mm |
| Depth | 445 mm |
| Height | 463 mm |
| Weight | 6.08 kg |
| Packaging data | |
|---|---|
| LED controller | Yes |
| Package width | 266 mm |
| Package depth | 505 mm |
| Package height | 504 mm |
| Package weight | 7.13 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Volume | 39.85 L |
