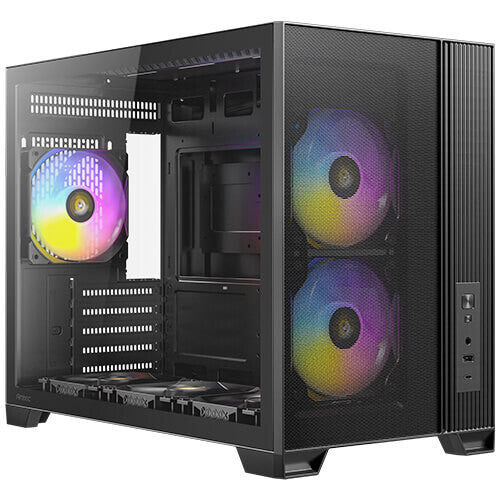

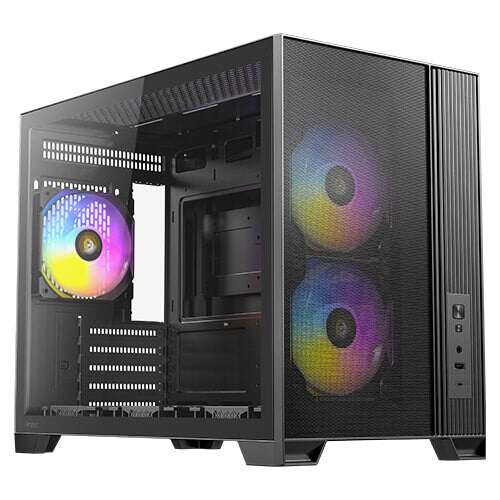

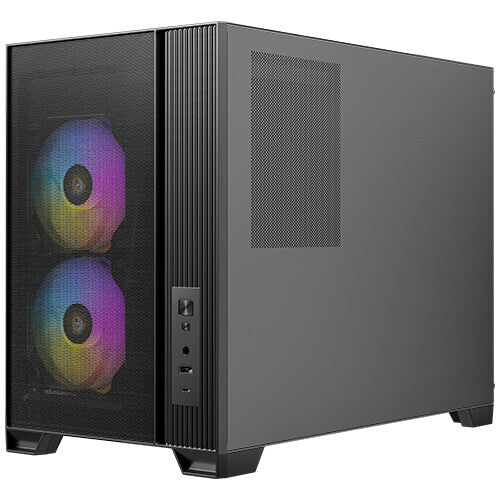

Antec FLUX M Micro Tower Black
Couldn't load pickup availability
- Micro Tower PC Gaming
- ITX, micro ATX
- Supported HDD sizes: 2.5,3.5" SSD form factor: 2.5"
- Number of 2.5" bays: 2 Number of 3.5" bays: 2

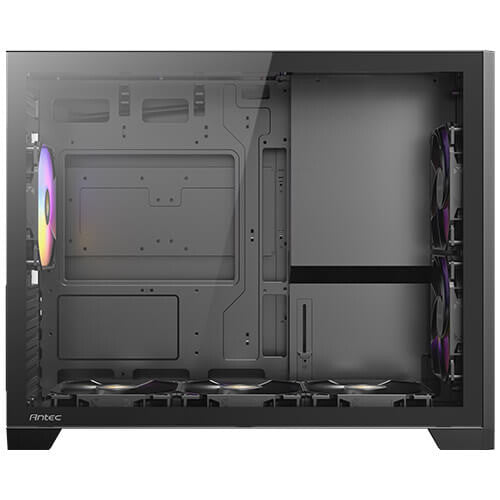

- Side window Illumination Multi Tempered glass panel(s) Anti-dust filter
- Plastic, Steel, Tempered glass
- Black
Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.
Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the front and bottom, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.
Multi-Directional Vent Design
Pre-Installed 6 x High-Performance PWM Fans
Flux Vertical Cooling

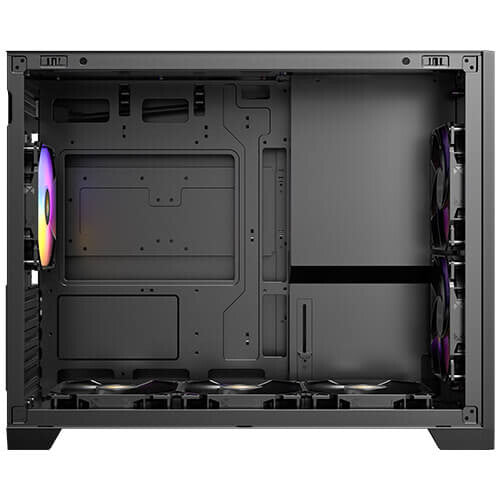

A large bottom mesh panel boosts airflow, enhancing cooling efficiency around the graphics card.
Flux Horizontal Cooling

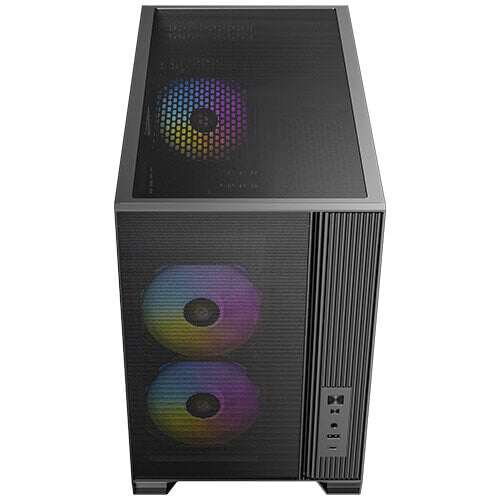

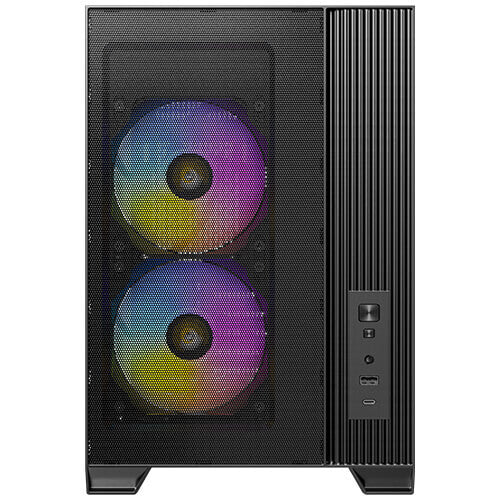

Air intake via the front mesh provides a smooth venting channel throughout the case.

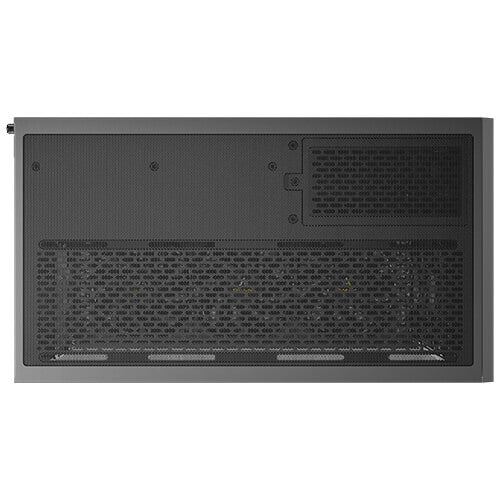

Supports 360mm water cooling at the top

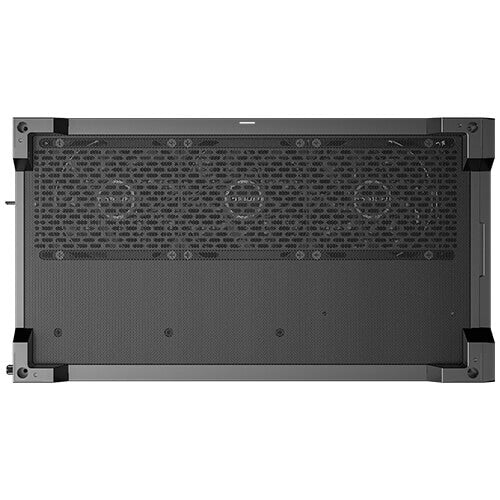

Bottom air intake optimization
The large bottom intake increases airflow, with about 20mm clearance between the bottom fans and the GPU, allowing reverse fans to efficiently and directly cool the GPU.
Built-in GPU Bracket
Includes a support bracket compatible with high-performance graphics cards.
TOOL-FREE PANEL DESIGN
Front-Mounted PSU Chamber & 13A extension cable
The front-mounted PSU chamber improves airflow by freeing up internal space, while the included 13A extension cable ensures stable power delivery for high-wattage PSUs.

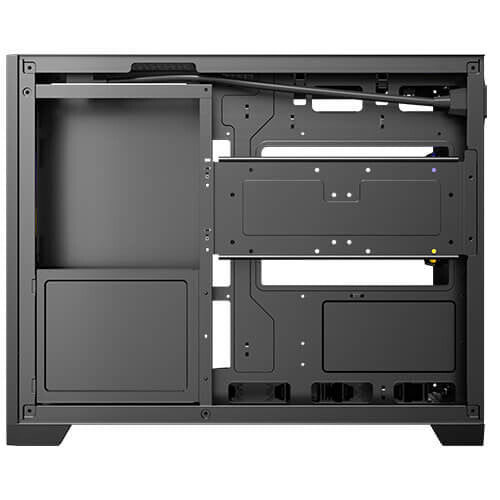

Cable management space behind the motherboard provides up to 59mm at the front and 49mm at the rear.
CABLE MANAGEMENT
I/O Panel
Dust plugs included.
| Design | |
|---|---|
| Maximum PSU length | 16 cm |
| Maximum graphics card length | 40.5 cm |
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 5 |
| Number of internal 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ITX, micro ATX |
| Product colour | Black |
| Material | Plastic, Steel, Tempered glass |
| Type | PC |
| Form factor | Micro Tower |
| Power supply | |
|---|---|
| Power supply location | Side |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120 mm |
| Liquid cooling capability | Yes |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans installed | 3x 120 mm |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 2x 120 mm |
| Storage | |
|---|---|
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 6.35 kg |
| Height | 365 mm |
| Depth | 459 mm |
| Width | 247 mm |
| Packaging data | |
|---|---|
| Package weight | 7.41 kg |
