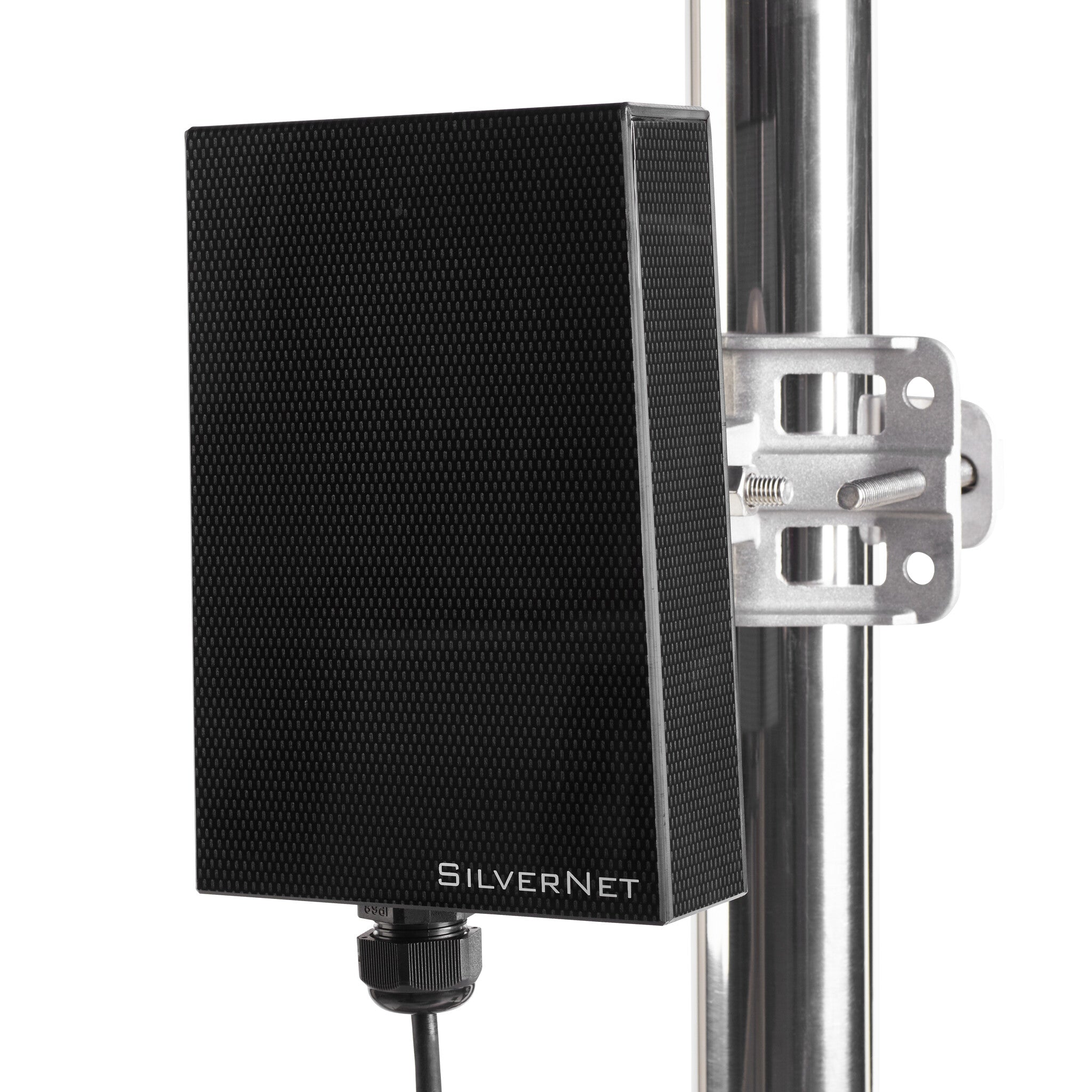

SilverNet SIL MICRO bridge/repeater Network bridge 100 Mbit/s Black, White
£392.99
Couldn't load pickup availability
- Point-to-Point Outdoor Wireless Bridge Up to 2KM
- Point-to-MultiPoint Client
- Integrated 14dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (Transmit Power Control)
- PoE 802.3af
- Software Upgradeable to 240Mbps or 500Mbps
The SIL MICRO is a single 2km radio capable of 100Mbps throughput.
It can be used in a Point to Point or Point to MultiPoint system.
In 2012 it was nominated for 'Security Product of the Year', due to it's high MTBF and robust design.

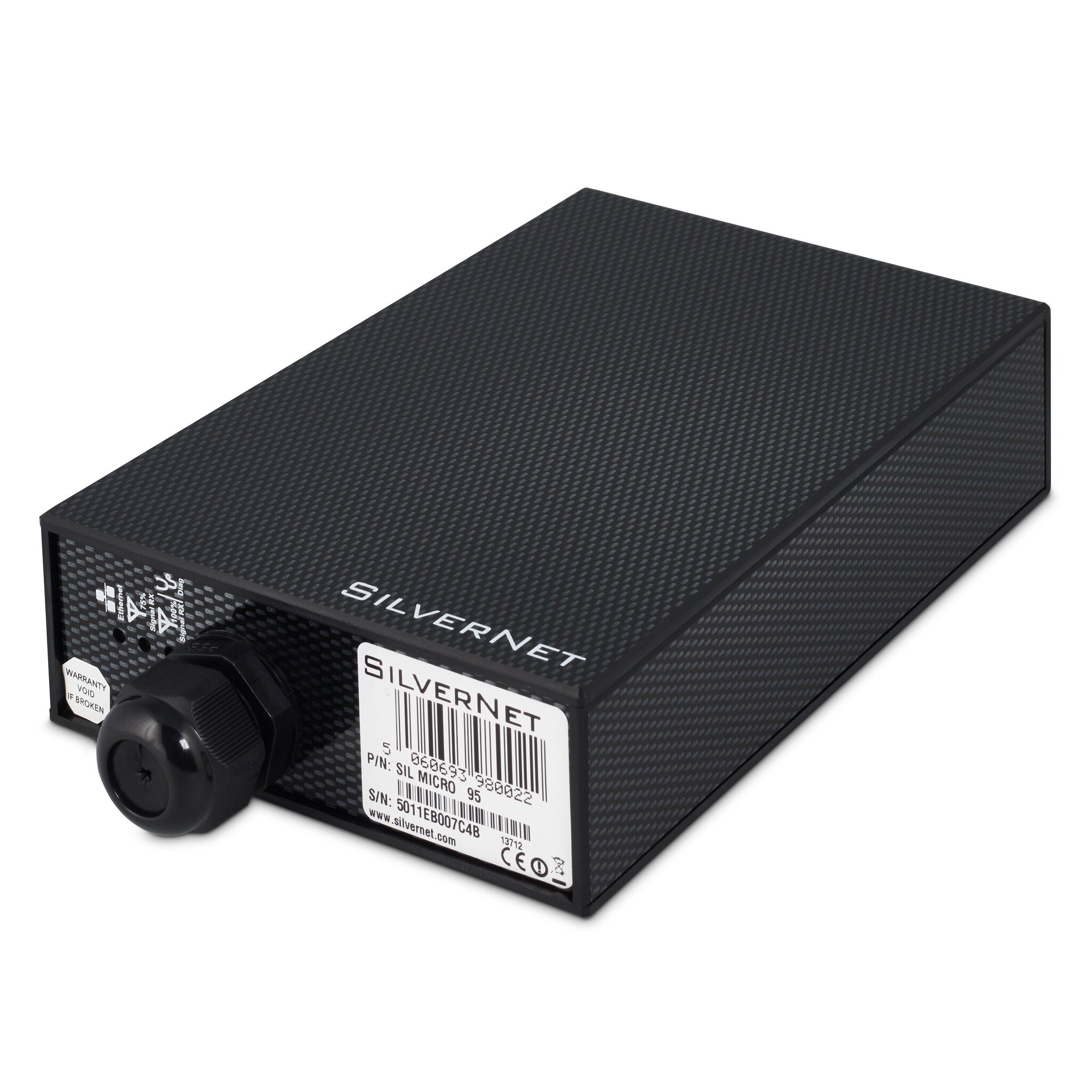

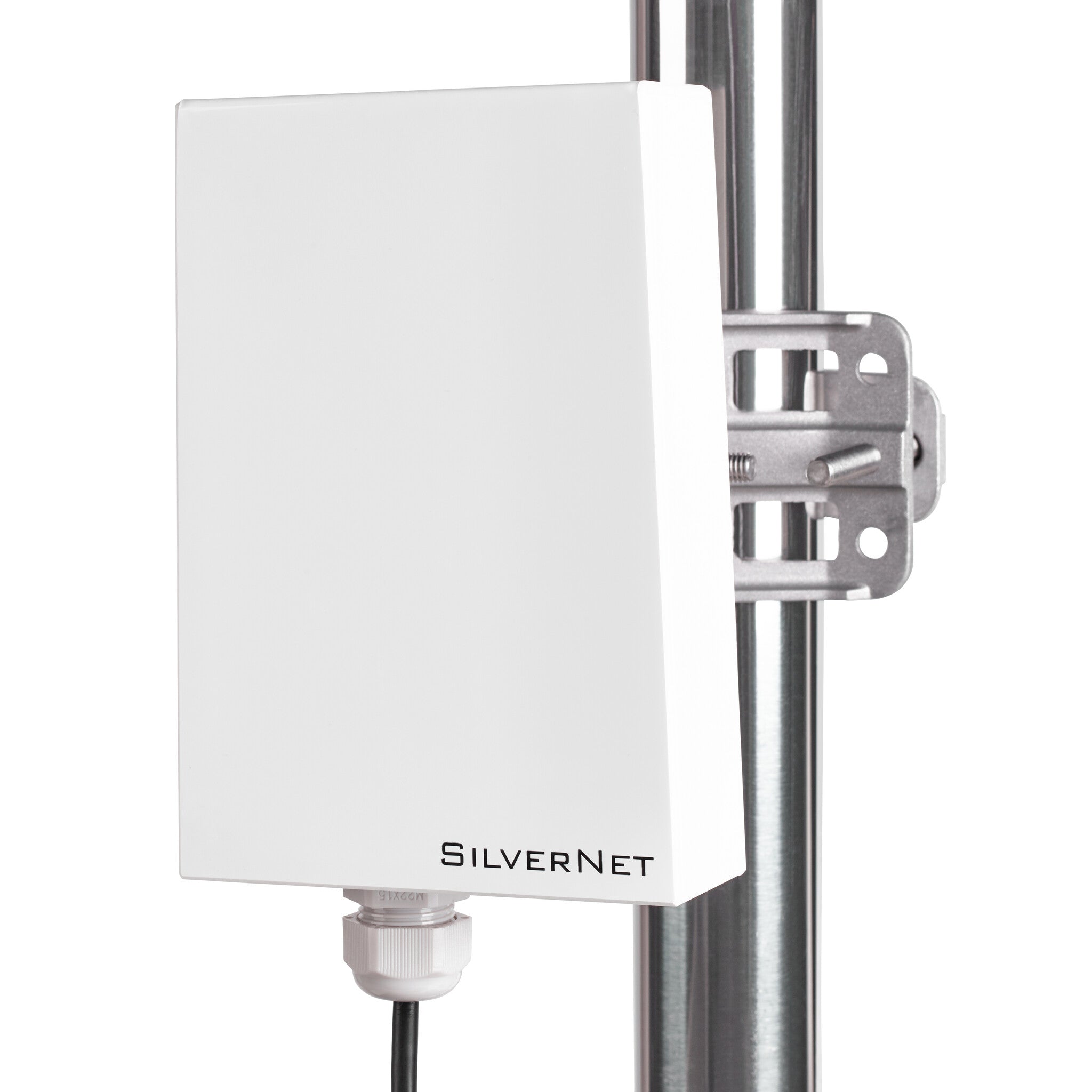

The MICRO's small form factor (17.9 x 12 x 4.5 cm) makes it a great street level product.

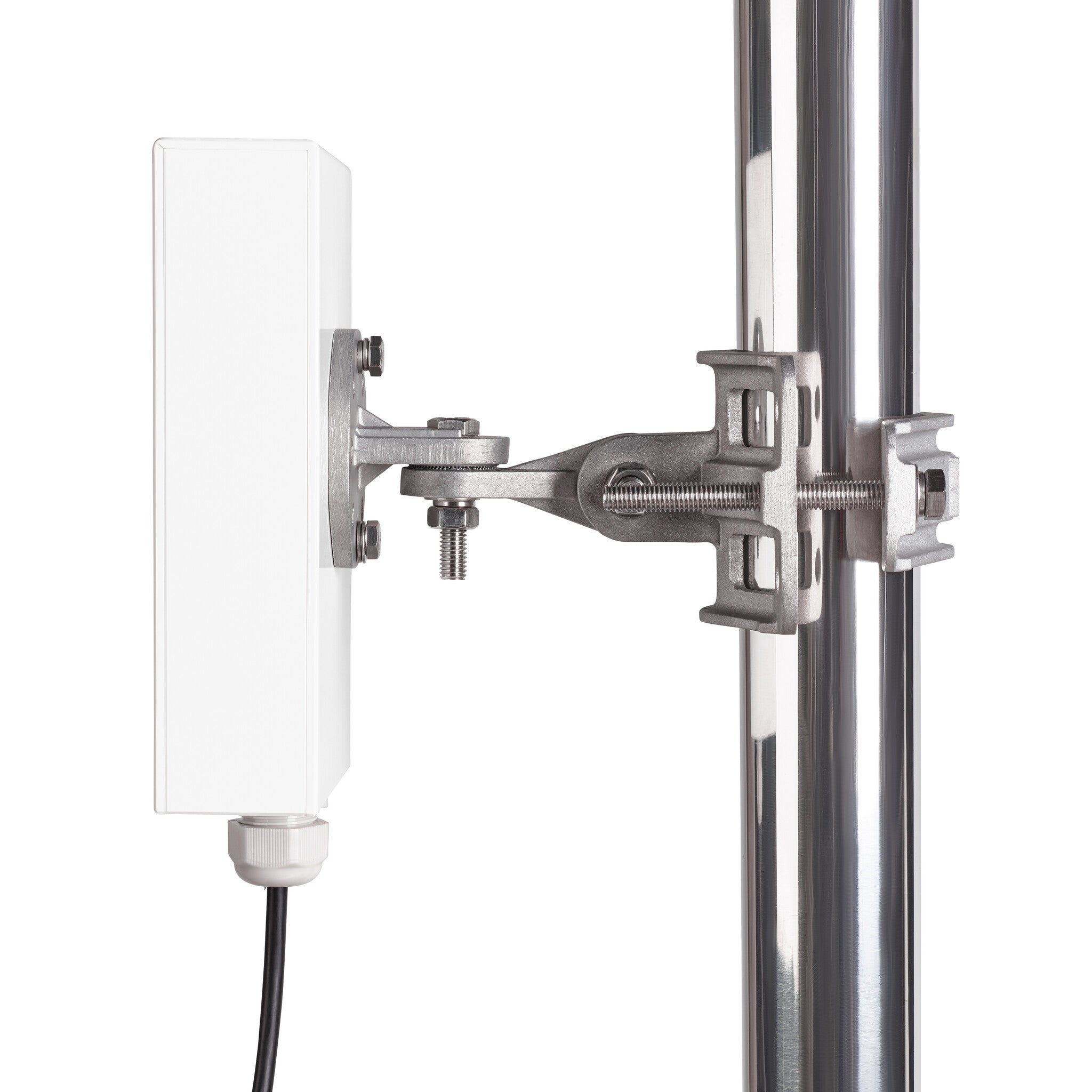

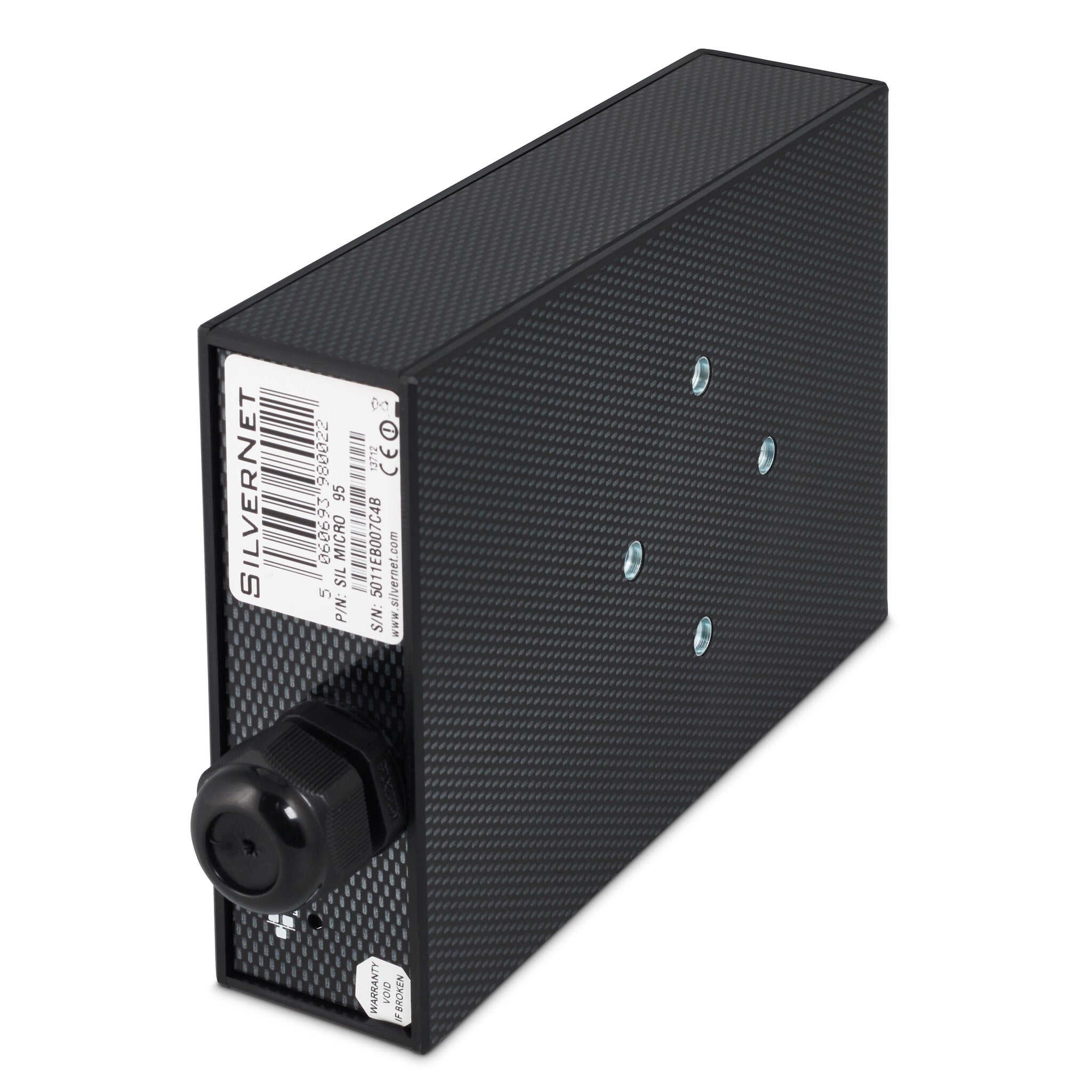

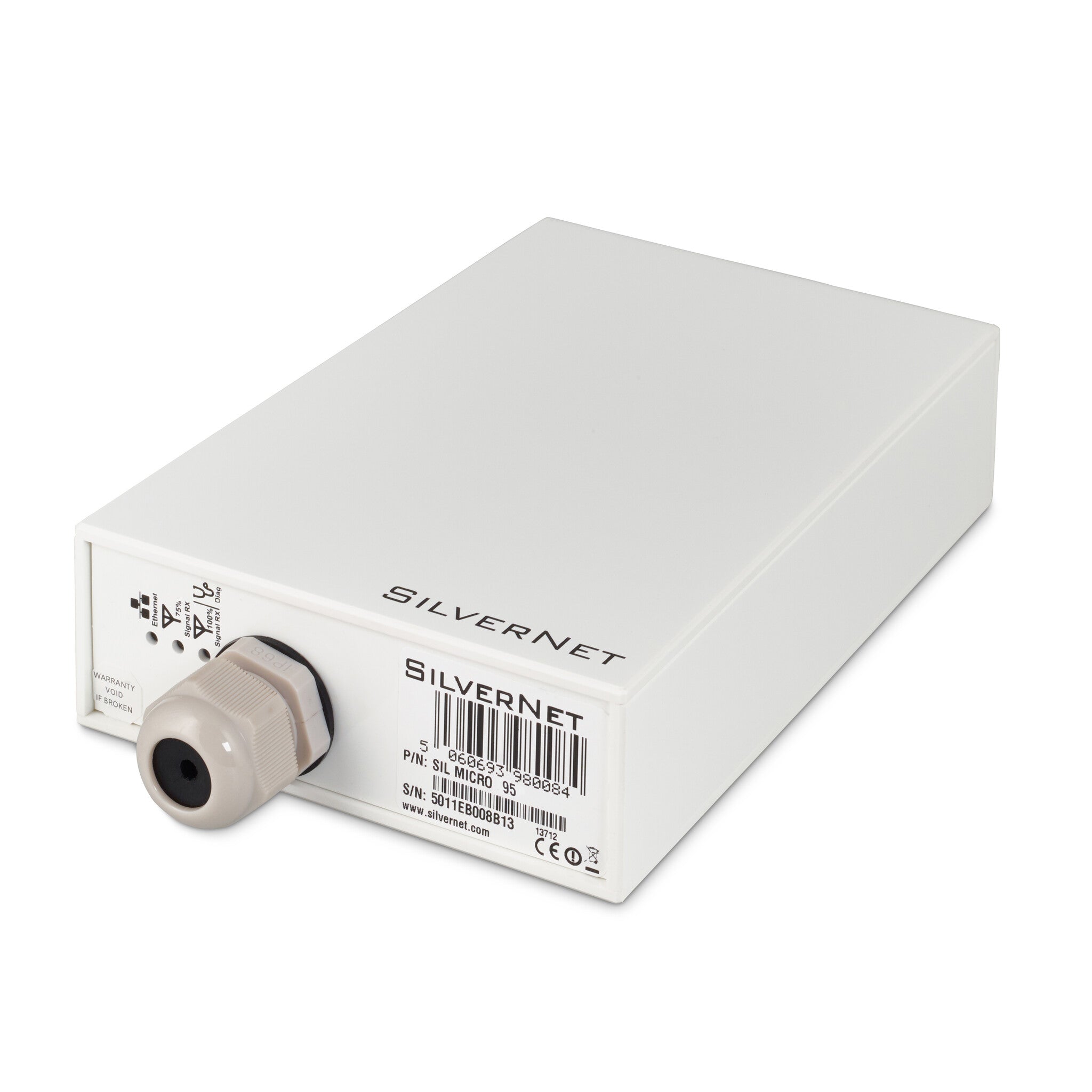

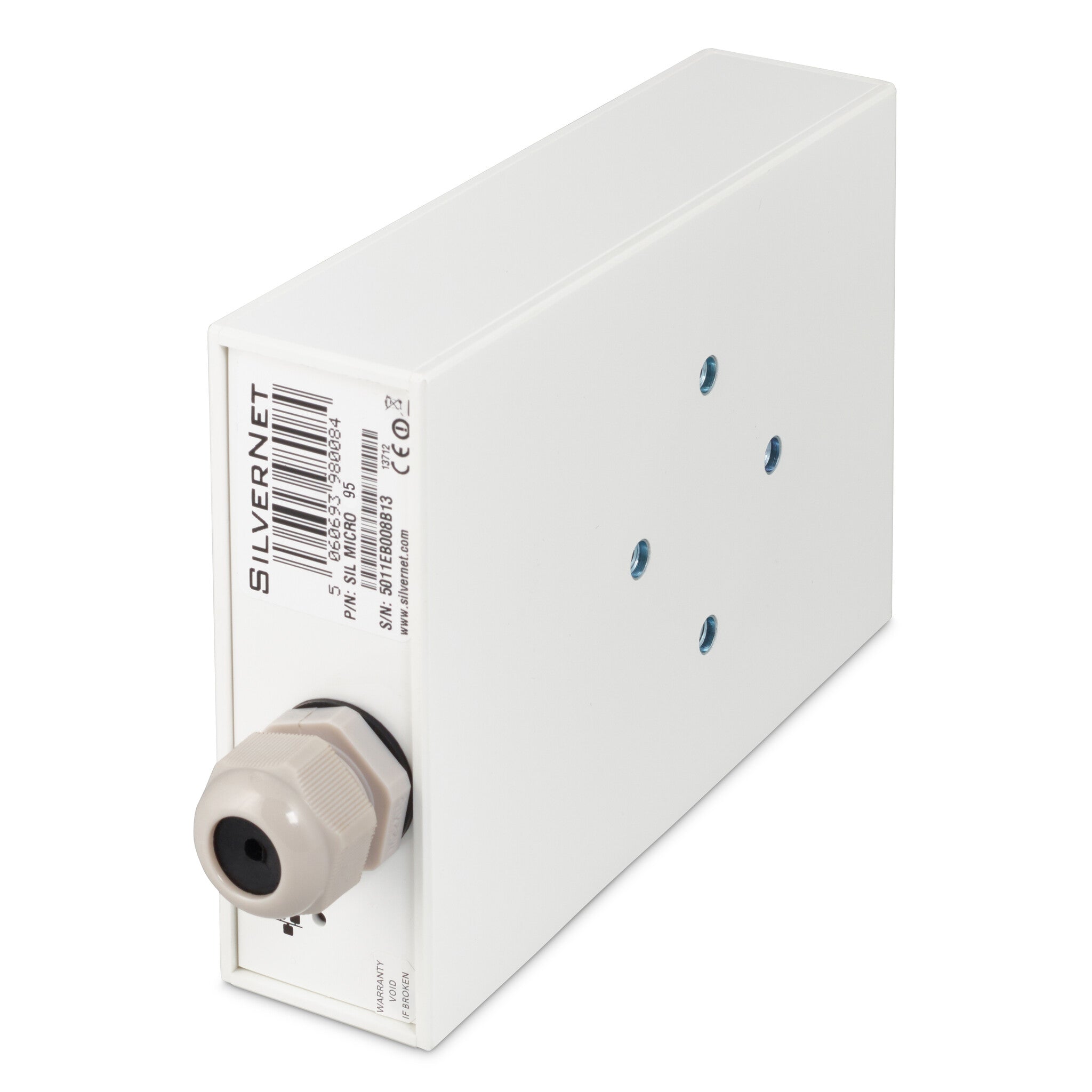

As standard the SIL MICRO comes in White, however, other colours are available on special order.
| Data transmission | |
|---|---|
| Supported data transfer rates | 100, 240, 500Mbps |
| Maximum transfer distance | 2000 m |
| Maximum data transfer rate | 100 Mbit/s |
| Antenna | |
|---|---|
| Antennas quantity | 1 |
| Antenna gain level (max) | 14 dBi |
| Antenna design | Internal |
| Wireless LAN features | |
|---|---|
| Outdoor range | 2000m |
| Indoor range | 2000m |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Signal strength | -40 dBm |
| Transmission gain | 0 - 14 dB |
| Frequency band | 5.1 - 5.8 GHz |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Single-band (5 GHz) |
| Wi-Fi | Yes |
| Network | |
|---|---|
| Static IP | Yes |
| Dynamic IP | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired & Wireless |
| Security | |
|---|---|
| Authentication method | WPA2 AES |
| MAC address filtering | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2 |
| Management features | |
|---|---|
| DHCP client | Yes |
| Web-based management | Yes |
| Management protocols | SNMP V2 |
| Features | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Surge protection | Yes |
| Network Time Protocol (NTP) client | Yes |
| Quality of Service (QoS) support | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP66 |
| Automatic Transmit Power Control (ATPC) | Yes |

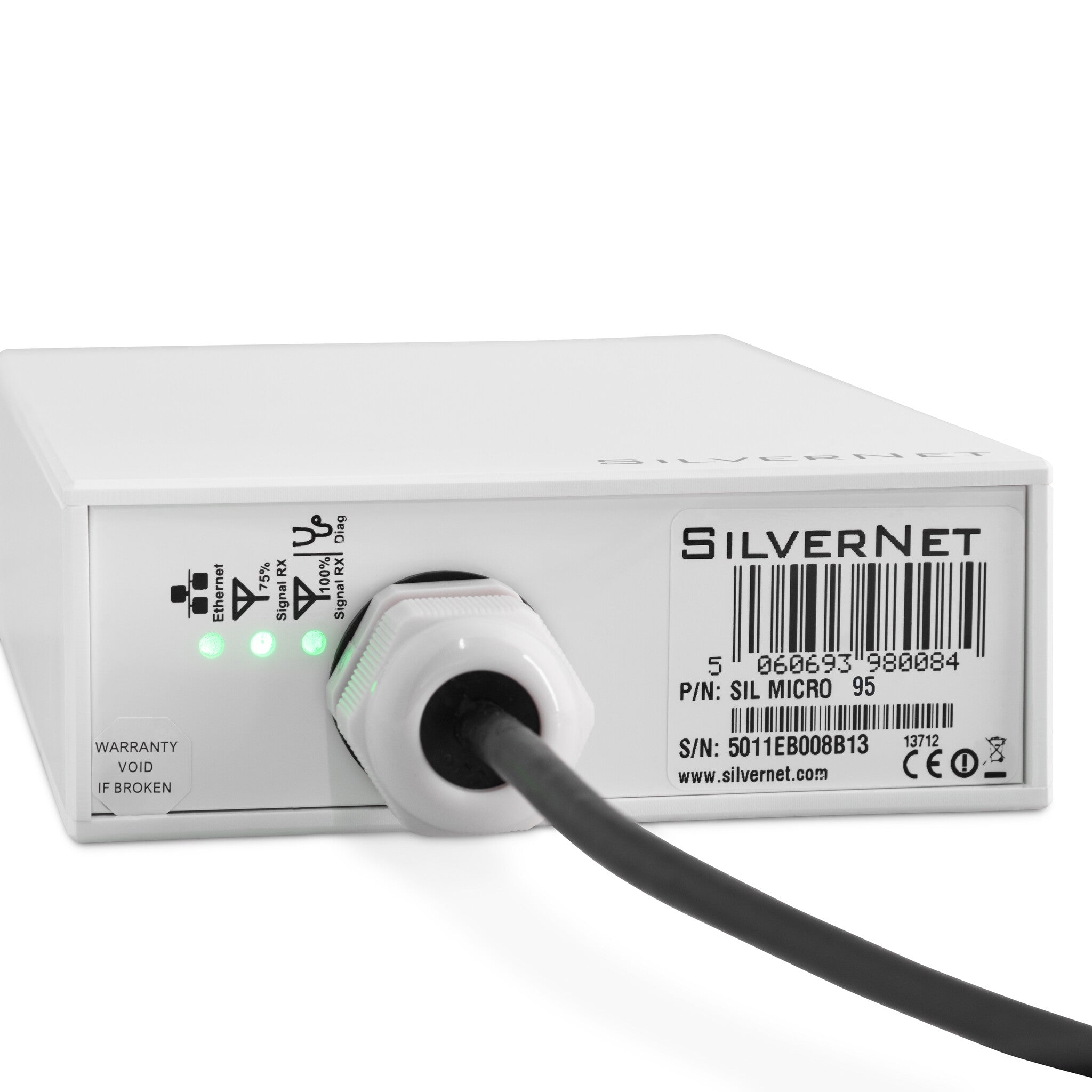

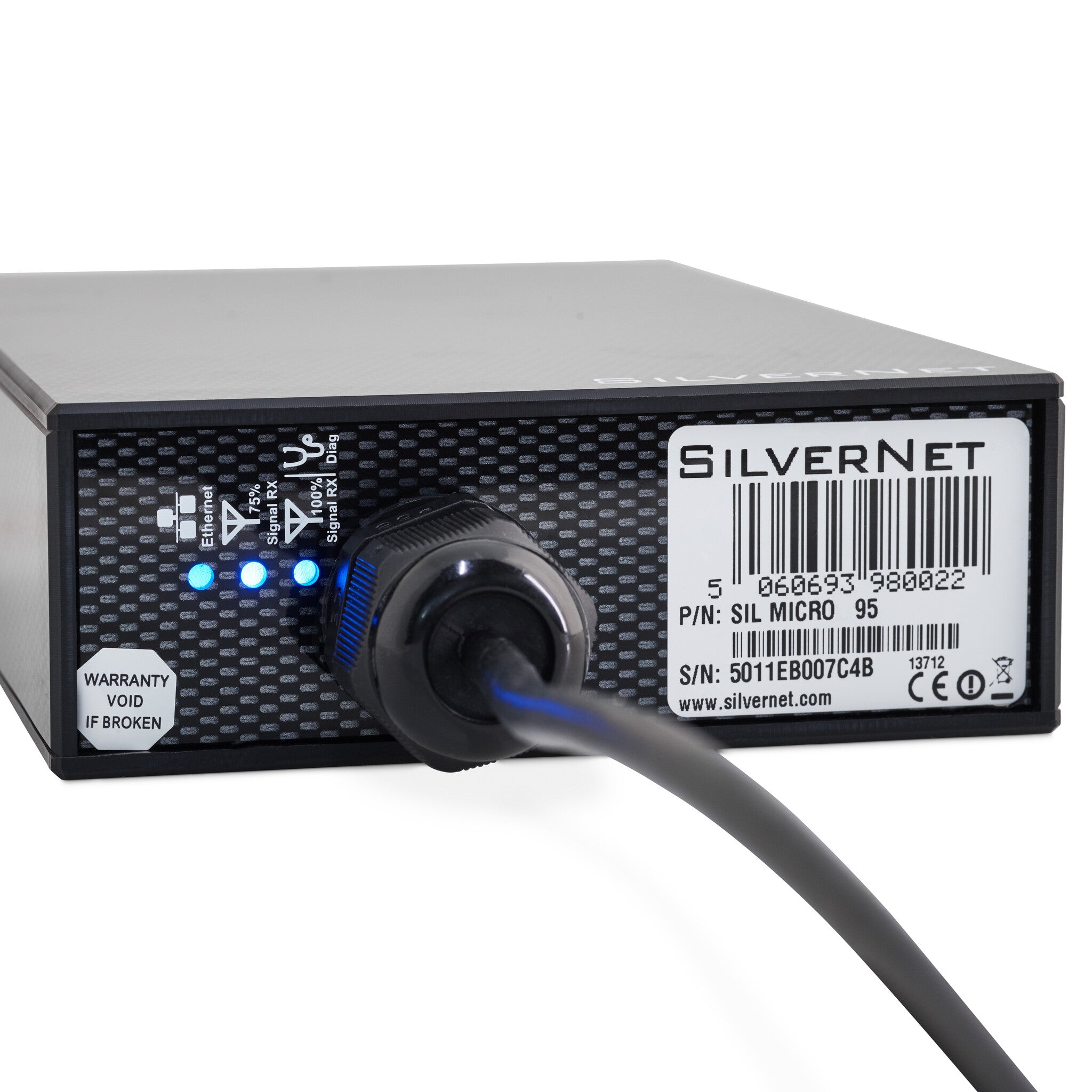

| LED indicators | LAN, Signal strength |
| Remote control function | Yes |
| Product colour | Black, White |
| Product type | Network bridge |
| System requirements | |
|---|---|
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Power | |
|---|---|
| Power plug type | Type G |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| AC input voltage | 100-240 V |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Weight & dimensions | |
|---|---|
| Weight | 500 g |
| Height | 45 mm |
| Depth | 120 mm |
| Width | 179 mm |
| Antenna diameter | 20.5 cm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |

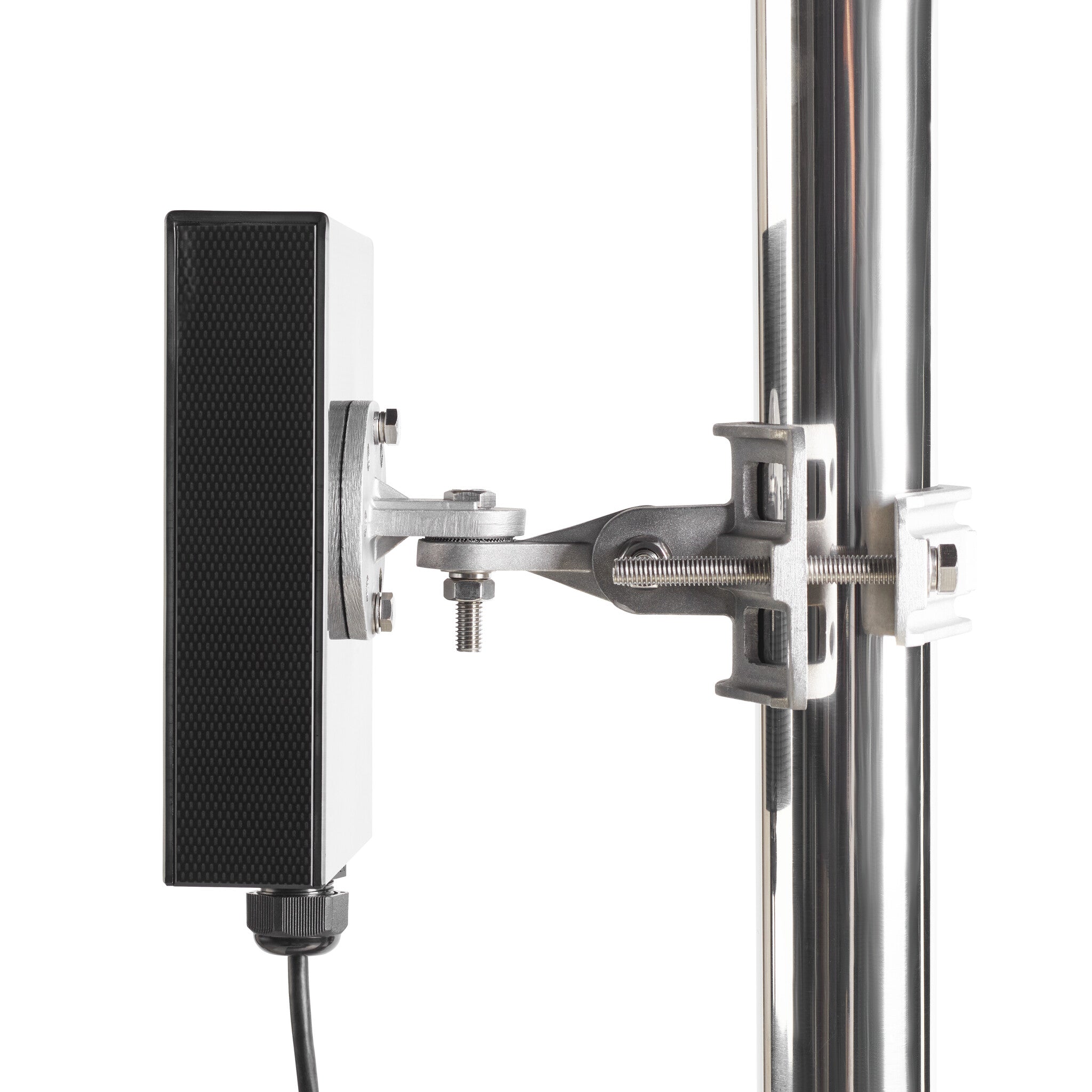

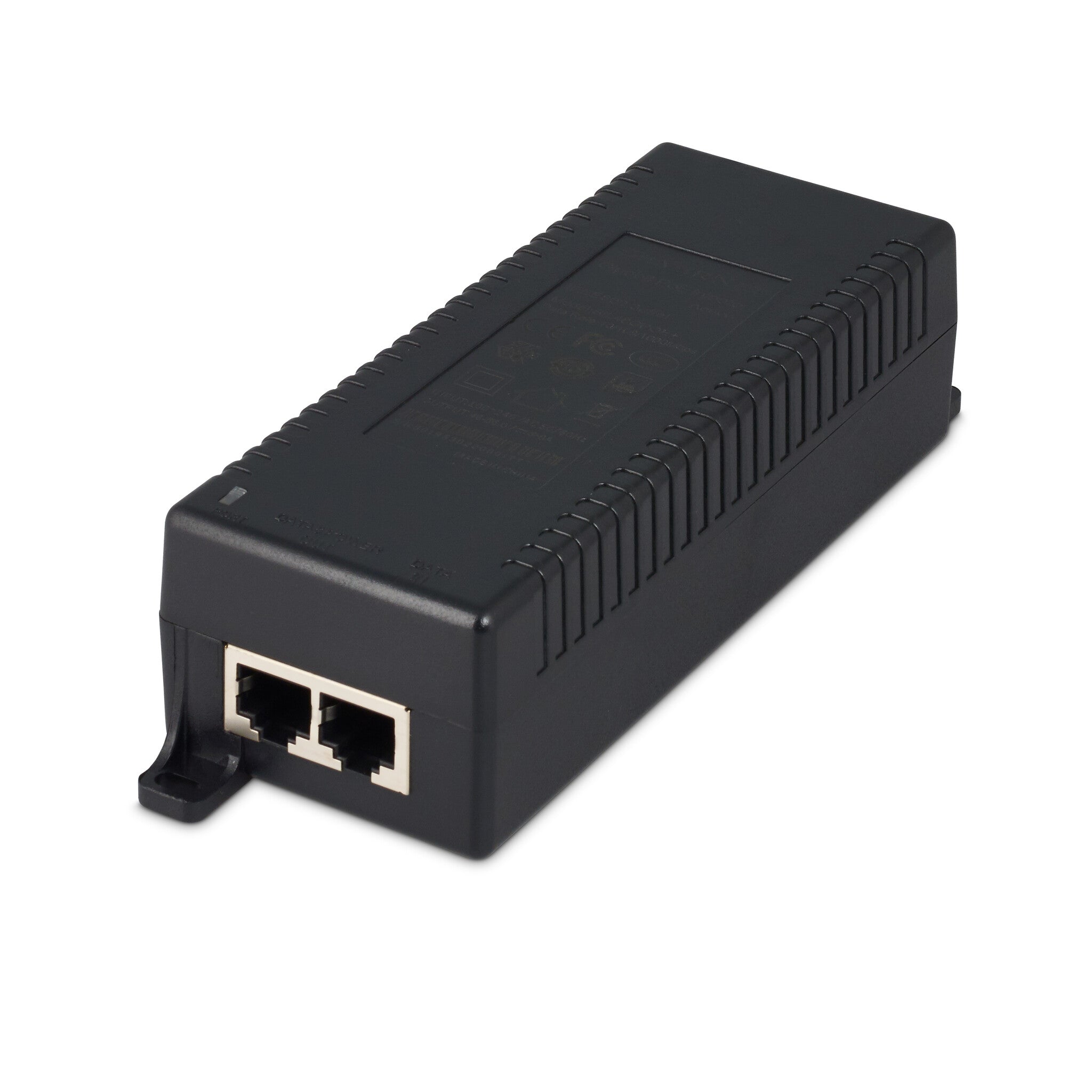

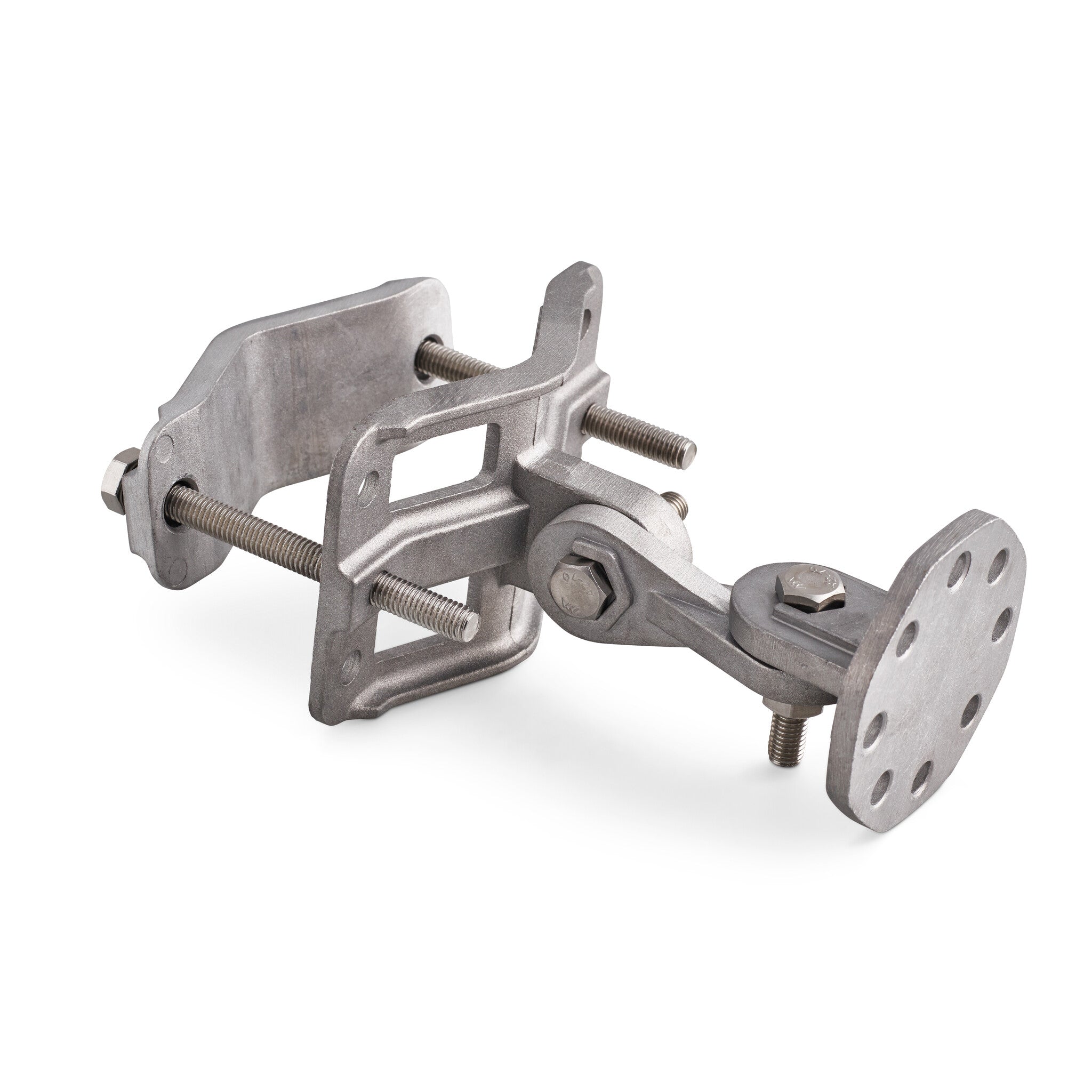

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Packaging data | |
|---|---|
| Package width | 300 mm |
| Package depth | 130 mm |
| Package height | 100 mm |
| Package weight | 1.42 kg |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
