SilverNet
£1,018.99
Stock Available: 0
  • Point-to-Point Outdoor Wireless Bridge Up to 2KM
  • Point-to-MultiPoint Client
  • 500Mbps throughput
  • Integrated 15dBi Antenna
  • Designed for Outdoor applications
  • SNMP
  • AES Encryption up to 256bit
  • MIMO with spatial multiplexing
  • DFS (Dynamic Frequency Selection)
  • TPC (Transmit Power Control)
  • PoE 802.3af

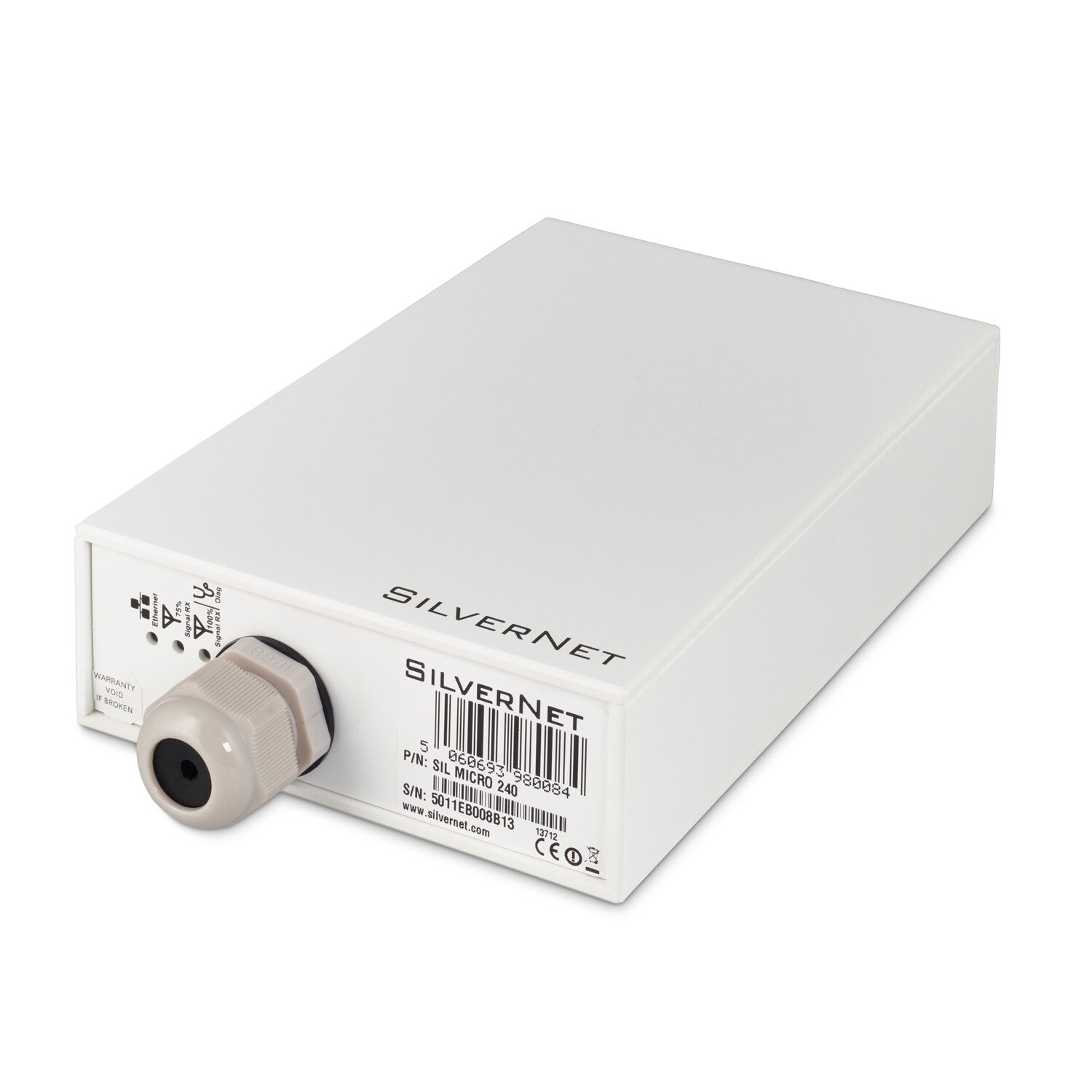

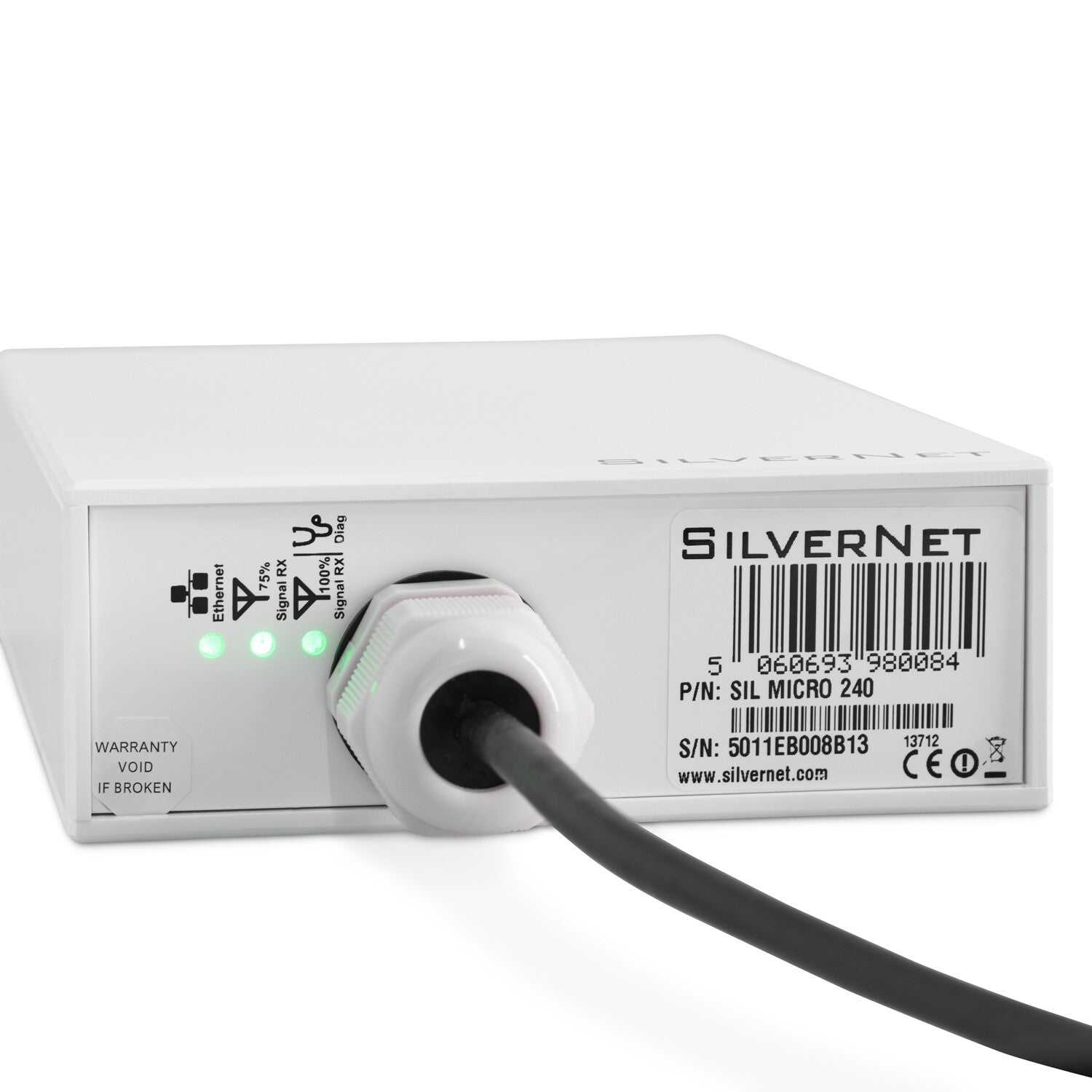

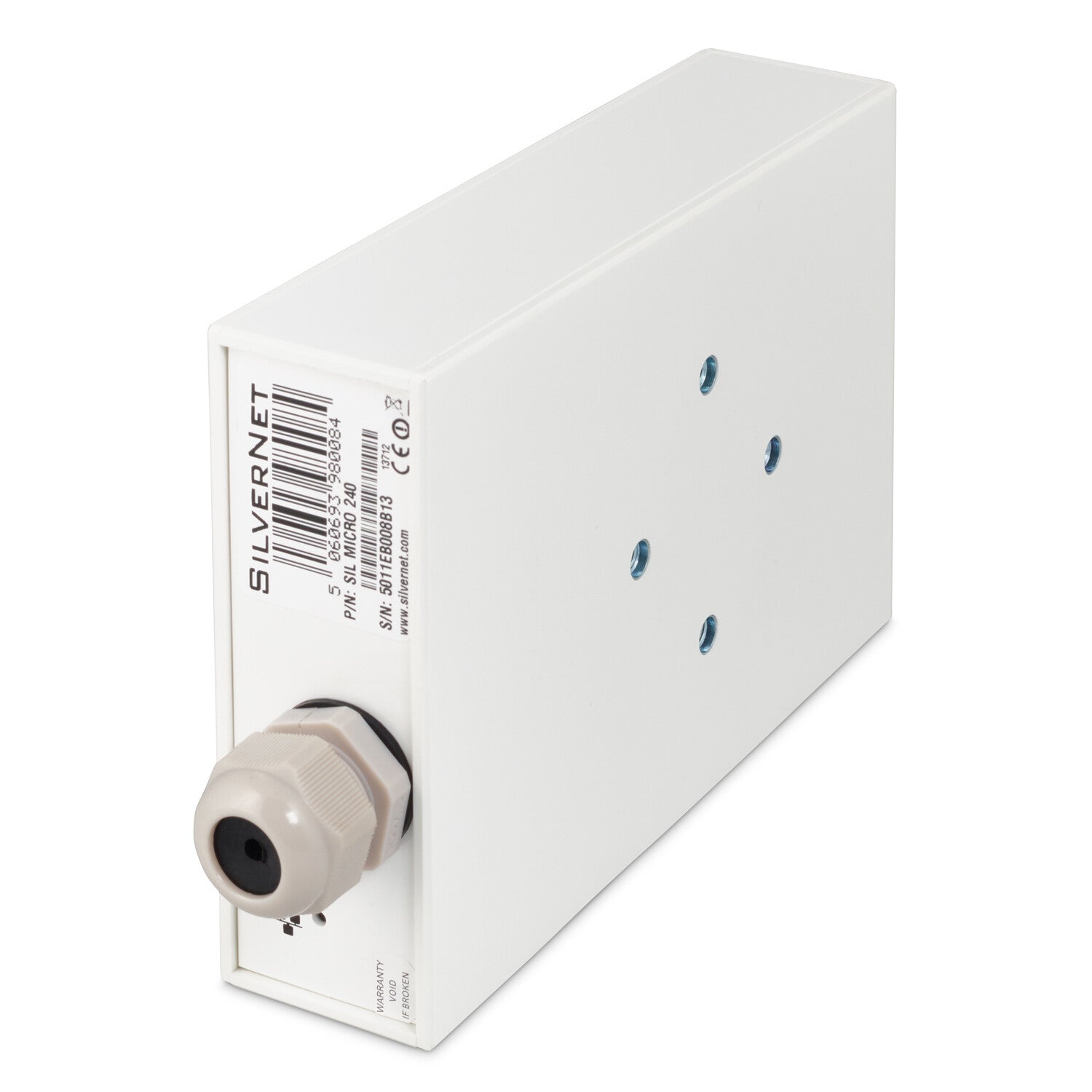

The SIL MICRO 500-PCP has an amazingly small form factor (17.9 x 12 x 4.5 cm), which is perfect for locations where the radio needs to be unobtrusive. As with the 100Mbps and 240Mbps versions, the SIL MICRO 500-PCP comes in Standard White, with other colours (including Carbon Black) available on special order.

The SIL MICRO 500-PCP is a 2km link that offers up to 500Mbps of actual throughput with a radio speed of 867Mbps. The SIL MICRO 500-PCP is great for those hungrier networks that require more throughput than the standard 100Mbps or upgraded 240Mbps versions.

This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.

The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.

Fully integrated into our Free NMS "SilverView".

Data transmission
Supported data transfer rates 500Mbps
Maximum transfer distance 2000 m
Maximum data transfer rate 500 Mbit/s
Antenna
Antennas quantity 1
Pan/tilt-axis range 180°
Antenna gain level (max) 14 dBi
Antenna design Internal
Wireless LAN features
Outdoor range 2000m
Indoor range 2000m
Receiver sensitivity -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
Output power (dBm) 26
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Channels quantity 25 channels
Signal strength -40 dBm
Transmission gain 0 - 14 dB
Frequency band 5.1 - 5.8 GHz
WLAN data transfer rate (max) 300 Mbit/s
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi band Single-band (5 GHz)
Wi-Fi Yes
Network
Static IP Yes
Dynamic IP Yes
Auto MDI/MDI-X Yes
Full duplex Yes
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired & Wireless
Security
Authentication method WPA2 AES
MAC address filtering Yes
Security features 802.1x, 802.11i, 802.1Q
Security algorithms 128-bit AES, 256-bit AES
Management features
DHCP client Yes
Web-based management Yes
Management protocols SNMP V2
Features
Mean time between failures (MTBF) 60000 h
Surge protection Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Network Time Protocol (NTP) client Yes
Quality of Service (QoS) support Yes
Wall mountable Yes
Reset button Yes
International Protection (IP) code IP67
Automatic Transmit Power Control (ATPC) Yes
LED indicators LAN, Signal strength
Remote control function Yes
Product colour White
Product type Network bridge
System requirements
Compatible operating systems Microsoft Windows, Mac OS, Linux Distributions
Minimum system requirements Internet Explorer, Google Chrome, Mozilla Firefox
Power
Power plug type Type G
Power over Ethernet (PoE) voltage 48 V
Power over Ethernet (PoE) Yes
Power consumption (typical) 6 W
Power consumption (max) 16 W
DC input voltage 24 - 48 V
Power supply 15.4 W
AC input voltage 100-240 V
Power source type PoE
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 90 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -20 - 70 °C
Certificates
Certification CE, FCC
Weight & dimensions
Weight 500 g
Height 45 mm
Depth 120 mm
Width 179 mm
Antenna diameter 20.5 cm
Packaging content
Quick installation guide Yes
Antenna included Yes
Power supply included Yes
Mounting bracket(s) included Yes
PoE+ Injector(s) Yes

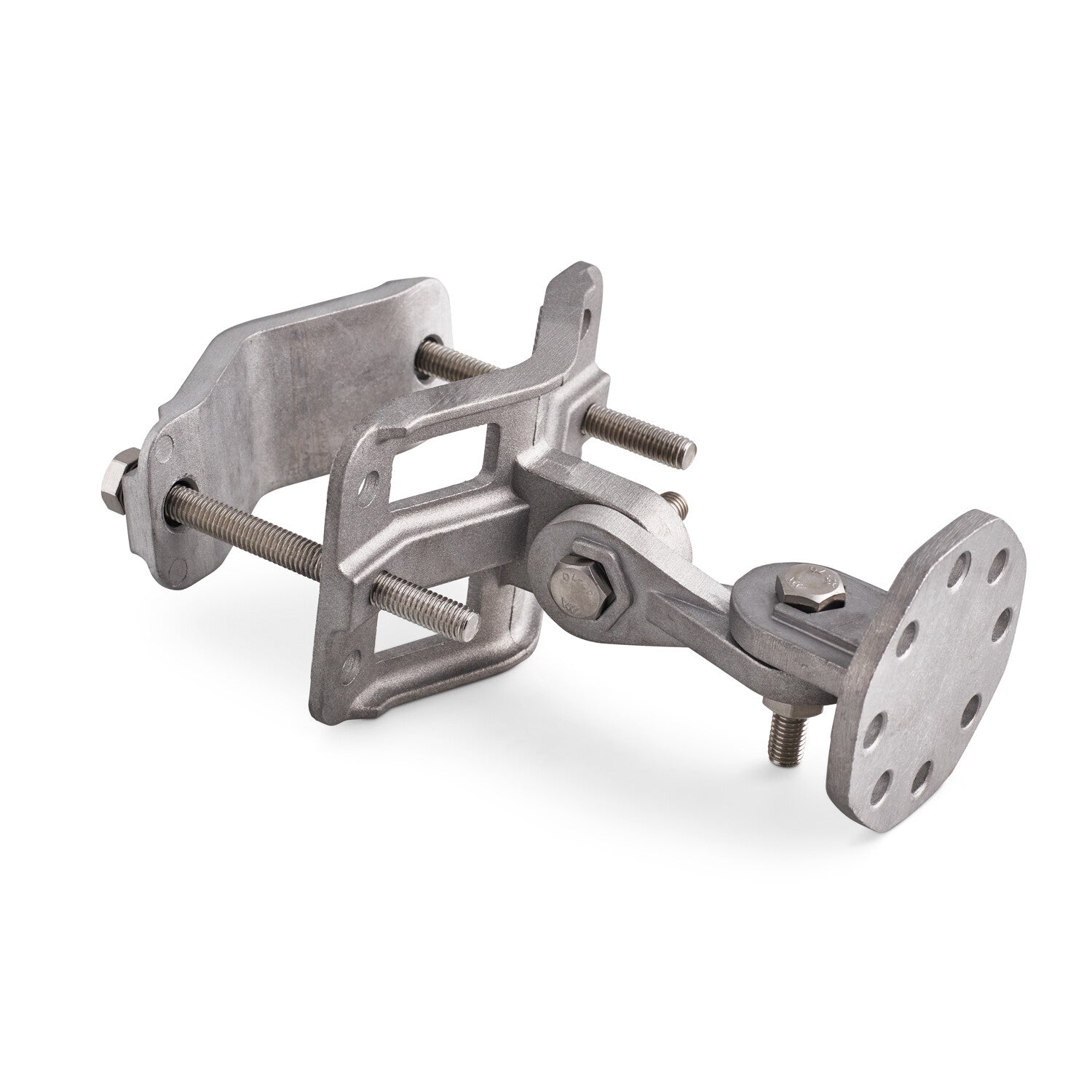

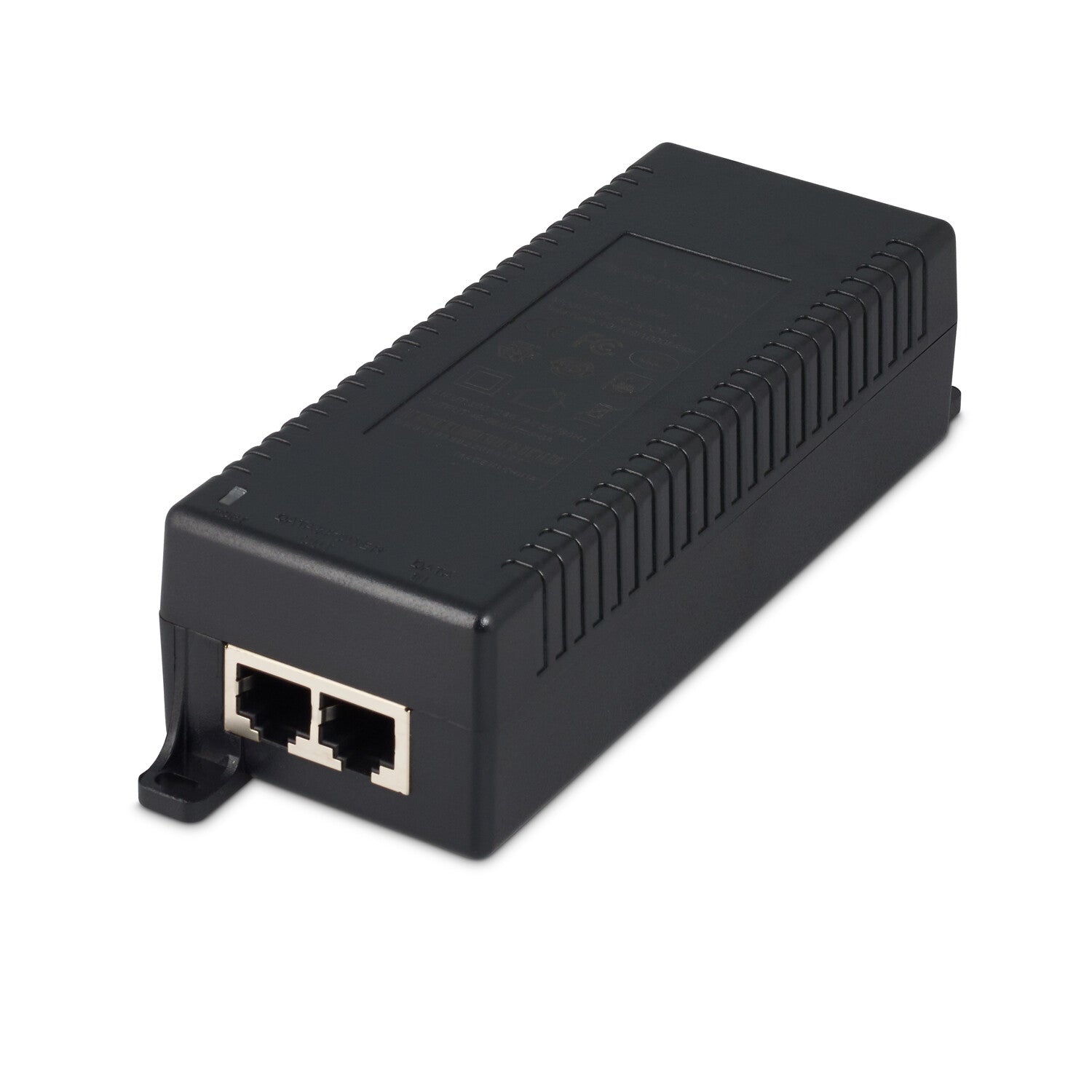

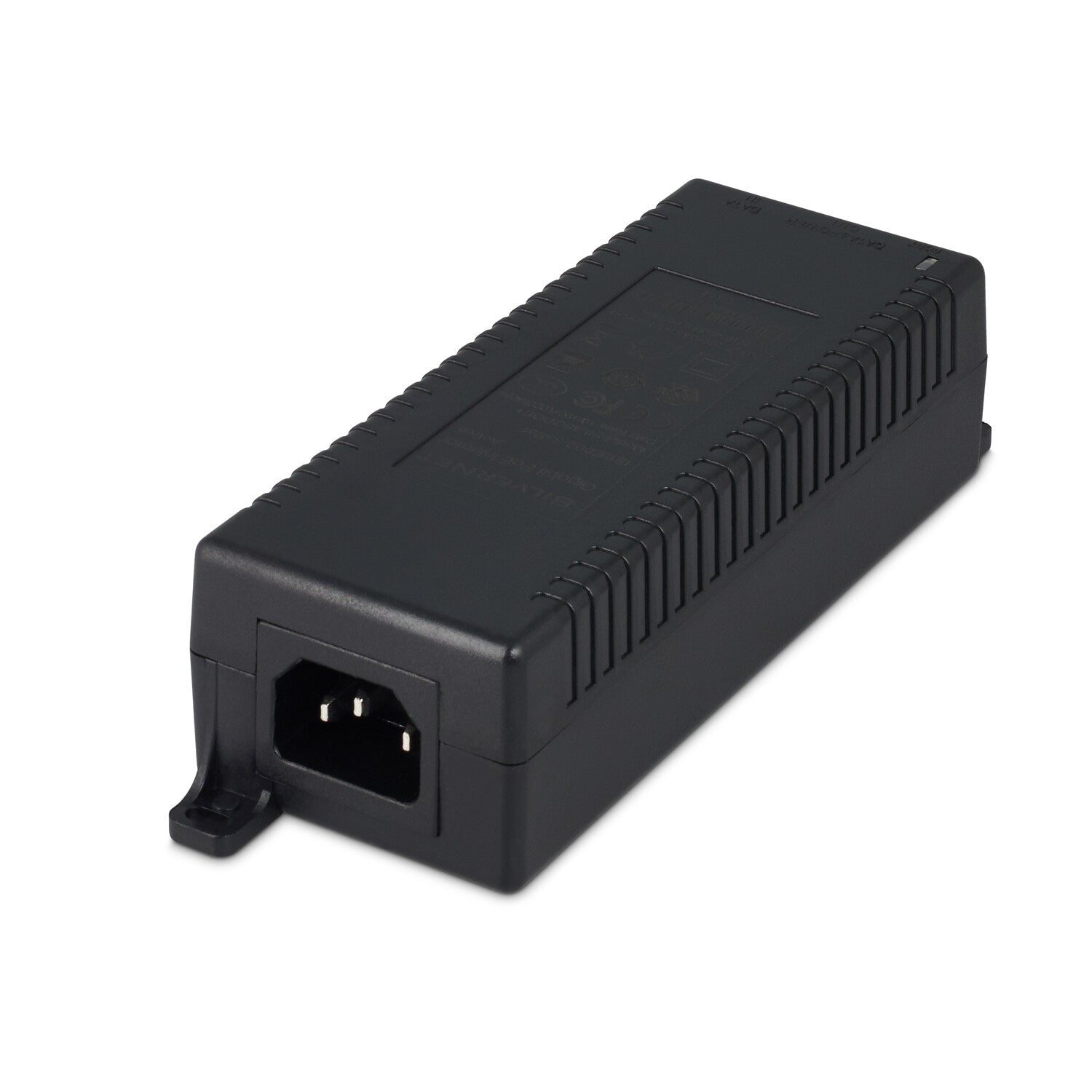

Packaging content Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets.
Packaging data
Package width 285 mm
Package depth 320 mm
Package height 115 mm
Package weight 3.15 kg
Quantity per pack 2 pc(s)
Package type Box
Logistics data
UK Trade Tariff code 85176200
Country of origin United Kingdom
