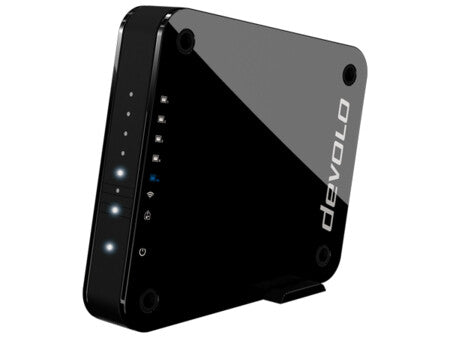

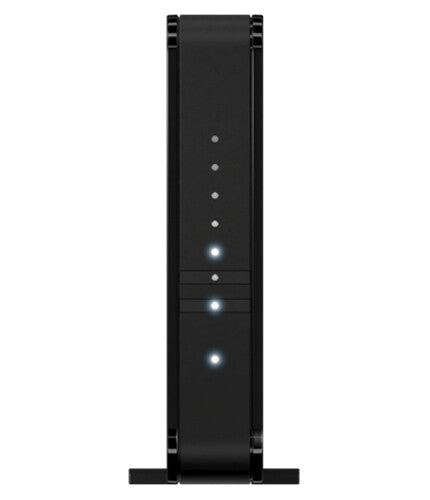

Devolo GigaGate Expansion Network bridge 1733 Mbit/s Black
Couldn't load pickup availability
- The high-speed Wi-Fi bridge for the fastest Internet transmission to all your home media devices
- Ideal for simultaneously using a game console, smart TV, PC, tablet, smartphone, NAS, cloud, server and more

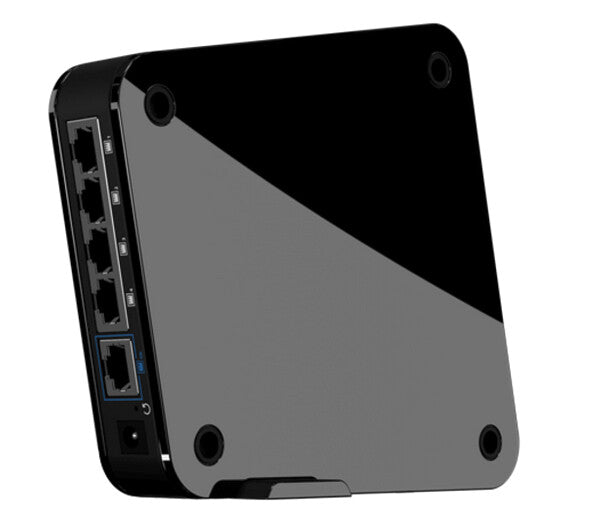

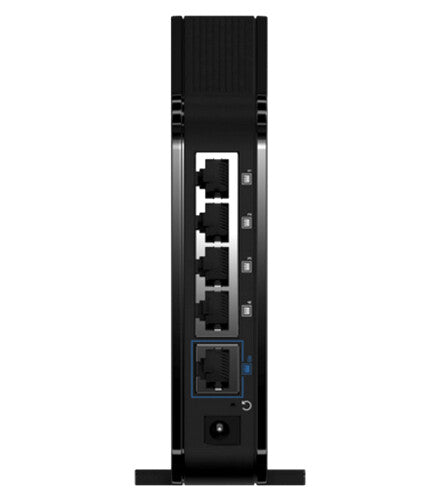

- Five LAN ports: 1x high-speed gigabit port for connecting high performance devices and 4x fast Ethernet ports for other cable-based multimedia devices
- Far-reaching Wi-Fi coverage thanks to the additional Wi-Fi access point
- The latest 4x4 Quantenna technology for a focused and high-performance point-to-point-connection using the 5 GHz band
- Maximum security thanks to AES encryption
- The simplest installation: Set it up - Connect it - Experience it
- Enables lossless data transmission from flat to flat
- Can be expanded to a complete home network with up to eight Satellites
With the advent of 4K video streaming and Ultra HD gaming, the devolo GigaGate has been designed with the next generation of home entertainment in mind. It brings the full power of your internet connection to right where you need it, carrying your router’s signal over a lightning-fast 2Gbps connection for an unmatched entertainment experience anywhere in your home.
The GigaGate uses a base unit and a satellite device to deliver interference-free, pinpoint-accurate connectivity to smart TVs, games consoles and media centres, with a dedicated WiFi access point to keep all of your devices online.
It’s a powerful solution for a connected home that offers huge bandwidth, extreme WiFi range and a dedicated high-speed gigabit port for even the most demanding of today’s connected devices.
Tuned for Gaming and 4K Ultra HD
The GigaGate offers a huge 2Gbps connection rate with unrivalled speed for the best possible multimedia experience. Dedicated Ethernet ports and a separate WiFi access point allow games consoles, high-definition smart TVs and other bandwidth-hungry devices to be run at the same time with no loss of performance.
An integrated high-speed gigabit LAN port gives high-performance devices a dedicated 1-gigabit pipeline, while four fast Ethernet ports provide additional connectivity for cable-based devices.
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1733 Mbit/s |
| Wireless LAN features | |
|---|---|
| Modulation | OFDM |
| Frequency band | 2.4, 5 GHz |
| Network | |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Security | |
|---|---|
| WPS push button | Yes |
| Security algorithms | AES, WPA, WPA2 |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Product type | Network bridge |
| Power | |
|---|---|
| DC input voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CE Class B (EU, CH, NO) |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 30 mm |
| Packaging data | |
|---|---|
| Package width | 190 mm |
| Package depth | 243 mm |
| Package height | 81 mm |
| Package weight | 680 g |
