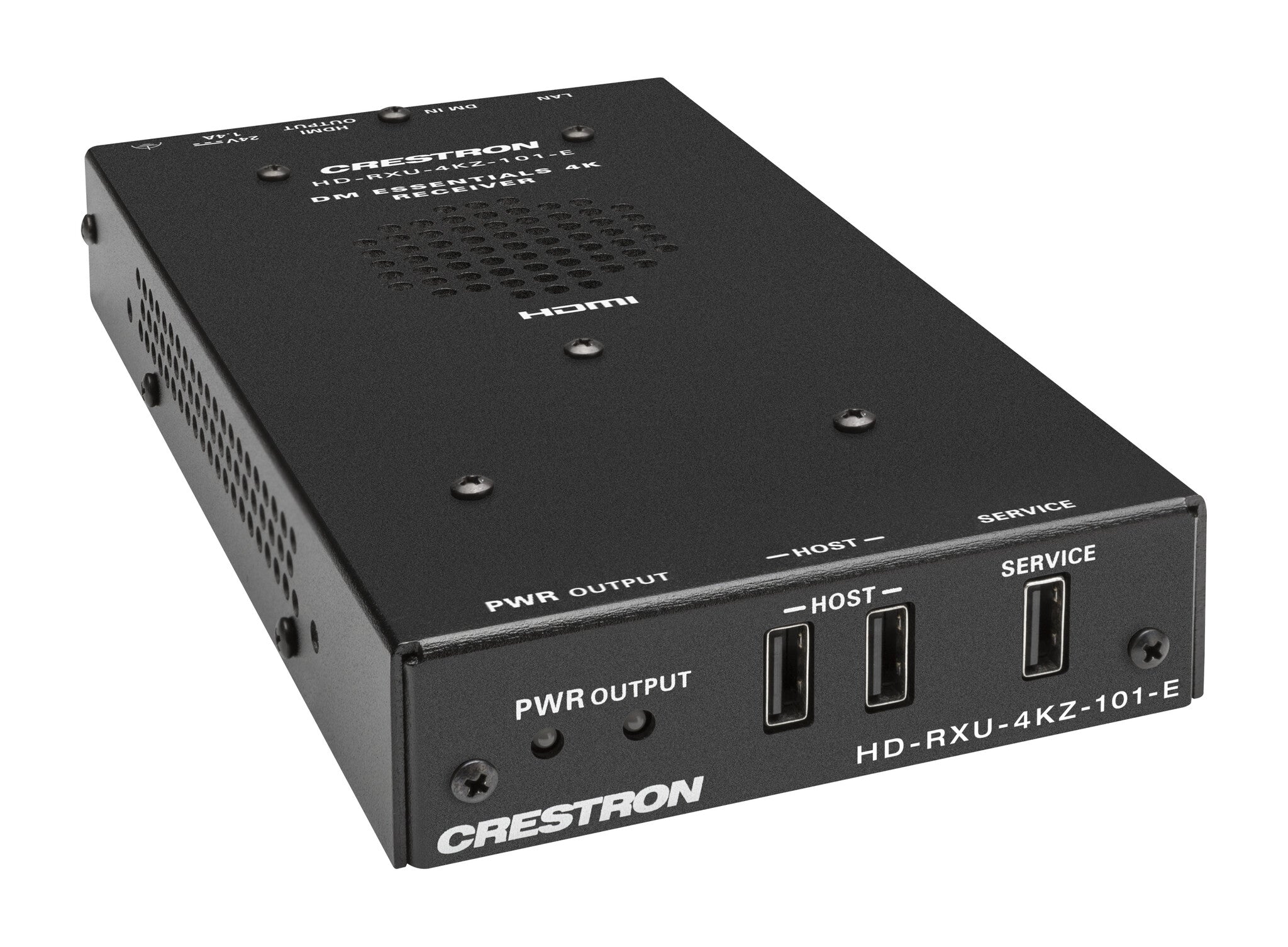

The HD‑RXU‑4KZ‑101‑E is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM Essentials HD‑TXU‑4KZ Series transmitter for the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) must be used to connect the HD‑RXU‑4KZ‑101‑E to the DM Essentials transmitter.1
Interoperability with a DM Essentials HD-TXU-4KZ Series Transmitter
For interoperability between the HD‑RXU‑4KZ‑101‑E and an HD‑TXU‑4KZ Series transmitter, the DM Essentials input port of the HD‑RXU‑4KZ‑101‑E must be connected to the DM Essentials output port of the HD‑TXU‑4KZ Series transmitter.
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-E is paired with a DM Essentials transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Essentials HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
USB 2.0 Data Extension

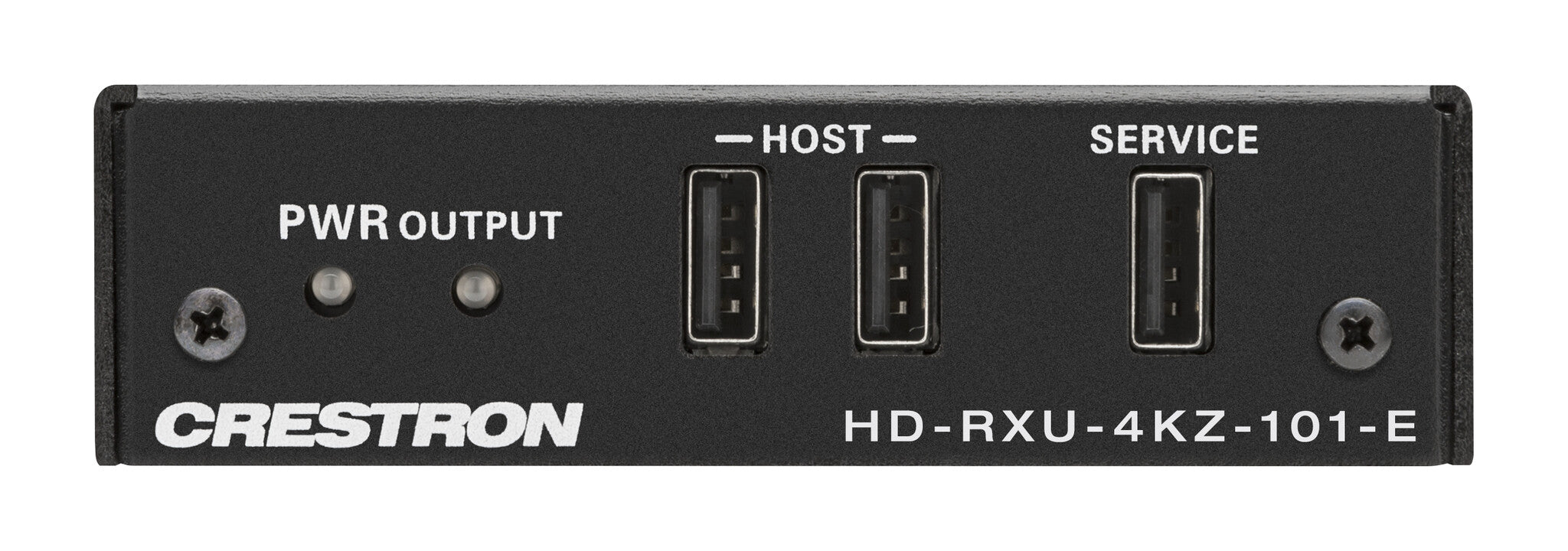

Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.
Ethernet Pass-Through Capability

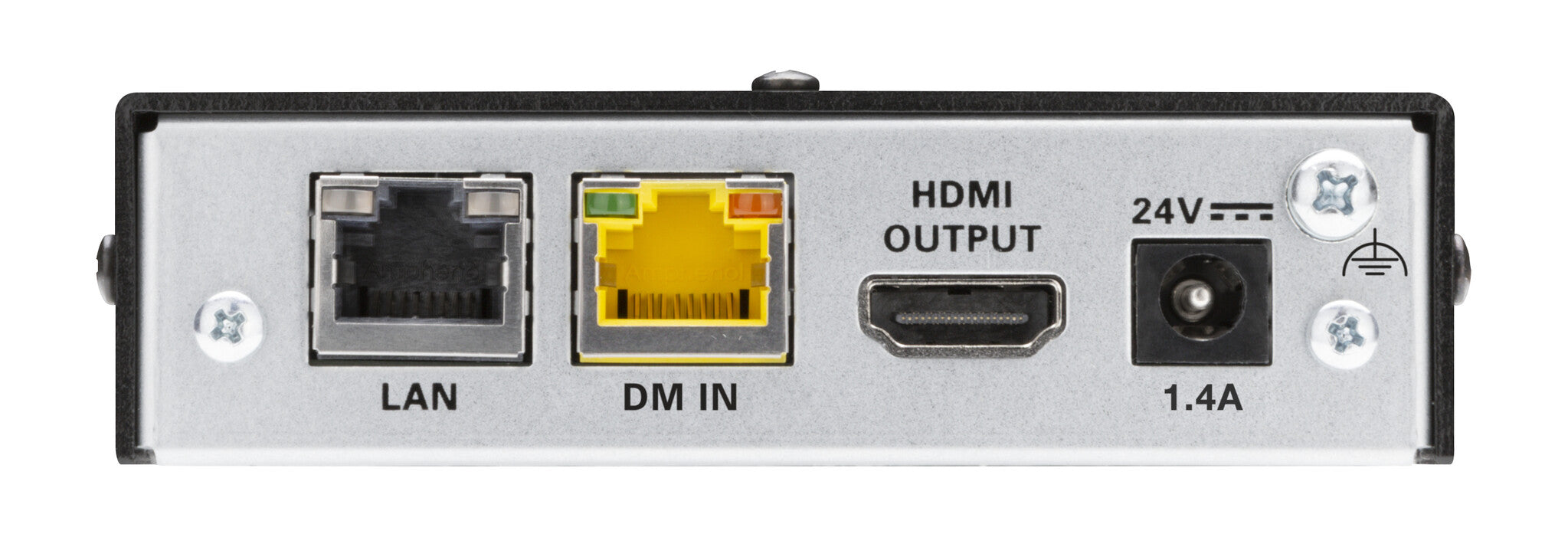

The HD‑RXU‑4KZ‑101-E is equipped with a 100/1000 Mbps LAN port that receives an Ethernet signal transmitted over the DM Essentials connection from the transmitting endpoint. The LAN port of one endpoint can be connected to an Ethernet network, while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.
Compact, Surface-Mountable Design

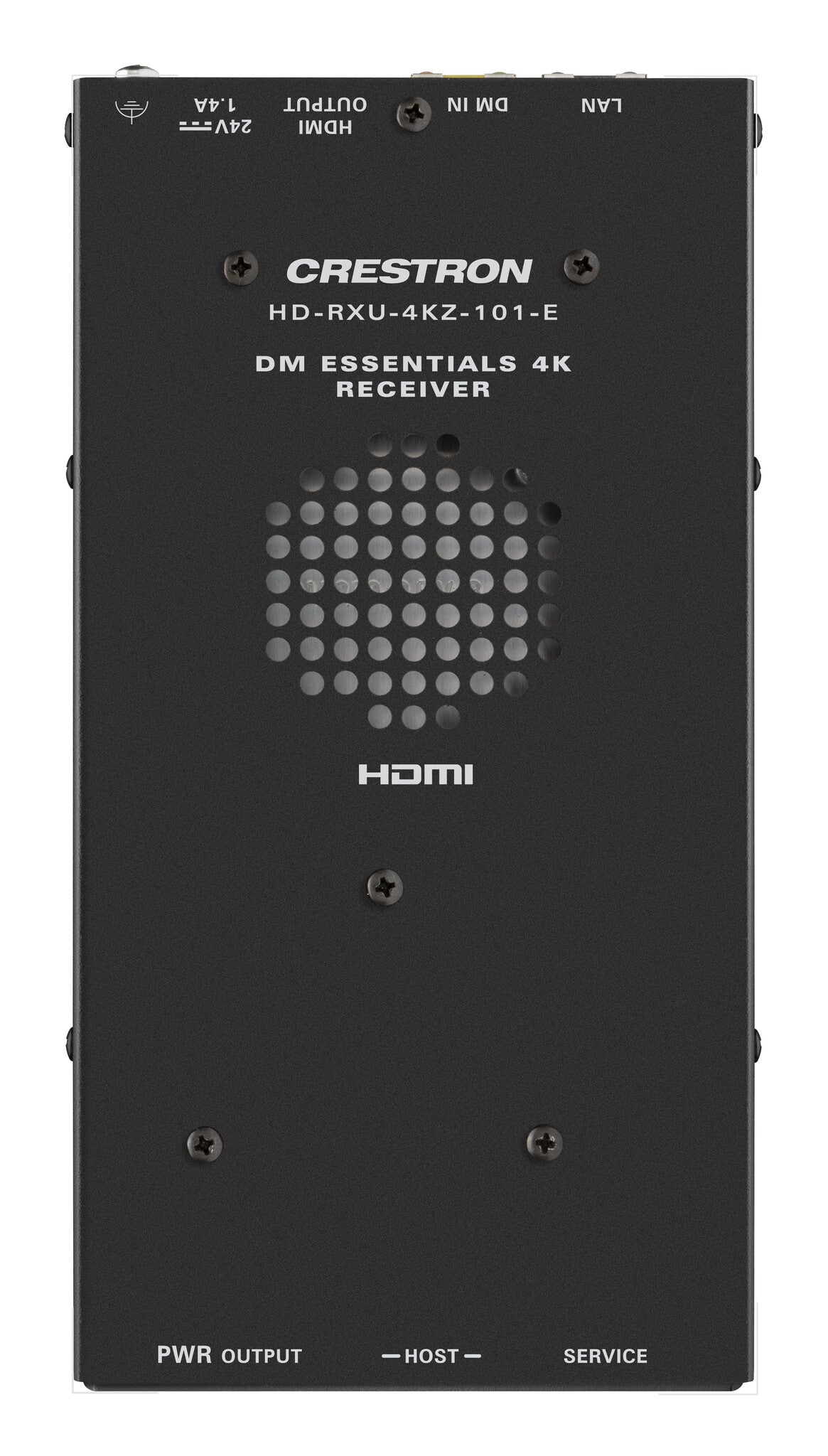

Compact in design, the HD-RXU-4KZ-101-E can be mounted onto a flat surface such as a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXU-4KZ-101-E can receive power from the included power pack or from the remote DM Essentials transmitter.
