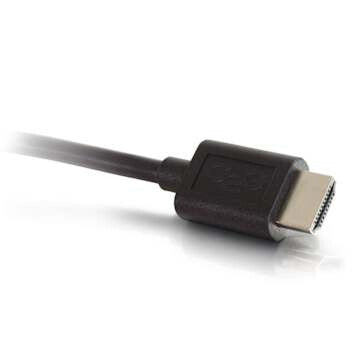

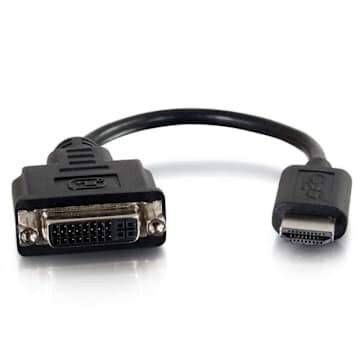

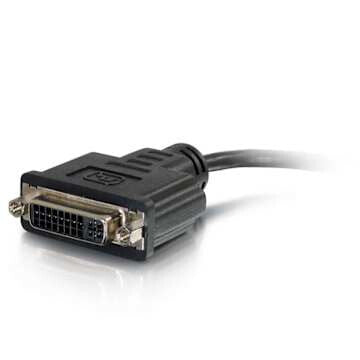

This adapter converter dongle is an ideal solution for connecting the video output of a HDMI-enabled Chromebook or laptop to a DVI-D display. The dongle design of this adapter converter does not cause the stress on the port of a small laptop that is common when using a box style adapter. Up to a 1920x1200 video resolution is supported, allowing this adapter converter to meet the needs of a high performance application. Connect this adapter directly to the output of a laptop and use a DVI-D cable to connect to a display.
Note: This adapter is not designed to support analog signals. This adapter should be used to connect an HDMI device to a display which accepts a DVI-D digital video input or to connect a DVI-D device to an HDMI display. This adapter is not capable of connecting a HDMI device to a VGA device.
Additional Technical Specs
Electrical Characteristics
• Resolutions Supported: 480i/480p, 576i/576p, 800x600, 720i/720p, 1280x1024, 1600x1200, 1080i/1080p
• Voltage: 5V, 500mA (VGA models)
• Voltage Rating: 30V
• Pixel clock rate: Up to 165MHz
• Impedance : 100±5
• Intra-pair skew: 15ps/m max
Physical Characteristics
• Minimum Bend Radius: 12mm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10° to 40° C
• Adapter Length: 203mm
• Approvals: CE
Conductor (Qty. 3)
• Conductor Type: 32AWG 7/0.08TCS x15 Tinned Copper
• Insulation: Foam-PE, ø0.63±0.05
• Shield: AL Wrap; Braid, 16/6/0.12AMA 75% Coverage
• Drain: 32AWG 7/0.127B
Overall Cable
• Jacket: PVC, Black
