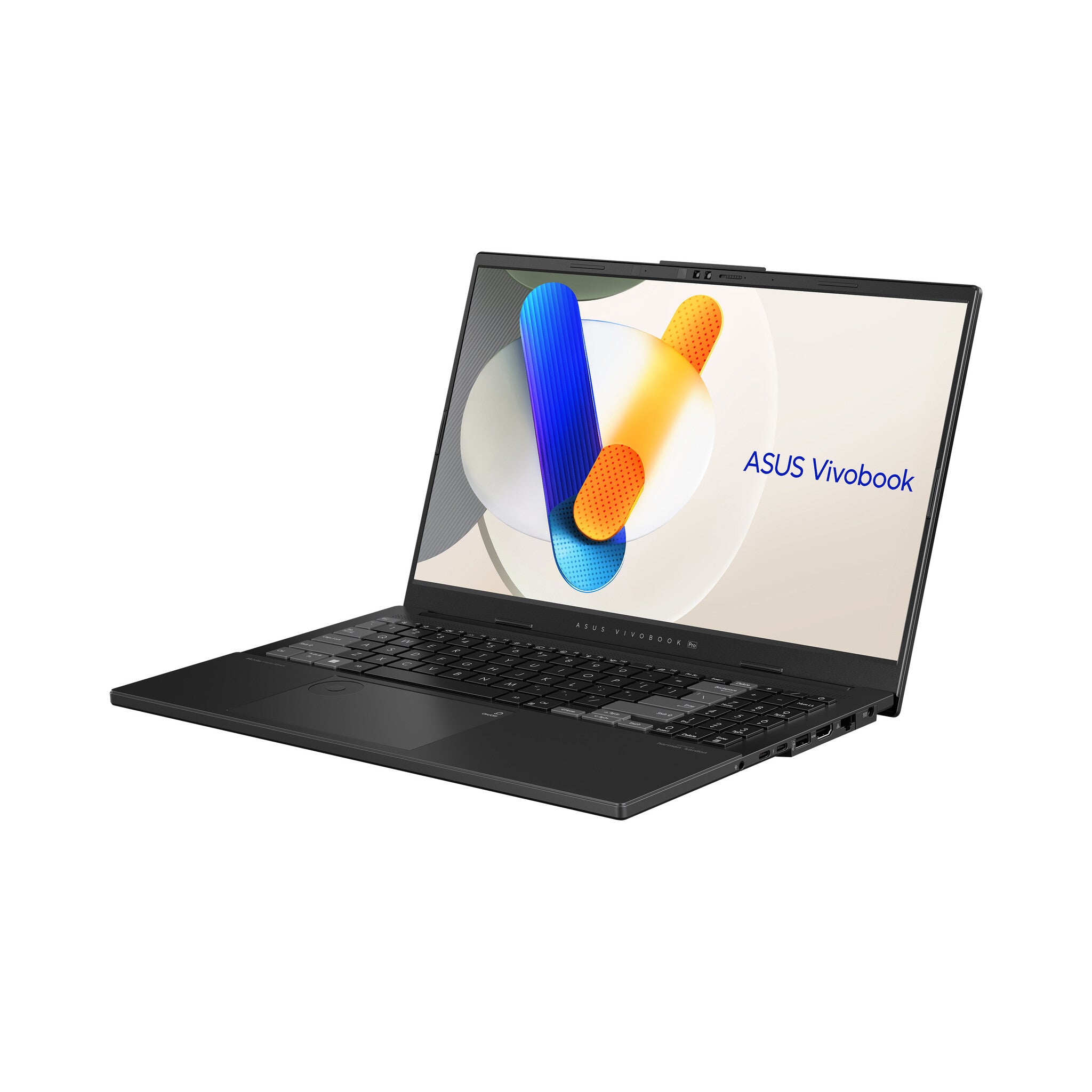

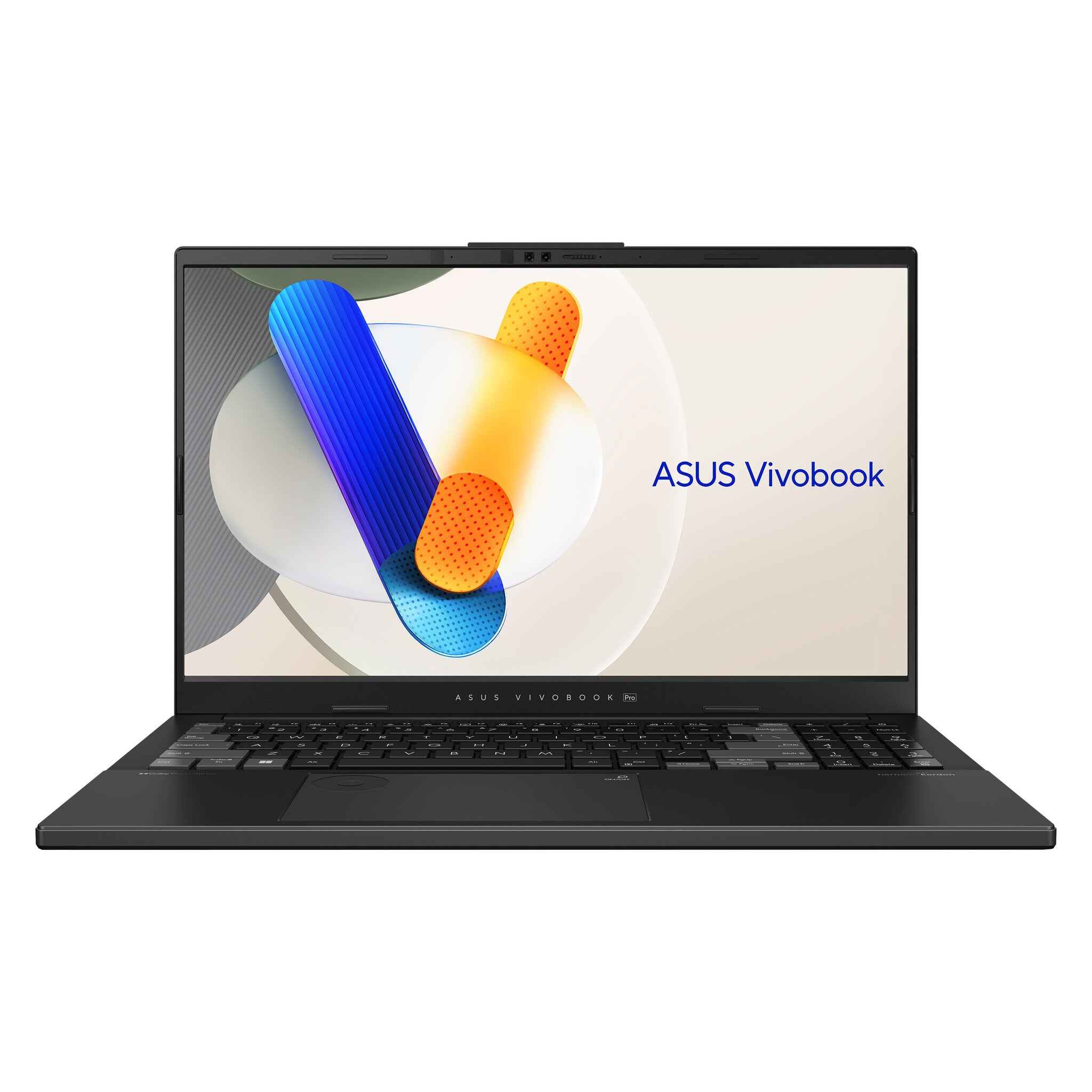

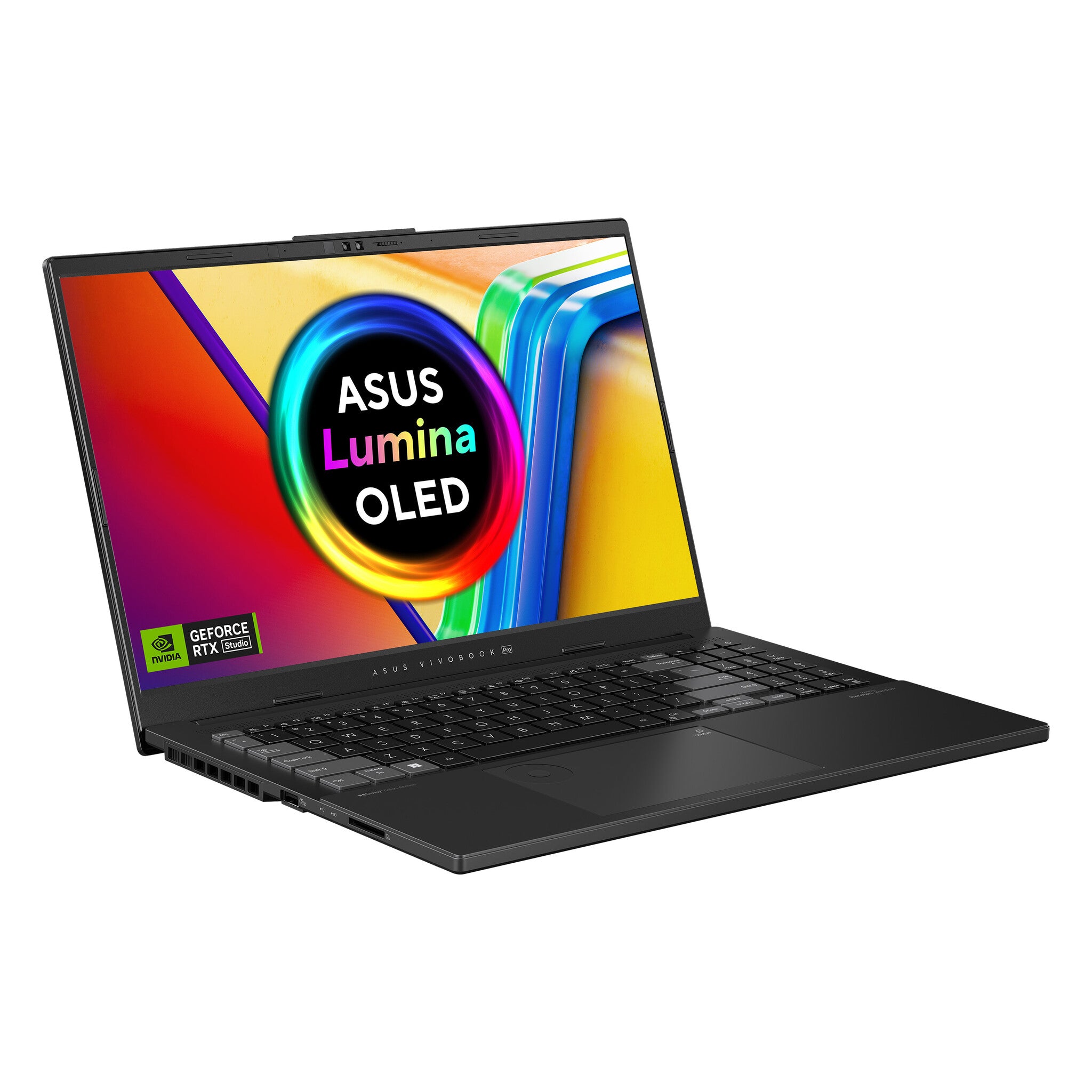

ASUS Vivobook Pro 15 OLED N6506MV-MA026W Intel Core Ultra 9 185H Laptop 39.6 cm (15.6") 3K 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Home Grey
£1,700.99
Couldn't load pickup availability
- Unlock AI experience
- Realise your creativity

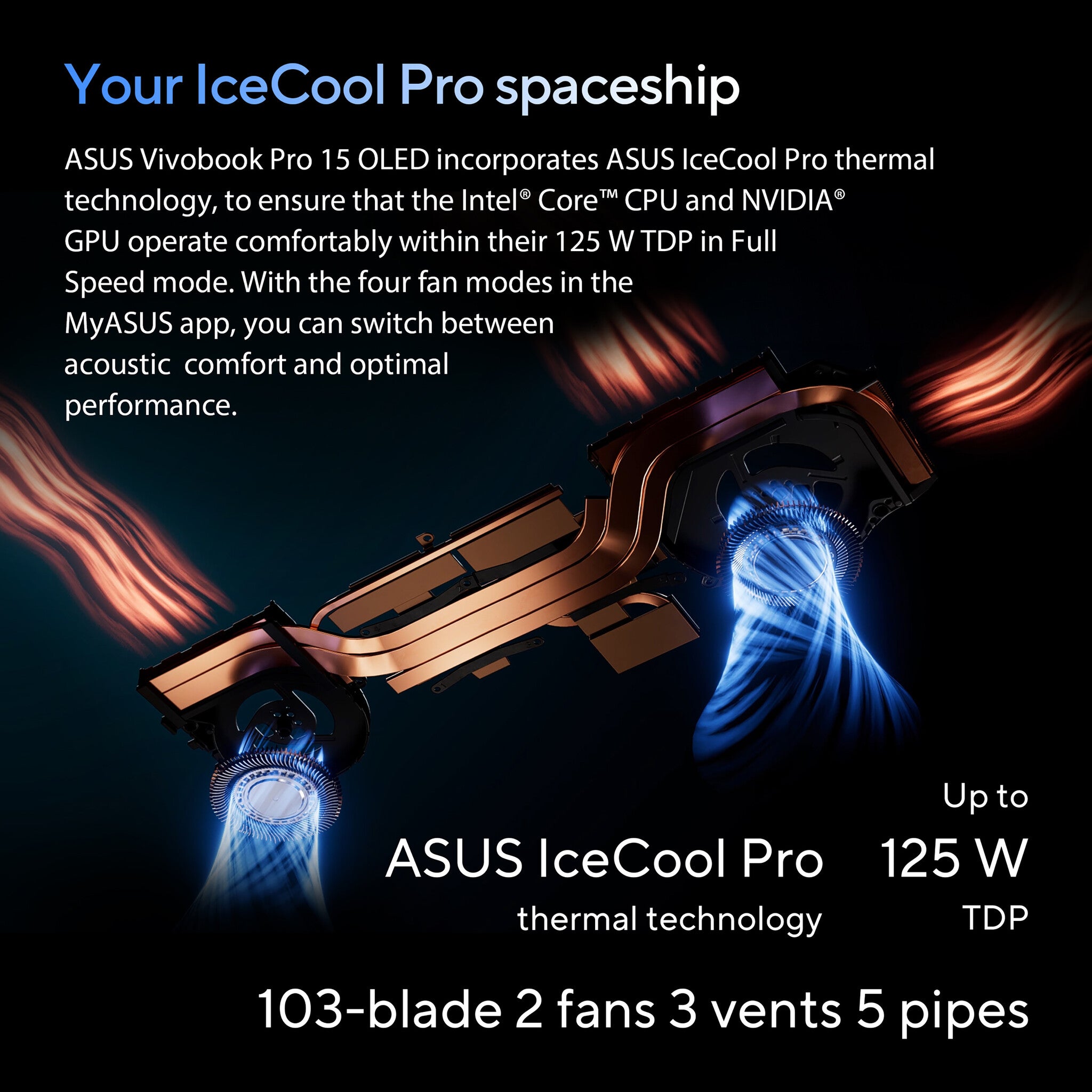

- ASUS IceCool for non-stop performance
- World-leading 16:9 3K 120Hz OLED display
- ASUS DialPad
- Enjoy it the easy way
- Protect your journey
ASUS Vivobook Pro 15 OLED(N6506)
Creative Pro, Gaming Pro!
ASUS Vivobook Pro 15 OLED delivers exceptional performance for pro creators and pro gamers. It empowers professional creativity, enhances your lifestyle, and immerses you in the world of gaming. Standout features include the world’s most advanced 15.6-inch 3K 120 Hz ASUS Lumina OLED display1, the latest Intel® Core™ Ultra 9 processor, and a high-performance NVIDIA® GeForce RTX™ 4060 GPU with a MUX switch. Uninterrupted top-tier performance — up to 125 W TDP2 — is ensured by the ultra-efficient triple-vented, dual-fan ASUS IceCool Pro cooling system. The unique ASUS DialPad gives you precise fingertip control of your apps, and you’ll enjoy exceptional high-speed connectivity with a Thunderbolt™ 4 port and a standard SD card reader for seamless file transfers. With multi-dimensional Dolby Atmos® audio, ASUS Vivobook Pro 15 OLED is the go-to choice for serious creators and avid gamers. Unleash your inner pro!
| Design | |
|---|---|
| Country of origin | China |
| Introduction year | 2024 |
| Market positioning | Home |
| Housing material | Plastic |
| Form factor | Clamshell |
| Colour name | Earl Grey |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| High Dynamic Range (HDR) technology | HDR True Black 600 |
| High Dynamic Range (HDR) supported | Yes |
| Contrast ratio (typical) | 1000000:1 |
| Display response rise/fall | 0.2 ms |
| Maximum refresh rate | 120 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Maximum display brightness (HDR) | 400 cd/m² |
| Display surface | Gloss |
| Native aspect ratio | 16:9 |
| Display number of colours | 1.073 billion colours |
| Panel type | OLED |
| HD type | 3K |
| Touchscreen | No |
| Display resolution | 2880 x 1620 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Processor | |
|---|---|
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Efficient-core boost frequency | 1.8 GHz |
| Performance-core base frequency | 2.3 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient cores | 8 |
| Performance cores | 6 |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 16 |
| Processor model | 185H |
| Processor family | Intel Core Ultra 9 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 24 GB |
| Memory slots | 1x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | On-board + SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Speakers manufacturer | Harman Kardon |
| Audio system | Smart Amp |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |

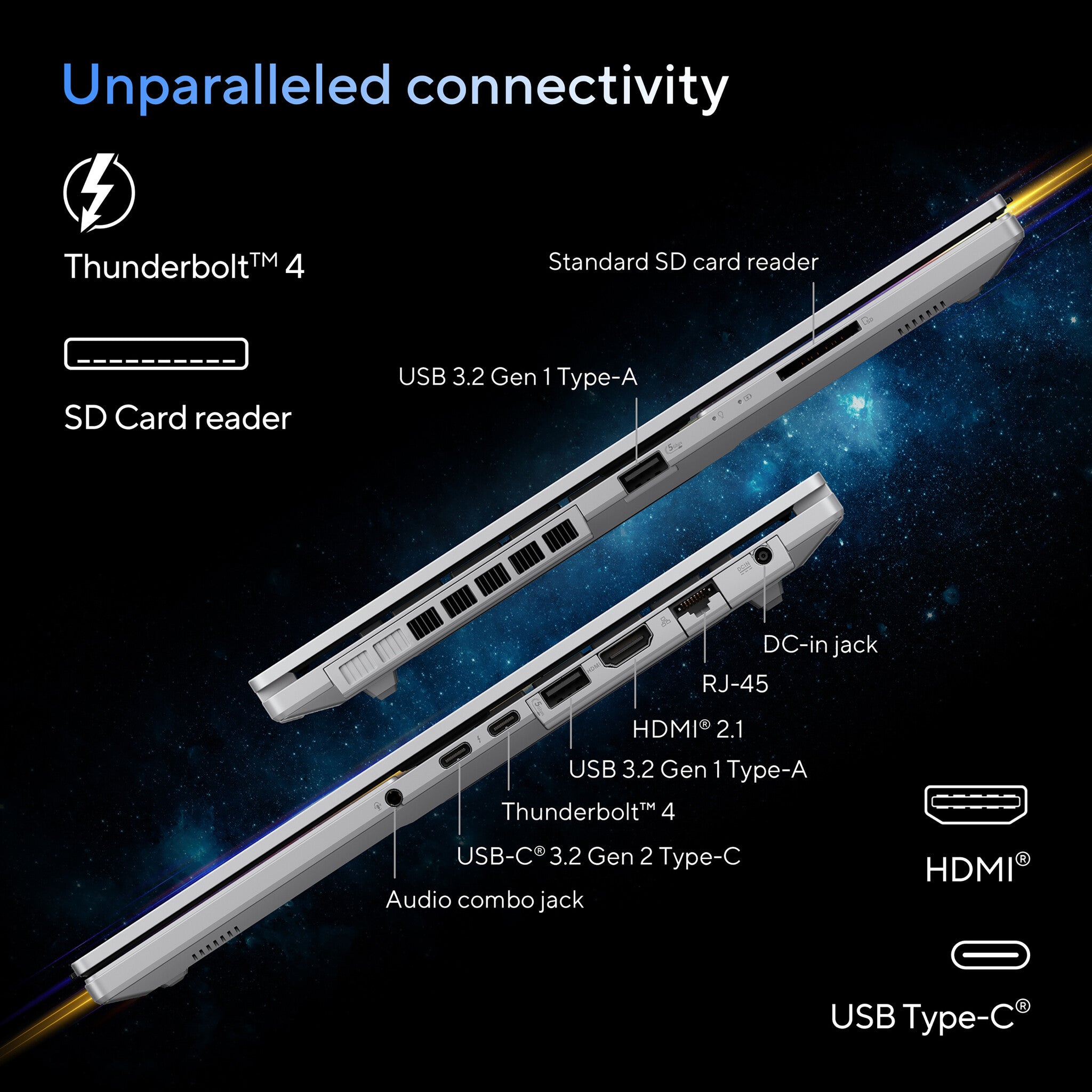

| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power adapter barrel connector | 6.0 mm |
| Combo headphone/mic port | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Performance | |
|---|---|
| Repairability index | 8.5 |
| Keyboard | |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery | |
|---|---|
| Battery capacity | 75 Wh |
| Number of battery cells | 4 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| DC-in jack | Yes |
| AC adapter output voltage | 20 V |
| AC adapter output current | 10 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 200 W |
| Security | |
|---|---|
| Password protection type | BIOS, User |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Windows Hello | Yes |
| Face recognition | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, REACH |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Height | 19.9 mm |
| Depth | 235.3 mm |
| Width | 355.7 mm |
| Weight | 1.8 kg |
| Packaging data | |
|---|---|
| Package weight | 3.76 kg |
| Package height | 310 mm |
| Package depth | 488 mm |
| Package width | 65 mm |
| General | |
|---|---|
| Product family | Vivobook |
| Product series | Pro 15 OLED |
| Logistics data | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
