MSI MPG B650I EDGE WIFI motherboard AMD B650 Socket AM5 mini ITX
Couldn't load pickup availability
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC mini ITX AMD B650 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 2 Maximum internal memory: 64 GB
- M.2, SATA RAID support Number of storage drives supported: 6
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.
M.2 Shield Frozr
With double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
10-Layer Server Grade PCB
10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

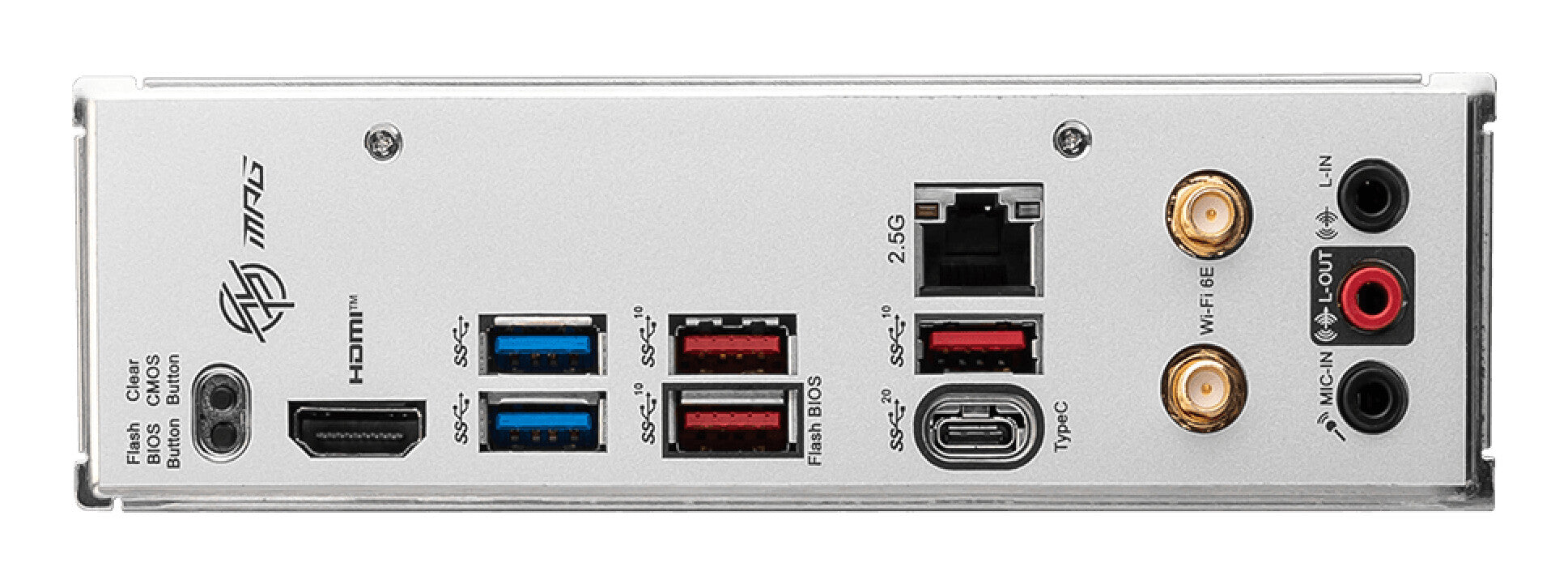

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Aluminium, Black |
| PC health monitoring | Fan |
| Windows operating systems supported | Windows 10 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
