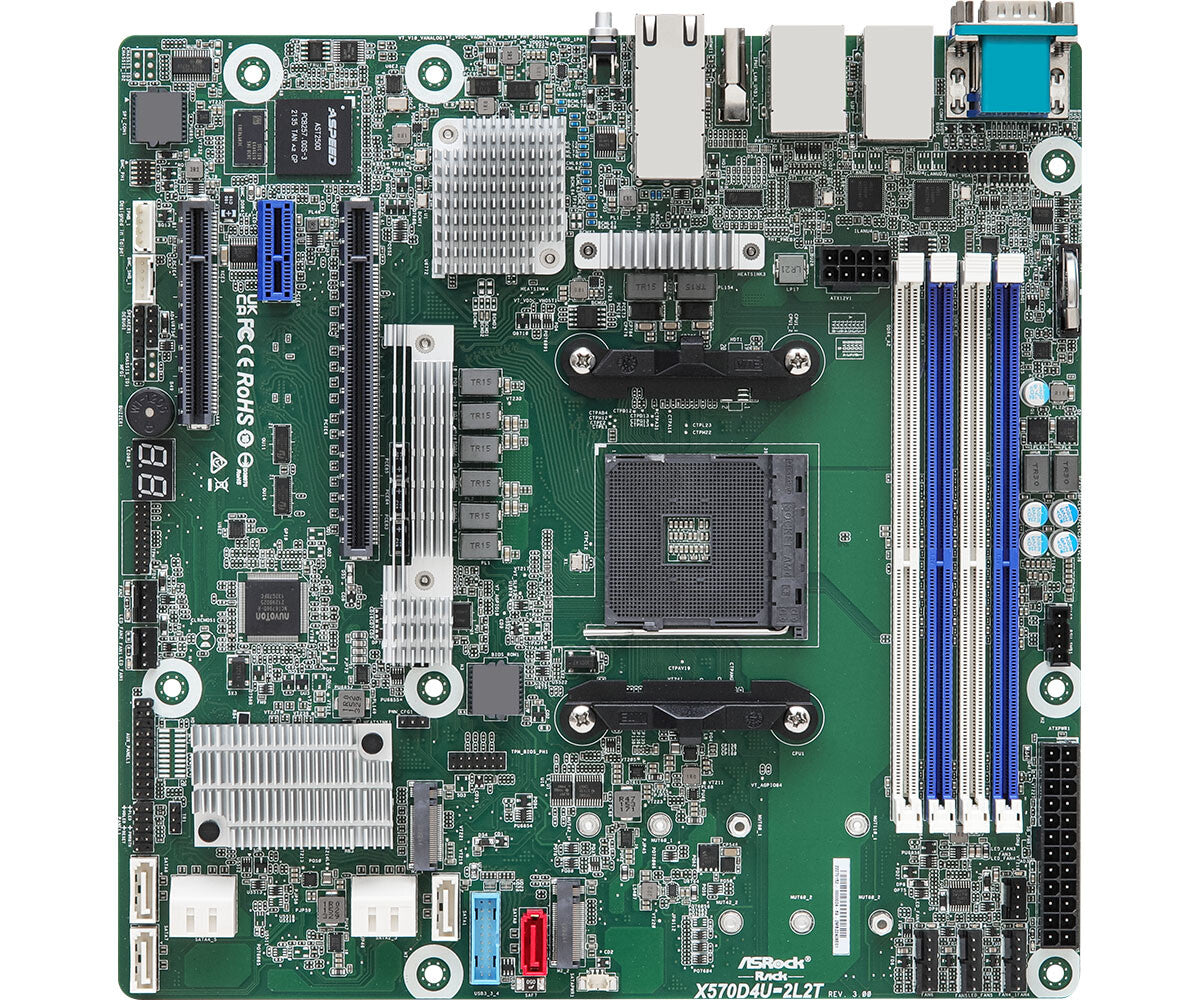

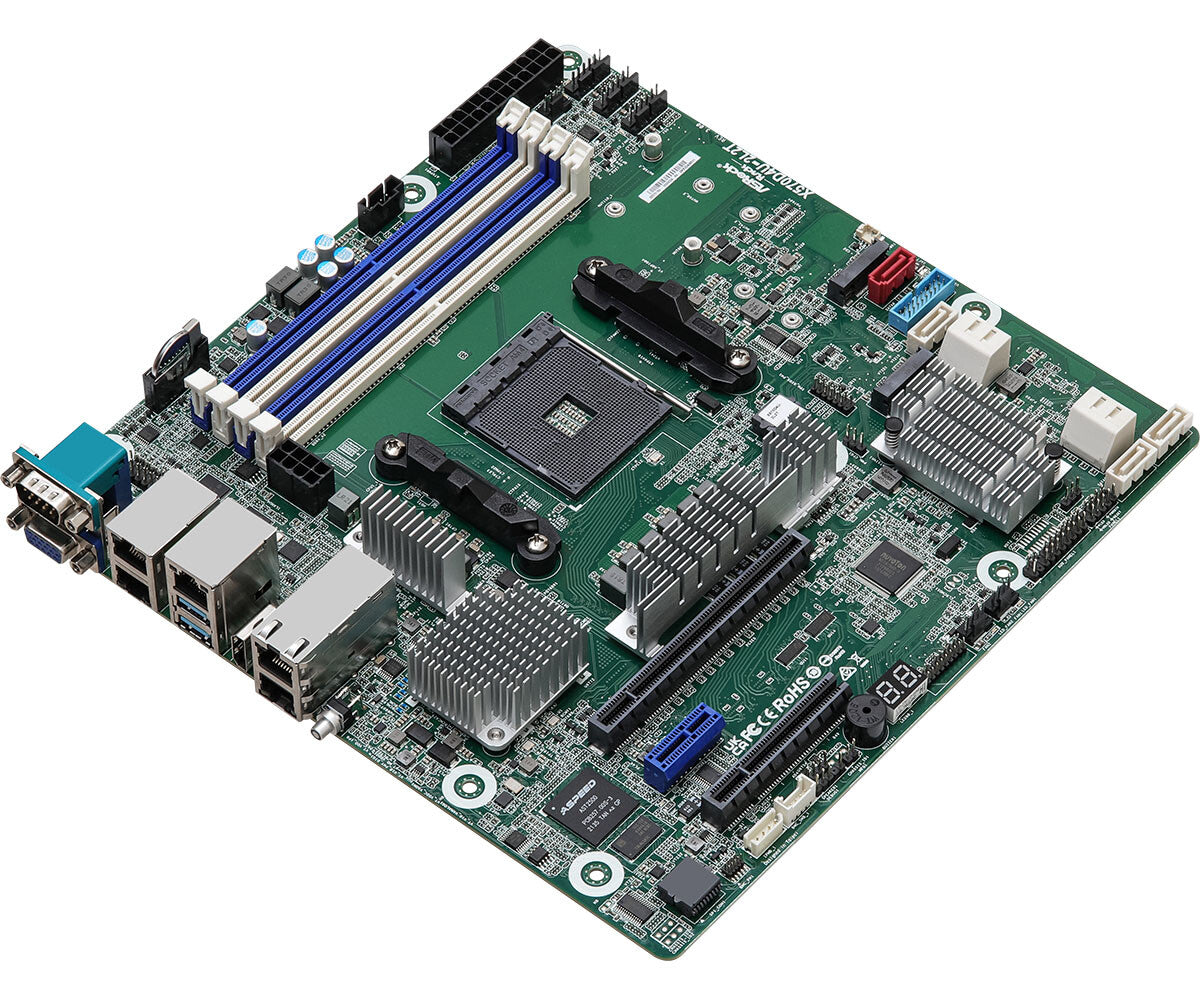

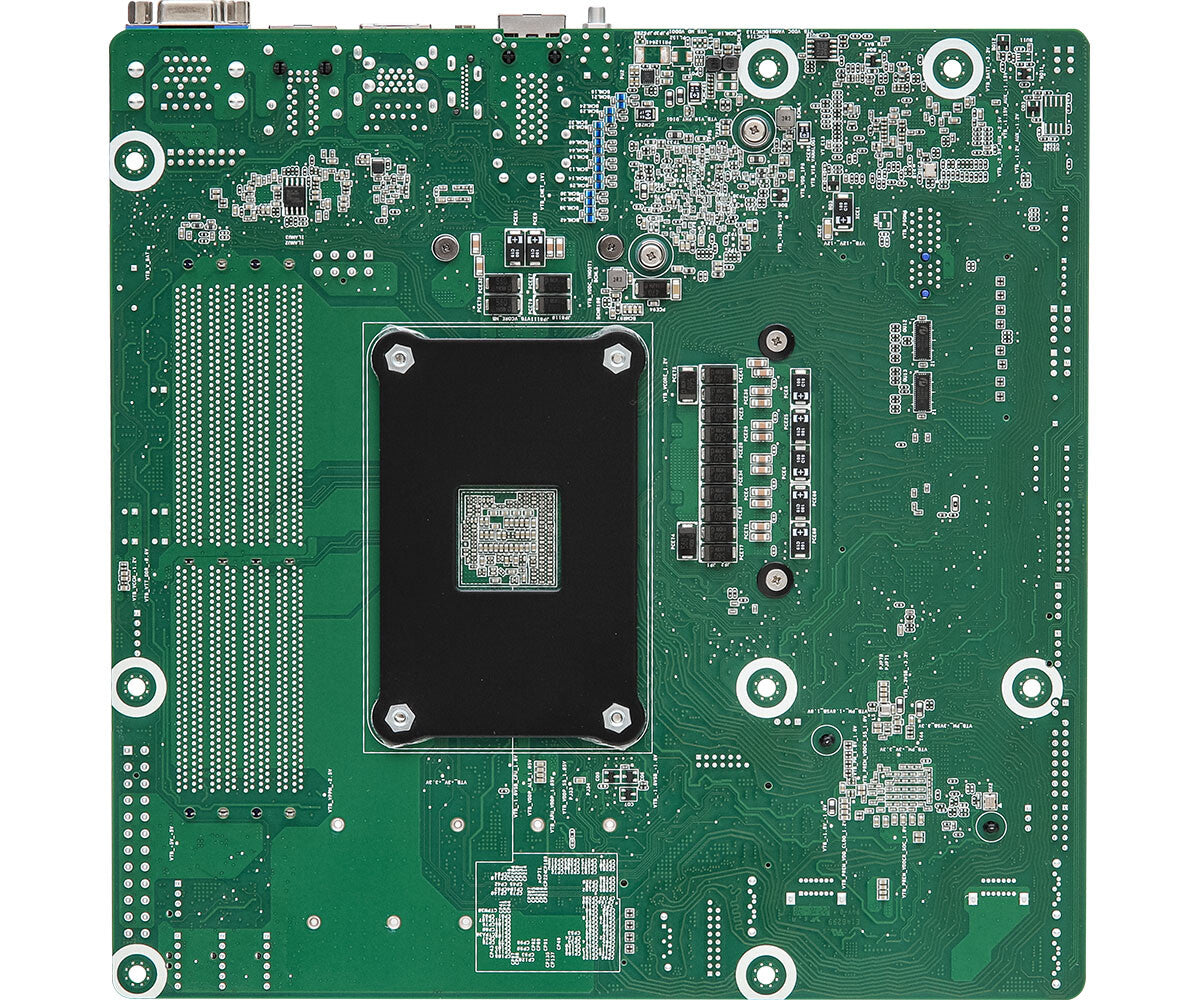

Asrock X570D4U-2L2T/BCM motherboard AMD X570 Socket AM4 micro ATX
£489.99
Couldn't load pickup availability
- Micro-ATX (9.6"x 9.6")
- Supports AMD Ryzen™ 5000 Series Desktop Processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1
- Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- HDMI
- Remote management (IPMI)
| Processor | |
|---|---|
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 2666,3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory voltage | 1.2 V |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SATA |
| Graphics | |
|---|---|
| Graphics card | AST2500 |
| Graphics card family | ASPEED |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

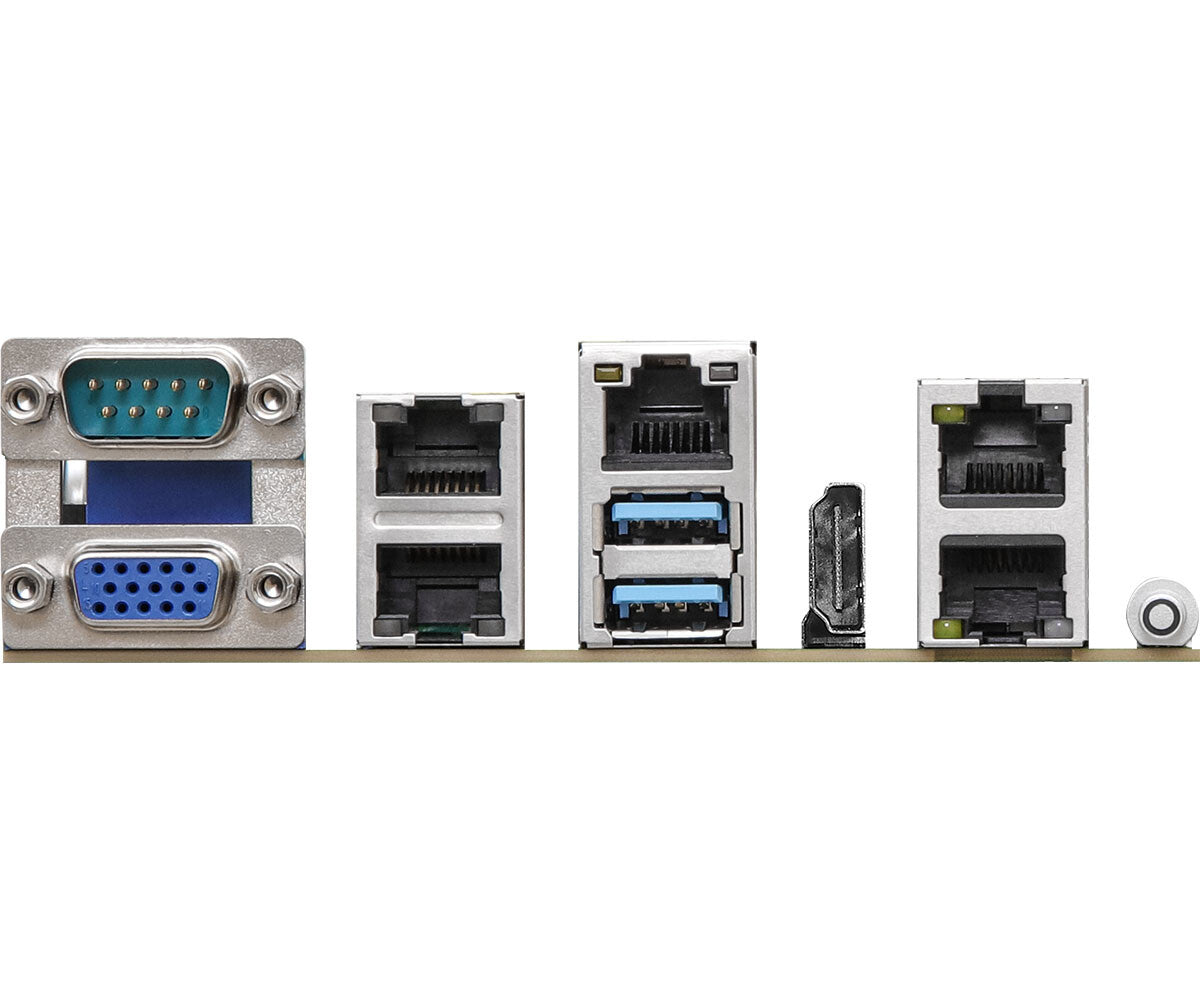

| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Motherboard chipset | AMD X570 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.3.0 |
| ACPI version | 6.2 |
| BIOS memory size | 32 Mbit |
| BIOS type | UEFI AMI |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Depth | 243.8 mm |
| Width | 243.8 mm |
